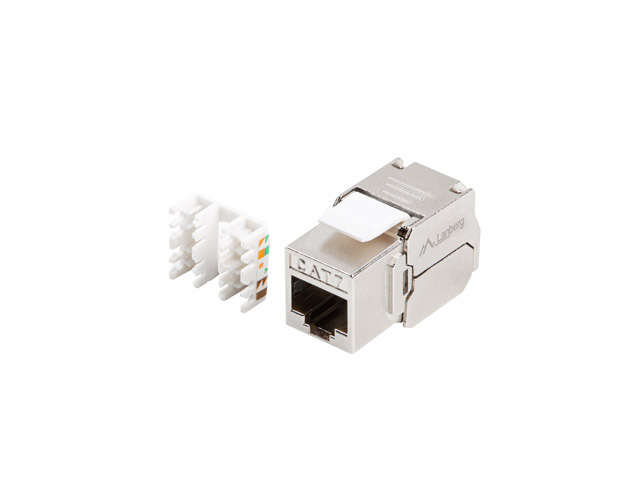

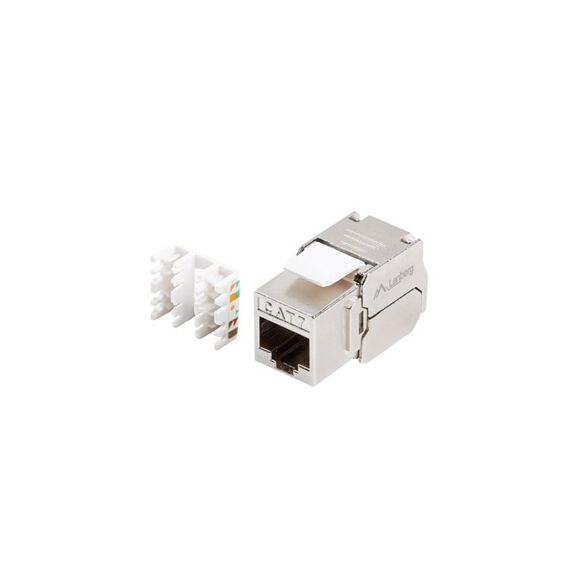

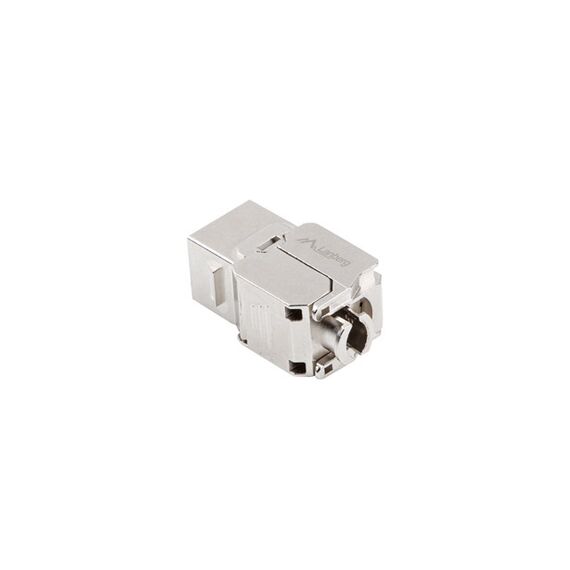

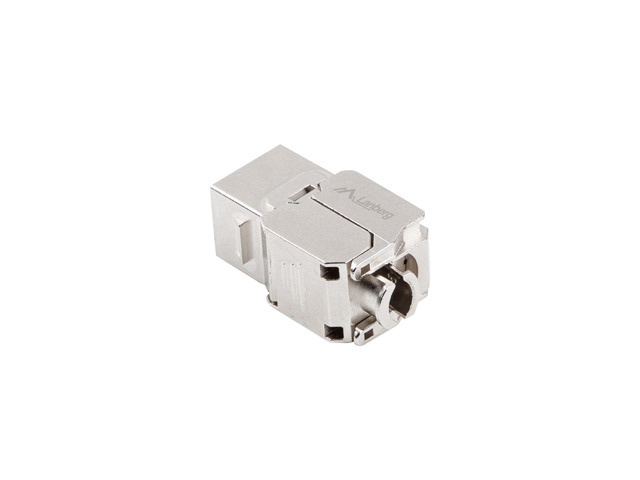

Lanberg KSF7-2000 — Cat 7 Shielded Toolless Keystone Module, RJ45 180°
Cat 7 shieldedToolless LSA22–26 AWGPoE ready
The Lanberg KSF7-2000 is a shielded Cat 7 keystone module with an RJ45 socket on the front and toolless LSA termination at the back, designed for installers who terminate shielded copper cable into keystone patch panels, wall outlets and surface boxes. The 180° (straight) design means the cable enters directly from the rear of the module.
The metal housing gives 360° shielding for S/FTP or F/FTP cable, and the colour-coded contacts for both T568A and T568B make punching down quick and consistent. Lanberg states it can be terminated without a tool, while still being compatible with an LSA tool if you prefer one.
Before you order: RJ45 is not part of the ISO Cat 7 (Class F) connector standard, so in practice this is a high-grade shielded RJ45 keystone for Cat 7 or Cat 6A cable. For a certified permanent link, the whole channel must be measured.
What's in the Box
- 1 × Lanberg KSF7-2000 Cat 7 FTP keystone module (single piece)
What It Means in Practice

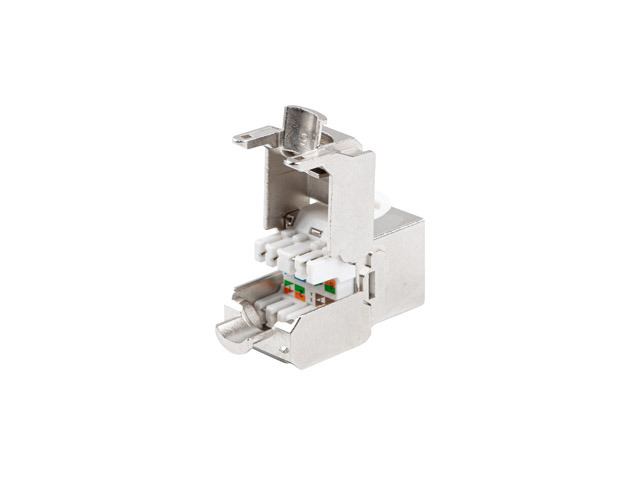

- Terminate the cable by pressing the wires into the colour-coded IDC contacts and closing the cover — no punch-down tool needed.
- Snaps into any keystone opening of 14.5 × 16.1 mm: modular patch panels, 45 × 45 mm adapters, wall plates and surface boxes.
- The shield of the cable must be bonded to the metal housing, and the panel must be earthed, otherwise shielding gives no benefit.
What Will Not Work
- It will not fit fixed-jack patch panels (panels with built-in RJ45 ports).
- It is not for unshielded (U/UTP) installations where the rest of the system is not earthed — use an unshielded keystone there.
- It does not accept stranded patch cable thicker than 22 AWG or thinner than 26 AWG.
Key Features
Toolless termination
Wires are pressed in and locked by the cover, which speeds up installation in panels and wall boxes.
Full metal shielding
Metal housing for shielded cable runs in electrically noisy environments.
T568A and T568B coded
Colour-coded IDC contacts for both wiring schemes.
PoE ready
Lanberg lists PoE support, rated up to 125 V.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
For shielded cabling, the keystone is only as good as its earthing. Use metal modules like this with a shielded keystone panel and an earthed rack, and keep the cable shield continuous all the way to the module. See our network cables for matching shielded patch cords.
✓ Buy it if you are terminating shielded Cat 6A or Cat 7 cable into keystone panels or wall outlets and want fast toolless installation.
✕ Skip it if your patch panel has fixed RJ45 jacks, or your installation is fully unshielded and unearthed.
→ Also consider an unshielded Cat 6 keystone for budget U/UTP runs, or a shielded 24-port keystone patch panel to hold these modules.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
