Lanberg KSU6-1090 Keystone Module RJ45 to LSA Cat6 UTP, 90° Angled for Mounting Boxes, Tool-Free LSA Slots, White
Brand:
Lanberg
Lanberg KSU6-1090 Keystone Module RJ45 to LSA Cat6 UTP, 90° Angled for Mounting Boxes, Tool-Free LSA Slots, White
€3.2 inc. VAT
KSU6-1090
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Lanberg KSU6-1090 — Cat6 UTP Keystone Module, RJ45 to LSA, 90° for Mounting Boxes
Cat6 U/UTP90° angledRJ45 → LSAWhite
The Lanberg KSU6-1090 is a white Cat6 U/UTP keystone module with an RJ45 socket and LSA (IDC) terminals angled at 90°, designed for 45×45 and 22.5×45 sockets and mounting boxes where the cable enters from behind and space is tight.
The 90° termination lets the cable leave the module sideways instead of straight back, so the outlet sits flat in a shallow wall box. Colour-coded markings support both T568A and T568B, and the LSA slots work with a standard LSA punch-down tool.
Before you order: Lanberg warns that, because of its wide housing, the module may be difficult or impossible to use in classic patch panels. Choose it for wall/floor boxes, not for panels.
What's in the Box

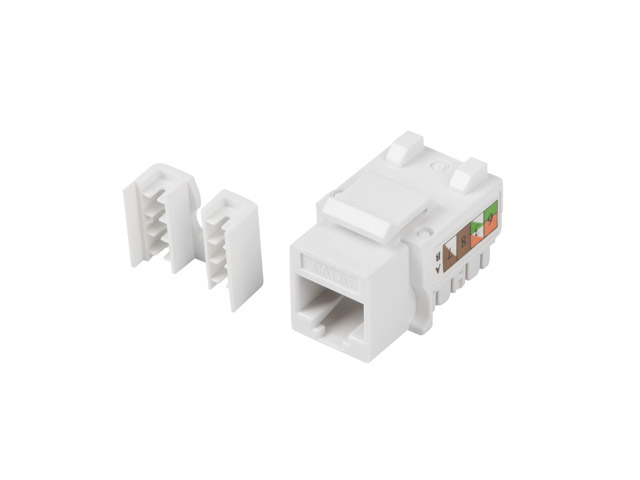

- 1 × Lanberg KSU6-1090 keystone module RJ45 → LSA Cat6 UTP 90°, white
What It Means in Practice
- Ideal for 45×45 office sockets (Mosaic-style frames) and surface or flush boxes where depth is limited.
- Unshielded (U/UTP) — pair it with unshielded Cat6 installation cable; for shielded cabling choose an STP module.
- PoE devices (cameras, access points, phones) work through it — Lanberg specifies PoE up to 36 V.
What Will Not Work
- Classic 19" patch panels with tight keystone spacing — the wide housing may not fit (manufacturer warning).
- Shielded Cat6A/Cat7 installations — this is an unshielded Cat6 module.
- Conductors outside AWG 22–26.
Key Features
90° termination
Cable exits sideways — fits shallow wall boxes.
LSA / IDC slots
Universal slots for an LSA tool, with IDC cover.

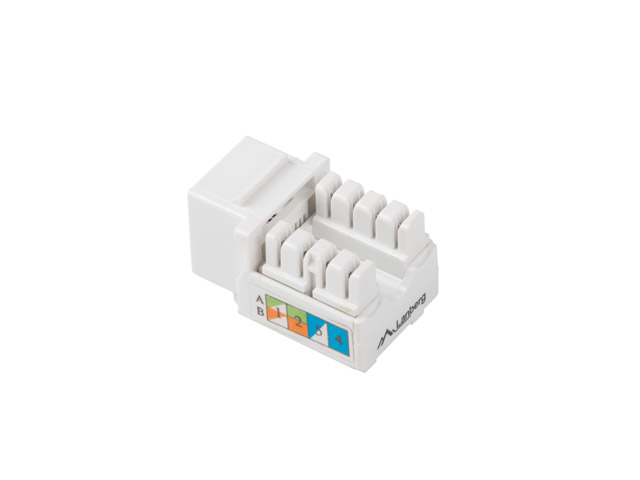

T568A / T568B
Colour-coded marking for both wiring schemes.
Built on PCBA
Phosphor bronze contacts, more than 750 mating cycles.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Angled keystones solve the classic problem of shallow wall boxes: the cable no longer has to bend tightly behind a straight jack. Keep the system consistent — unshielded Cat6 cable, unshielded Cat6 modules — and finish with good Cat6 patch cables at the desk.
✓ Buy it if you are fitting Cat6 UTP outlets in 45×45 sockets or shallow mounting boxes.
✕ Skip it if you are populating a 19" patch panel or running shielded cable.
→ Also consider Lanberg straight Cat6 keystone modules for patch panels, or the KSU6-3000 feed-through coupler.
Not sure the module fits your box or frame? Send us the model and we will check it before you order.
Features - Lanberg - KSU6-1090
Colour
white
More Details
Product Code
04:529841
EAN Code
5901969415827
Manufacturer
Lanberg
