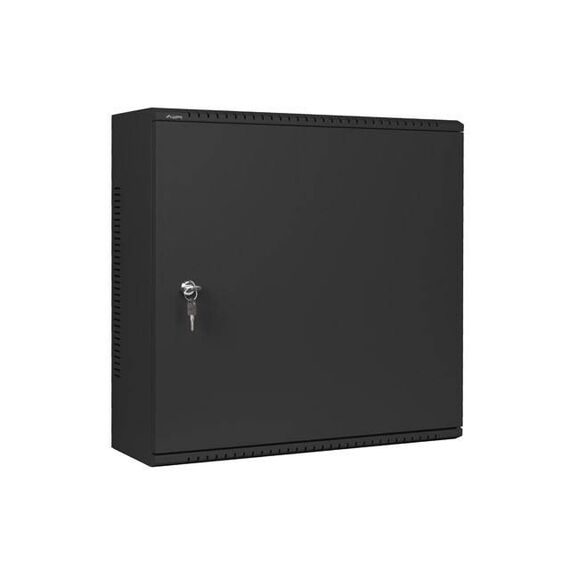

Lanberg WAF1-5203-06-00B — 19″ Low-Profile Wall-Mount Rack Cabinet, 6U+3U, Black
6U + 3U · 19″200 mm deepLockable metal doorAssembled
The Lanberg WAF1-5203-06-00B is a low-profile 19″ wall-mount rack cabinet in black (RAL 9004): 540 mm wide, 540 mm high and only 200 mm deep, with 6U of 19″ space plus an extra 3U utility area. The shallow body keeps it close to the wall in corridors, offices and shops, where a normal cabinet would stick out. It suits patch panels, keystone panels and slim switches, with a TS-35 DIN rail supplied for small DIN devices. The 1 mm metal door opens 220° and has a front lock, side panels close the body, and it carries up to 60 kg static load at IP20. Cables come in through eight punch-out grommets at the rear and screw-off openings top and bottom. It arrives assembled, with M6 screws, a grounding cable and a user manual.
Compatibility — check before buying:
Usable depth is only 143 mm. Patch panels and slim switches fit; most standard switches, routers, NVRs and servers are deeper and will not fit — measure your devices first. It is a 19″ cabinet. The metal door hides status LEDs; if you want to see them, choose a glass-door cabinet. The grey version is WAF1-5203-06-00S. Send us your equipment list and we check it.
Best For
✓ Patch panel termination points
✓ Corridors and narrow spaces
✓ Offices and shops
✓ Slim switches and keystone panels
✓ DIN-rail devices next to cabling
✓ Discreet wall installations
Key Features
Low profile, 200 mm deep
Sits close to the wall where a standard cabinet would protrude.
6U + 3U layout
Six 19″ units plus a 3U utility space, with a TS-35 DIN rail included.

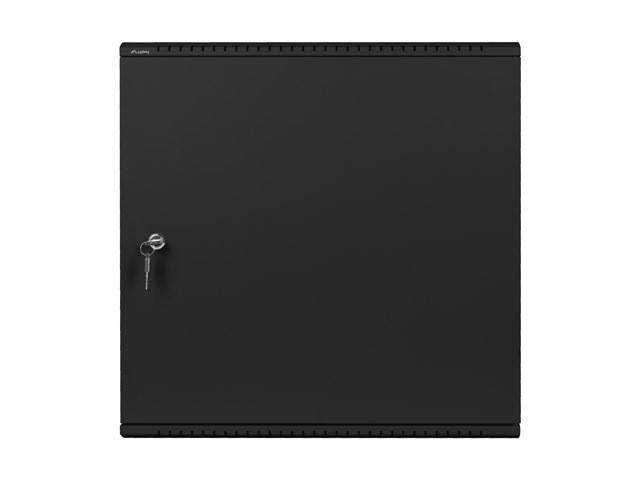

Lockable metal door
1 mm metal door opening 220° with a front lock.
Rear cable grommets

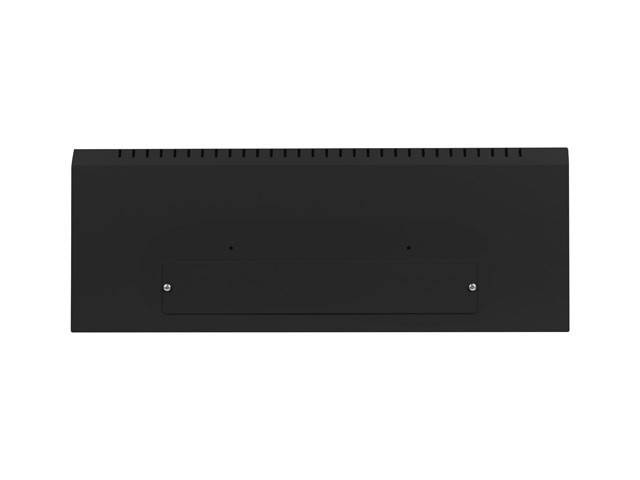

Eight punch-out grommets at the rear plus openings top and bottom.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
We suggest the WAF1-5203-06-00B for patch panel termination points in corridors and offices, where a shallow, discreet cabinet looks better than a deep one. It is not a cabinet for switches and routers of normal depth. Every order comes with Singular’s local support in Cyprus. See our patch panels and network switches, or browse all racks and cabinets.
Buyer’s Guide
Buy it if
You need a shallow, lockable 19″ wall cabinet for patch panels and slim switches.
Skip it if
Your equipment is deeper than 143 mm or you want a glass door.
Also consider
Lanberg WAF1-5203-06-00S, the grey version.
Features - Lanberg - WAF1-5203-06-00B
Colour
black
More Details
Product Code
04:528001
EAN Code
5901969441697
Manufacturer
Lanberg
