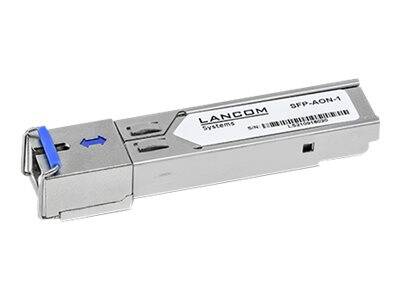

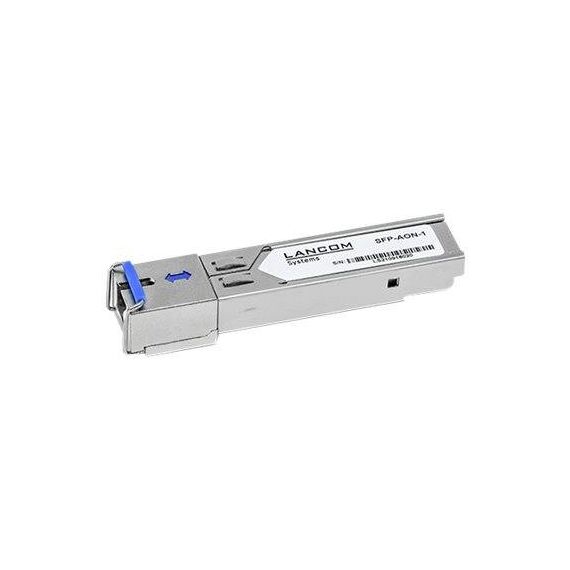

LANCOM SFP-AON-1 - SFP (mini-GBIC) transceiver module - GigE, AON - 1000BASE-BX20-U, 1000Base-BX10-U - SC/APC single-mode - up to 20 km - 1310 (TX) / 1480-1580 (RX) nm - for LANCOM 1790, 1900, 1906, 1926, ISG-1000, ISG-4000, ISG-8000 | 60200
Brand: Lancom Systems
LANCOM SFP-AON-1 - SFP (mini-GBIC) transceiver module - GigE, AON - 1000BASE-BX20-U, 1000Base-BX10-U - SC/APC single-mode - up to 20 km - 1310 (TX) / 1480-1580 (RX) nm - for LANCOM 1790, 1900, 1906, 1926, ISG-1000, ISG-4000, ISG-8000 | 60200
€150.67 inc. VAT
60200
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Reliable support for AON technology
For fiber to the home (FTTH) data transmission, AON technology is a future-proof solution: AON-based network architecture is characterized by flexible bandwidths as well as high transmission ranges. The components of the Gigabit speed optical network reduce its maintenance and costs, making it reliable and scalable. An upgrade to AON technology is, thus, easy to realize with the LANCOM SFP-AON-1. - Direct connection to AON FTTH networks without separate provider modem
While previously an additional fiber-optic modem had to connect the fiber-optic connection in the building to the router, the LANCOM SFP-AON-1 now handles the necessary conversion of the incoming data signals. This eliminates the need for cabling and installation of a modem as well as the laying of an additional power supply. - Easy integration of the LANCOM SFP-AON-1
The uncomplicated connection of a LANCOM SFP-AON-1 module is realized via the SFP ports of the LANCOM 1790EF, the LANCOM 19xx series, the LANCOM ISG-8000, LANCOM ISG-4000, and LANCOM ISG-1000.
Special Fetures
- Simplex SC/APC transceiver
- Direct connection to AON FTTH networks without separate provider modem
- Constant transmission bandwidth and interference-free technology
- Operating temperature -40°C to 85°C
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | |
| Connectivity Technology | Wired |
| Cabling Type | 1000BASE-BX20-U, 1000Base-BX10-U |
| Data Link Protocol | GigE, AON |
| Data Transfer Rate | 1 Gbps |
| Optical Wave Length | 1310 (TX) / 1480-1580 (RX) nm |
| Max Transfer Distance | 20 km |
| Features | Fibre-to-the-home (FTTH) |
| Expansion / Connectivity | |
| Interfaces | 1 x Ethernet 1000Base-BX10-U/1000Base-BX20-U - SC/APC single-mode |
| Miscellaneous | |
| Cables Included | 1 x LC/APC to SC/APC cable - 3 m |
| Compliant Standards | MSA SFF-8472 |
| Power | |
| Power Consumption Operational | 1 Watt |
| Environmental Parameters | |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 85 °C |
| Compatibility Information | |
| Designed For | LANCOM 1790EF, 1900EF, 1900EF-5G, 1906VA, 1906VA-4G, 1926VAG, 1926VAG-4G, 1926VAG-5G, ISG-1000, ISG-4000, ISG-8000 |
Features - Lancom Systems - 60200
More Details
Product Code
04:390123
EAN Code
4044144602009
Manufacturer
Lancom Systems
