LANCOM SPSU-920 61498 Hot-Swappable 920W Power Supply Module for LANCOM GS-3652XUP GS-4530XP XS-3550YUP PoE Switches Redundancy

Brand:
Lancom Systems
LANCOM SPSU-920 920W Hot-Swap PSU Module 61498
LANCOM SPSU-920 61498 Hot-Swappable 920W Power Supply Module for LANCOM GS-3652XUP GS-4530XP XS-3550YUP PoE Switches Redundancy
€1160.11 inc. VAT
Buy
61498
€974.88
€1,160.11 inc. VAT
Ships from EU stock: 41 item(s)
+ −
Add to wish list Ask a question
Product Code
04:320869
EAN Code
4044144614989
Manufacturer
Lancom Systems

Quick Specs

Power
920 W, 54.5 V DC
Input
100–240 V AC
Swap
Hot-swappable
Use
Redundancy or PoE boost
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LANCOM SPSU-920 — 920 W Power Supply Module

920 WHot-swapRedundancyPoE boost

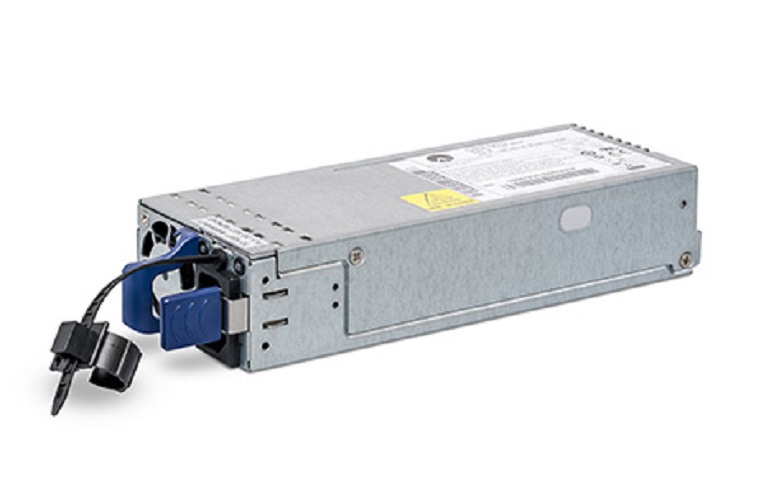

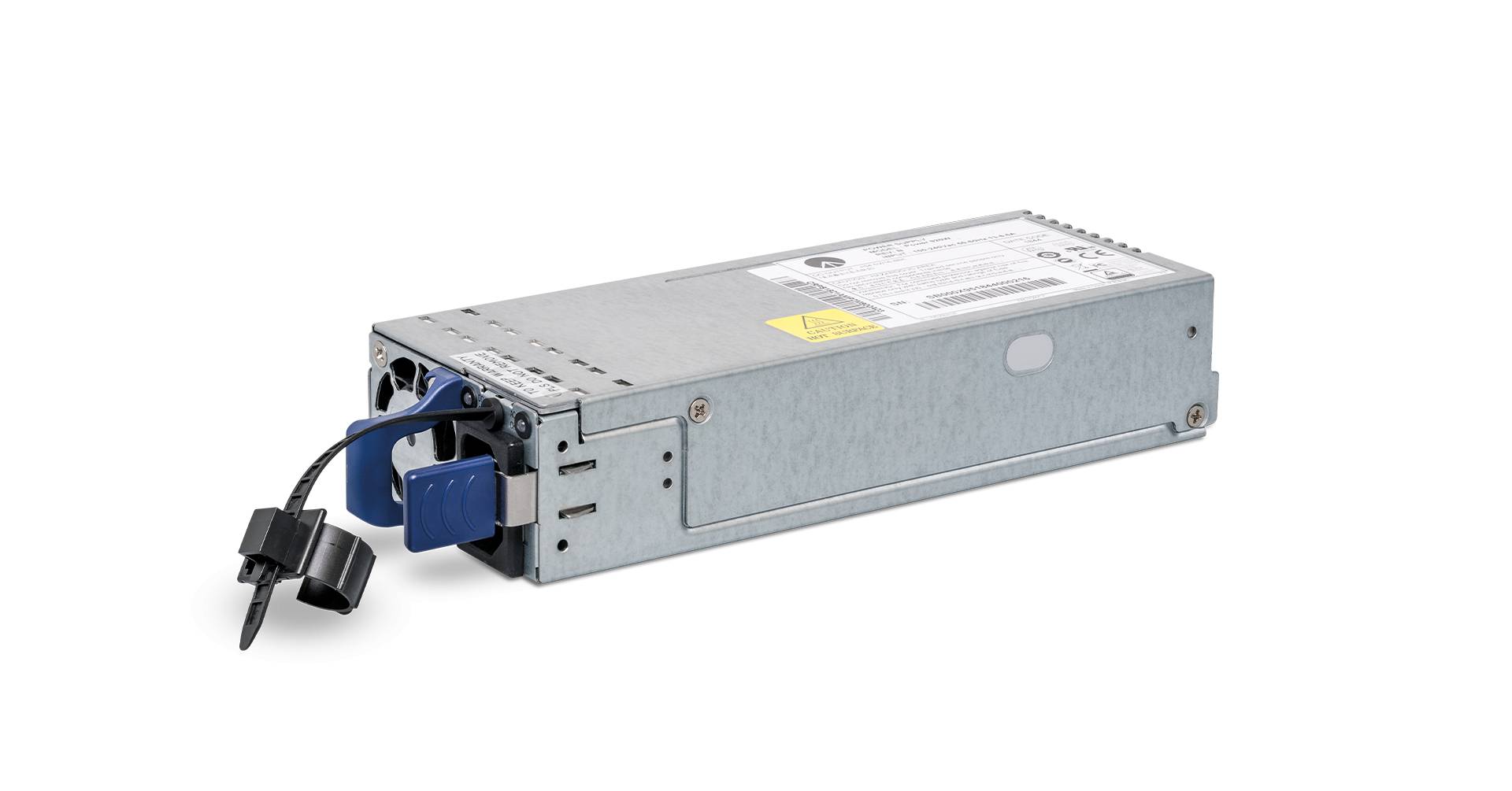

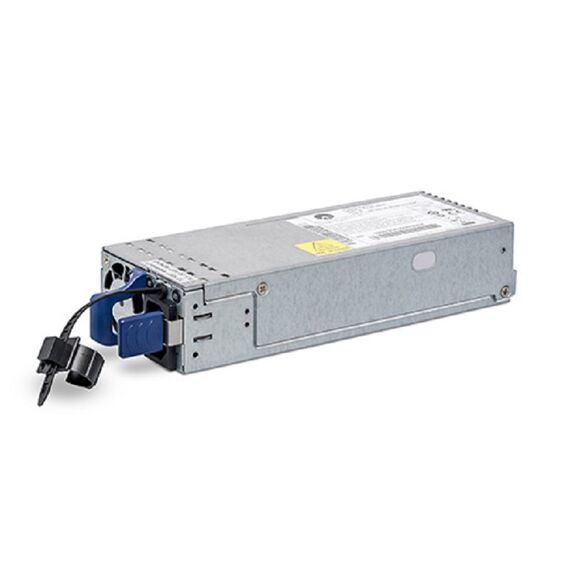

The LANCOM SPSU-920 (item 61498) is a hot-swappable 920 W power supply module for LANCOM PoE access switches. It slides into the second power slot of a supported switch and either doubles as a redundant supply or raises the PoE budget in boost mode. It takes 100–240 V AC, delivers 54.5 V DC at up to 16.88 A, has over-current, over-voltage and over-temperature protection and can be inserted during operation. The module measures 220 × 40 × 74 mm and weighs 900 g. On the GS-3652XUP, for example, the switch datasheet gives 720 W of PoE with one supply and 1,440 W with a second one.

Compatibility — check before buying:
Redundancy or more PoE — not both at full load. In boost mode the second supply raises the PoE budget, but then a single supply can no longer carry the full load. LANCOM lists the GS-3152XSP, GS-3652XUP, GS-4530XP, GS-4554XP, GS-4530XUP, GS-4554XUP, XS-3550YUP, XS-4554YUP and XS-4530YUP. It does not fit switches that use the SPSU-250, -400 or -750. No power cord is listed in the box. Not sure? Tell us your model and we check it for you.

Best For

✓ LANCOM GS-3652XUP
✓ LANCOM GS-4500 series PoE switches
✓ LANCOM XS-3550YUP and XS-4500 series
✓ Redundant switch power
✓ Larger PoE budgets
✓ Spare parts stock

Key Features


920 W
54.5 V DC, up to 16.88 A.

Hot-swappable
Insert or replace during operation.

Redundancy or boost
Fail-safety or a larger PoE budget.

Protected
Over-current, over-voltage, over-temperature.

Technical Specifications

Identification
Brand LANCOM
Product R&S®LANCOM SPSU-920
Part Number 61498
EAN / GTIN 4044144614989
Model SPSU-920
Product Type Hot-swappable PSU module for PoE switches
Electrical
Output power 920 W
Input 100–240 V AC, 50–60 Hz; 13.5 A at 100 V, 6.5 A at 230 V
Output 54.5 V DC, max. 16.88 A, ±3%
Protection Over-current, over-voltage, over-temperature
Hot swap Yes
PoE Budget (datasheets)
SPSU-920 datasheet 820 W, or 1,440 W as second PSU in boost mode; 720 W on GS-4530XP
GS-3652XUP datasheet 720 W with one PSU, 1,440 W with two
Physical & Environment
Dimensions 220 × 40 × 74 mm
Weight 900 g
Operating temperature −5 to 45 °C
Compatibility
Switches GS-3152XSP, GS-3652XUP, GS-4530XP, GS-4554XP, GS-4530XUP, GS-4554XUP, XS-3550YUP, XS-4554YUP, XS-4530YUP
Not for Switches using SPSU-250, SPSU-400 or SPSU-750
In the Box
Included SPSU-920 module, installation instruction
Not Included Power cord (not listed); the switch
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term The R&S LANCOM datasheet for the SPSU-920 lists a 2-year warranty extension and does not state the base term separately. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Which switches does it fit?
LANCOM lists the GS-3652XUP, GS-4500 series, XS-3550YUP and XS-4500 series, among others.
Can I replace it while the switch runs?
Yes, it is hot-swappable.
Does a second supply give redundancy or more PoE?
Either; in boost mode you get more PoE but lose full redundancy.
Is a power cord included?
LANCOM does not list one.
Singular Expert Insight
Decide first whether the second slot is for safety or for PoE power, then set the switch accordingly. If you run many Wi-Fi 7 access points, boost mode is usually the reason to buy. For switches, see our switches.

Buyer’s Guide

Buy it if

You need a second or replacement supply for a supported LANCOM PoE switch.

Skip it if

Your switch uses the SPSU-250, -400 or -750.

Also consider

LANCOM GS-3652XUP PoE switch.
