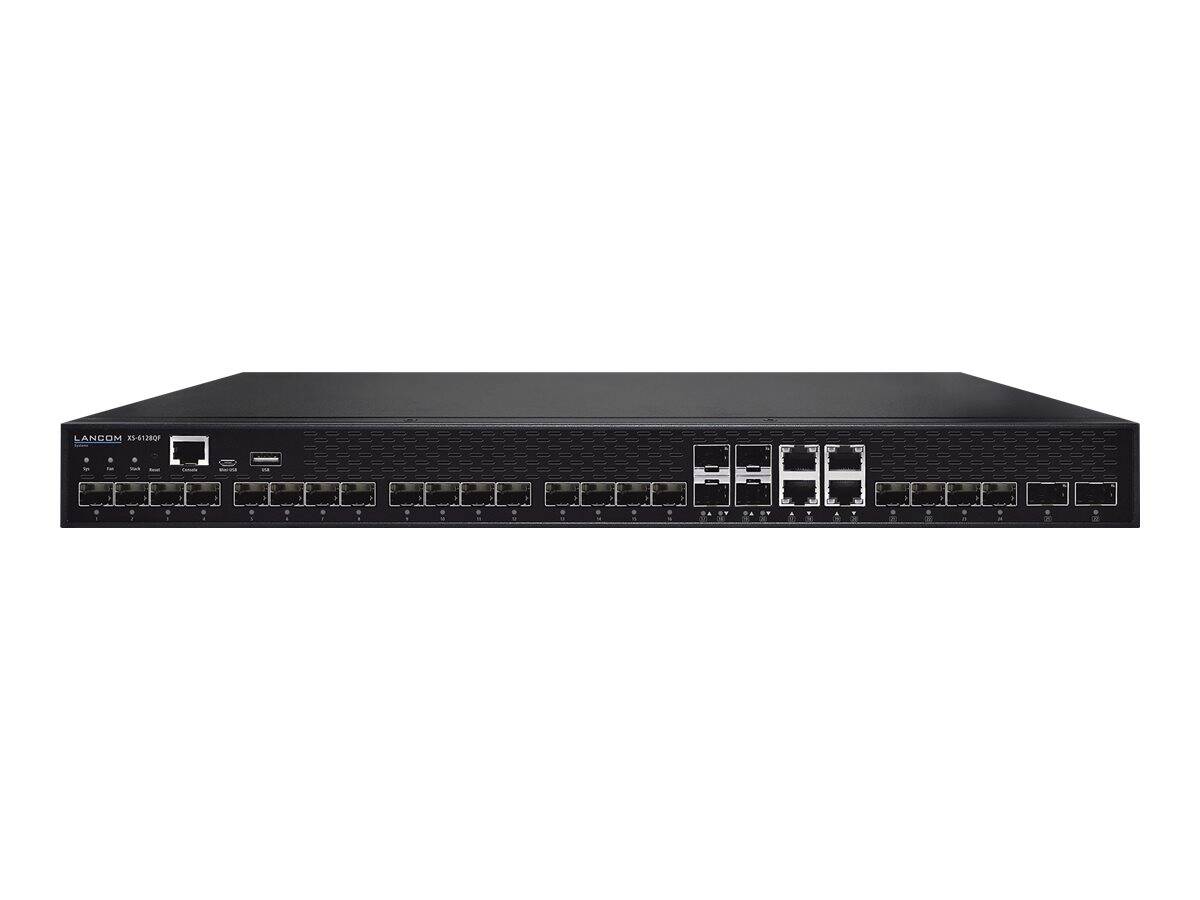

LANCOM XS-6128QF L3 Managed Switch 20-Port 10GbE, 25GbE, 40GbE, 1U Rack-Mountable

Brand:
Lancom Systems
LANCOM XS-6128QF - Switch - L3 - Managed - 16 x 10 Gigabi | 61860
LANCOM XS-6128QF L3 Managed Switch 20-Port 10GbE, 25GbE, 40GbE, 1U Rack-Mountable
€18736.47 inc. VAT
Buy
61860
€15,744.93 €17,494.37
€18,736.47 inc. VAT
Ships from EU stock: 9 item(s)
+ −
Add to wish list Ask a question
Product Code
04:337049
EAN Code
4044144614880
Manufacturer
Lancom Systems

Quick Specs

Power
Internal power supply - hot-plug
Security
MD5 | SSL
Interfaces
20 x 10Gbit LAN SFP+ ¦ 4 x 10GBase-T RJ-45 ¦
Management Protocol
SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

LANCOM XS-6128QF L3 Managed Switch 20-Port 10GbE, 25GbE, 40GbE, 1U Rack-Mountable

The LANCOM XS-6128QF is a managed Layer 3 aggregation switch for rack-based network distribution, with 20 ports and mixed 10GbE, 25GbE and 40GbE connectivity. It is designed as a reliable base for subordinate access switches, with stackability, redundant power and hot-swappable fan modules for fail-safe operation.
Internal power supply - hot-plug MD5 20 x 10Gbit LAN SFP+ ¦ 4 x 10GBase-T RJ-45 ¦ SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9

The LANCOM XS-6128QF is a managed Layer 3 aggregation switch for rack-based network distribution, with 20 ports and mixed 10GbE, 25GbE and 40GbE connectivity. It is designed as a reliable base for subordinate access switches, with stackability, redundant power and hot-swappable fan modules for fail-safe operation.

Best For
✓ Redundant power in one unit

Key Features


Commercial Fit
The strongest reason to choose this model is its combination of 10GbE access ports, 25GbE and 40GbE uplinks, stack support and dual hot-plug power for dependable distribution-layer use.

Power
Power: Internal power supply - hot-plug

Power Device
Power Device: Internal power supply - hot-plug

Power Redundancy
Power Redundancy: Yes

Technical Specifications

Product Type Switch - 20 ports - L3 - Managed - stackable
Interfaces 20 x 10Gbit LAN SFP+ | 4 x 10GBase-T RJ-45 | 4 x 25Gbit LAN SFP28 uplink | 2 x 40Gbit LAN QSFP+ uplink | 4 x 50Gbit LAN SFP stacking | 1 x management (micro-USB) | 1 x management (LAN) RJ-45 | 20 x 10Gbit LAN SFP+ ¦ 4 x 10GBase-T RJ-45 ¦ 4 x 25Gbit LAN SFP28 uplink ¦ 2 x 40Gbit LAN QSFP+ uplink ¦ 4 x 50Gbit LAN SFP stacking ¦ 1 x management (micro-USB) ¦ 1 x management (LAN) RJ-45
Power Internal power supply - hot-plug
Security MD5 | SSL
Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, CLI, SCP, ICMP, DHCP
Device Type Switch - 20 ports - L3 - Managed - stackable
Enclosure Type Front to back airflow rack-mountable 1U
Subtype 10 Gigabit Ethernet
Performance Latency: 4 µs | Backplane speed: 1 Tbps | Firewall throughput (64-byte packet size): 744 Mpps
Capacity Tagged VLANs: 4096 | Active VLANs: 4000 | IGMP multicast groups: 1024
MAC Address Table Size 32K entries
Jumbo Frame Support 12000 bytes
Routing Protocol IGMPv2, IGMP, IGMPv3, static IPv4 routing, MLDv2, MLD
Encryption Algorithm MD5, SSL
Authentication Method Secure Shell (SSH), RADIUS, TACACS+
Features Flow control, routing, VLAN support, IGMP snooping, store and forward, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, firmware upgradable, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, priority-based flow control, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, SSH support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Cable Diagnostics Function, Uni-Directional Link Detection (UDLD), IPv4 support, LACP support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, DHCP client, static routing, Forward Error Correction (FEC), hot swappable fan, Class of Service (CoS), tagged VLAN, sFlow v5, Generic VLAN Registration Protocol (GVRP), IGMP proxy, Precision Time Protocol (PTP), 2 fans, Storm Control, IP source guard, Secure Copy (SCP), Management Information Base (MIB) II, IF MIB, policy based routing, Authentication, Authorization and Accounting (AAA), IGMP querier, Voice VLAN, Private VLAN Edge (PVE), Guest VLAN, Denial of Service (DoS) protection, secure boot, ARP spoofing, SD-LAN support
Compliant Standards IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1v, IEEE 802.1as, IEEE 802.1ab (LLDP), IEEE 802.1ak, IEEE 802.1Qbb, IEEE 1588v2, IEEE 802.1Qat, IEEE 802.3bj, IEEE 802.1Qav
Status Indicators System, link/activity, fan, stack
Power Device Internal power supply - hot-plug
Installed Qty 2
Power Redundancy Yes
Voltage Required AC 120/230 V (50/60 Hz)
Rack Mounting Kit Included
Software Included LANconfig
Width 44.2 cm
Depth 37.5 cm
Height 4.4 cm
Weight 4.9 kg
Service & Support Limited warranty - 5 years
SKU / EAN 61860 | 4044144618604

Frequently Asked Questions

What should I know before buying?
This is a network switch, not a complete networking bundle, so optics, cables and any transceivers are not confirmed here. It is a 1U rack-mountable unit with a hot-plug internal power design and requires compatible network planning before deployment.
What connectivity does it offer?
20 x 10Gbit LAN SFP+ | 4 x 10GBase-T RJ-45 | 4 x 25Gbit LAN SFP28 uplink | 2 x 40Gbit LAN QSFP+ uplink | 4 x 50Gbit LAN SFP stacking | 1 x management (micro-USB) | 1 x management (LAN) RJ-45 | 20 x 10Gbit LAN SFP+ ¦ 4 x 10GBase-T RJ-45 ¦ 4 x 25Gbit LAN SFP28 uplink ¦ 2 x 40Gbit LAN QSFP+ uplink ¦ 4 x 50Gbit LAN SFP stacking ¦ 1 x management (micro-USB) ¦ 1 x management (LAN) RJ-45
What is it compatible with?
12000 bytes
Singular Expert Insight
The strongest reason to choose this model is its combination of 10GbE access ports, 25GbE and 40GbE uplinks, stack support and dual hot-plug power for dependable distribution-layer use.

Buyer’s Guide

Buy it if
This is a good fit for IT teams that need a managed aggregation switch for rack deployment, with high-speed uplinks, stacking and redundant power in one unit.
Skip it if
This is a network switch, not a complete networking bundle, so optics, cables and any transceivers are not confirmed here. It is a 1U rack-mountable unit with a hot-plug internal power design and requires compatible network planning before deployment.
Also consider
If you do not need this level of uplink capacity or redundancy, a simpler managed 10GbE switch may be a more economical choice.

Features - Lancom Systems - 61860

Interface
  • Ethernet
Standard
24-Port
Port Speed
  • 1 Gbps,
  • 10 Gbps,
  • 25 Gbps,
  • 40 Gbps
More Details
Product Code
04:337049
EAN Code
4044144614880
Manufacturer
Lancom Systems
