LC-Power LC300SFX V3.21 SFX PC Power Supply, 250W, 300W Peak, Silver

Brand:
LC-Power

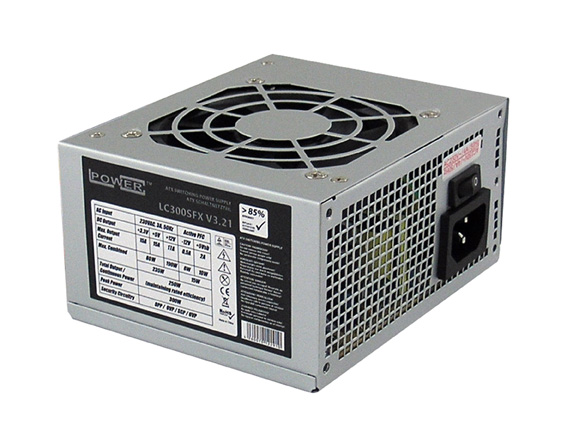

LC-Power LC300SFX V3.21 silver SFX power supply
LC-Power LC300SFX V3.21 SFX PC Power Supply, 250W, 300W Peak, Silver
€56.49 inc. VAT
Buy
LC300SFX V3.21
€47.47 €52.75
€56.49 inc. VAT
Ships from EU stock: 7 item(s)
+ −
Add to wish list Ask a question
Product Code
04:167017
EAN Code
4260070122910
Manufacturer
LC-Power

Quick Specs

Output / peak
250 W / 300 W
SFX dimensions
63 × 125 × 101 mm
CPU / graphics power
4-pin CPU · 6-pin PCIe
Drive power
4 SATA · 2 PATA · 1 FDD
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LC-Power LC300SFX V3.21 250W SFX Power Supply

250 W / 300 W63 × 125 × 101 mm4-pin CPU · 6-pin PCIe

The LC-Power LC300SFX V3.21 is a compact SFX power supply for an office or home PC with a matching PSU bay. Its rated output is 250 W, with a separate 300 W maximum peak rating. The fixed wiring provides four SATA plugs as well as older PATA and floppy power connections.

Compatibility — check before buying:
Plan around the 250 W output and the manufacturer’s 190 W combined +12 V limit. Check the SFX mounting dimensions, 35 cm motherboard/CPU/PCIe leads and your component connectors; a mains lead is required separately.

Key Features


Compact SFX housing
The 63 × 125 × 101 mm housing fits installations designed for this SFX size. A Mini-ITX motherboard alone does not establish PSU mounting compatibility.

Four SATA power plugs
Two SATA plugs sit at 35 cm and two at 50 cm, with PATA plugs at 65 cm and a floppy plug at 80 cm. Check those distances against your drive positions.

Active PFC and efficiency
LC-Power specifies active PFC and efficiency greater than 85%. This efficiency statement is separate from an 80 PLUS certification claim.

80 mm fan cooling
An 80 mm fan and rear ventilation grille cool the compact unit. Allow room for airflow and the permanently attached cable harness.

Technical Specifications

SKU / MPN LC300SFX V3.21
EAN / GTIN 4260070122910
Electrical ratings
Output / maximum peak 250 W output; 300 W maximum peak
+12 V output 17 A; manufacturer combined limit 190 W
+3.3 V / +5 V 15 A each; combined limit 80 W
Efficiency / PFC Greater than 85% stated efficiency; active PFC
Standby consumption 0.19 W as specified; ErP 2013
Full-range input No 110 V / 220 V full-range support
Safety circuitry Manufacturer lists safety circuitry without individual protection types
Conformity mark CE as listed by manufacturer
Connectors and cable reach
Cabling Fixed, non-modular
Motherboard 1 × 20+4-pin; 35 cm
CPU power 1 × 4-pin 12 V; 35 cm
PCIe graphics power 1 × 6-pin; 35 cm
SATA power 4 plugs: 2 at 35 cm, 2 at 50 cm
PATA / FDD power 2 × PATA at 65 cm; 1 × FDD at 80 cm
Fit, cooling and package
Form factor / revision SFX; V3.21
Dimensions (H × W × D) 63 × 125 × 101 mm
Colour / fan Silver housing; 80 mm fan
Retail weight 0.843 kg; not specified as net PSU weight
Package exclusion Mains power cord not included
Haswell compatibility Listed by LC-Power; connector and system-load checks still required

What's in the Box

LC300SFX V3.21 power supply with fixed internal cables

Frequently Asked Questions

Does LC300SFX mean 300 W continuous output?
No. The manufacturer lists 250 W output and 300 W maximum peak. Use the 250 W rating and the individual rail limits when assessing the build.
Can it directly power an 8-pin CPU or 8-pin graphics socket?
Its native CPU plug is 4-pin and its PCIe plug is 6-pin. Check the component manufacturer’s requirements; these are not native 8-pin connections.
Is a mains lead supplied?
No. The manufacturer datasheet explicitly excludes the power cord. Arrange a suitable lead separately.
Singular Expert Insight
Choose this unit when the case needs its compact SFX size and the component load fits the 250 W output and 190 W +12 V allowance. Compare other Singular power supplies when you need native 8-pin CPU or graphics power, longer cables or a different mounting format. Compare PSU formats and connectors Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

Your SFX case and low-power system match its dimensions, plugs and rail limits.

Skip it if

You need 300 W sustained output, native 8-pin connections or 110 V input.

Also consider

An SFX PSU with the required sustained output and native connectors.

Features - LC-Power - LC300SFX V3.21

Colour
silver
More Details
Product Code
04:167017
EAN Code
4260070122910
Manufacturer
LC-Power
Find similar

LC Power LC300SFX V3.21 Power supply (LC300SFX_V3.21_datasheet.pdf, 419 Kb) [Download]
