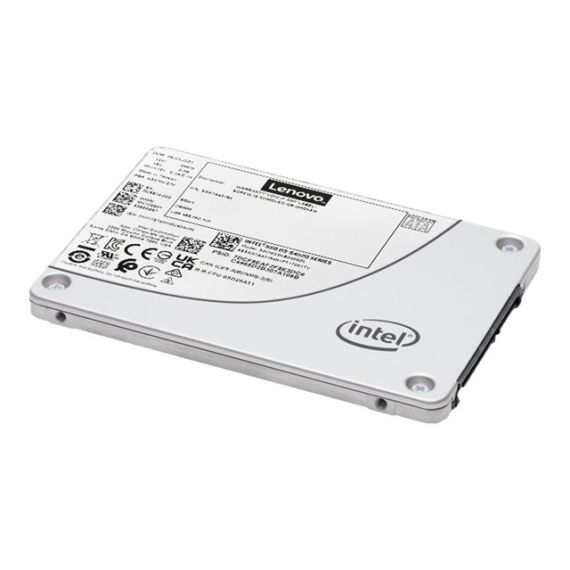

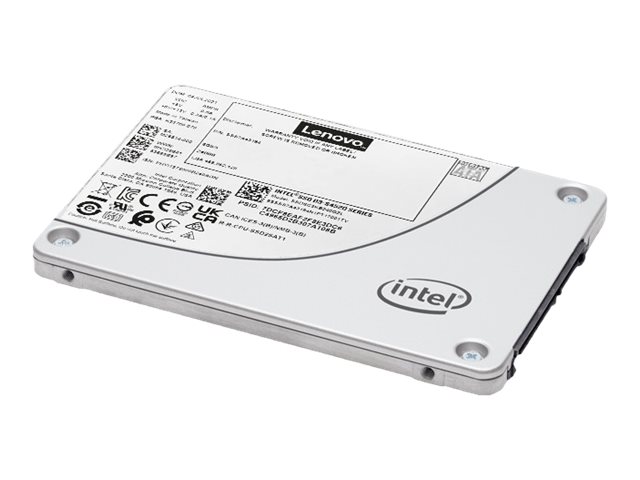

Lenovo ThinkSystem S4520 / SSD / Read Intensive / encrypted / 960 GB / hot-swap / 2.5" / SATA 6Gb/s / 256-bit AES / CRU / for ThinkSystem SR645; SR650 V2; SR665; SR850 V2; SR860 V2 | 4XB7A17108
Brand:
Lenovo
4XB7A17108
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - hot-swap |
| Capacity | 960 GB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | Thermal throttling, End-to-end data protection, power loss data protection, S.M.A.R.T. |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Performance | |
| Drive Writes Per Day (DWPD) | 3 |
| SSD Endurance | 5.3 PB |
| Drive Class | Read Intensive |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 510 MBps (write) |
| 4KB Random Read | 85000 IOPS |
| 4KB Random Write | 44000 IOPS |
| Average Latency | 36 µs |
| Reliability | |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Miscellaneous | |
| Included Accessories | Hot-plug tray |
| Compliant Standards | VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, FCC Title 47 |
| Pricing Type | Customer-replaceable Unit (CRU) |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 17.4 cm |
| Shipping Depth | 13.3 cm |
| Shipping Height | 6.3 cm |
| Shipping Weight | 434 g |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 5-700 Hz |
| Compatibility Information | |
| Designed For | Lenovo ThinkSystem SR645 7D2X (2.5"), 7D2Y (2.5") ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5") ¦ Lenovo ThinkSystem SR665 7D2V (2.5"), 7D2W (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5") |
Features - Lenovo - 4XB7A17108
Form Factor
- 2.5"
Interface
- SATA
More Details
Product Code
CI26823
EAN Code
0889488544738
Manufacturer
Lenovo
Technical specifications
Capacity
1TB
