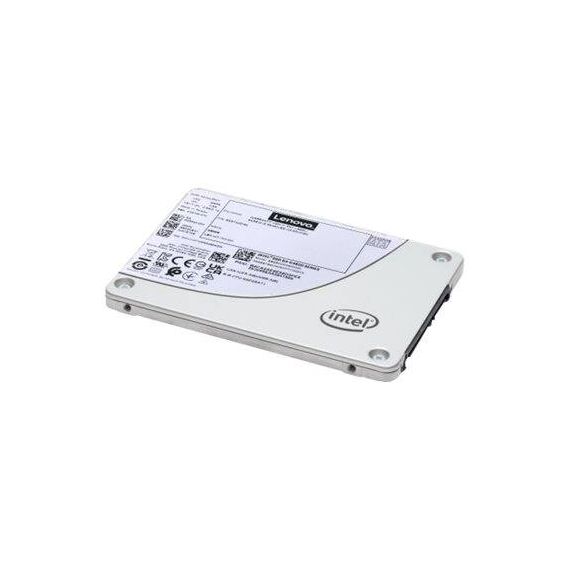

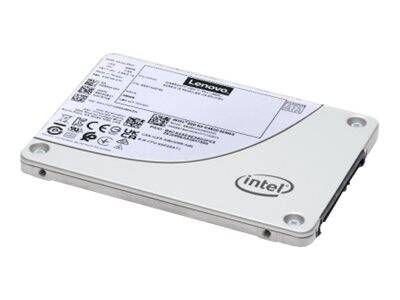

Lenovo ThinkSystem S4620 / SSD / Mixed Use / 480 GB / hot-swap / 2.5" / SATA 6Gb/s / CRU / for ThinkAgile VX3530-G Appliance; VX7531 Certified Node; ThinkSystem SR250 V2; ST250 V2 | 4XB7A17125
Brand:
Lenovo
4XB7A17125
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Solid state drive - hot-swap |
| Capacity | 480 GB |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | 2.5" |
| Interface | SATA 6Gb/s |
| Features | End-to-end data protection, power loss data protection, S.M.A.R.T. |
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Performance | Performance |
| Drive Writes Per Day (DWPD) | 4.7 |
| SSD Endurance | 4.2 PB |
| Drive Class | Mixed Use |
| Drive Transfer Rate | 600 MBps (external) |
| Internal Data Rate | 550 MBps (read) / 500 MBps (write) |
| 4KB Random Read | 82000 IOPS |
| 4KB Random Write | 50000 IOPS |
| Average Latency | 36 µs |
| Reliability | Reliability |
| MTBF | 2,000,000 hours |
| Non-Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 2.5" |
| Miscellaneous | Miscellaneous |
| Compliant Standards | VCCI, ICES-003, UL 60950-1, CSA C22.2 No. 60950-1-07, CNS 13438, RoHS 2011/65/EU, EN55022:2006, AS/NZS CISPR22:2009+A1:2010, WEEE 2012/19/EU, EMC 2014/30/EU, LVD 2014/35/EU, EN 55032:2012, KCC Article 11.1, AS/NZS CISPR 32:2015, EN 55035:2017, FCC Title 47 |
| Pricing Type | Customer-replaceable Unit (CRU) |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 17.4 cm |
| Shipping Depth | 13.3 cm |
| Shipping Height | 6.3 cm |
| Shipping Weight | 434 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 5-700 Hz |
| Compatibility Information | Compatibility Information |
| Designed For | Lenovo ThinkAgile VX3530-G Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7530 Appliance 7Z63 (2.5") ¦ Lenovo ThinkAgile VX7531 Certified Node 7Z63 (2.5") ¦ Lenovo ThinkSystem SD530 7X21 (2.5") ¦ Lenovo ThinkSystem SN550 7X16 (2.5") ¦ Lenovo ThinkSystem SN850 7X15 (2.5") ¦ Lenovo ThinkSystem SR250 7Y51, 7Y52 (2.5") ¦ Lenovo ThinkSystem SR250 V2 7D7Q ¦ Lenovo ThinkSystem SR530 7X07 (2.5"), 7X08 ¦ Lenovo ThinkSystem SR550 7X03 (2.5"), 7X04 (2.5") ¦ Lenovo ThinkSystem SR570 7Y02 (2.5"), 7Y03 (2.5") ¦ Lenovo ThinkSystem SR590 7X98 (2.5"), 7X99 ¦ Lenovo ThinkSystem SR630 7X01 (2.5"), 7X02 ¦ Lenovo ThinkSystem SR630 V2 7Z71 ¦ Lenovo ThinkSystem SR635 7Y98 (2.5"), 7Y99 (2.5") ¦ Lenovo ThinkSystem SR645 7D2X, 7D2Y (2.5") ¦ Lenovo ThinkSystem SR650 7X05 (2.5"), 7X06 ¦ Lenovo ThinkSystem SR650 V2 7D15 (2.5"), 7Z73 ¦ Lenovo ThinkSystem SR655 7Y00 (2.5"), 7Z01 (2.5") ¦ Lenovo ThinkSystem SR665 7D2V, 7D2W (2.5") ¦ Lenovo ThinkSystem SR850 7X18 (2.5"), 7X19 (2.5") ¦ Lenovo ThinkSystem SR850 V2 7D31 (2.5"), 7D32 (2.5") ¦ Lenovo ThinkSystem SR850P 7D2F (2.5") ¦ Lenovo ThinkSystem SR860 7X69 (2.5"), 7X70 (2.5") ¦ Lenovo ThinkSystem SR860 V2 7Z59 (2.5"), 7Z60 (2.5") ¦ Lenovo ThinkSystem SR950 7X11 (2.5"), 7X12 (2.5") ¦ Lenovo ThinkSystem ST250 7Y45 (2.5"), 7Y46 (2.5") ¦ Lenovo ThinkSystem ST250 V2 7D8F ¦ Lenovo ThinkSystem ST550 7X09 (2.5"), 7X10 ¦ Lenovo ThinkSystem ST650 V2 7Z74 |
Features - Lenovo - 4XB7A17125
Form Factor
- 2.5",
- Internal
Interface
- SATA
More Details
Product Code
CD09317
EAN Code
0889488589241
Manufacturer
Lenovo
Technical specifications
Capacity
480GB
