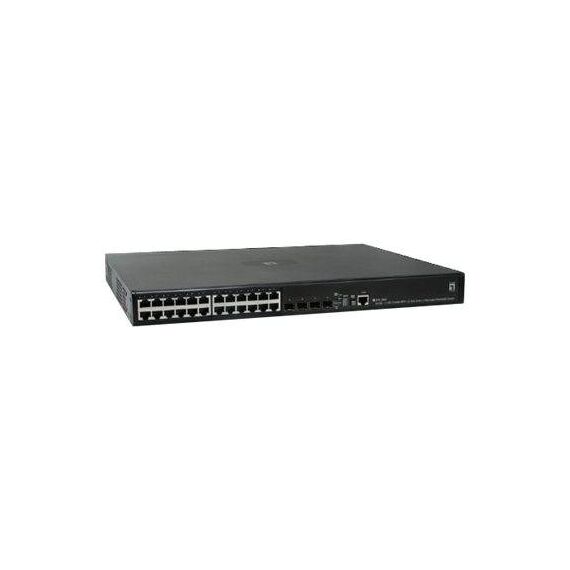

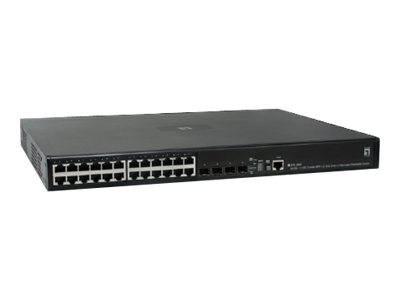

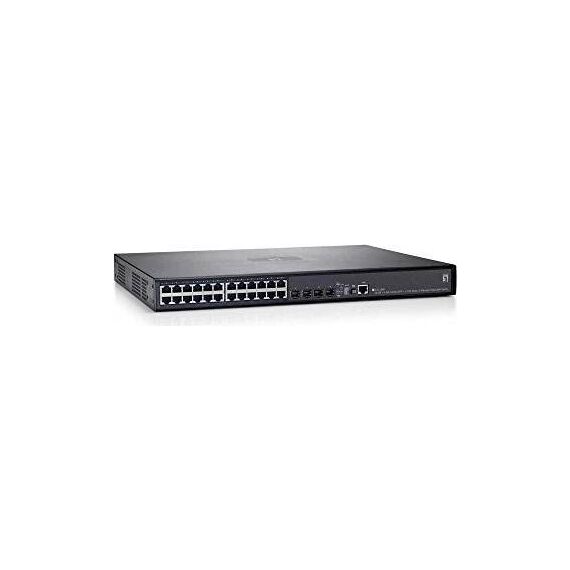

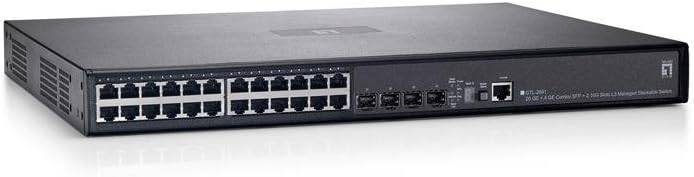

LevelOne GTL-2691 / Switch / Managed / 24 x 10/100/1000 + 4 x shared SFP / rack-mountable | GTL-2691


Hover over an image to enlarge

(Including VAT)
Out of stock
Product Code:Y982641
EAN Code:4015867185100

LevelOne GTL-2691 / Switch / Managed / 24 x 10/100/1000 + 4 x shared SFP / rack-mountable | GTL-2691


The LevelOne GEL-2691 is a Layer 3 managed switch with 24 x 1000Base-T ports associated with 4 x Gigabit SFP (Small Form Factor Pluggable) slots for SFP. This switch is also 19-inch rack-mountable and 1 x redundant power supply connector, which provides convenient and flexible installation.The switch provides a flexible, web-based management interface SNMP for both IPv4 and IPv6 as well as layer 3 management features. Despite its affordable pricing, the GEL-2691 is equipped with many advanced features such as unicast routes, multicast routing IGMP V1/V2/V3, IGMP v3 proxy, IP VLANs, VLAN trunk, IEEE 802.1d/w/s Spanning Tree, Access Control List (ACL) of up to 512 entries for easy network security, Link Aggregation Control (LACP), IEEE 802.1p QoS with 8 priority queues much more.

Special Features

  • 24 Gigabit Ethernet ports with 4 shared SFP slots and 2 10G slots
  • Multicast routing IGMP V1/V2/V3, MLD
  • Supports DHCP relay features under Layer 3 protocol
  • Supports Access Control List (ACL) authentication of up to 256 entries and port-level security with IEEE802.1X
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) and port mirroring
  • IEEE 802.3ad LACP for auto port aggregation
  • IEEE 802.1p QoS with 8 priority queues
  • Supports IPv4/IPv6 network operation
  • Provides QoS control based on IP DSCP for advanced traffic prioritization and bandwidth management

Product Specification

Device Type Switch - 24 ports - Managed - stackable
Enclosure Type Rack-mountable 1U
Subtype Gigabit Ethernet
Ports 24 x 10/100/1000 + 4 x shared SFP
Performance Switching capacity: 128 Gbps ¦ Forwarding performance: 95.2 Mpps
MAC Address Table Size 16K entries
Jumbo Frame Support 9KB
Max Units In A Stack 8
Routing Protocol OSPF, RIP-1, RIP-2, BGP, IGMPv2, IGMP, PIM-SM, PIM-DM, IGMPv3
Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI
Encryption Algorithm SSL
Authentication Method RADIUS, Secure Shell v.2 (SSH2)
Features Flow control, DHCP support, BOOTP support, ARP support, VLAN support, IGMP snooping, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, store and forward, MAC address filtering, IPv6 support, SNTP support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Auto Traffic Classifier (ATC), LACP support, LLDP support, Network Access Control (NAC), Class of Service (CoS), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP)
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP)
Flash Memory 2048 KB
Status Indicators Port status, system, diagnostic, uplink
Interfaces 24 x 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ Serial: 1 x console - RJ-45 ¦ 4 x SFP (mini-GBIC) ¦ Network stack device: 2 x
Installed Modules Qty (Max) 0 (installed) / 2 (max)
Power Device Power supply - internal
Voltage Required AC 120/230 V ( 47 - 63 Hz )
Power Consumption Operational 63.96 Watt
Compliant Standards FCC Class A certified
Width 44 cm
Depth 41.5 cm
Height 4.4 cm
Weight 5.7 kg
Min Operating Temperature 0 °C
Max Operating Temperature 50 °C
Humidity Range Operating 5 - 95% (non-condensing)
Min Storage Temperature -40 °C
Max Storage Temperature 70 °C
