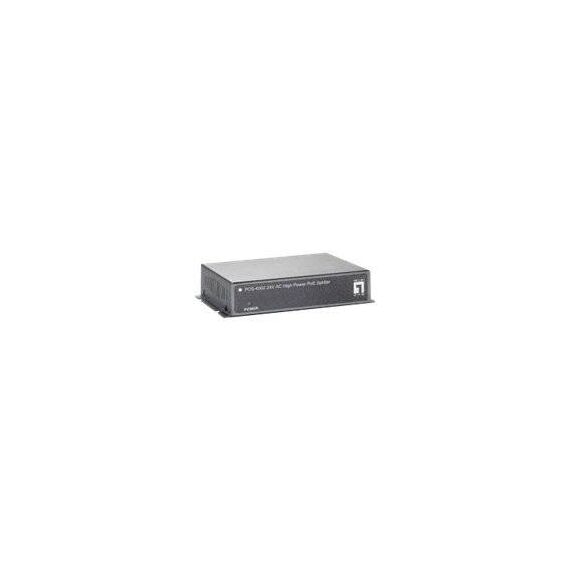

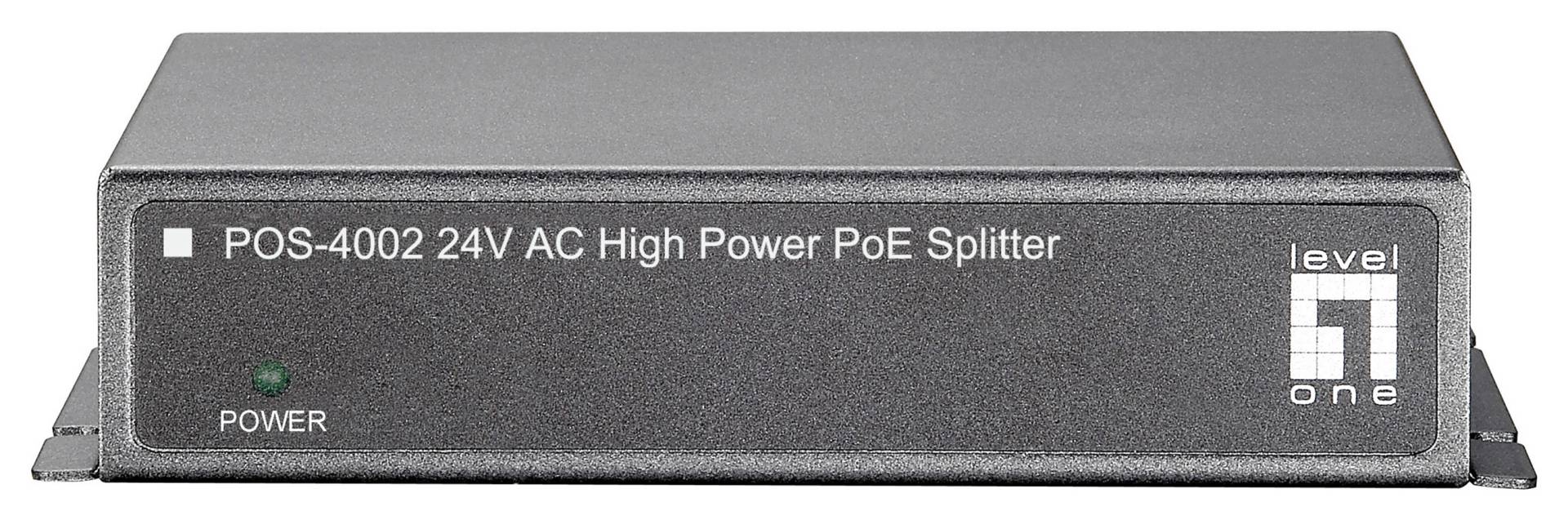

LevelOne POS-4002 High-Power PoE Splitter, 24 V AC / 1.6 A Output, Fast Ethernet, 19-inch 4U Chassis Mountable

The LevelOne POS-4002 is a high-power PoE splitter that converts power delivered over an Ethernet cable into a 24 V AC supply of up to 1.6 A, plus a separate 100 Mbps data port. It is built for devices that run on 24 V AC — typically PTZ cameras, heaters and housings in CCTV systems — where running a separate low-voltage AC line is expensive or impractical.

LevelOne designs it to work with its high-power injectors such as the POI-4000. The splitter carries short-circuit, overload and current-limit protection, and it can be mounted in a 19-inch 4U chassis that holds up to eight units for centralised installations.

• POS-4002 PoE splitter

• One Cat5e/Cat6 cable carries data and power to a 24 V AC PTZ camera, replacing a separate transformer and AC run.
• Useful when retrofitting older 24 V AC cameras onto an IP network through an encoder.
• Up to eight splitters can share one 19-inch 4U chassis in a central rack.
• The 100 Mbps data port is enough for most single-camera streams.

• It does not output DC voltages (12 V / 24 V DC).
• Its data port is Fast Ethernet, not Gigabit.
• It does not create power — a matching high-power injector is required upstream.
• It is not weatherproof.
