LevelOne FSW-0513 LevelOne 4 FE HIGH PWR POE+1 FE (FSW-0513)

- 4-Port High Power PoE 1 Port Uplink Fast Ethernet Switch
- Control Per PoE port on-off by dip switch
- Power Budget : 120W
- Plug and Play
- Power protection: OVP/OCP/OTP

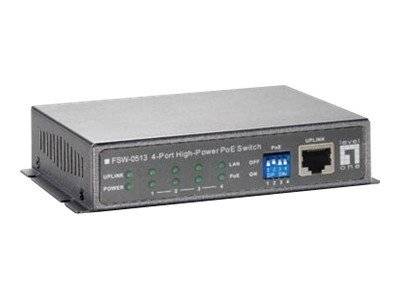

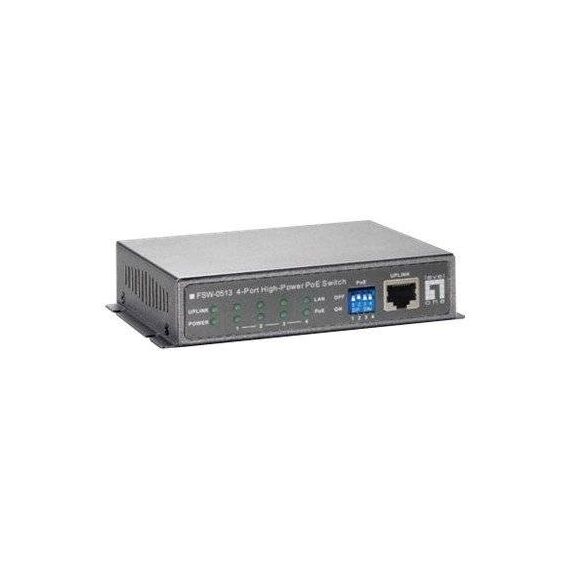

FSW-0513 -Z is a 10/100 Mbps Fast Ethernet Switch with 4 High-Power Power over Ethernet ports and one uplink port. With a total power budget of 120W, FSW-0513 -Z is excellent for deploying network devices that require high-power such as outdoor security dome cameras and access points. And with high-power PoE, the reach of devices can be extended hundreds of meters.

With 4 dip switches, each PoE port can be manually set for On-Off control. The internal PoE power supply can send up to 48 Watts to a single port. FSW-0513 -Z is compact in size, making it ideal for desktop users with limited space. You also have option of installing several FSW-0513 -Z in a 19” chassis POC-6000 for a large-scale rack-mount PoE solution.

Power Protection
FSW-0513 -Z supports power protections as OVP Over Voltage Protection, OCP Over Current Protection, robust short-circuit protection and surge protection.

Feature list

Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5, 4, 5
Copper ethernet cabling technology: 100BASE-TX, 10BASE-T
Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Flow control support: Y
10G support: N
MAC address table: 2000 entries
Supported data transfer rates: 10/100 Mbps
Store-and-forward: Y
Maximum data transfer rate: 0.1 Gbit/s
Colour of product: Grey
Certification: CE, FCC
Packet buffer memory: 0.512 MB
Power consumption typical: 120 W
Input voltage: 90 - 260 V
Power over Ethernet PoE support: Y
Operating temperature T-T: 0 - 50 °C
Operating relative humidity H-H: 10 - 90 %
Weight: 1200 g
Dimensions WxDxH: 90 x 120 x 28 mm
Connectivity technology: Wired
Packet transfer speed: 14880pps 10Mbps; 148800pps 100Mbps
Power requirements: 48VDC, 2.7A
Power supply type: ext
Networking features: Ethernet, Fast Ethernet
Security features: Power protection: OVP/OCP/OTP
Connectivity LEDs: Y
I/O ports: 1 x Uplink Fast Ethernet
