LevelOne 4 GE POE+1 GE (GEP-0520)

LevelOne Y982592

Hover over an image to enlarge

(Including VAT)
Out of stock
Product Code:Y982592
EAN Code:4015867158135
Payment options
Our advantages

24 months warrantyGuarantee for all purchased goods in our online store is 12 months

Return and exchange - no problemYou can return the items purchased within 14 days. The goods must be in normal condition and have all the factory packages.

Different payment methodsPay orders in convenient ways: cash to the courier, by bank transfer on the receipt of the bank or by credit card right at the time of the order.

Best priceWe are proud of our prices, hundreds of customers check them every day, which give a choice to our online store!

Free Store

Delivery within 2-4
business days

2 Years Warranty

LevelOne GEP-0520 LevelOne 4 GE POE+1 GE (GEP-0520)

LevelOne 4 GE POE+1 GE (GEP-0520)


- Complies with IEEE 802.3, 802.3u, 802.3ab and 802.3af
- 5-port 10/100/1000Mbps Ethernet with 4-port PoE Switch
- Provide 5 10/100/1000Mbps auto-detect with half/full duplex switch ports
- Provides 4 PoE ports with classification identify
- Supports 15.4W Maximum per PoE port

Advanced PoE Solution

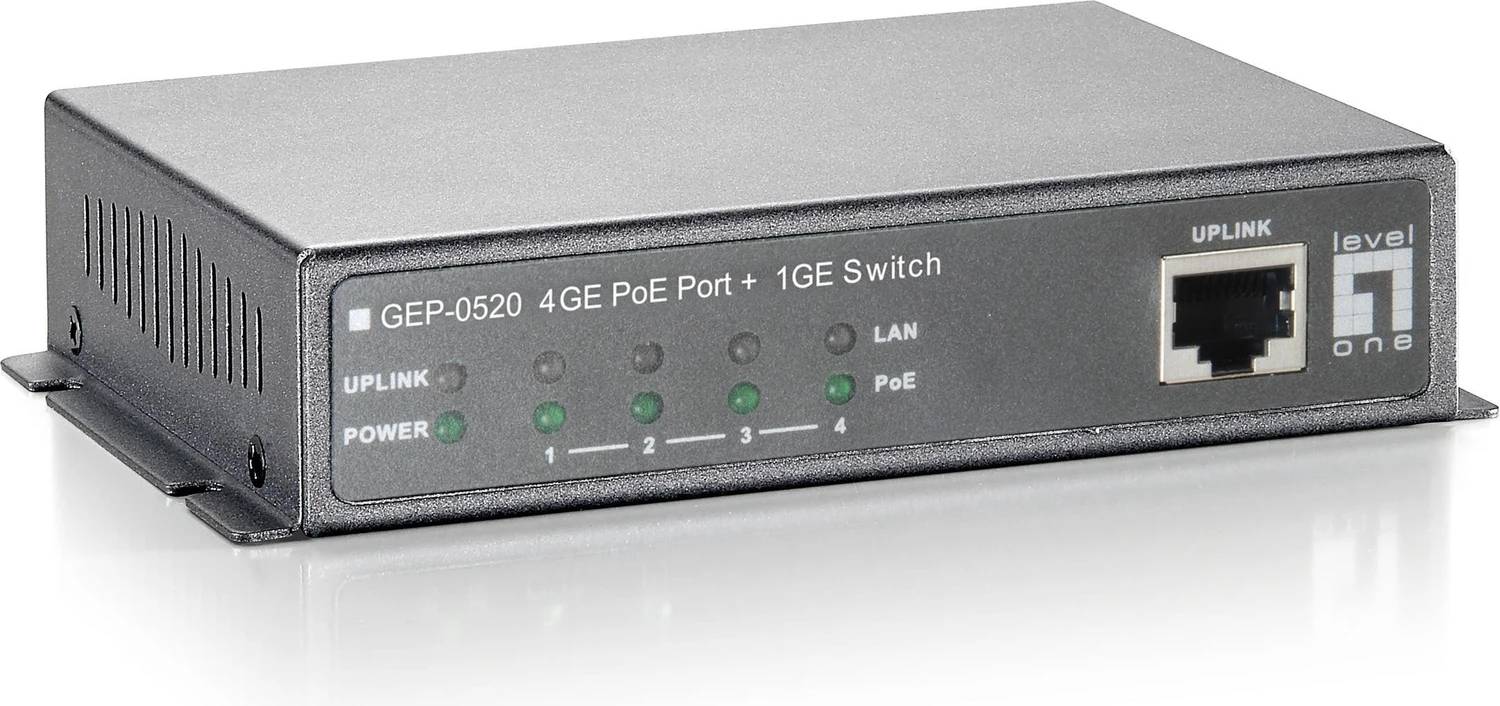

The LevelOne GEP-0520 -Z is a high-performance 10/100/1000Mbps Gigabit PoE Switch with 4 Gigabit PoE ports 1 Gigabit uplink port. Each PoE port is powered up to 15.4W. The total PoE power budget is 61.6W. It is an ideal solution for office and home users to utilize a combination of PoE and non-PoE devices. The switch automatically detects IEEE 802.3af compliant devices and provides power and data over a single cable.

GEP-0520 -Z is compact in size, making it ideal for desktop users with limited space. You also have the option of installing several GEP-0520 -Z in a 19” chassis POC-6000 for a large-scale rack-mount PoE Solution.

Stable and Reliable Network Environment
GEP-0520 -Z enables users to deploy a stable and reliable high-speed LAN environment, with store-and-forward switching architecture, the GEP-0520 -Z provides a stable and reliable packet error fitering and non-blocking packet forwarding architecture. This device supports N-way auto-negotiation protocol which automatically detects networking speed and duplex modes.

Easy to Use
For instant error detection, the GEP-0520 -Z is equipped with LED Indicators to define problems on the network.

Feature list

Basic switching RJ-45 Ethernet ports quantity: 5
Copper ethernet cabling technology: 1000BASE-T, 100BASE-TX, 10BASE-T
Gigabit Ethernet copper ports quantity: 5
ExpressCard slot: N
Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u
Full duplex: Y
10G support: N
MAC address table: 1024 entries
Supported data transfer rates: 10/100/1000 Mbps
Switching capacity: 10 Gbit/s
Store-and-forward: Y
Maximum data transfer rate: 1000 Gbit/s
Colour of product: Grey
LED indicators: Y
Certification: FCC, CE
Packet buffer memory: 104 MB
Power consumption typical: 61.6 W
Input voltage: 100 - 240 V
Power over Ethernet PoE support: Y
Operating temperature T-T: 0 - 50 °C
Operating relative humidity H-H: 10 - 90 %
Weight: 1200 g
Dimensions WxDxH: 90 x 120 x 28 mm
Connectivity technology: Wired
Installed ports: 5
Networking features: Gigabit Ethernet
Wi-Fi: N
Input frequency: 50 - 60 Hz
