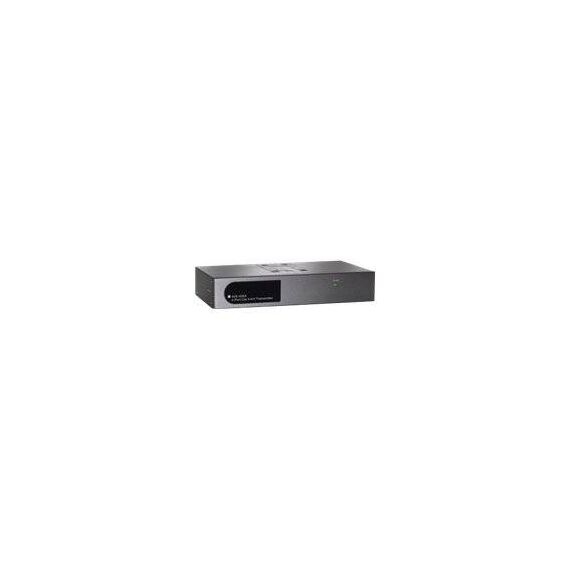

LevelOne AVE-9304 4-port LR Cat.5 A/V Transmitter / Video/audio extender / transmitter / 10Mb LAN / 4 ports / up to 300 m | AVE-9304
Brand:
LevelOne
LevelOne AVE-9304 4-port LR Cat.5 A/V Transmitter / Video/audio extender / transmitter / 10Mb LAN / 4 ports / up to 300 m | AVE-9304
€329.26 inc. VAT
AVE-9304
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Product Features
- Cost-effective audio/video broadcasting over Ethernet
The AVE-9304 makes use of inexpensive Ethernet cabling to transmit and receive HDTV audio and video signals. Signals can be transmitted up to 300 meters away from the transmitting unit. - Flexible multi-location audio/video broadcasting
The AVE-9304 transmits audio/video from the controlling unit (player) via Ethernet cabling to remote monitors.
Special Features
- Broadcast audio/video signals over Ethernet cable
- Supports 2048 x 1536 VGA resolution over 300m
- Flexible multi-location audio/video broadcasting
- Flexible cable kit choices for different video applications
- Units can be stacked into 3 layer stackable units for extending broadcast signal to 900m away
Product Specification
| Device Type | Video/audio extender (transmitter) |
| Form Factor | External |
| Networking | Networking |
| Ports Qty | 4 |
| Connectivity Technology | Wired |
| Data Link Protocol | 10Mb LAN |
| Max Resolution | 2048 x 1536 |
| Max Transfer Distance | 300 m |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x VGA (output) - HD-15 female ¦ 1 x audio - mini jack female ¦ 4 x network - RJ-45 ¦ 1 x VGA - HD-15 male |
| Power | Power |
| Power Device | External power adapter |
| Dimensions & Weight | Dimensions & Weight |
| Width | 24 cm |
| Depth | 18 cm |
| Height | 14.4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% |
Features - LevelOne - AVE-9304
More Details
Product Code
04:46645
EAN Code
4015867141120
Manufacturer
LevelOne
