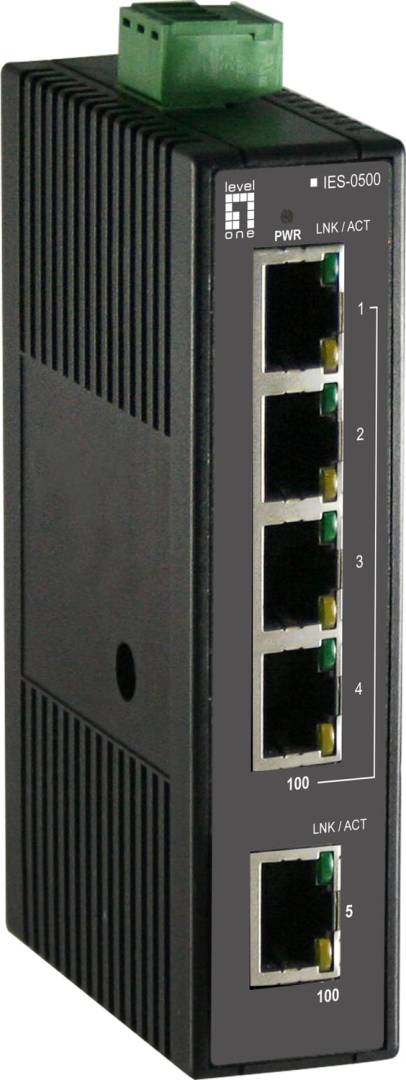

LevelOne Infinity IES-0500 / Switch / unmanaged / 5 x 10/100 / DIN rail mountable / DC power | IES-0500
Please sign in so that we can notify you about a reply
Product Features
- Cost effective
This device offers optimal suitability for industrial applications at low cost while maintaining all components built to withstand harsh environment applications without compromise reliability and stability. - Safety
This device has been tested under UL508 standard for industrial control equipment to endurance under test turn on and off 6,000 times while loaded, with no single failure. It's highly reliability and safety measurement to ensure field hardened, especially for the harsh environment. - Plug and Play
This unmanaged Industrial Ethernet switch is designed for the demanding industrial environments at businesses in need of instant connectivity with no setup or configure required, truly Plug and Play.
Special Features
- Cost effective
- Safety feature
- Plug and Play
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | DIN rail mountable |
| Subtype | Fast Ethernet |
| Ports | 5 x 10/100 |
| Performance | Throughput: 148810 packets per second |
| MAC Address Table Size | 2K entries |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, plastic housing, 384KB packet buffer |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 100Base-TX RJ-45 |
| Power | Power |
| Voltage Required | DC 12 - 48 V |
| Features | Power Polarity Reverse Protect, Overload Current Resetable Fuse |
| Miscellaneous | Miscellaneous |
| MTBF | 191.53 years |
| Compliant Standards | Plug and Play, VCCI, ISO 9001, EN 61000-3-2, EN55022, EN 61000-3-3, UL 60950, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, UL 60950-1, EN 61000-6-4, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, FCC Part 15 A, IEC 60529 IP30 |
| Software / System Requirements | Software / System Requirements |
| Software Included | Drivers & Utilities |
| Dimensions & Weight | Dimensions & Weight |
| Width | 2.6 cm |
| Depth | 7 cm |
| Height | 11 cm |
| Weight | 200 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 60 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 85 °C |
Features - LevelOne - IES-0500
General
5-Port
More Details
Product Code
04:165711
EAN Code
4015867181591
Manufacturer
LevelOne
