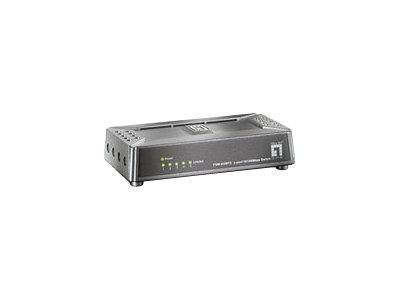

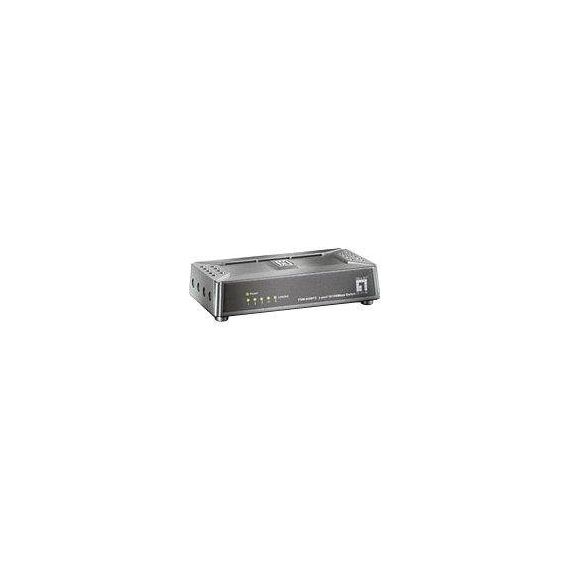

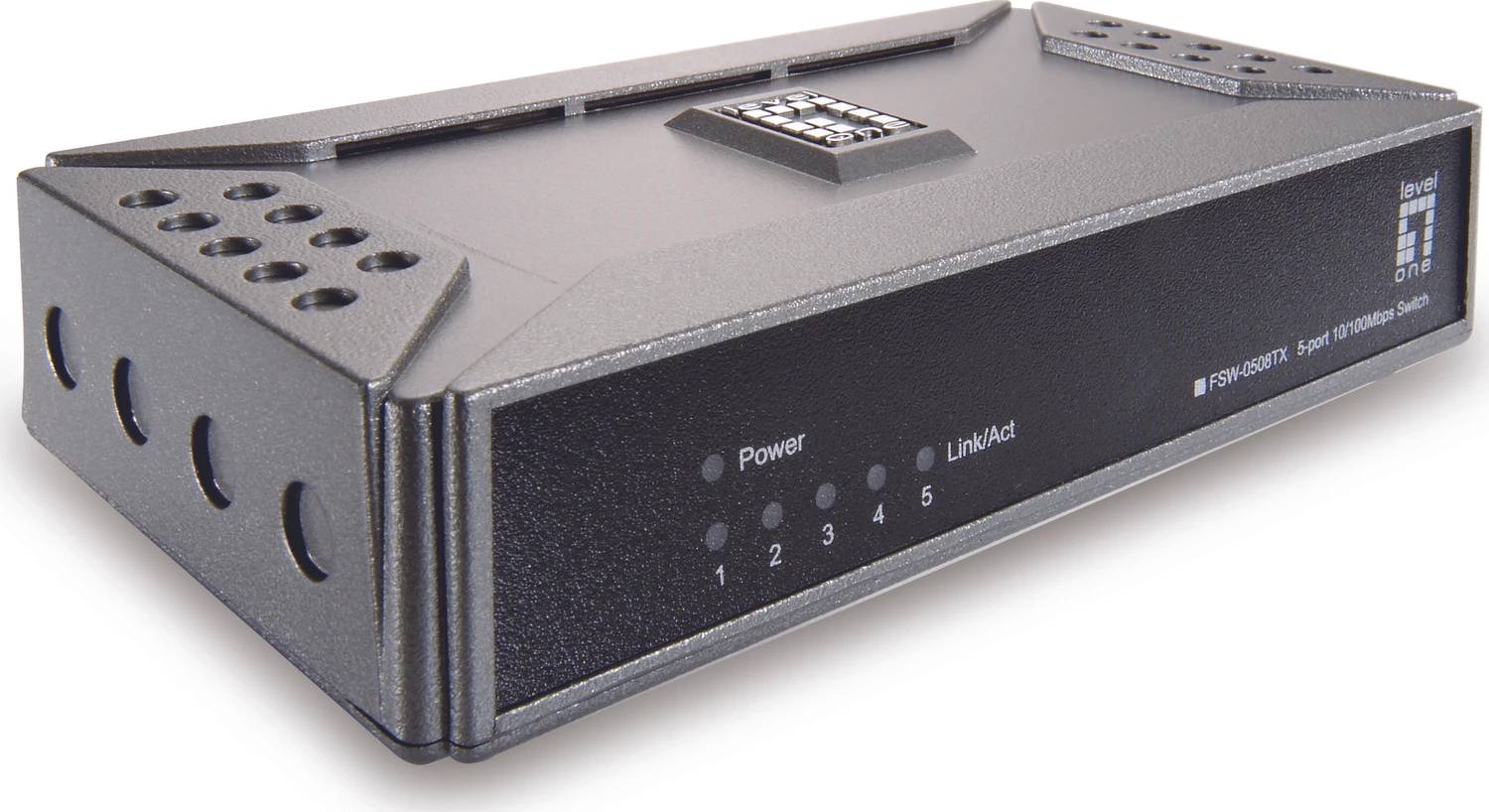

LevelOne FSW-0508TX / Switch / 5 x 10/100 / desktop | FSW-0508TX
FSW-0508TX
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
Special Features
- Complies with the IEEE802.3 Ethernet, IEEE802.3u Fast Ethernet standard;
- Features Store-and-Forward architecture and performs filtering and forwarding at non-blocking full wire speed;
- Full/ Half-duplex capability on each TX ports;
- Automatic source address learning and aging;
- Support 1K MAC address;
- 5-Port 10/100 Mbps Switch Built-in high efficiency SRAM for packet buffer;
- IEEE802.3x compliant full-duplex flow control, half-duplex flow control;
- Broadcast storm filter, runt and C RC Filtering eliminates erroneous packets to optimize the network bandwidth;
- Support Power saving mode by cable detection;
- All port-TX supports Auto-MDI/ MDIX function.
Product Specification
| Device Type | Switch - 5 ports |
| Enclosure Type | Desktop |
| Subtype | Fast Ethernet |
| Ports | 5 x 10/100 |
| MAC Address Table Size | 1K entries |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Broadcast Storm Control |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Built-in Devices | Led panel |
| Status Indicators | Port transmission speed, power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |

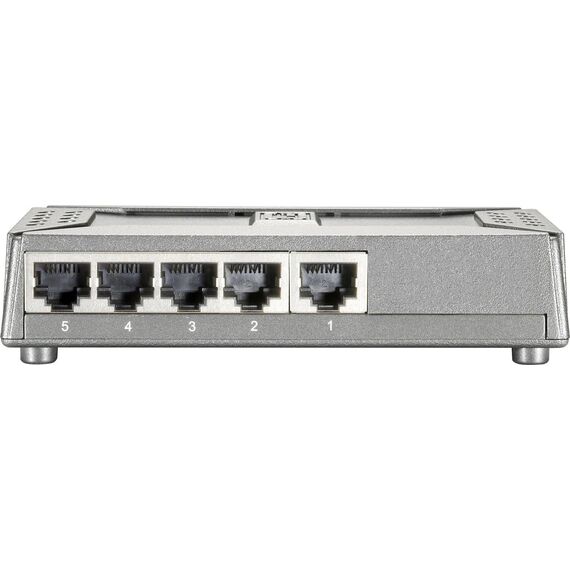

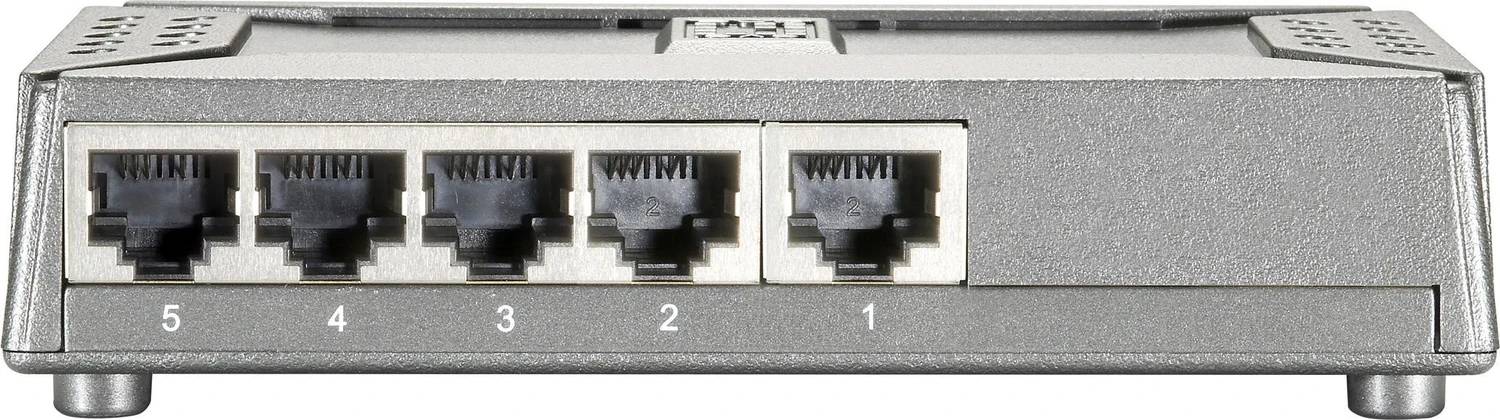

| Interfaces | 5 x 100Base-TX RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.7 cm |
| Depth | 7 cm |
| Height | 2.8 cm |
| Weight | 0.7 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 90% |
Features - LevelOne - FSW-0508TX
General
5-Port
More Details
Product Code
04:37622
EAN Code
4015867109533
Manufacturer
LevelOne
