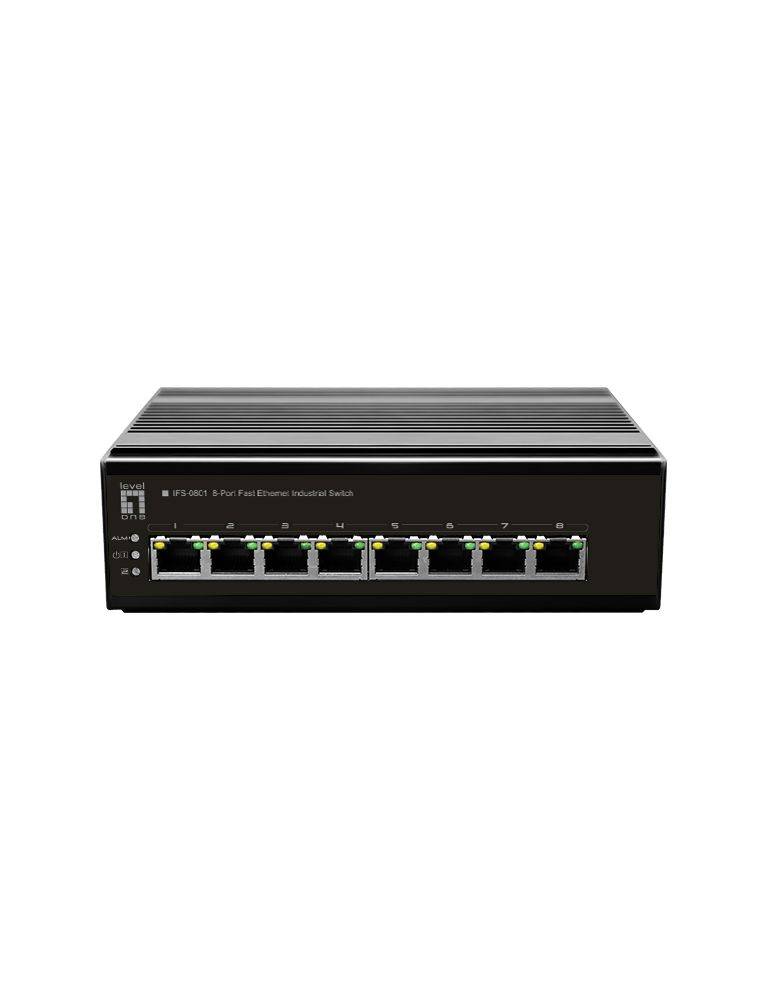

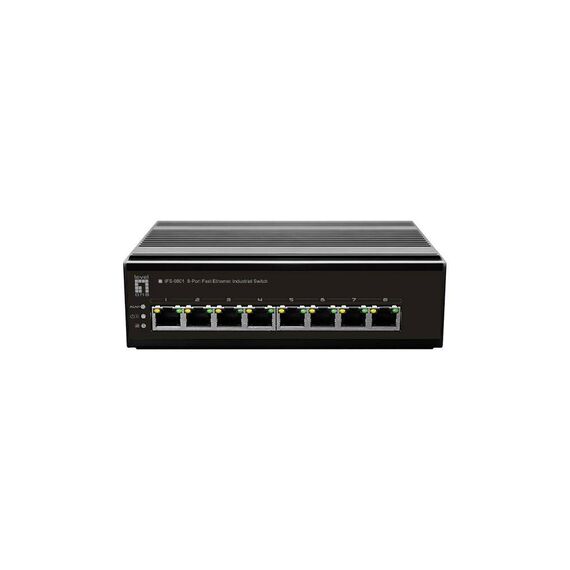

LevelOne IFS-0801 8-Port Fast Ethernet Industrial DIN-Rail Switch 12-60V DC Wide-Temp Fanless Metal

Brand:
LevelOne
LevelOne 8-Port Fast Ethernet Industrial Switch IFS0801
LevelOne IFS-0801 8-Port Fast Ethernet Industrial DIN-Rail Switch 12-60V DC Wide-Temp Fanless Metal
€112.72 inc. VAT
Buy
IFS-0801
€94.72 €105.24
€112.72 inc. VAT
Ships from EU stock: 63 item(s)
+ −
Add to wish list Ask a question
Product Code
04:373990
EAN Code
4015867223932
Manufacturer
LevelOne
Quick Specs
Ports
8× 10/100 RJ45
Industrial
IP30 • -40~75°C
Power
12–60V DC
Type
Unmanaged • DIN-rail
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

8-Port Fast Ethernet Industrial DIN-Rail Switch

8× 10/100 RJ45IP30 • -40~75°C12–60V DCDIN-RailFanless

The LevelOne IFS-0801 is a rugged, industrial-grade Fast Ethernet switch designed for control cabinets, outdoor enclosures and factory-floor networks. Eight 10/100Mbps ports connect PLCs, cameras, sensors and workstations with no configuration. Housed in a fanless IP30 metal chassis, it withstands a wide -40 to 75°C range and accepts a flexible 12–60V DC power input, letting it run reliably in demanding environments where a standard office switch would fail — all mounted neatly on a DIN rail.

Compatibility — check before buying:
Connects any 10/100 Ethernet device with auto-negotiation and Auto-MDI/MDI-X. This is a non-PoE switch — it does not power connected devices. Provide a 12–60V DC supply via the terminal block; the wide input range suits varied industrial power sources.

Best For

✓Industrial cabinets and factory-floor networks
✓Outdoor and unheated enclosures (-40 to 75°C)
✓DIN-rail installs with varied DC power sources
✓Rugged Fast Ethernet for cameras and sensors

Key Features


8 Fast Ethernet Ports
Eight 10/100Mbps ports connect industrial devices with auto-negotiation and Auto-MDI/MDI-X on every port, in a compact DIN-rail chassis.

Hardened Wide-Temperature Design
A fanless IP30 metal case and a -40 to 75°C operating range keep the switch running reliably in freezing, hot or dusty industrial environments.

Flexible 12–60V DC Input
A wide 12–60V DC input range suits many industrial power supplies, giving flexibility across different cabinets and installations.

DIN-Rail Mounting
Designed to clip onto a standard DIN rail inside a control cabinet, with a compact rugged chassis for dense industrial installs.

Technical Specifications

Identification
Brand LevelOne
Model IFS-0801
Part Number IFS-0801
EAN 4015867223932
Ports
10/100 RJ45 8
Total Ports 8
Port Speed 10 / 100 Mbps
Industrial
Operating Temp -40 to 75°C
Ingress Rating IP30 metal case
Power Input 12–60V DC
Mounting DIN-rail
Performance
Management Unmanaged
Cooling Fanless (passive)
Forwarding Store-and-forward
Standards
Ethernet IEEE 802.3 / 802.3u
Flow Control IEEE 802.3x
Auto-Negotiation Yes
Power & Physical
Housing Metal
Colour Silver
PoE No
Warranty
Coverage 1-Year Warranty (Singular)

Frequently Asked Questions

Does the IFS-0801 supply PoE?
No. It is a non-PoE industrial switch and does not power connected devices. If you need PoE, choose a LevelOne industrial PoE model instead.
Can it handle extreme temperatures?
Yes. It is rated for -40 to 75°C operation in a fanless IP30 metal case, making it suitable for unheated cabinets, outdoor enclosures and factory floors.
What power supply does it need?
A DC source anywhere in the 12–60V range via the terminal block. The wide input range makes it compatible with many industrial power supplies.
Is it a Gigabit switch?
No. The IFS-0801 is a Fast Ethernet (10/100Mbps) switch, ideal for cameras, PLCs and sensors. For Gigabit industrial connectivity, choose a Gigabit model.
Singular Expert Insight
Industrial switches like the IFS-0801 trade speed and features for survivability: Fast Ethernet is plenty for cameras and sensors, while the fanless metal body, wide temperature range and flexible 12–60V DC input are what let it run in a cabinet on a factory floor. If you need Gigabit, PoE or fibre, LevelOne offers industrial models that add them. Compare industrial and standard options across our network switches, and find DIN-rail accessories and cabling in the wider networking range.

Buyer’s Guide

Buy it if
You need rugged Fast Ethernet switching in an industrial cabinet or outdoor enclosure, with a flexible 12–60V DC input, DIN-rail mounting and a -40 to 75°C range.
Skip it if
You need Gigabit speed, Power over Ethernet, SFP fibre uplinks, or managed features — choose a Gigabit, PoE or managed industrial switch instead.
Also consider
Confirm you have a 12–60V DC supply and DIN-rail space, and step up to a Gigabit, PoE or SFP-equipped industrial model if your speed, power or fibre needs grow.
