LevelOne 1-Channel BNC Fiber Optic Extender Kit — one analogue camera up to 20 km over a single fiber
1 × BNC videoUp to 20 kmSingle-mode single fiberAHD · TVI · CVI · CVBS

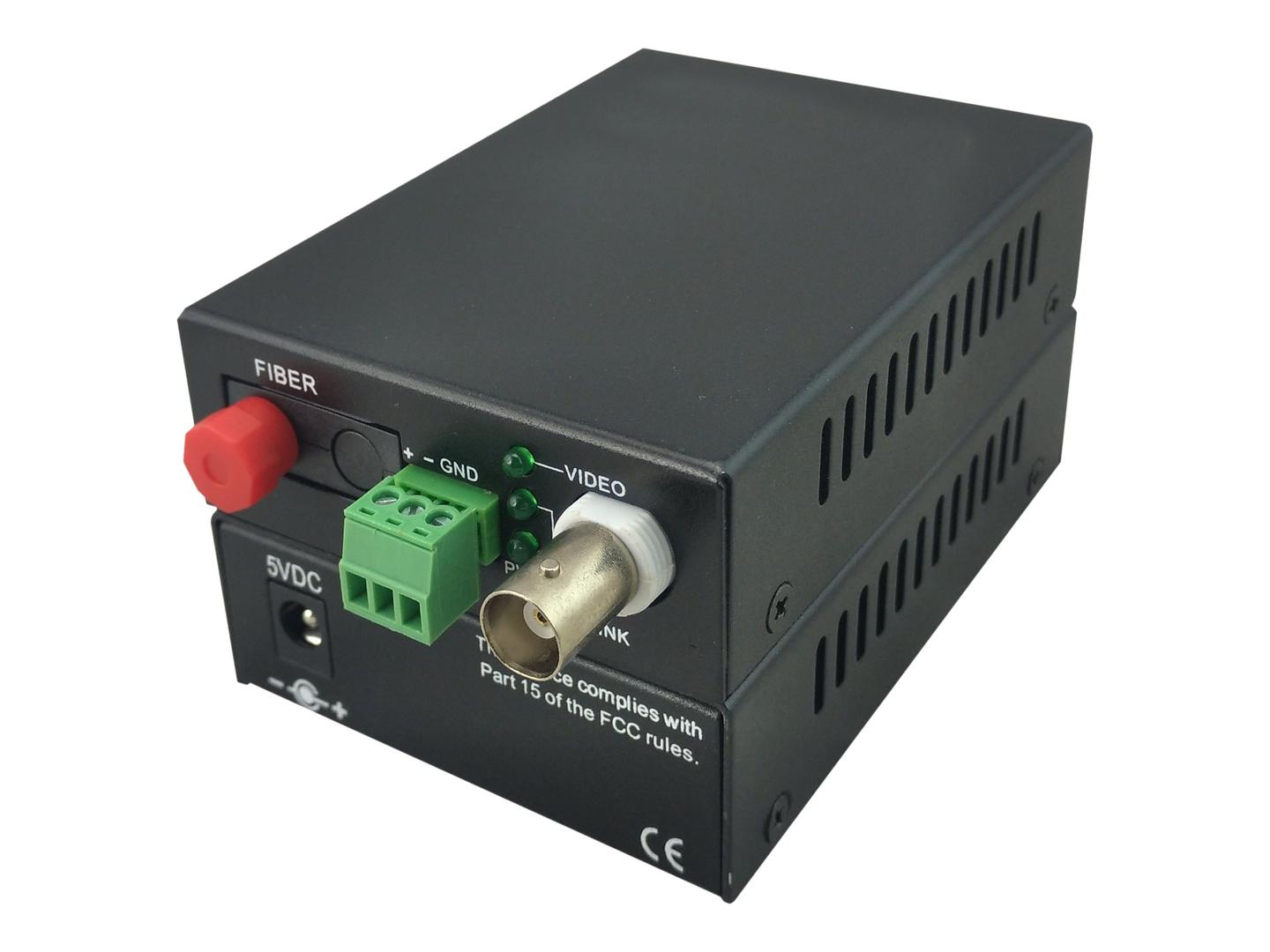

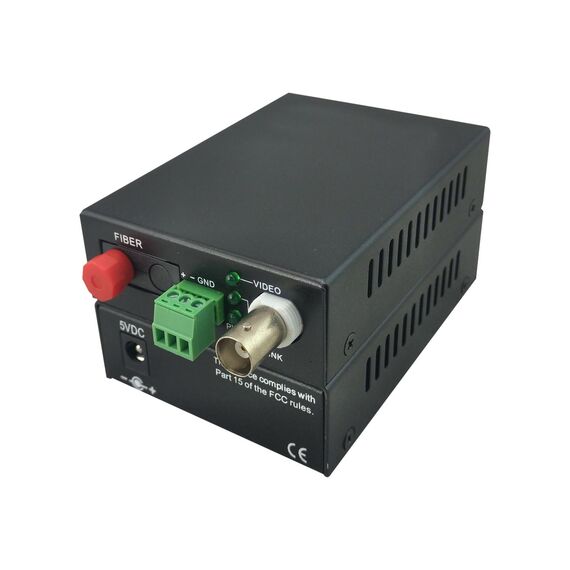

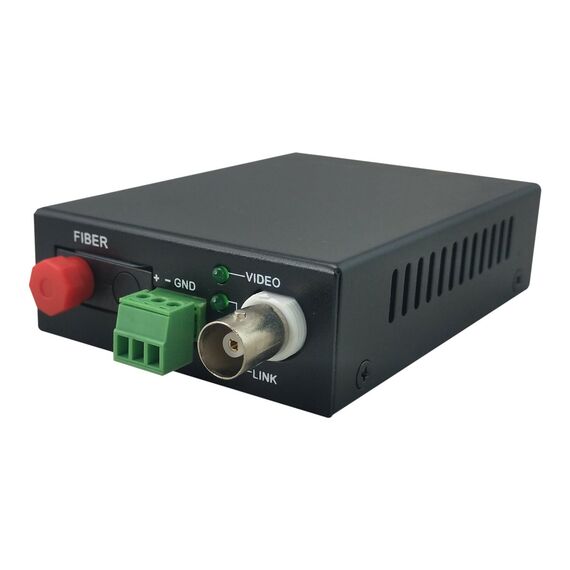

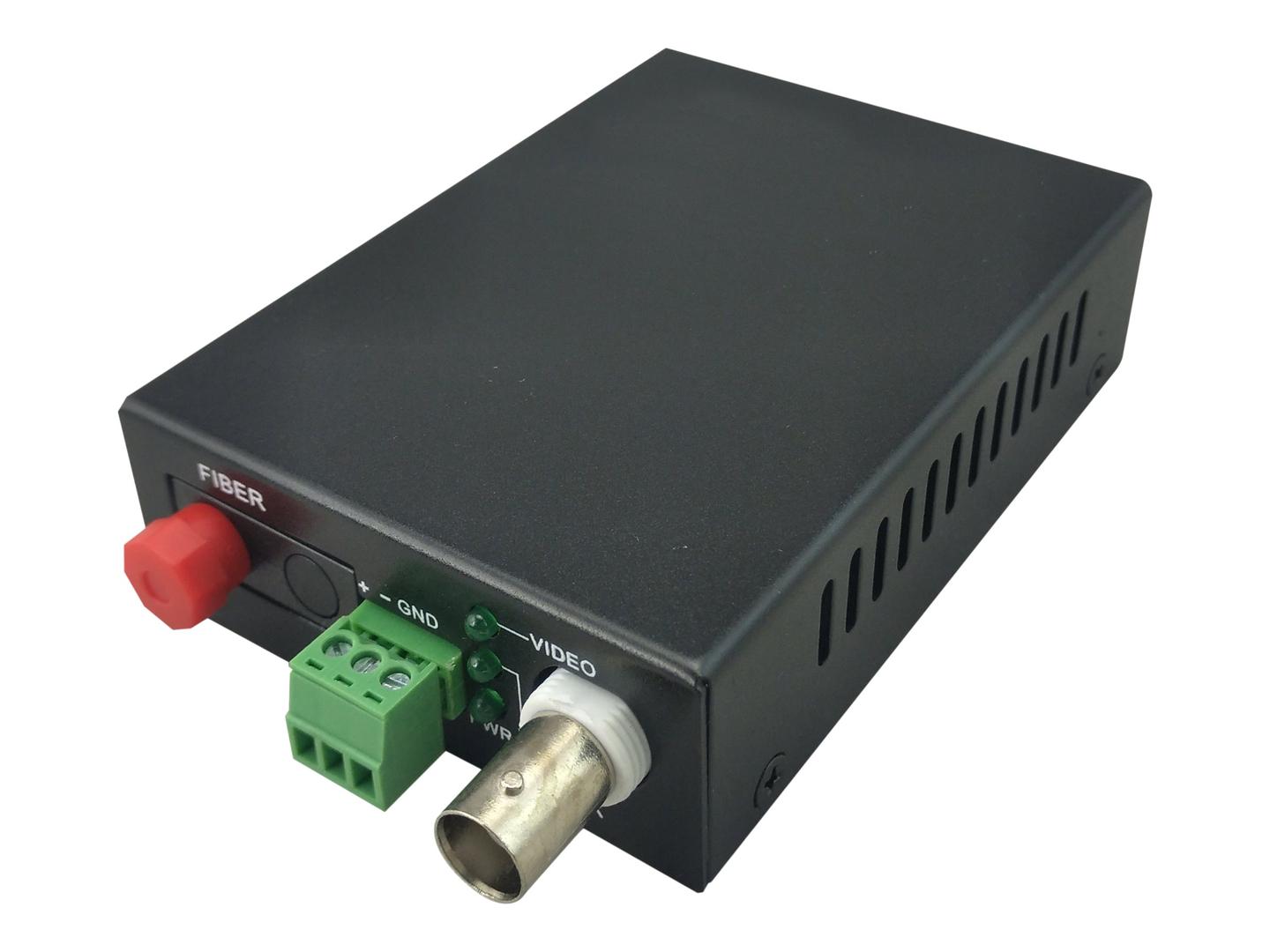

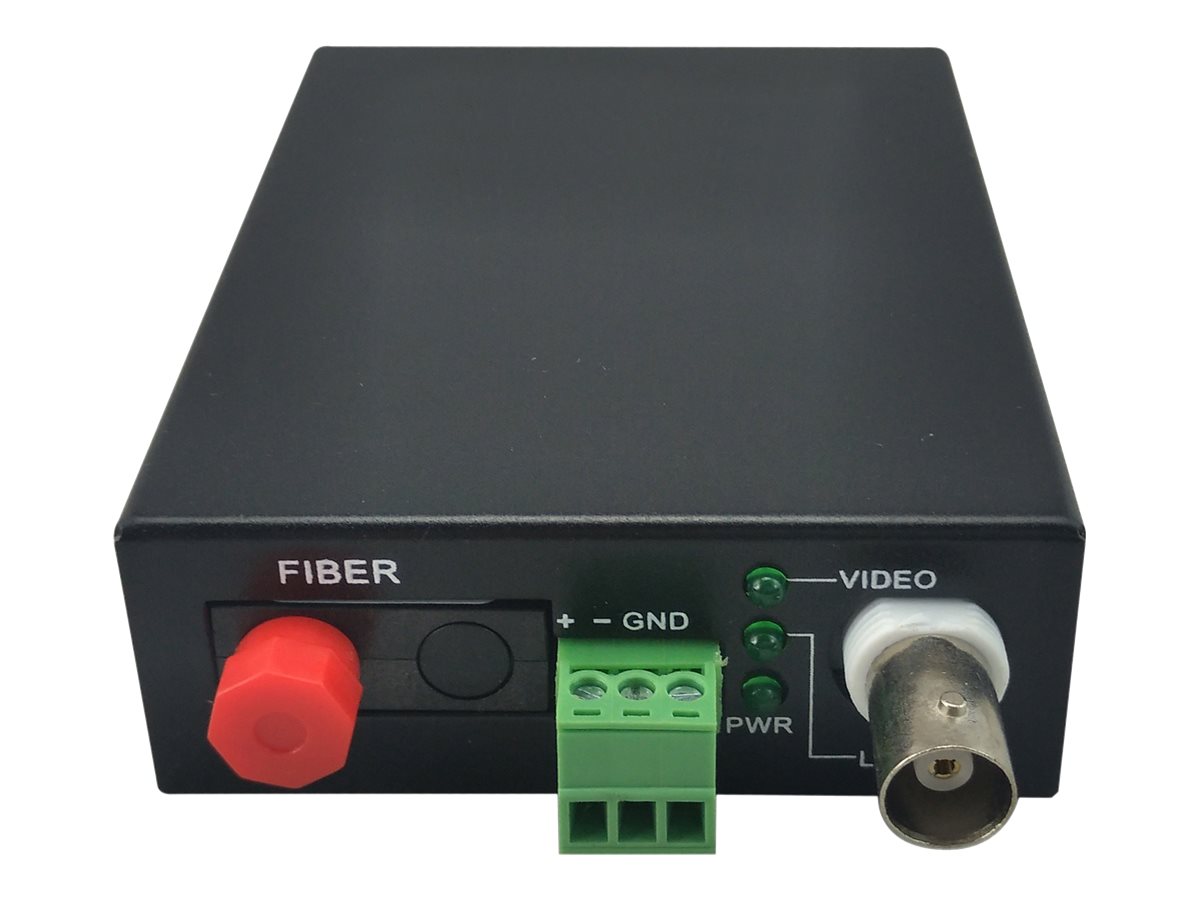

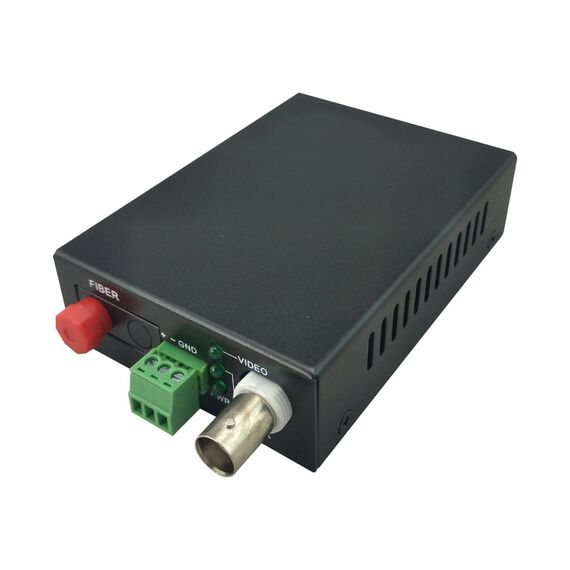

The LevelOne AVF-1101 is a 1-channel BNC video over fiber extender kit that carries one uncompressed analogue camera signal — CVBS, AHD, TVI or CVI — up to 20 km over single-mode single fiber, for CCTV links that are too long or too exposed for coax.
It suits perimeter cameras, car parks, industrial sites and campuses where cameras sit far from the recorder or near power lines. Fiber is immune to electromagnetic interference and ground loops, and the units are rated for −20 to 70 °C.
Before you order: For analogue BNC cameras only (CVBS, AHD, TVI, CVI) — not HDMI and not IP cameras. It needs a single-mode fiber with FC connectors and a total link loss of no more than 18 dB.
What's in the Box

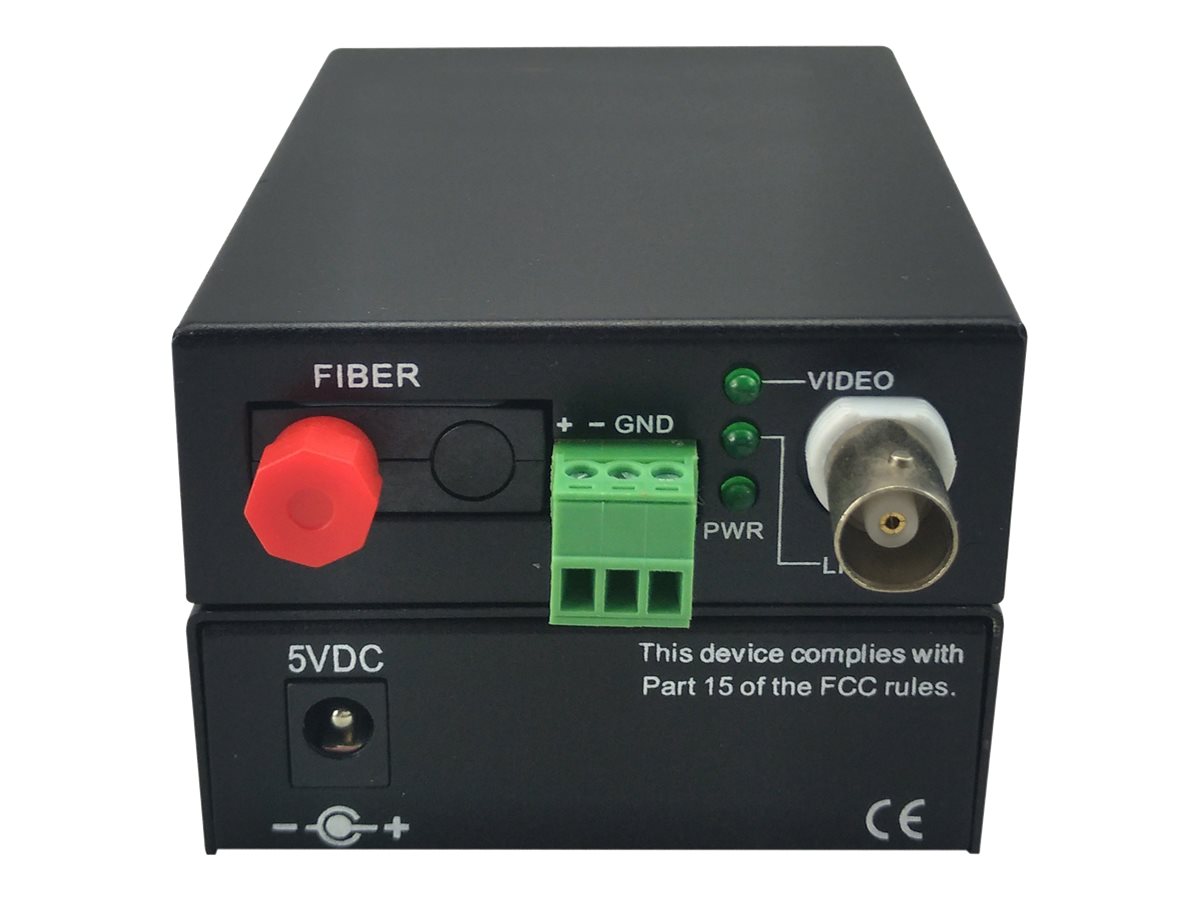

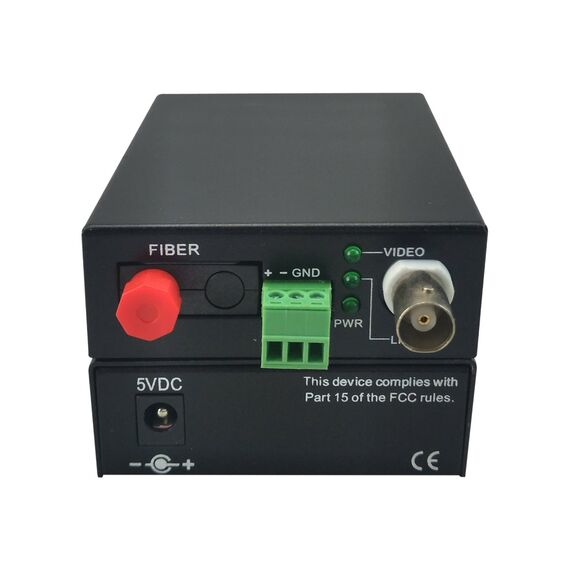

- 1 × transmitter and 1 × receiver (kit)
- 2 × power adapter
- Quick installation guide and EC declaration
- Not included: fiber patch cords, BNC cables
What It Means in Practice
- One analogue camera can be placed up to 20 km from the DVR on one fiber.
- No interference, hum or ground-loop problems near power lines, since the link is optical.
- Plug and play: no settings; LEDs show power, optical link and video status.
- Each unit needs power (two adapters included).
- Uncompressed 8-bit transmission keeps the camera picture as it leaves the camera.
What Will Not Work
- It does not carry HDMI, VGA or network (IP) video.
- It does not work over multimode fiber — single-mode only.
- It carries one camera; for four or eight channels LevelOne offers other kits.
- It has no PTZ data or audio channel listed.
- It does not include fiber patch cords — FC connectors are required.
Key Features
20 km on one fiber
Single-mode single fiber operation at 1310 nm and 1470–1610 nm wavelengths, max. 18 dB link loss.
All HD-analogue formats
Uncompressed CVBS, AHD, TVI and CVI video, 75 Ω BNC.
Interference-free
Fiber eliminates EMI/RFI and ground-current problems near power lines.
Industrial range

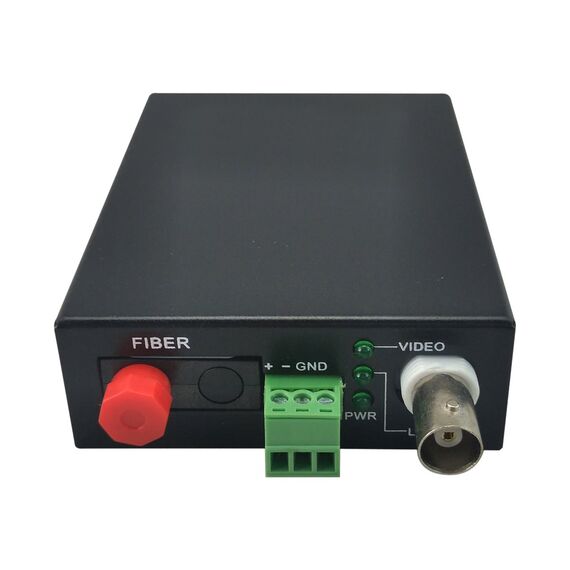

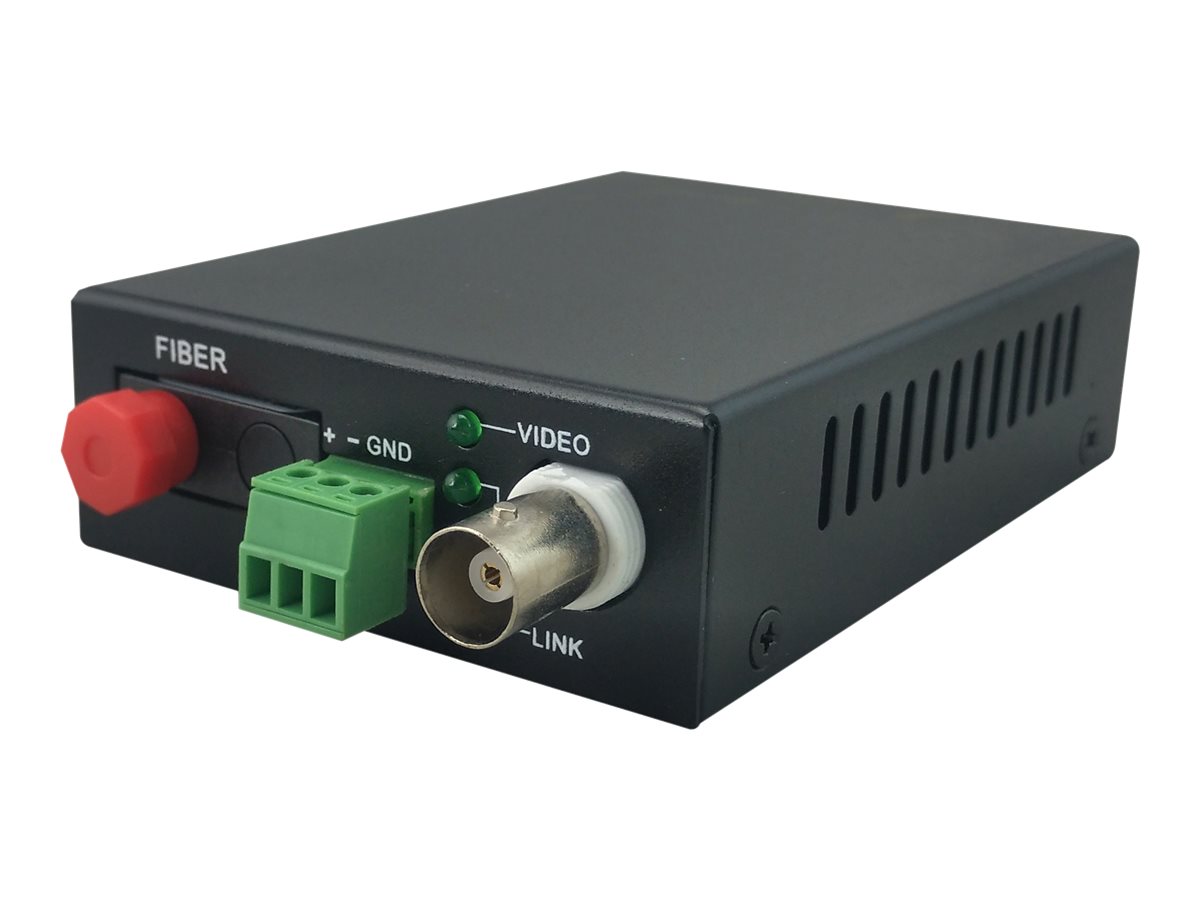

Operating −20 to 70 °C and 5–95% humidity, with status LEDs for PWR, LNK and VIDEO.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The AVF-1101 solves long or electrically noisy camera runs that coax cannot handle, and it keeps existing analogue CCTV in service. If the site is moving to network video, consider whether new IP cameras with fiber Ethernet would serve better long-term; for keeping an analogue camera working at distance, this kit is the straightforward option.
✓ Buy it if you need one analogue BNC camera up to 20 km from the recorder over single-mode fiber.
✕ Skip it if your cameras are IP, your fiber is multimode, or you need several channels.
→ Also consider LevelOne 4- or 8-channel BNC fiber kits for more cameras; a fiber media converter for IP cameras.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - LevelOne - AVF-1101
Colour
black
Length
>50m
More Details
Product Code
04:281968
EAN Code
4015867206690
Manufacturer
LevelOne
