LevelOne CAS-7335 Pole Mount Bracket with Integrated Junction Box for LevelOne FCS-4051 4052 4064 4072 Speed Domes Aluminium White
Brand:
LevelOne
LevelOne CAS-7335 Pole Mount Bracket with Integrated Junction Box for LevelOne FCS-4051 4052 4064 4072 Speed Domes Aluminium White
€232.59 inc. VAT
CAS-7335
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LevelOne CAS-7335 Pole Mount with Junction Box
Speed domesJunction boxAluminium + steelWhite

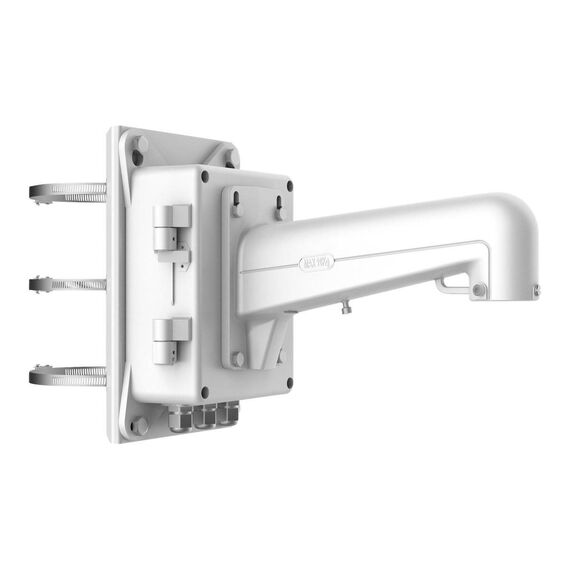

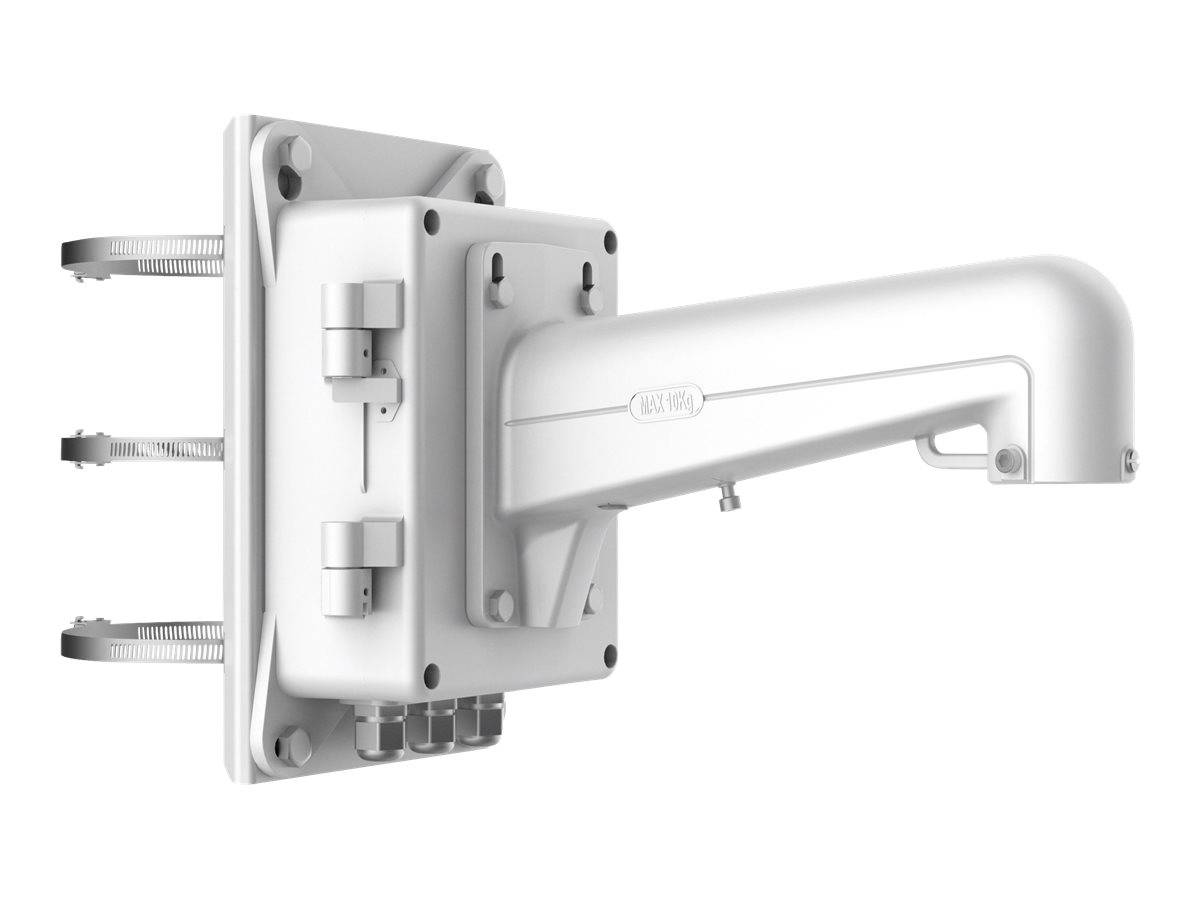

The LevelOne CAS-7335 is a pole mount bracket with an integrated junction box for LevelOne speed dome cameras. LevelOne lists the FCS-4051, FCS-4052, FCS-4064 and FCS-4072. It is built from aluminium alloy and steel to handle the weight and wind load of a pole-mounted speed dome, and the built-in junction box keeps the data and power connections dry and secure. It weighs 6.84 kg and is white. In practice it is an all-in-one pole solution: arm, adapter and cable box in one part.
Compatibility — check before buying:
For the four listed LevelOne speed domes only. LevelOne publishes two different dimension sets for this item (256 × 314 × 546 mm in the summary, 314 × 600.8 × 209.7 mm in the specification table) and does not publish the accepted pole diameter or the strap type. Send us the pole diameter before ordering. The camera is not included. LevelOne also sells the CAS-7332 Pole Mount Bracket without junction box. Not sure? Tell us your model and we check it for you.
Best For
✓ LevelOne FCS-4051 and FCS-4052
✓ LevelOne FCS-4064 and FCS-4072
✓ Car-park and street poles
✓ Perimeter PTZ coverage
✓ Outdoor sites with exposed cabling
✓ Industrial yards
Key Features
Integrated junction box
Connections stay dry and secure.
Aluminium and steel
Handles speed-dome weight and wind load.
All in one
Pole adapter, arm and box in one part.
White finish
Matches LevelOne speed domes.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight
A speed dome on a pole needs somewhere dry for the connections — the built-in junction box solves that without a separate enclosure. Check the pole diameter at mounting height. For cameras, see our IP cameras.
Buyer’s Guide
Buy it if
You mount a LevelOne FCS-4051, 4052, 4064 or 4072 on a pole.
Skip it if
Your camera is a fixed dome or bullet.
Also consider
LevelOne CAS-7332 Pole Mount Bracket without junction box.
Features - LevelOne - CAS-7335
Colour
white
More Details
Product Code
04:248536
EAN Code
4015867203460
Manufacturer
LevelOne
