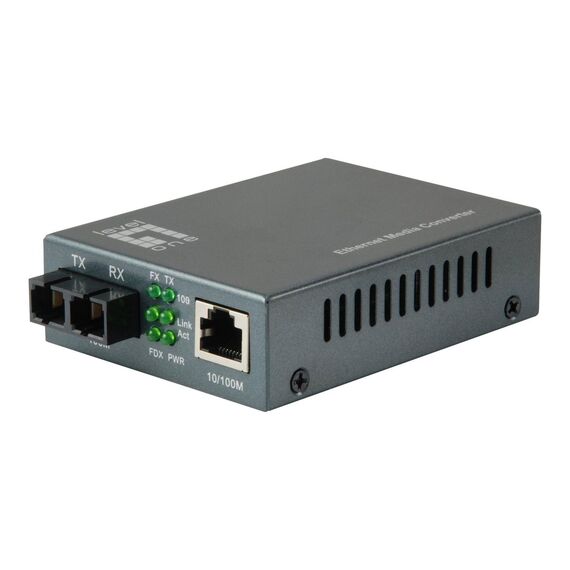

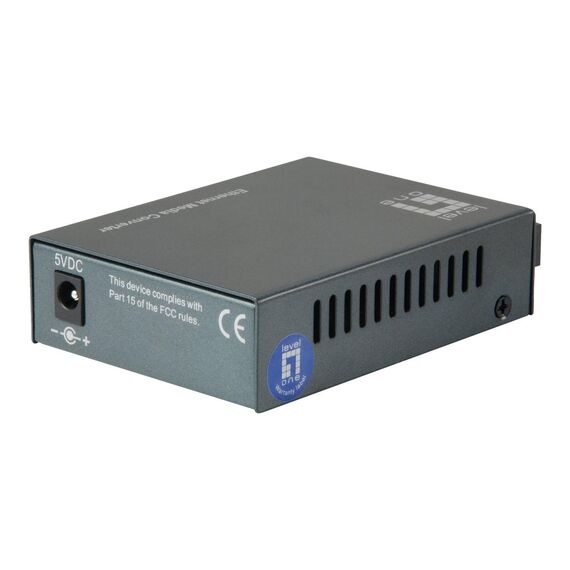

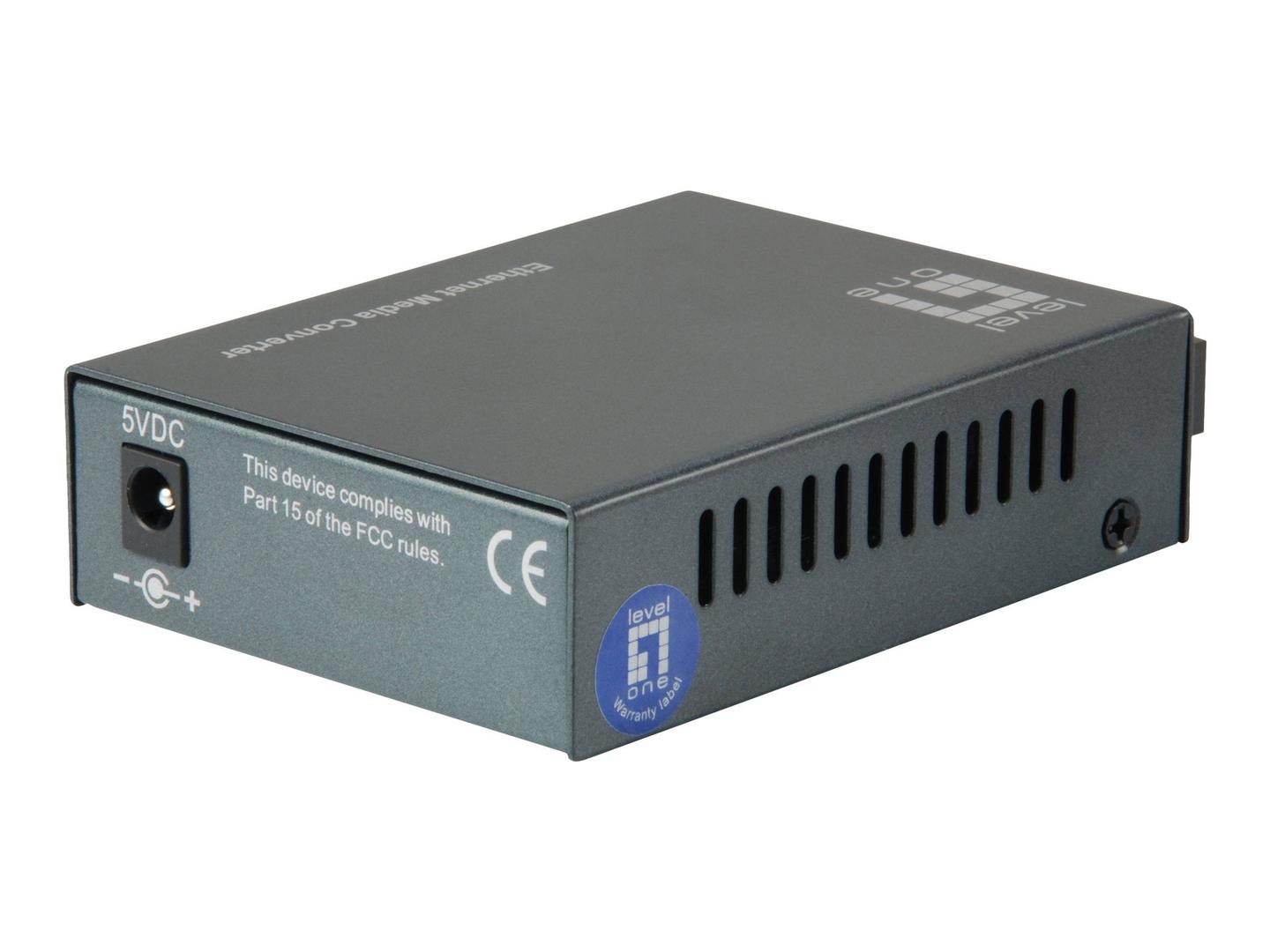

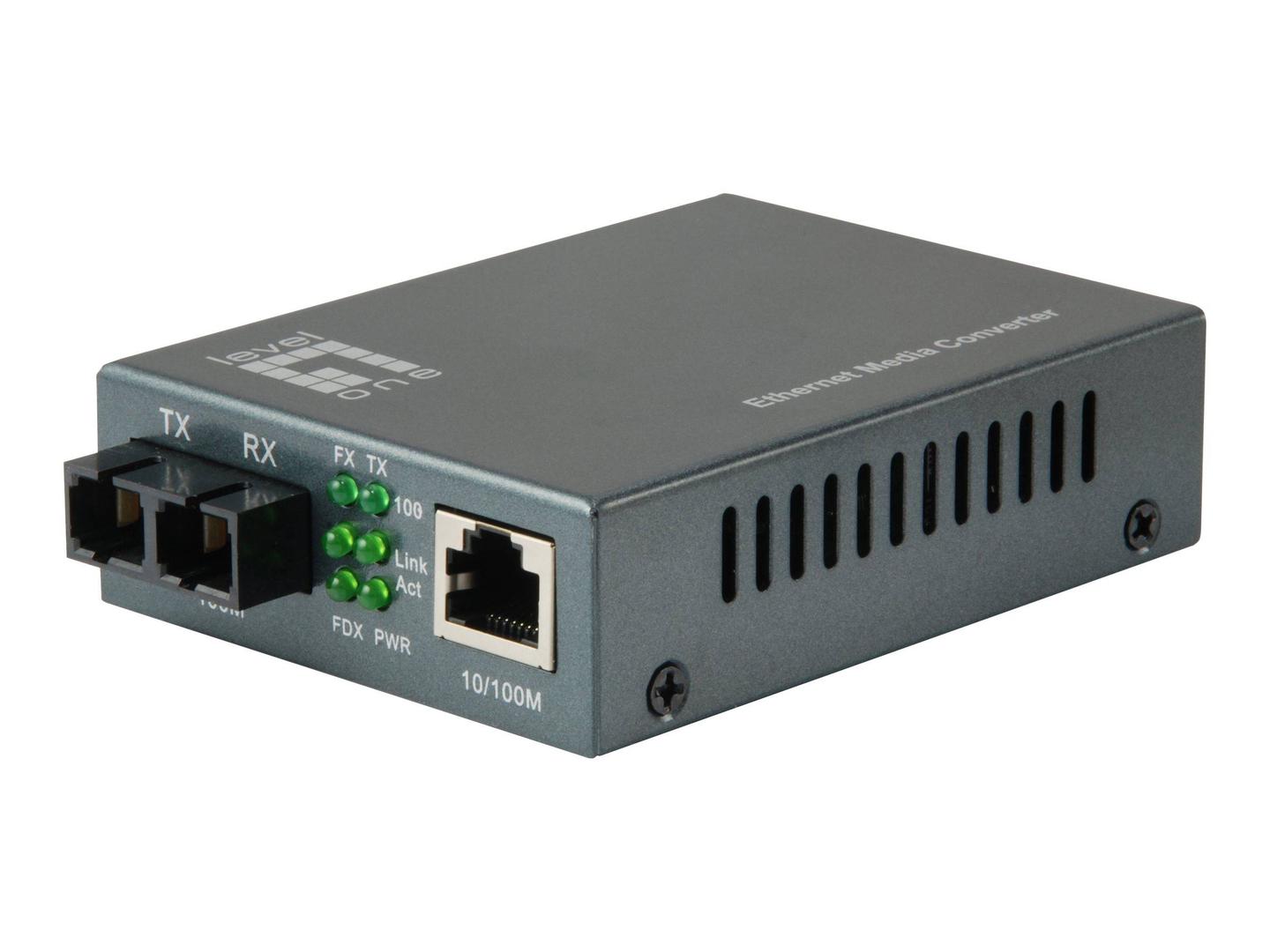

LevelOne FVT-1101 Fast Ethernet Media Converter, RJ45 to SC Multimode Fiber, 1310nm, up to 2km
Brand:
LevelOne
LevelOne FVT-1101 Fast Ethernet Media Converter, RJ45 to SC Multimode Fiber, 1310nm, up to 2km
€38.76 inc. VAT
FVT-1101
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LevelOne FVT-1101 — Fast Ethernet Media Converter, RJ45 to SC Multimode, 2 km
10/100 → 100Base-FXSC multimode1310 nm · 2 kmPower adapter included
The LevelOne FVT-1101 is a Fast Ethernet media converter that turns a 10/100Base-TX RJ45 copper connection into 100Base-FX over multimode (50/125 or 62.5/125 µm) fibre with an SC connector, extending a network link up to 2 km at 1310 nm.
It is the simple way to reach another building or a distant cabinet over existing multimode fibre, and it can run standalone on a desk or wall, or slide into a 19-inch converter chassis for centralised wiring.
Before you order: the fibre side is 100Base-FX, multimode, SC, 1310 nm. The device at the other end must match all four — speed, fibre type, connector (or a suitable patch cord) and wavelength.
What's in the Box
- 1 × LevelOne FVT-1101 media converter
- 1 × power adapter
- Quick installation guide
What It Means in Practice
- Plug the RJ45 port into your switch or PC (10/100 auto-sensing, full/half duplex) and the SC port into the fibre via an SC duplex multimode patch cord.
- At the far end you need the same fibre interface: a second FVT-1101 (or another multimode SC converter at 1310 nm) or a switch port with a matching 100BASE-FX optic.
- Up to 2 km is the maximum the manufacturer publishes; real reach depends on fibre quality, splices and connectors along the way.
- It is a plug-and-play, unmanaged converter: no IP address or configuration, it simply passes Ethernet frames between copper and fibre.
What Will Not Work
- Gigabit links — the fibre side is fixed at 100 Mbps; a 1000BASE-X SFP port on a switch will not link to it.
- Single-mode (OS2) fibre — use the FVT-1102 for single-mode.
- LC-only patch panels without an SC-to-LC patch cord.
- Power over Ethernet — the RJ45 port neither supplies nor takes PoE power.
- VLAN, monitoring or any managed features — this is an unmanaged converter.
Key Features
100Base-FX over multimode
SC fibre port at 1310 nm for links up to 2 km.
Auto-sensing RJ45
10/100Base-TX copper port with full and half duplex.
Standalone or chassis
Runs on its own power adapter or slides into a 19-inch converter chassis.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
Fast Ethernet converters are still the cheapest way to bring a camera, access controller or remote office onto fibre where 100 Mbps is enough. Buy them in pairs and keep the fibre type consistent; for faster uplinks pair Gigabit converters with network switches.
✓ Buy it if you need a 100 Mbps link over multimode fibre with SC connectors, up to 2 km.
✕ Skip it if you need Gigabit speed or your fibre is single-mode.
→ Also consider the LevelOne FVT-1102 for single-mode fibre up to 20 km.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - LevelOne - FVT-1101
More Details
Product Code
04:299633
EAN Code
4015867208038
Manufacturer
LevelOne
