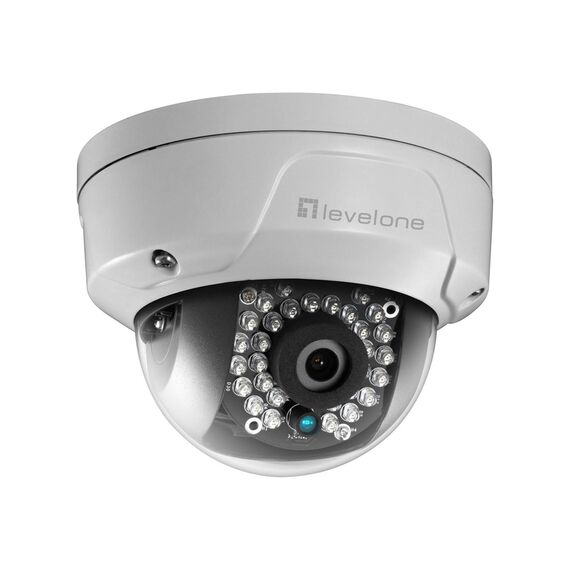

LevelOne FCS-3402 GEMINI 2MP Dome IP Camera, 4 mm, PoE, 30 m IR, IP67, IK10

Brand:
LevelOne
LevelOne FCS-3402 GEMINI 2MP Dome IP Camera, 4 mm, PoE, 30 m IR, IP67, IK10
LevelOne FCS-3402 GEMINI 2MP Dome IP Camera, 4 mm, PoE, 30 m IR, IP67, IK10
€248.42 inc. VAT
Buy
FCS-3402
€208.76
€248.42 inc. VAT
Ships from EU stock: 24 item(s)
+ −
Add to wish list Ask a question
Product Code
04:430859
EAN Code
4015867207697
Manufacturer
LevelOne

Quick Specs

Image / lens
1080p / 4 mm
Protection
IP67 / IK10
Night / storage
30 m IR / microSD
Power
802.3af PoE / 12 V DC
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne FCS-3402 GEMINI 2MP Dome IP Camera, 4 mm, PoE, 30 m IR, IP67, IK10

1080p / 4 mmIP67 / IK1030 m IR / microSD

FCS-3402 combines a fixed 4 mm view with an impact-resistant outdoor dome. Its IP67 and IK10 ratings suit an exposed mounting point, while 30 m infrared illumination supports night monitoring. Local microSD storage, audio input/output and alarm terminals offer integration options beyond a basic fixed camera; use PoE or a separate 12 V supply for power.

Key Features


Impact-resistant dome installation
IP67 weather protection and IK10 impact resistance suit a fixed outdoor viewpoint. Select the appropriate optional mounting kit for a wall, ceiling, pole or corner.

Local storage and external interfaces
A microSDHC/SDXC slot provides a local recording option. Audio in/out and one alarm input/output support connection to suitable external devices.

Match the view to the site
The fixed 4 mm lens covers 86° horizontally. Check the detail needed at the subject distance; digital zoom cannot change the optical field of view.

Technical Specifications

Identification
Brand LevelOne
SKU / part number FCS-3402
EAN / GTIN 4015867207697
Imaging and video
Hardware version 1
Sensor 1/2.8-inch progressive CMOS
Lens / aperture Fixed 4 mm board lens, F2.0
Field of view H / V / D 86° / 46° / 102°
Maximum resolution 1920 × 1080
Shutter 1/3 to 1/100000 s; slow shutter supported
Day/night Removable IR-cut filter
IR illumination 850 nm LEDs; manufacturer viewing reference up to 30 m
Video codecs Main H.265/H.264; sub-stream H.265/H.264/MJPEG
Main stream 50 Hz 25 fps at 1920 × 1080, 1280 × 960 or 1280 × 720
Main stream 60 Hz 30 fps at 1920 × 1080, 1280 × 960 or 1280 × 720
Sub-stream 50 / 60 Hz 25 / 30 fps at 640 × 480, 640 × 360 or 320 × 240
Video bit rate 32 kb/s to 8 Mb/s
Digital zoom 8×
Image processing BLC, 3D DNR, AGC, adjustable white balance
Image adjustments Saturation, brightness, contrast, sharpness, mirror, anti-flicker
Region of interest One fixed ROI in main and sub-stream
Privacy / overlay Privacy mask and watermark
Network, management and interfaces
Ethernet 1 RJ45 10BASE-T / 100BASE-TX PoE port
Power connector 5.5 mm coaxial DC input
Protocols IPv4/IPv6, TCP, UDP, HTTP/HTTPS, DHCP, PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, SAMBA, UPnP, SNMP, Bonjour, IEEE 802.1X
Integration ONVIF Profile S / G; ISAPI
Events Motion detection, video tampering and illegal login
Access Up to 32 users; administrator, operator and user roles
Simultaneous live view 6
Management features Heartbeat and password protection
Control / indicator Reset button; power indicator
Power and installation
DC supply 12 V DC ±25%; 0.4 A; maximum 5 W
PoE supply IEEE 802.3af Class 3; 37–57 V, 0.2–0.13 A; maximum 7 W
Housing protection IP67 / IK10
Colour White
Dimensions Diameter 111 mm × height 82.4 mm
Weight 410 g
Operating temperature −30 to 60 °C
Operating humidity Up to 95% RH, non-condensing
Compliance CE / FCC / RoHS
Audio, storage and mounting
Audio interface Audio input / output
Alarm interface 1 digital input / 1 digital output
Local storage microSDHC / microSDXC slot; card sold separately; maximum capacity not specified in exact datasheet
Minimum illumination 0.028 lux at F2.0, AGC on; 0 lux with IR
Optional mounting accessories CAS-7301 wall, CAS-7302 wall/junction, CAS-7303 pole (2.6–5 inch clamp), CAS-7304 inclined ceiling, CAS-7306 pendant, CAS-7307 corner, CAS-7309 weather shield, CAS-7310 junction box
Power supply availability Power supply ordered separately

What's in the Box

FCS-3402 camera and screw kit
Resource CD with user manual, utility and 64-channel monitoring software

Frequently Asked Questions

Does it include a microphone or speaker?
The exact datasheet documents audio input/output. It does not establish an included built-in microphone or speaker, so plan suitable external audio devices when needed.
Which memory-card capacity should I buy?
microSDHC/SDXC support is documented, but the exact datasheet does not give a maximum capacity. Confirm the intended card with the camera documentation or support before purchase.
Can a standard Ethernet switch power it?
Only an appropriate 802.3af PoE source supplies power through Ethernet. Otherwise use the separately ordered 12 V DC supply with the documented connector and voltage range.
Singular Expert Insight
Choose FCS-3402 for a fixed, wired dome view where impact protection and external audio/alarm interfaces matter. Compare wider lenses for nearby room coverage, and verify recorder and memory-card compatibility during installation planning. Compare IP cameras

Buyer’s Guide

Buy it if

You need an IP67/IK10 fixed dome with PoE, IR and external audio/alarm connections.

Skip it if

You need Wi-Fi, built-in talk hardware or remote motorized movement.

Also consider

A wider-angle dome, or a camera with documented integrated microphone and speaker.
