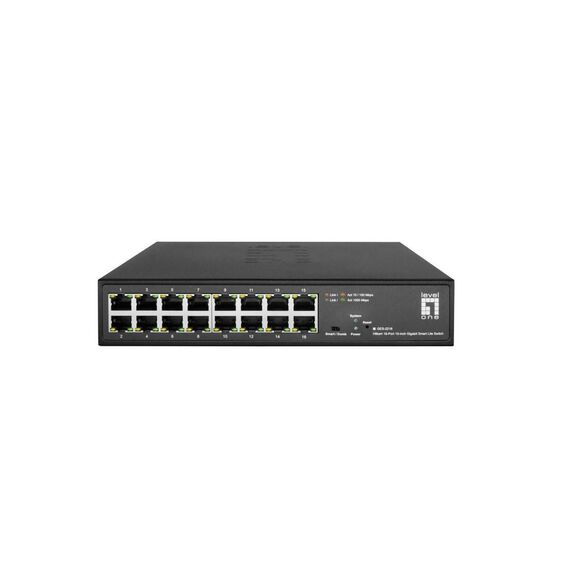

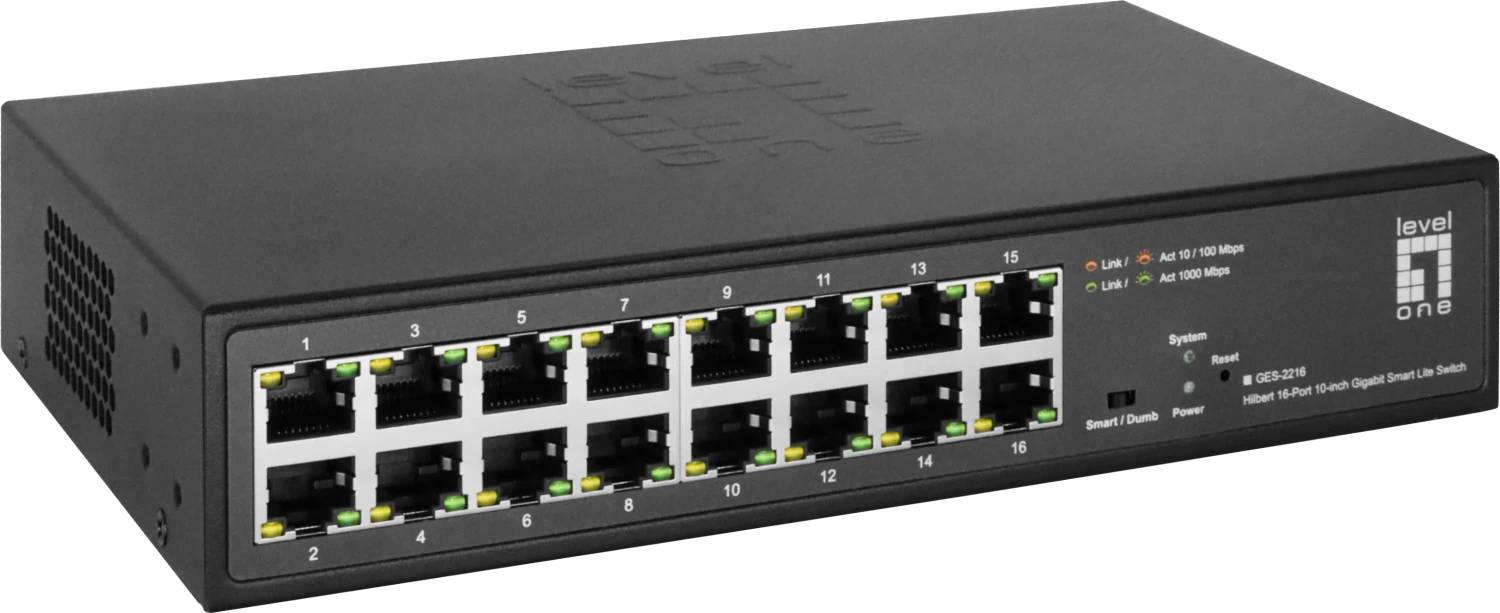

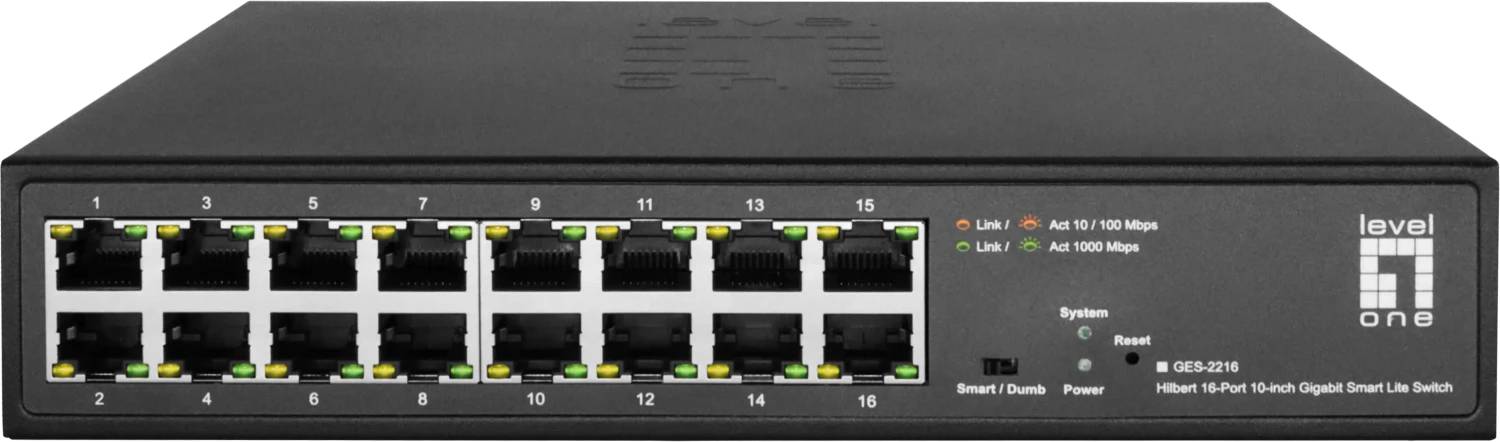

LevelOne GES-2216 Hilbert 16-Port Gigabit Smart Lite Switch
The LevelOne GES-2216 Hilbert is a managed L2 Gigabit switch designed for 10" rack or enclosure installations. It provides 16 RJ45 ports, web-based management, QoS support and a fanless design, making it a practical choice for compact network setups that need straightforward administration.
Technical Specifications
| Specification | Detail |
|---|---|
| Manufacturer | LevelOne |
| Model | GES-2216 |
| Product type | Managed L2 switch |
| Ports | 16 x RJ45 |
| Port speed | Gigabit Ethernet (10/100/1000) |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23808 Mpps |
| MAC address table | 8000 entries |
| VLAN support | Yes | 32 VLANs |
| QoS support | Yes |
| Web-based management | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| IGMP snooping | Yes |
| Jumbo frames support | Yes | up to 10000 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| Half duplex | Yes |
| MAC address auto-learning | Yes |
| MAC address auto-aging | Yes |
| Power over Ethernet (PoE) | No |
| Power source | AC |
| Power supply included | Yes |
| Power consumption (typical) | 6 W |
| Power connector | AC-in jack |
| Rack mounting | Yes |
| Rack mount kit | Yes |
| Colour | Black |
| LED indicators | Activity, Link, Power |
| Flash memory | 2 MB |
| Fanless | Yes |
| Networking standards | IEEE 802.1Q | IEEE 802.3 | IEEE 802.3ab | IEEE 802.3az | IEEE 802.3u | IEEE 802.3x | IEEE 802.3z |
| Certification | CE | UKCA | FCC Part 15, Subpart B Class B | RoHS |
| Package type | Box |
| Cables included | AC |
| Quick start guide | Yes |
| Package width | 285 mm |
| Package depth | 257 mm |
| Package height | 62 mm |
| Package weight | 1.27 kg |
| Width | 215 mm |
| Depth | 150 mm |
| Height | 44.5 mm |
| Weight | 838 g |
| Operating temperature | 0 - 45 °C |
| Operating relative humidity | 10 - 90 % |
| Heat dissipation | 35.8 BTU/h |
| SKU / EAN | GES-2216 | 4015867229989 |
SINGULAR RECOMMENDS
For who
For small offices, service rooms and compact rack installations that need a managed Gigabit switch with 16 ports and simple web administration.
Real reason to buy it
It combines managed L2 features, 16 Gigabit RJ45 ports, VLAN and QoS support, all in a fanless 10" rack format.
Know before
This model does not support PoE and does not offer 10G ports. The manufacturer also notes compatibility with LevelOne IP Locator for Hilbert series switches.
