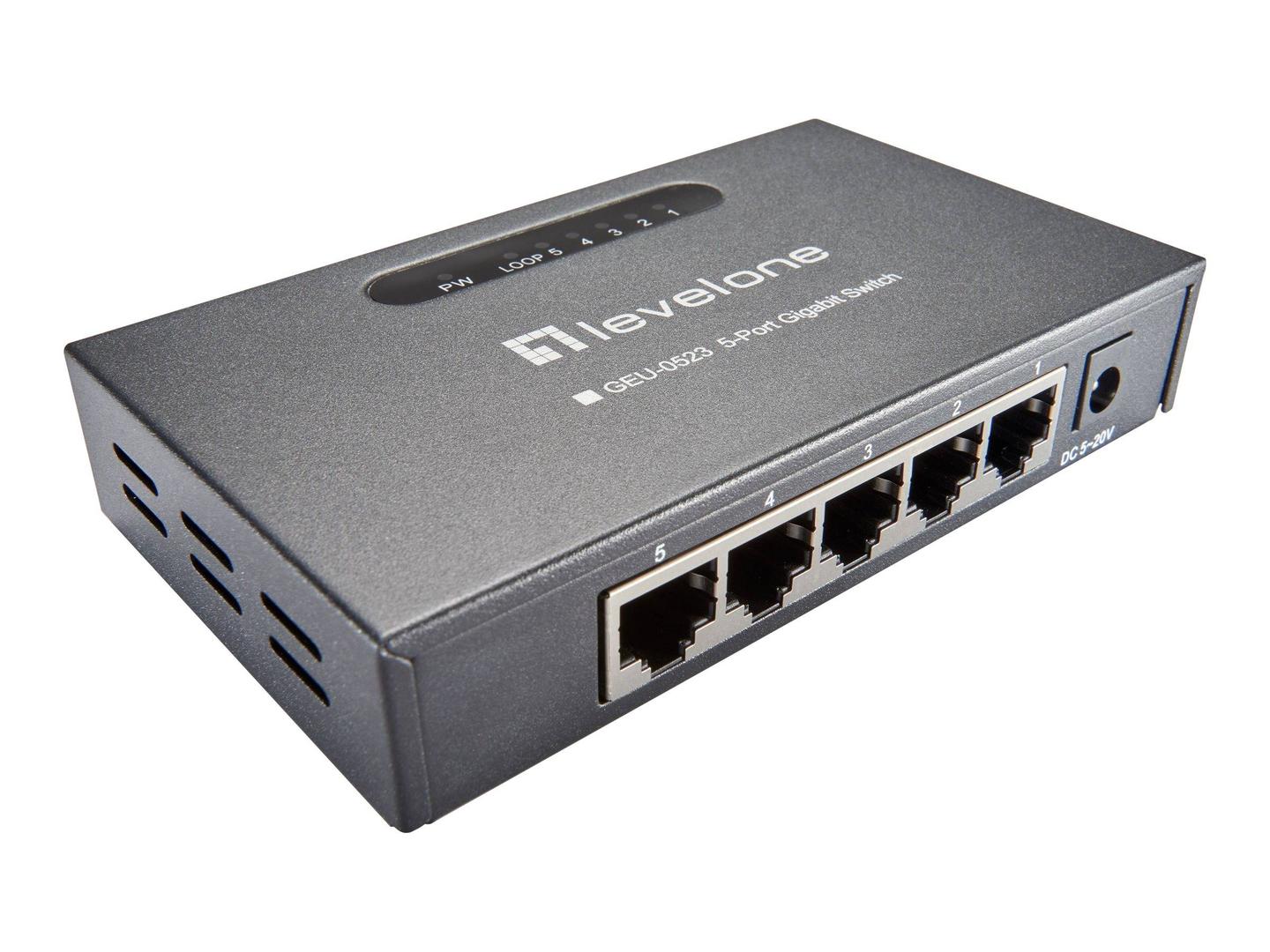

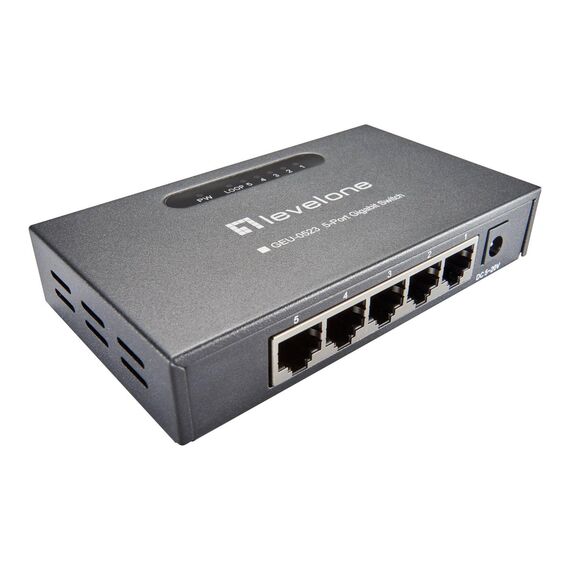

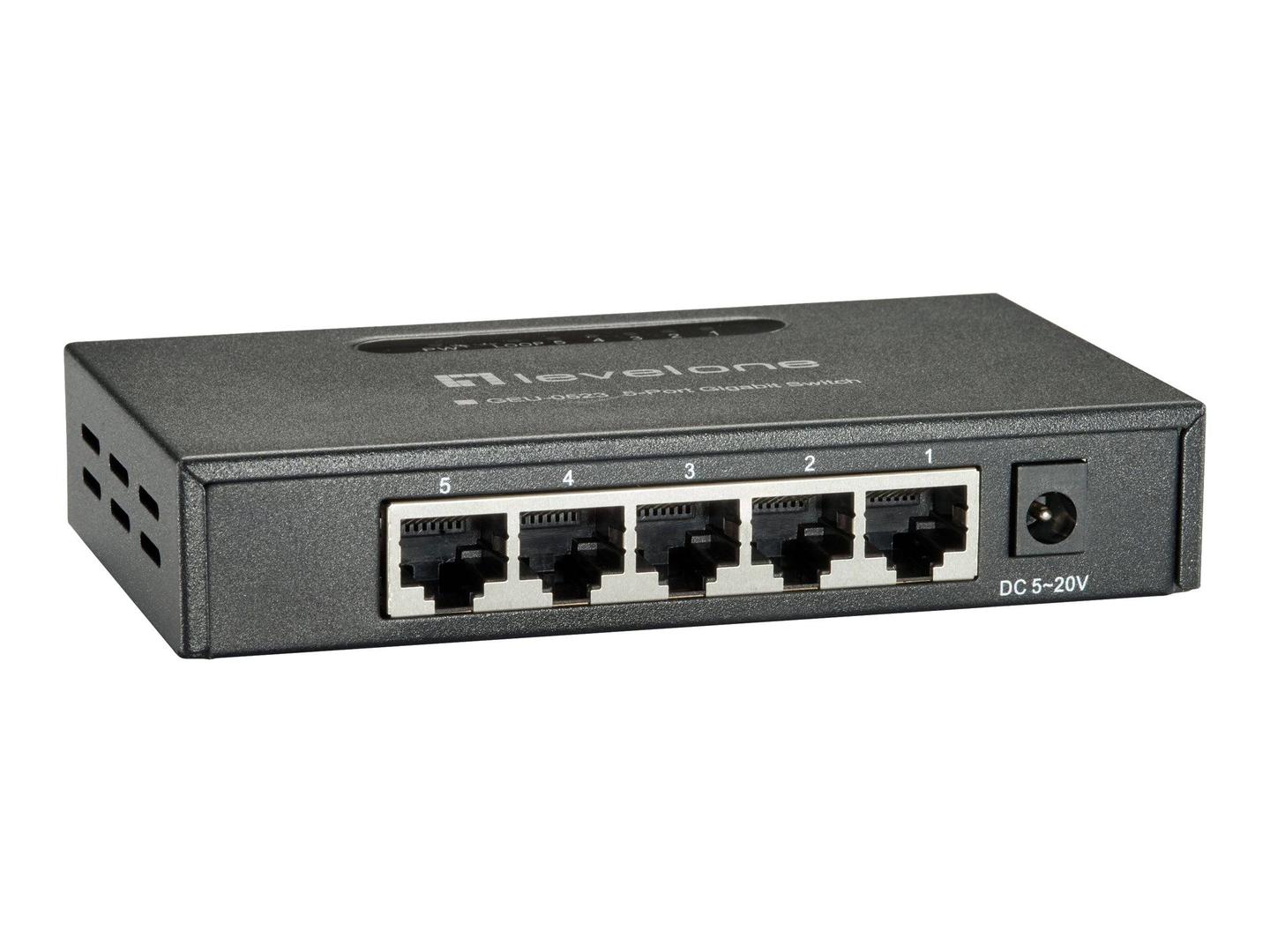

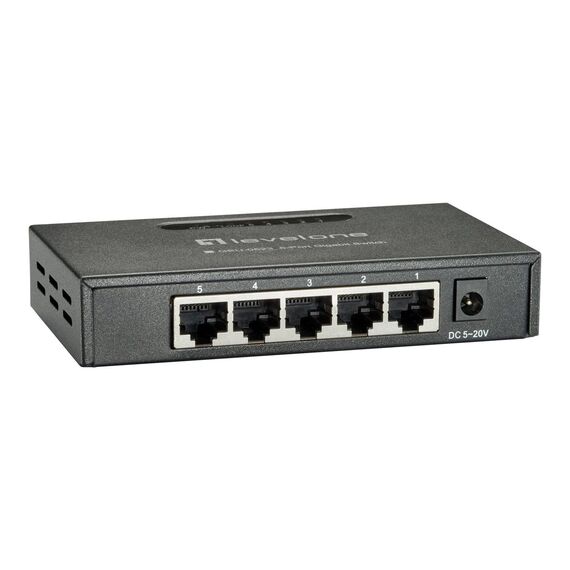

LevelOne GEU-0523 / Switch / unmanaged / 5 x 10/100/1000 / desktop, wall-mountable | GEU-0523
Please sign in so that we can notify you about a reply
Special Features
- Minimize carbon footprint with advanced energy efficient technology (IEEE 802.3az)
- 10/100/1000Mbps wire speed transmission and reception
- Supports 2K MAC address auto-learning and auto-aging
- 9K jumbo frames to increase data transfer rates
- Provides wall or desktop mounting
- 5 Gigabit Ethernet ports
Product Specification
| Device Type | Switch - 5 ports - unmanaged |
| Enclosure Type | Desktop, wall-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 5 x 10/100/1000 |
| Performance | Backplane speed: 10 Gbps ¦ Packet forwarding rate: 1488000 packets per second ¦ Switching capacity: 10 Gbps |
| MAC Address Table Size | 2K entries |
| Jumbo Frame Support | 9KB |
| Features | Energy Efficient Ethernet |
| Compliant Standards | IEEE 802.3az |
| Processor | MT7530D |
| RAM | 8 KB |
| Flash Memory | 1 MB |
| Status Indicators | Power, link/activity |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 5 x 1000Base-T RJ-45 |
| Power | Power |
| Power Device | External power adapter |
| Power Provided | 5 V - 0.5 A |
| Miscellaneous | Miscellaneous |
| Colour | Black |
| Dimensions & Weight | Dimensions & Weight |
| Width | 12.4 cm |
| Depth | 7.2 cm |
| Height | 2.4 cm |
| Weight | 170 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 70 °C |
| Humidity Range Storage | 5 - 90% (non-condensing) |
Features - LevelOne - GEU-0523
General
5-Port
More Details
Product Code
04:322834
EAN Code
4015867222256
Manufacturer
LevelOne
