LevelOne GNC-0202 10 Gigabit Fiber PCIe Network Card 2x SFP+ Slots Intel 82599 PCIe x8 15.5KB Jumbo Frames Low Profile

Brand:
LevelOne
LevelOne GNC-0202 10G Dual SFP+ PCIe Network Card
LevelOne GNC-0202 10 Gigabit Fiber PCIe Network Card 2x SFP+ Slots Intel 82599 PCIe x8 15.5KB Jumbo Frames Low Profile
€385.44 inc. VAT
Buy
GNC-0202
€323.90 €359.89
€385.44 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:425195
EAN Code
4015867224205
Manufacturer
LevelOne

Quick Specs

Ports
2 × SFP+
Speed
10 / 1 Gbps
Chipset
Intel 82599
Interface
PCIe x8
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

10 Gigabit Fiber PCIe Network Card

2 × SFP+ 10 GbEIntel 82599PCIe x8Low-profile bracket

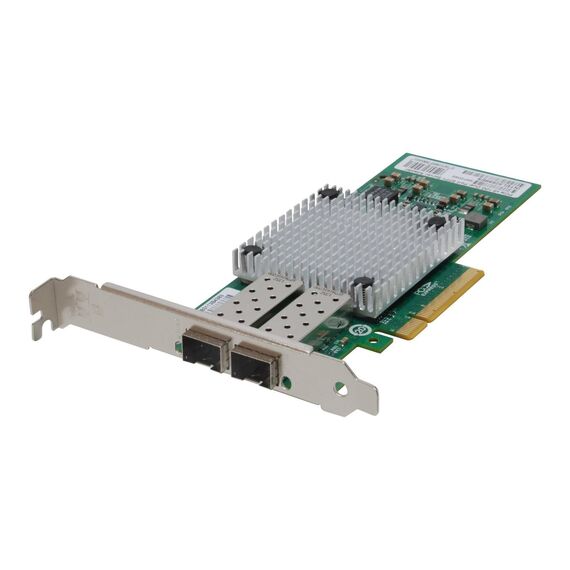

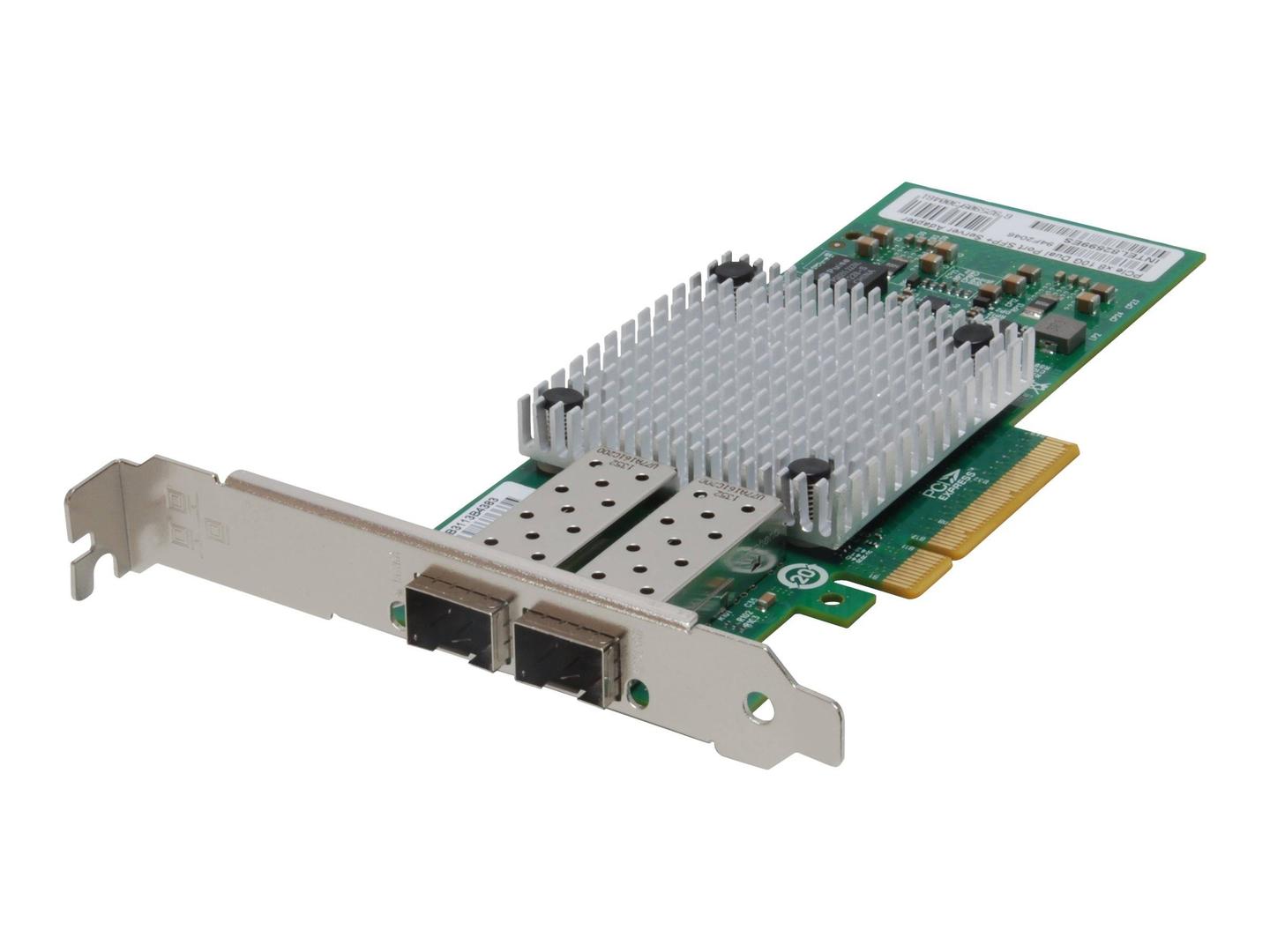

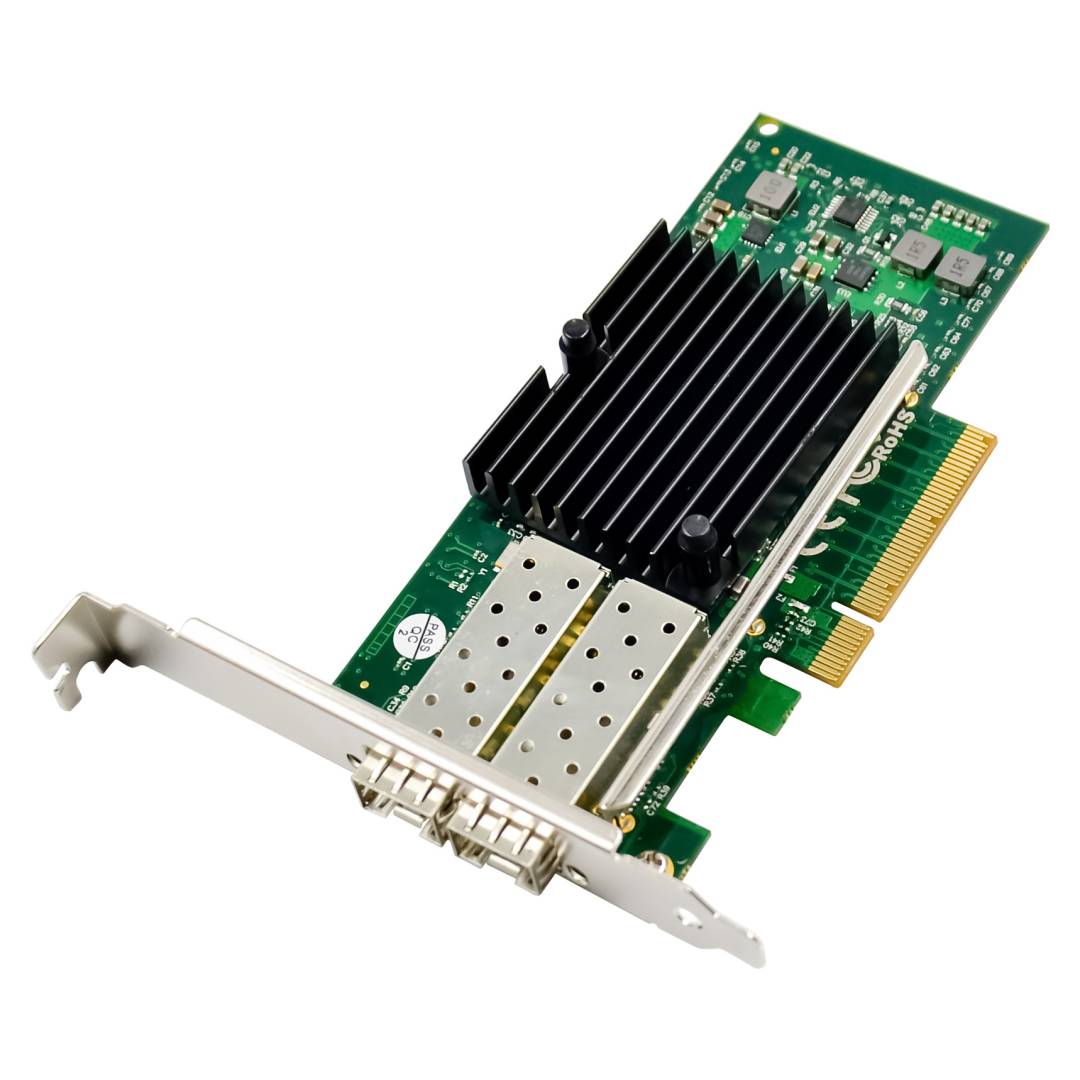

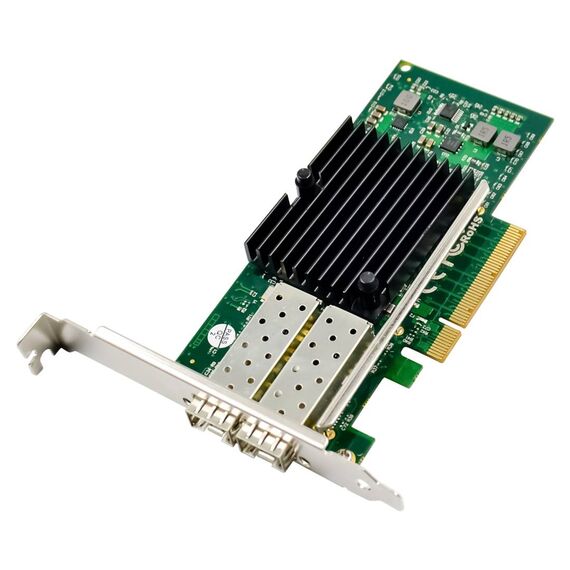

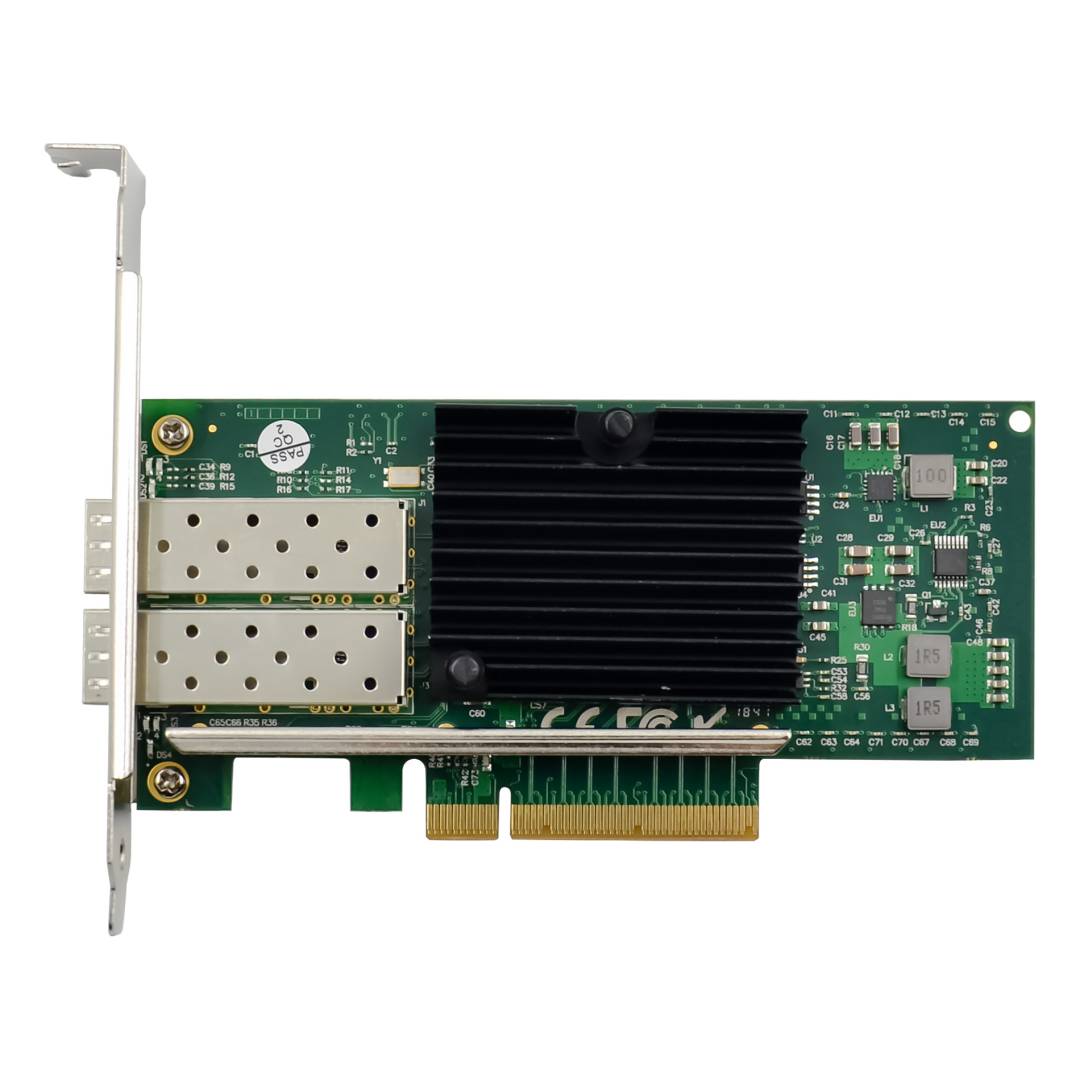

The LevelOne GNC-0202 is a dual-port 10 Gigabit fibre network card for PCIe x8 slots, built on the Intel 82599 chipset. Its two SFP+ slots run at 10 or 1 Gbps with fibre modules or DAC cables, giving a server redundant 10G links or two separate networks. It supports FCoE, iSCSI remote boot, TCP segmentation offload, 802.1Q VLAN, Wake-on-LAN and 15.5 KB jumbo frames. In practice, an SFP-based card is only half of the link. Each port needs a module that matches both the switch and the cable: short-range multimode (SR) optics for runs inside a building, long-range singlemode (LR) optics for longer distances, or a direct-attach copper (DAC) cable for links of a few metres inside the same rack. DAC is the cheapest and lowest-power choice when the switch is close; optics are needed when it is in another room. Check the switch vendor’s module list as well, because some switches accept only their own modules. Setting it up is simple: power the machine off, fit the card in a free slot and secure the bracket, then install the current driver from the manufacturer’s support site, or use the operating system’s built-in driver where one exists. Tell us the system you have and we suggest the right driver and settings, such as jumbo frames or link aggregation.

Compatibility — check before buying:
Compatibility — check before buying: The SFP+ slots are empty: no transceivers or DAC cables are included, and RJ45 cables do not fit. It needs a PCIe x8 or x16 slot. LevelOne lists Windows up to Windows 10 and Server 2016; newer versions are not on its list. Before you order, check three things: a free slot of the right width (x4, x8 or x16) and height (low profile or full height), driver support for your operating system or hypervisor, and the port type on the switch side. Not sure it fits? Tell us the server or PC model and the switch it connects to, and we check it for you.

Best For

✓ NAS and backup servers
✓ File servers on 10G fibre
✓ Redundant 10G uplinks
✓ Storage networks (iSCSI, FCoE)
✓ Lab and test networks
✓ Small business servers

Key Features


Two SFP+ ports
10 or 1 Gbps over fibre or DAC.

Intel 82599 chipset
Proven 10G controller.

Offloads
TCP segmentation offload up to 256 KB, interrupt throttling.

Storage features
FCoE and iSCSI remote boot, 15.5 KB jumbo frames.

Technical Specifications

Identification
Brand LevelOne
Product LevelOne GNC-0202 10 Gigabit Fiber PCIe Network Card
Part Number GNC-0202
EAN / GTIN 4015867224205
Network
Chipset Intel 82599
Ports 2 × SFP+
Speeds 10 / 1 Gbps
Features 802.1Q VLAN, LACP, Wake-on-LAN, FCoE, iSCSI boot
Hardware
Interface PCIe x8

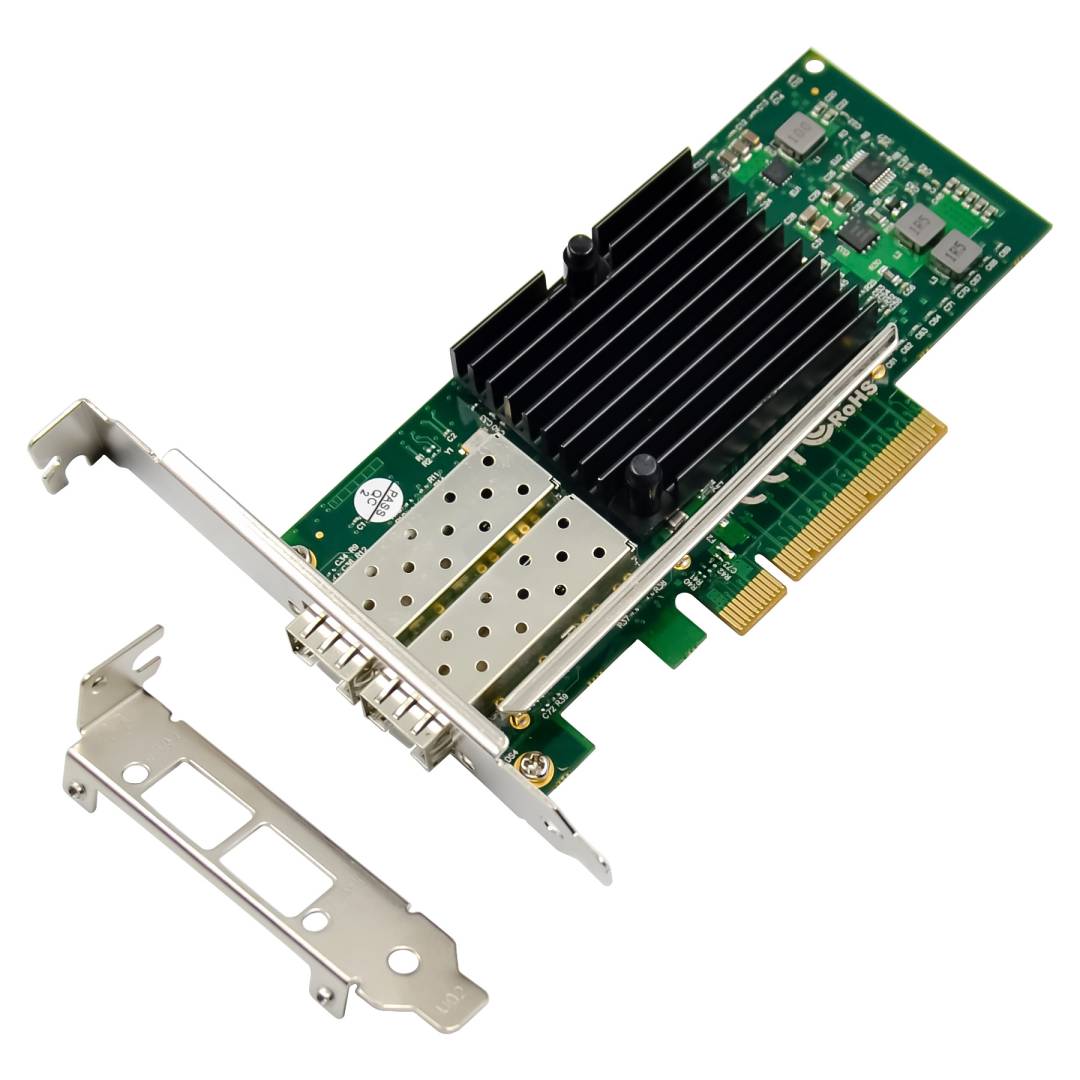

Bracket Low profile in the box
Indicators Link/Activity
Features & Software
Operating systems Windows Vista, 7, 8, 8.1, 10; Windows Server 2008, 2012, 2016
Physical & Environment
Dimensions 70 × 16 × 115 mm
Weight 0.107 kg
Operating temperature 0 – 55 °C
Before You Order
Slot Free PCIe slot of the right width and bracket height
Switch side Matching port type and speed on the switch
Drivers Current driver from the manufacturer’s support site
Help Send us the server, PC or NAS model and the switch — we check the fit
In the Box
Included GNC-0202 card, low-profile bracket, quick installation guide, resource CD (manual, driver)
Not Included SFP+ transceivers and DAC cables
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LevelOne does not publish a warranty term for this product. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Does it support Windows 11 or Server 2019/2022?
LevelOne lists Windows Vista to 10 and Server 2008 to 2016. Newer versions are not on its list; ask us before ordering for those.
Are transceivers or cables included?
No. LevelOne ships the card without modules or cables. You add 10G SFP+ transceivers or DAC cables for each port you use. Tell us the switch model and the distance, and we suggest the right modules or DAC cables.
Which slot does it need?
A PCIe x8 or x16 slot. A low-profile bracket is included for slim cases.
What warranty do I get?
Singular gives a 1-year direct warranty. LevelOne does not publish a warranty term for this card. Beyond the first year we help you with the manufacturer’s process.
Singular Expert Insight
The GNC-0202 gives two 10G SFP+ ports on a proven Intel 82599 chipset at a modest price. It suits NAS, backup and file servers on 10G fibre. For a branded server option with newer OS support, see the Intel X710-DA2. Our advice: decide on the switch side first — port type (RJ45, SFP+, SFP28 or QSFP), speed and free ports — then pick the card to match, and order modules or cables together so the link works on day one. If the card goes into a branded server, check that vendor’s supported options; if it goes into a NAS, check the NAS vendor’s compatibility list. Browse all our network cards, or the switches you will connect it to. If you are planning a new link, we can supply the complete set — card, modules or cables and the switch — checked to work together, and help with the first setup after delivery.

Buyer’s Guide

Buy it if

You need two 10G SFP+ fibre ports on a PC, server or NAS.

Skip it if

You need official Windows 11 or Server 2022 support.

Also consider

Intel X710-DA2, dual-port 10GbE SFP+.
