LevelOne GVM-1000 Managed Gigabit Media Converter, RJ45 to SFP, Web/SNMP and OAM

Brand:
LevelOne

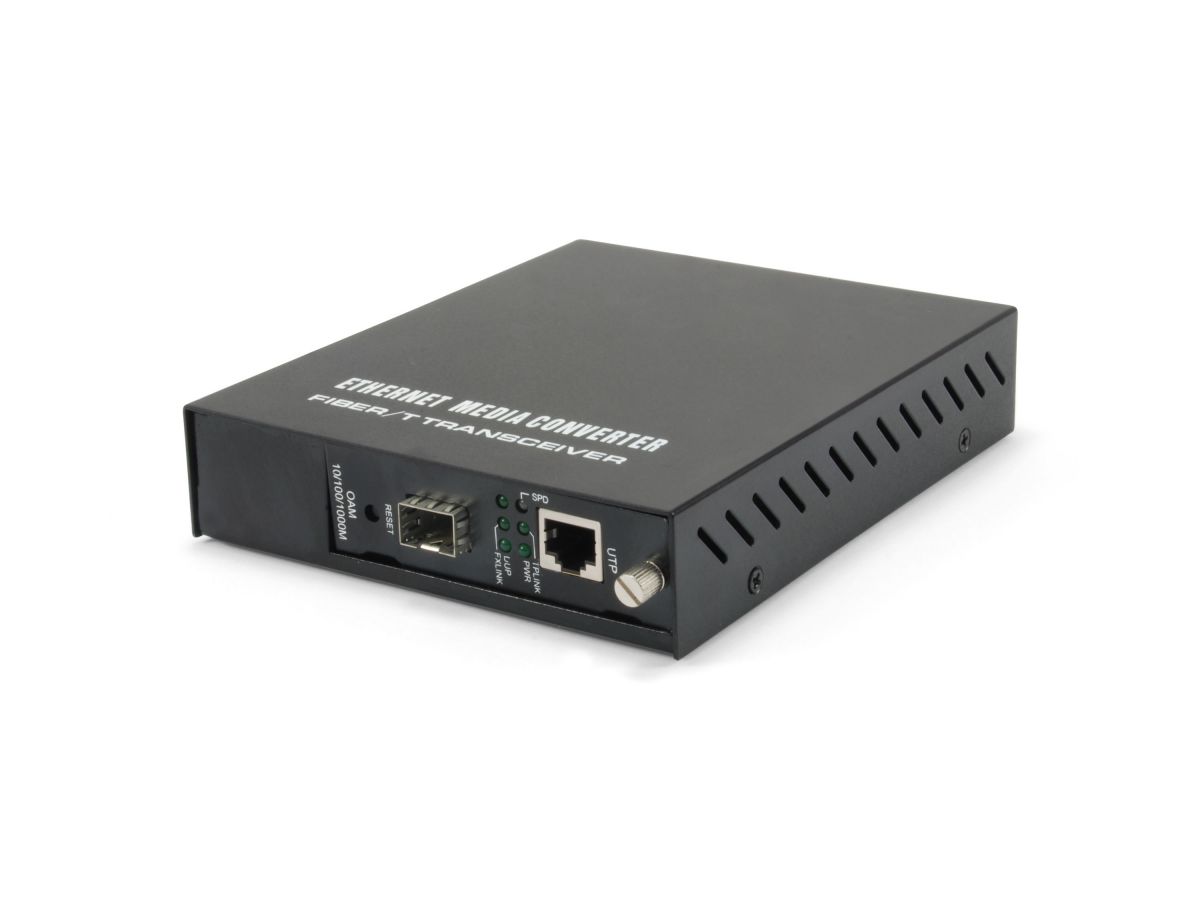

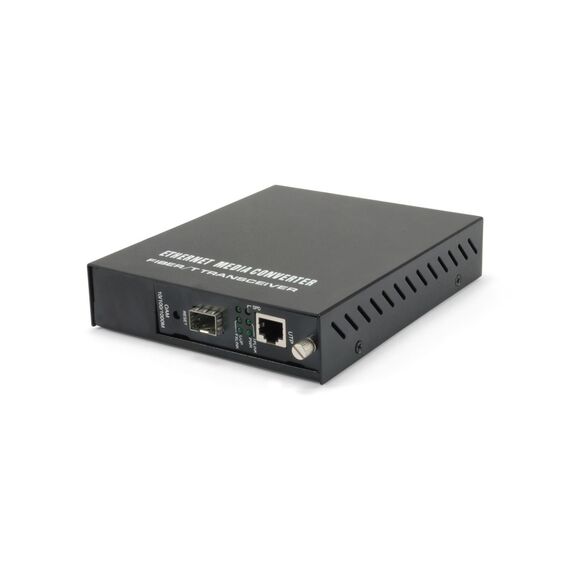

LevelOne GVM-1000 Managed Gigabit RJ45 to SFP Media Converter
LevelOne GVM-1000 Managed Gigabit Media Converter, RJ45 to SFP, Web/SNMP and OAM
€235.42 inc. VAT
Buy
GVM-1000
€197.83
€235.42 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:245483
EAN Code
4015867195628
Manufacturer
LevelOne

Quick Specs

Copper
RJ45 10/100/1000
Fibre
Gigabit SFP slot
Management
Web / SNMP / OAM
Traffic control
Q-in-Q / QoS
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Managed Gigabit Fibre Conversion

RJ45 → SFP1 GbpsOAMQ-in-Q

Connect a copper Ethernet segment to a Gigabit fibre link and keep control of the conversion point. GVM-1000 combines an RJ45 port with an open SFP slot, so the optical module can be chosen for the fibre and route. Web/SNMP management, OAM diagnostics and bandwidth limits suit links that need monitoring and traffic configuration.

Compatibility — check before buying:
Choose a compatible 1000Base-X Gigabit SFP and match its wavelength, fibre type, connectors and optical budget at both ends. The package list does not include an SFP. This converter does not provide PoE.

Key Features


Manage the conversion point
Web and SNMP expose port control and status; IEEE 802.3ah OAM adds discovery, loopback and Dying Gasp alarms.

Configure tagged traffic
VLAN and Q-in-Q configuration supports separate optical/Ethernet dual-tag ports, with ISP Tag and TPID settings. IEEE 802.1p QoS supports prioritisation.

Set a bandwidth ceiling
Set bandwidth from 0 to 1000 Mbps in 64 kbps increments. Software also selects store-and-forward or cut-through operation; jumbo frames are supported up to 9 kB.

Technical Specifications

Identification
Model GVM-1000
EAN / GTIN 4015867195628
Connection and performance
Copper interface RJ45, 10/100/1000Base-T
Fibre interface SFP, 1000Base-X
Data rate 1 Gbps
SFP slot Hot-swappable Gigabit SFP
Optical mode / wavelength / distance Single-mode or multimode; depend on selected SFP
Duplex Auto-sensed full / half duplex
Jumbo frames Up to 9 kB
Transmission method Software-selectable store-and-forward or cut-through
Flow control IEEE 802.3x
Link Fault Pass-through LFP
Management and traffic
Management Web, SNMP, OAM
VLAN VLAN configuration, Q-in-Q; separate dual-tag optical/Ethernet ports, ISP Tag and TPID
QoS IEEE 802.1p
Port control Local/remote speed, duplex, flow control and live status
Bandwidth limiting 0–1000 Mbps, 64 kbps steps
IEEE 802.3ah OAM Discovery, MIB variable response, loopback, Dying Gasp alarm
SNMP integration MIB files; OpenView and SNMPc support
Switching core Flow control and broadcast-packet reduction
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3ah
Physical and operating details
Colour Black
Dimensions (W × D × H) 127 × 156 × 32 mm
Weight 0.7 kg
Grade Commercial
PoE No
Power supply Included
Indicators PWR, FX LINK/ACT, FDX, TX LINK/ACT, TX SPD, LFP
Operating temperature -10°C–55°C
Operating humidity 5%–90% RH
MTBF 30,000 hours, manufacturer reference

What's in the Box

GVM-1000
Power cord
Quick Installation Guide
Declaration of Conformity

Frequently Asked Questions

What fibre distance does it support?
Distance and wavelength depend on the selected Gigabit SFP, fibre and optical budget. The converter itself has no fixed optical reach.
Why choose this over an unmanaged converter?
Choose it when you need remote port status/control, OAM diagnostics, VLAN/Q-in-Q configuration or bandwidth limits at the conversion point.
Can it power an Ethernet device?
No. PoE is not supported; power the connected device separately.
Singular Expert Insight
Select the optical module before judging reach. Then decide whether remote diagnostics and traffic control justify a managed converter for this link. Choose fibre cabling to match the selected SFP

Buyer’s Guide

Buy it if

Your Gigabit copper-to-fibre link needs Web/SNMP, OAM or tagged-traffic control.

Skip it if

You need 10 Gigabit conversion, PoE output or a fixed built-in optical connector.

Also consider

An unmanaged converter for a simple link, or a fixed-optics model when the fibre specification is already established.
