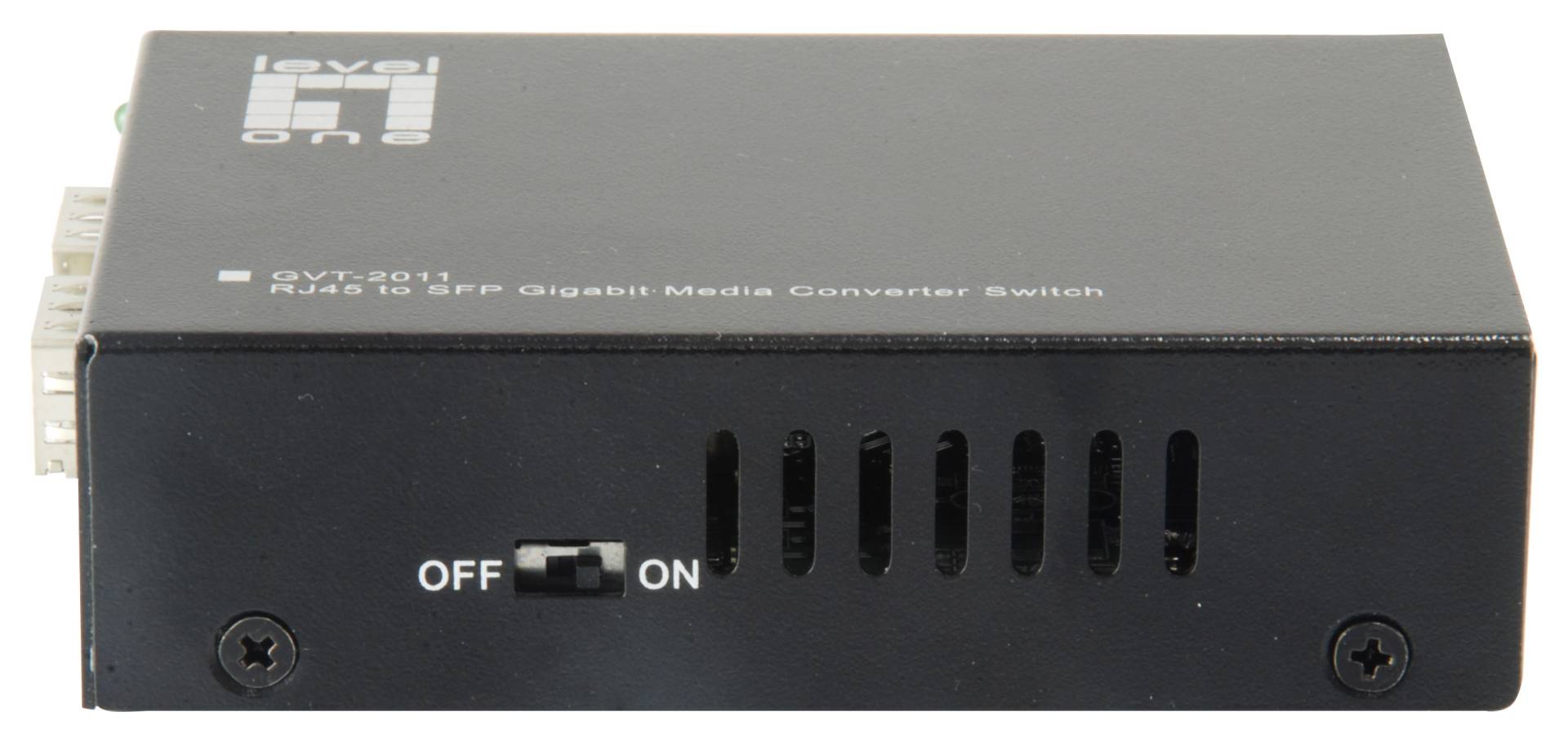

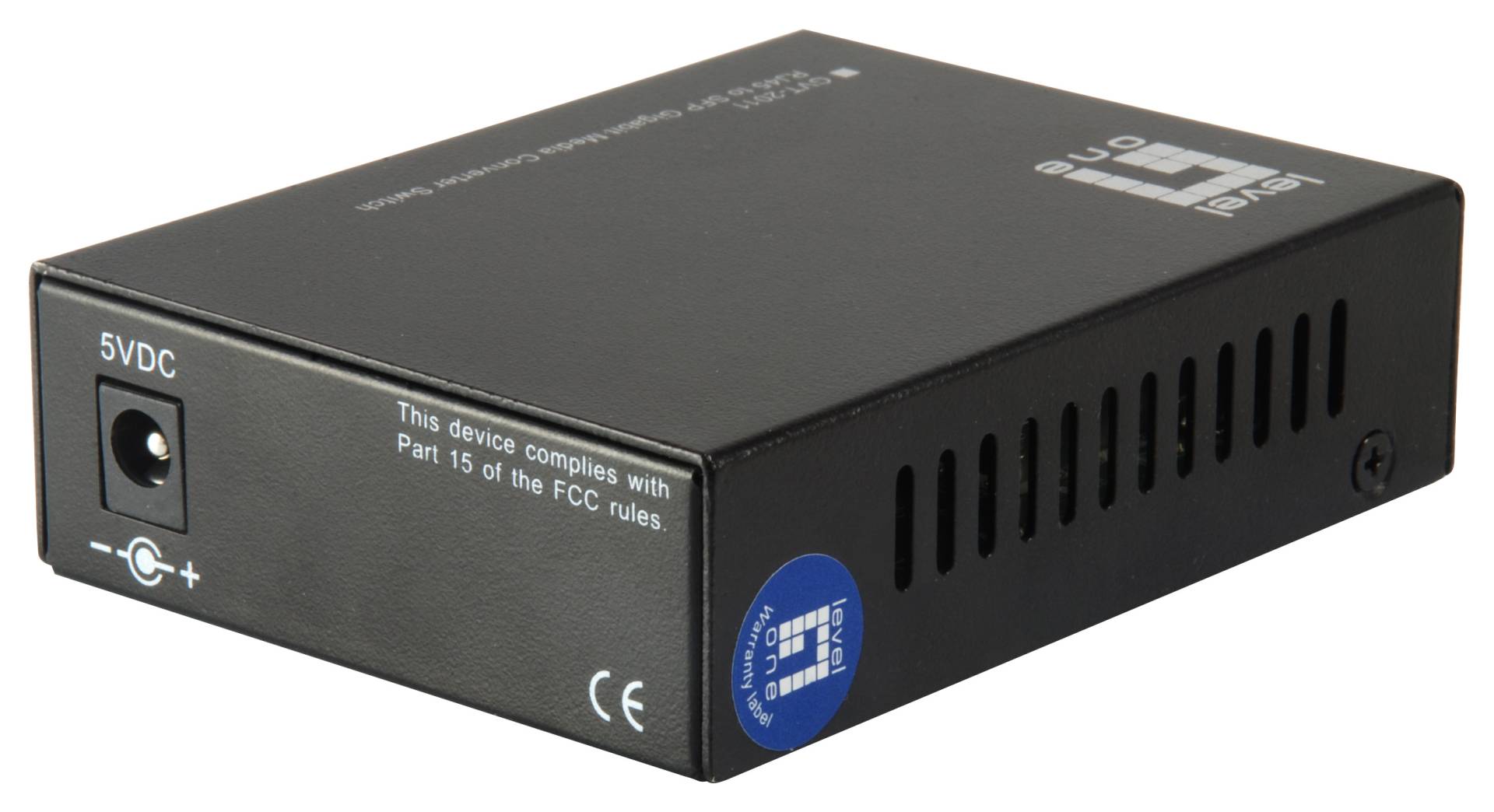

LevelOne GVT-2011 / Fibre media converter / GigE / 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X / RJ-45 / SFP (mini-GBIC) | GVT-2011
LevelOne GVT-2011 / Fibre media converter / GigE / 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X / RJ-45 / SFP (mini-GBIC) | GVT-2011
Description

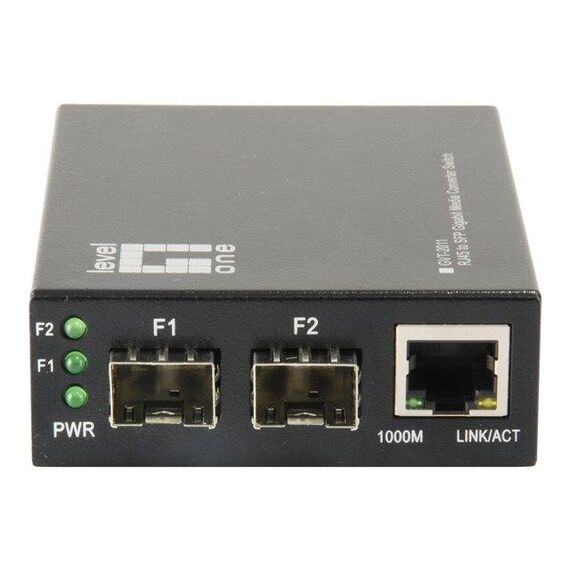

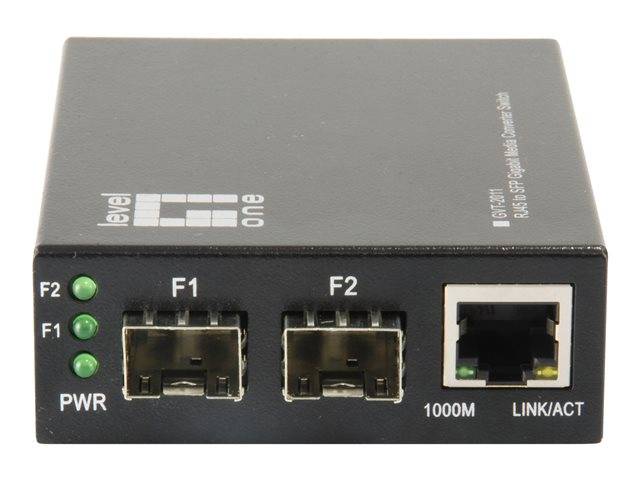

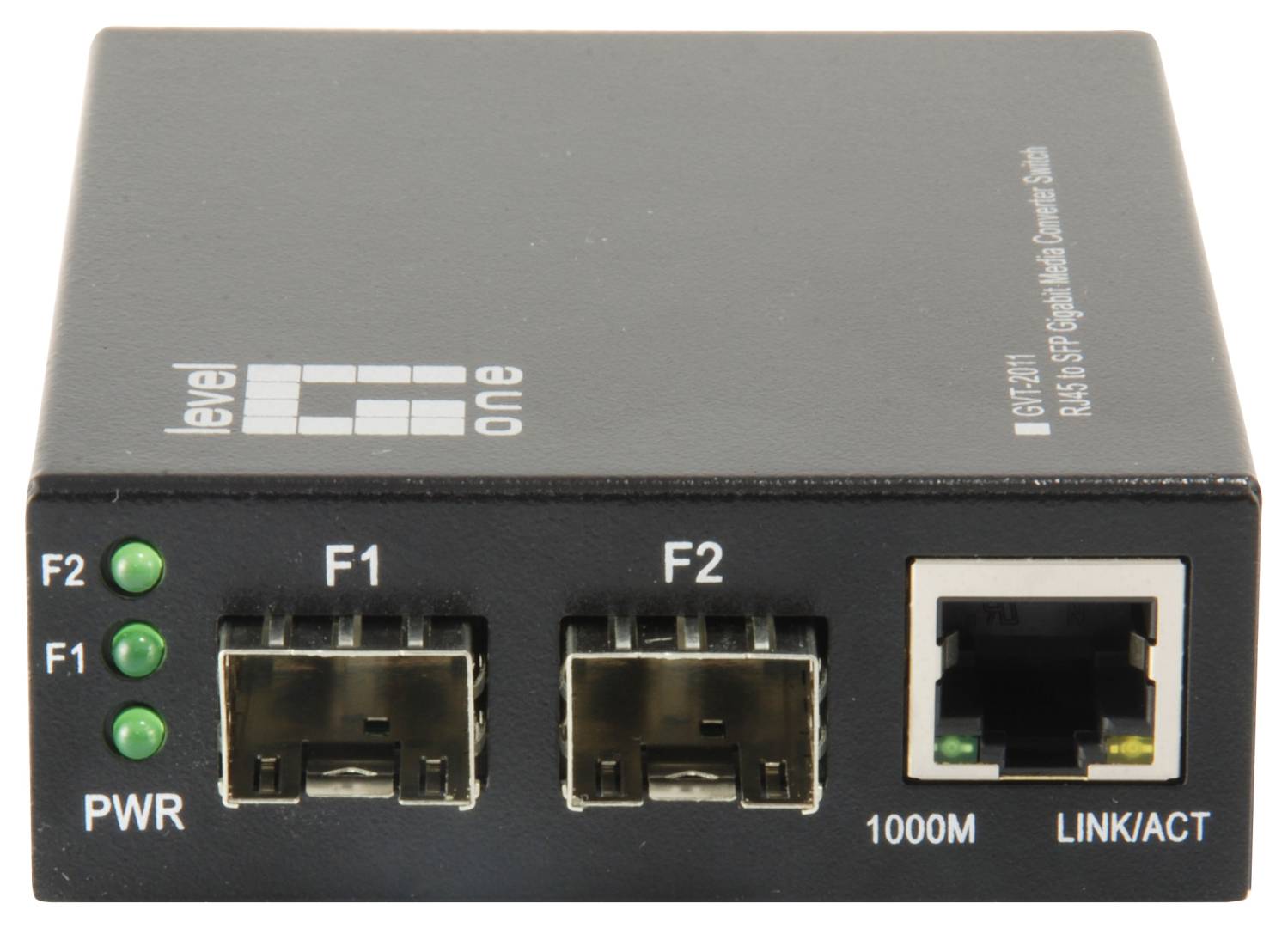

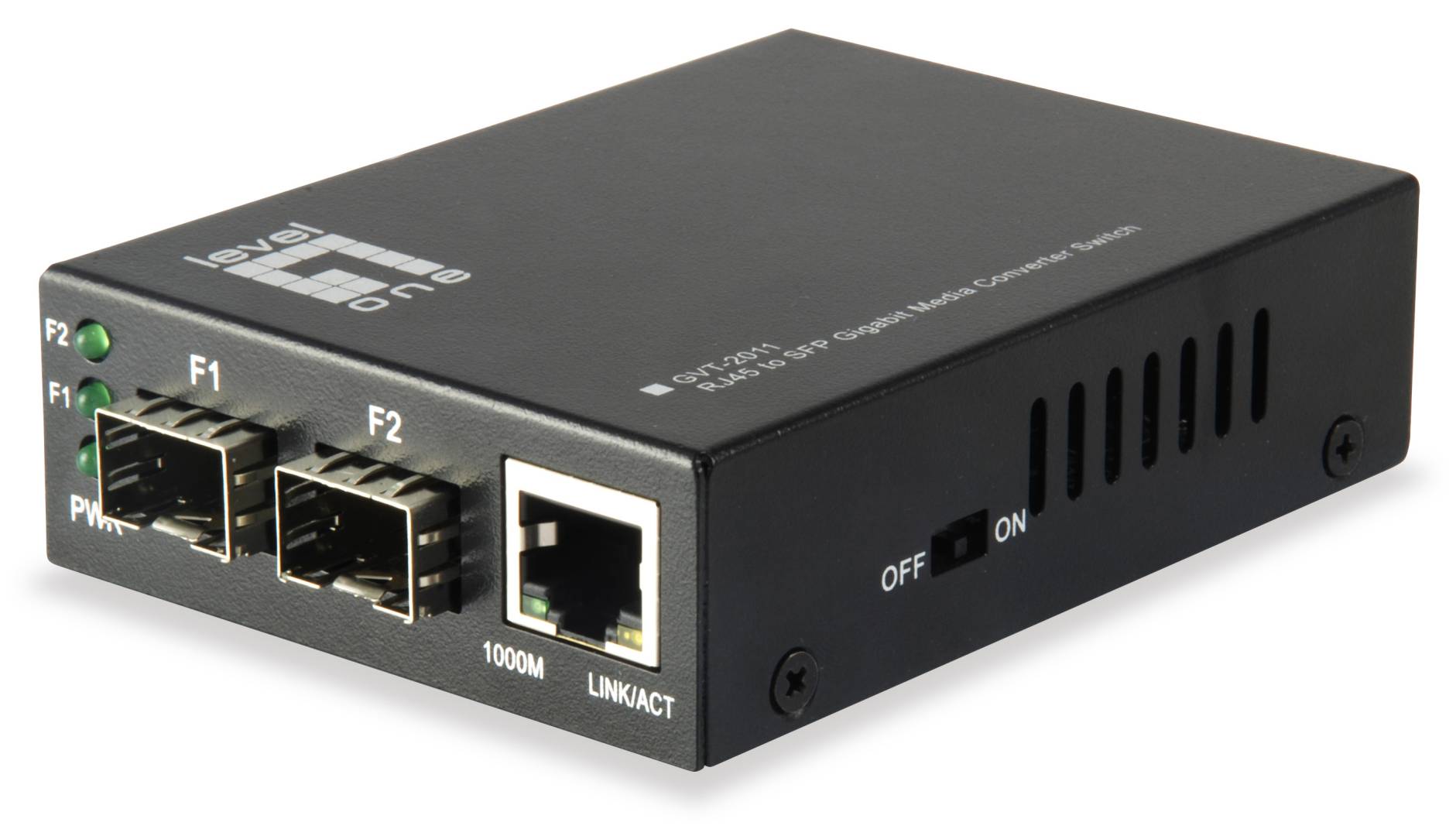

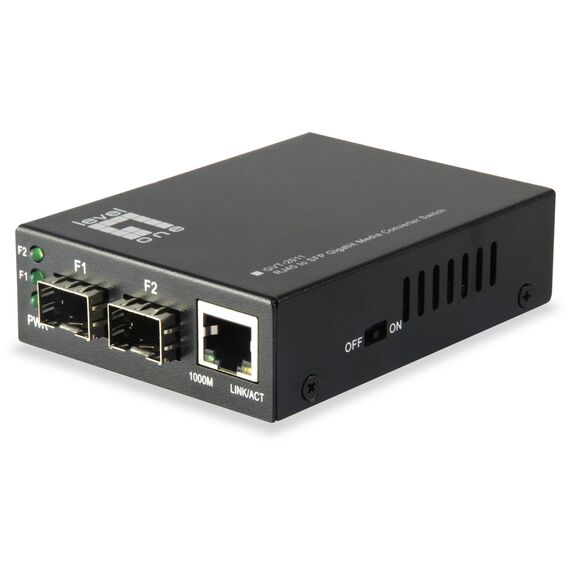

The LevelOne GVT-2011 Gigabit Media Converter Switch provides 1 RJ45 and 2 SFP ports to support conversion between 10/100/1000Base-T and 1000Base-X networks. With the two SFP ports, the converter switch provides high reliability and flexibility to extend the media transmission distance up to 550 m, 20 km, or longer depending on the SFP fiber optical transceivers. It allows the two types of segment to connect easily, efficiently and inexpensively.The GVT-2011 works in high performance Store and Forward mechanism, and prevents packet loss with IEEE 802.3x Flow Control (Full-Duplex) and Back Pressure (Half-Duplex) functions. As the GVT-2011 Media Converter fully complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-X, the Gigabit media converter installation is quite quick and easy by simply plug and play.
LevelOne GVT-2011 / Fibre media converter | GVT-2011
Special Features
- 1 Gigabit Ethernet port and 2 Gigabit SFP slots
- Transfers data from 10/100/1000Base-T copper to fiber interfaces
- IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
- Supports low-time lag transmission
- -10 °C to 55 °C operating temperature range
Product Specification
| Device Type | Fibre media converter |
| Form Factor | External |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE |
| Status Indicators | Power, 1000M device connected, link/activity |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, wall mountable, Back Pressure Support, 9 KB Jumbo Frame, VLAN Tagging |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 2 x Ethernet 1000Base-SX - SFP female |
| Compliant Standards | FCC |

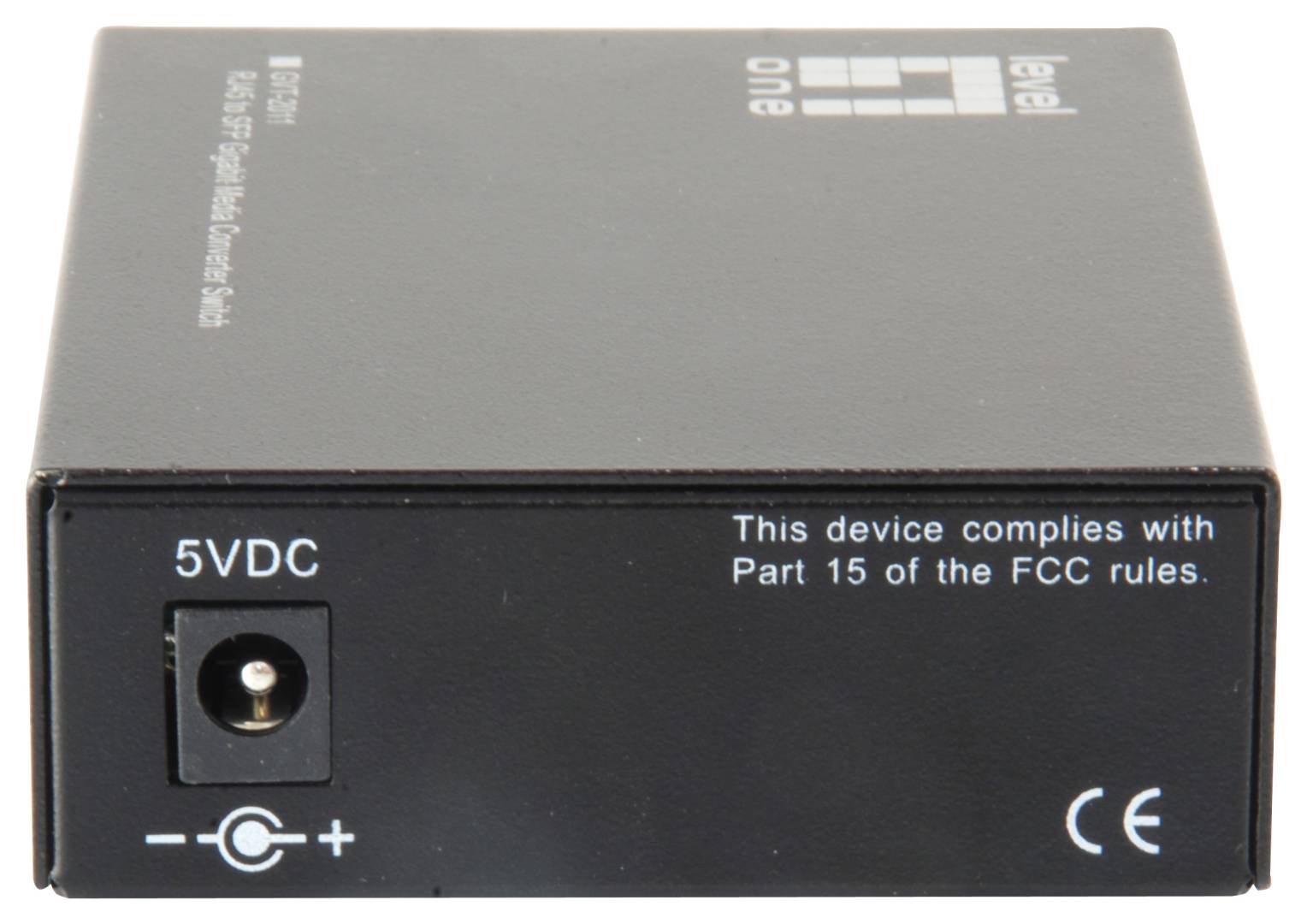

| Power Device | External power adapter |
| Power Consumption Operational | 5 Watt |
| Width | 7.1 cm |
| Depth | 9.4 cm |
| Height | 2.6 cm |
| Weight | 300 g |
| Min Operating Temperature | -10 °C |
| Max Operating Temperature | 55 °C |
| Humidity Range Operating | 5 - 90% (non-condensing) |
