LevelOne 4-Port HDBaseT HDMI Transmitter — one source to four remote screens over Cat5e/6
Transmitter only4 × HDBaseT outputs4K/30Hz · 50 m · 1080p · 100 mEDID · RS-232 · IR

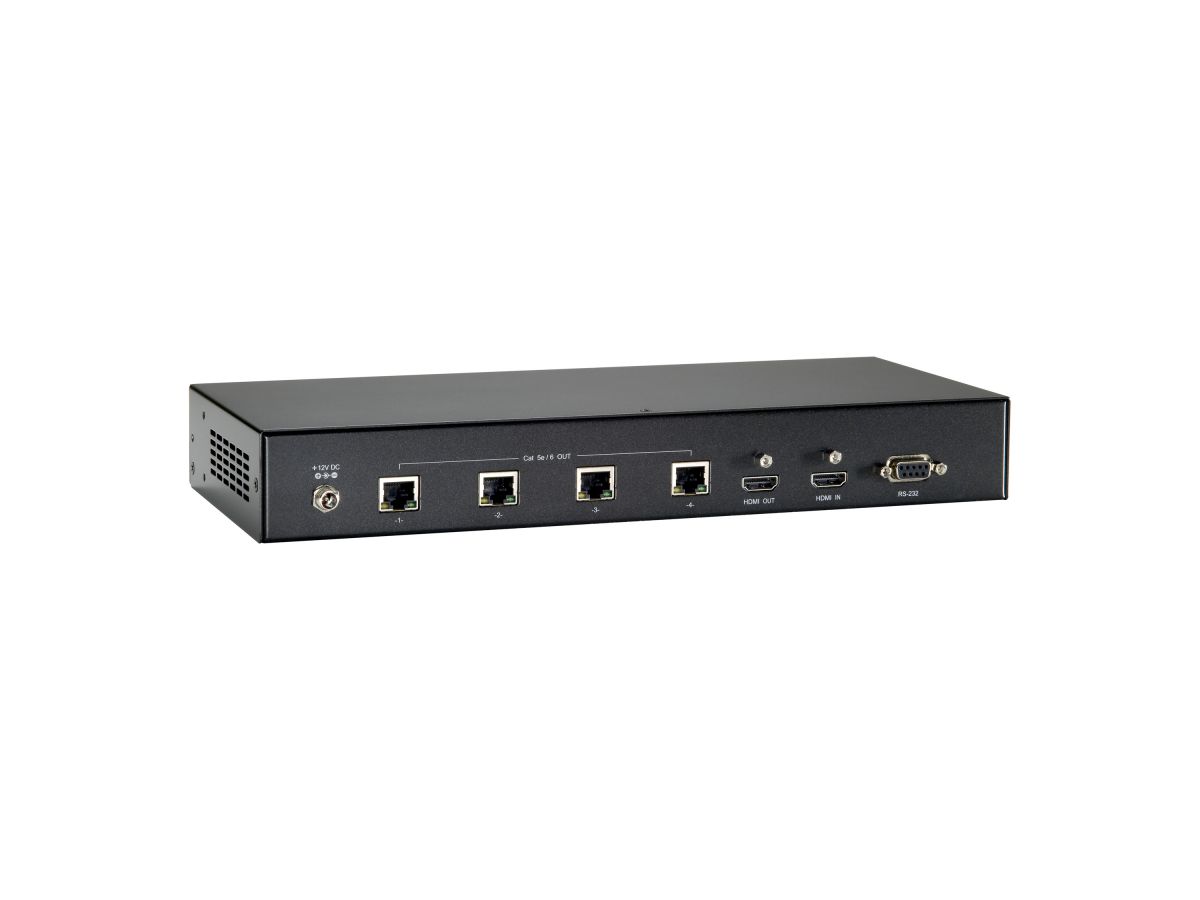

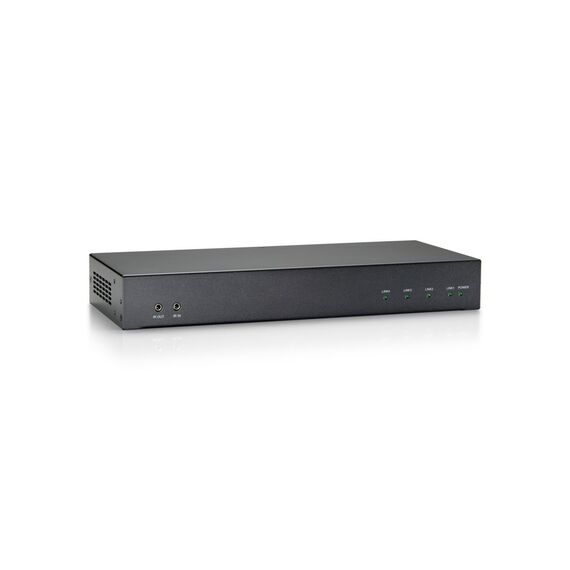

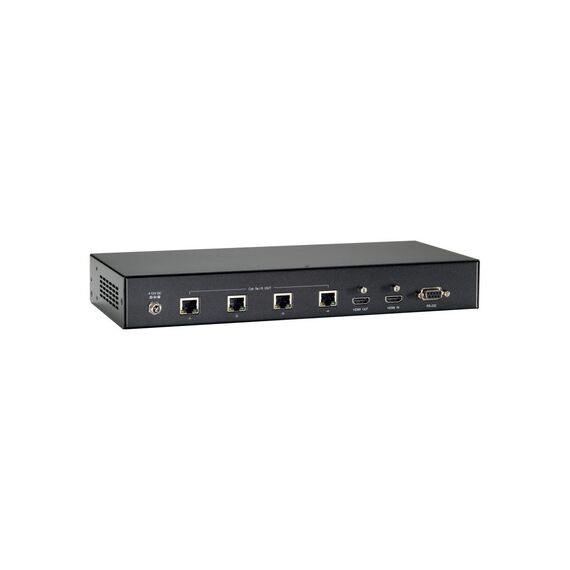

The LevelOne HVE-9214T is a 4-port HDBaseT HDMI over Cat.5 transmitter that distributes one HDMI source to four remote displays over Cat5e/6 cables — 4K/30Hz up to 50 m or 1080p up to 100 m per run — for multi-point HDMI distribution in exhibition spaces, retail and education.
It is the central unit of an HDBaseT distribution: each of its four outputs connects to an HDBaseT receiver at a screen. EDID management, hot-plug detection, bi-directional RS-232 pass-through and IR control are built in, and a screw-in power socket keeps the supply secure in installations.
Before you order: This is the transmitter only. Each screen needs a LevelOne HDBaseT receiver (LevelOne lists receivers such as HVE-9211R and HVE-9211PR) — send us your plan and we will confirm the matching receivers before you order.
What's in the Box
- 1 × HVE-9214T transmitter
- 1 × IR remote control
- 1 × power adapter
- 1 × power cord
- User manual
- Not included: HDBaseT receivers, Cat5e/6 and HDMI cables
What It Means in Practice
- One HDMI source appears on up to four screens, each connected by its own Cat5e/6 cable.
- 4K/30Hz reaches 50 m; for 100 m plan on 1080p.
- RS-232 pass-through lets you control a display or projector at the far end.
- EDID management keeps resolution consistent across different screens.
- A 1U-style metal unit (300 × 160 × 44 mm) suits a rack shelf or AV cabinet.
What Will Not Work
- It does not work without HDBaseT receivers at the screens.
- It does not deliver 4K/60Hz.
- It is not an HDMI-over-IP device and does not run through a network switch.
- It does not show different content on each output.
- It does not extend USB keyboard or mouse.
Key Features
Four HDBaseT outputs
One source distributed to four remote displays over single Cat5e/6 cables.
Distance by resolution
4K × 2K (3840 × 2160) at 30Hz up to 50 m; 1080p up to 100 m.
Control pass-through
Bi-directional RS-232 and IR control alongside the video.
Install-friendly
EDID management, hot-plug detection and a secure screw-in power socket.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The HVE-9214T is the hub of a small HDBaseT distribution: one source, four screens, each on its own cable, with RS-232 and IR control. Budget for one receiver per display and plan 4K runs within 50 m. Use solid-copper cable from our Cat6 network cables range — HDBaseT is reliable, but only on proper copper.
✓ Buy it if you need one HDMI source on up to four screens up to 100 m away (50 m in 4K) with RS-232/IR control.
✕ Skip it if you need 4K/60Hz, many more screens or network-based distribution through switches.
→ Also consider an HDMI-over-IP system for larger or growing installations; a single HDBaseT extender kit for one screen.
Not sure it fits your setup? Send us the model of your rack, switch or device and we will check compatibility before you order.
Features - LevelOne - HVE-9214T
Colour
black
Length
>50m
More Details
Product Code
04:177450
EAN Code
4015867193020
Manufacturer
LevelOne
