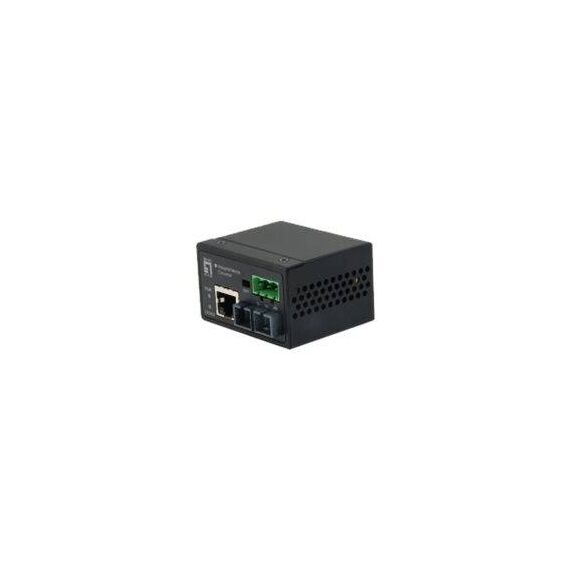

LevelOne IEC-4301 / Media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / SC single-mode / up to 30 km | IEC-4301
Brand:
LevelOne
LevelOne IEC-4301 / Media converter / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / RJ-45 / SC single-mode / up to 30 km | IEC-4301
€285.75 inc. VAT
IEC-4301
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
Special Features
- Rugged aluminum case design in a mini size form factor
- With polarity protection
- Link fault pass through function
- Supports switch and pure converter mode
- Surge & ESD protection
- Maximum noise & interference immunity
Product Specification
| Device Type | Media converter |
| Form Factor | DIN rail mountable |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| Max Transfer Distance | 30 km |
| Status Indicators | Power, link/activity |
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, half duplex mode, full duplex mode, Link Fault Pass Through function (LFP) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - SC single-mode female x 2 |
| Miscellaneous | Miscellaneous |
| Compliant Standards | EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, RoHS, EN 61000-4-8, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, UL 508, REACH, FCC Part 15 B Class A, EN 50121-4 |
| Power | Power |
| Power Device | External power adapter |
| Voltage Required | DC 12 - 60 / 18 - 36 V |
| Power Consumption Operational | 1.44 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.9 cm |
| Depth | 4.9 cm |
| Height | 3.6 cm |
| Weight | 260 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -40 °C |
| Max Operating Temperature | 75 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - IEC-4301
More Details
Product Code
04:156967
EAN Code
4015867188163
Manufacturer
LevelOne
