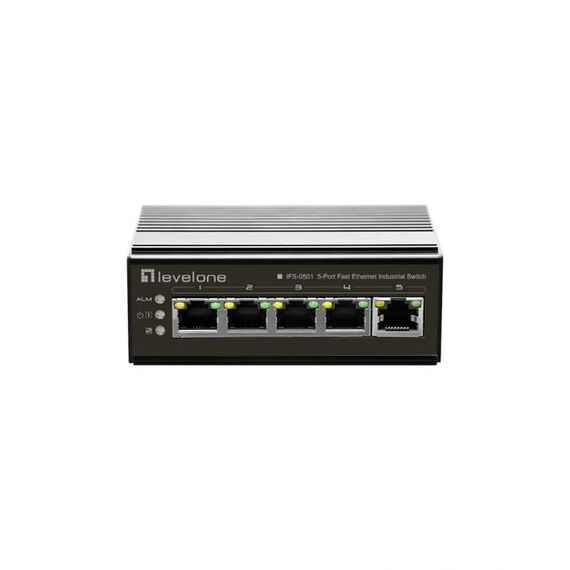

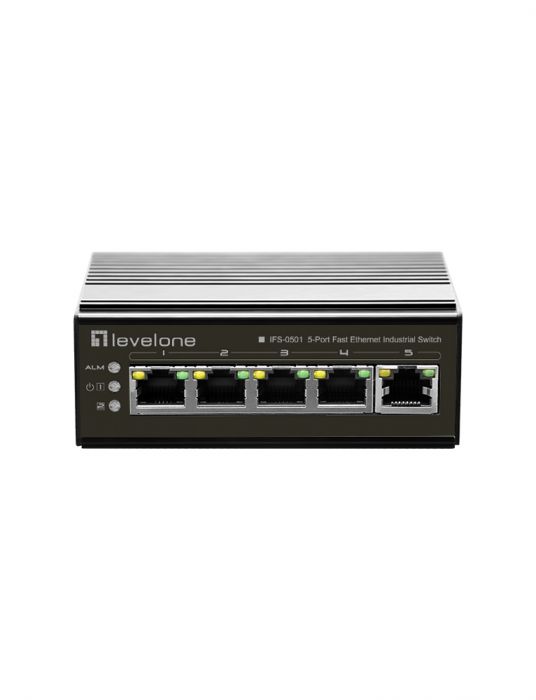

LevelOne IFS-0501 5-Port Fast Ethernet Switch
The LevelOne IFS-0501 is a 5-port Fast Ethernet switch for industrial and cabinet installations. It offers 10/100Base-TX connectivity, a DIN-rail mountable metal housing and clear status indicators, making it a practical choice where simple, compact network expansion is needed.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch - 5 ports |
| Subtype | Fast Ethernet |
| Interfaces | 5 x 100Base-TX RJ-45 |
| Ports | 5 x 10/100 |
| Enclosure Type | Desktop, DIN rail mountable, wall-mountable |
| Power | Internal power supply |
| Voltage Required | DC 9 - 56 V |
| Backplane Switching Capacity | 1 Gbps |
| Forwarding Performance | 148000 packets per second |
| MAC Address Table Size | 1K entries |
| Features | Flow control | auto-negotiation | auto-uplink (auto MDI/MDI-X) | store and forward | half duplex mode | full duplex mode | 1MB packet buffer | metal housing |
| Status Indicators | Power | link OK |
| Compliant Standards | IEEE 802.3 | IEEE 802.3u | IEEE 802.3x | VCCI | EN55022 | EN55024 | FCC | EN 60950-1 | EN 55011 | EN50155 | EN 50121-4 | IP30 | EN 50121-3-2 |
| Width | 3.62 cm |
| Depth | 10.5 cm |
| Height | 14.2 cm |
| Weight | 460 g |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 75 °C |
| Humidity Range Storage | 5 - 95% (non-condensing) |
| SKU / EAN | IFS-0501 | 4015867192283 |
SINGULAR RECOMMENDS
For who
For users who need a compact 5-port Fast Ethernet switch for cabinet, DIN-rail or wall-mounted industrial networking setups.
Real reason to buy it
It combines 5 x 10/100 RJ-45 ports with DIN-rail mounting, a metal housing and clear link/power status indicators in a compact unit.
Know before
This is a Fast Ethernet switch, so the listed ports are 10/100Base-TX rather than Gigabit. The stated operating temperature is 0 °C to 40 °C.
Features - LevelOne - IFS-0501
Standard
5-Port
Port Speed
- 10/100 Mbps
More Details
Product Code
04:165706
EAN Code
4015867192283
Manufacturer
LevelOne
