LevelOne IGP-0101 — Industrial Gigabit PoE+ Injector, 802.3at, 30 W
30 W 802.3at48–56 V DC inRedundant inputs−40 to 75 °C
The LevelOne IGP-0101 is a rugged industrial Gigabit PoE+ injector that adds up to 30 W of IEEE 802.3af/at power to one Ethernet link, built for control cabinets, transport and outdoor enclosures with a −40 to 75 °C operating range and LevelOne ColdDesign heat reduction.
It runs from a 48–56 V DC supply through redundant inputs (PW1/PW2) on a terminal block, mounts on DIN-rail, wall or desktop, and passes data at 10/100/1000 Mbps — ideal for powering an IP camera, access point or industrial device from a non-PoE switch.
Before you order: No power supply is included: you need a 48–56 V DC supply (typically a DIN-rail PSU) on the terminal block. It does not run from 12/24 V DC or mains. Maximum output is 30 W (802.3at).
What's in the Box
- 1x LevelOne IGP-0101 industrial PoE injector
- 1x high-current terminal block
- 1x DIN-rail mounting kit
- 1x wall-mount kit
- 1x user manual
- Power supply not included
What It Means in Practice
- Powers one 802.3af/at device with up to 30 W from the cabinet DC supply.

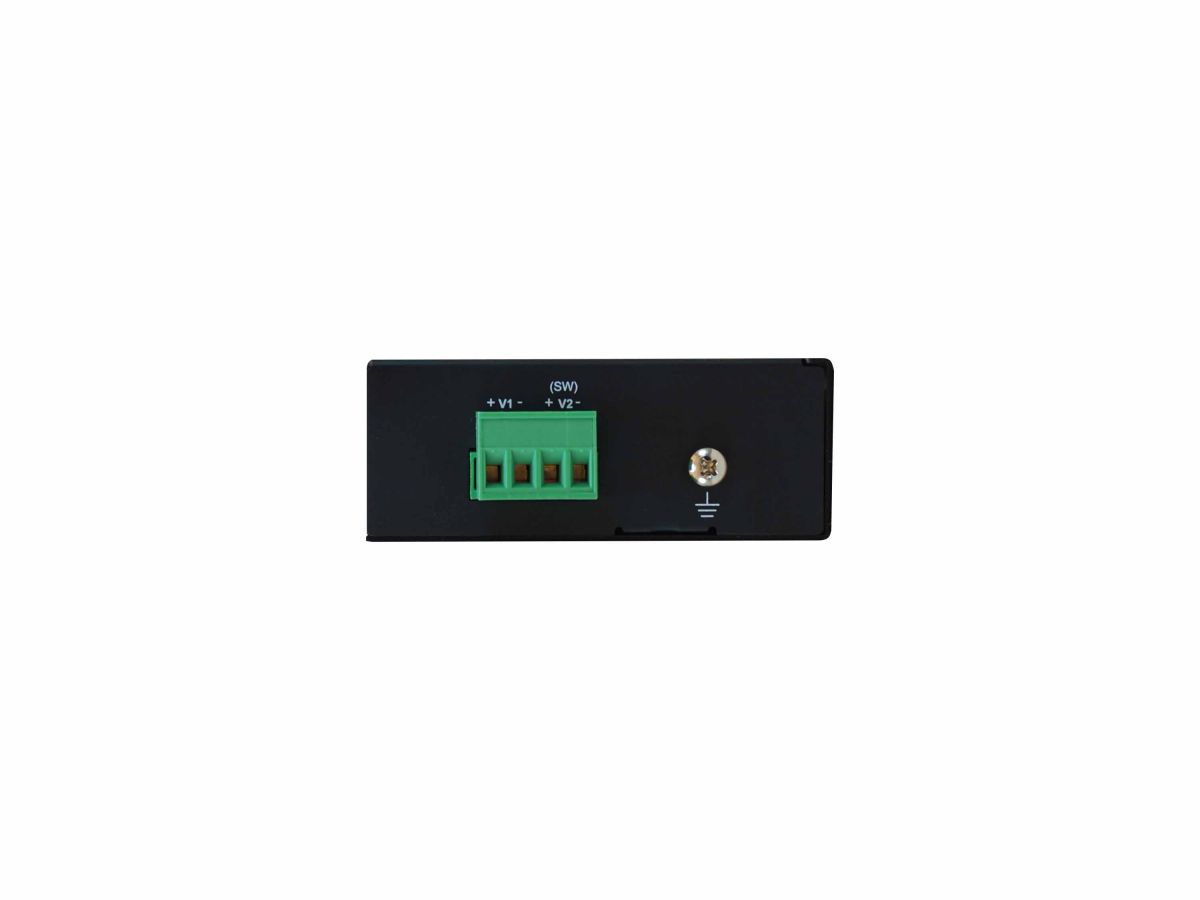

- Two DC inputs (PW1/PW2) for redundancy, each with its own power-good LED.
- PoE LED shows normal operation, overload (flashing) or no device.
- IP30 metal case for DIN-rail, wall or desktop mounting.
- Wide −40 to 75 °C operation for non-climate-controlled cabinets.
What Will Not Work
- Does not work from 12 V/24 V DC or mains — 48–56 V DC only.
- Not 802.3bt: maximum 30 W.
- Not for direct outdoor exposure (IP30) — install in an enclosure.
- One PoE port only.
Key Features
Industrial temperature
−40 to 75 °C operation with ColdDesign heat reduction.
Redundant power
Dual DC inputs with individual power-good LEDs.
Gigabit PoE+
802.3af/at, 30 W, 10/100/1000 Mbps.
Flexible mounting
DIN-rail, wall or desktop, IP30 metal.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
The IGP-0101 is a compact way to add PoE+ inside industrial and outdoor cabinets that already have a 48 V DC rail, with redundant inputs for uptime. Budget a DIN-rail PSU if you do not have one. For the cabinet itself see our rack accessories.
✓ Buy it if you need 30 W PoE+ from a 48 V DC supply in a harsh environment.
✕ Skip it if you only have mains, 12 V or 24 V DC, or need more than 30 W.
→ Also consider LevelOne POI-5002W90 — indoor 90 W 802.3bt injector with power cord.
Not sure your cabinet supply is suitable? Send us the PSU model and the device you want to power and we will check before you order.
