LevelOne IGP-1091 10-Port Industrial L3 2.5G PoE++ Switch 8x 90W 480W 2x 10G SFP+ DIN-Rail

Brand:
LevelOne
LevelOne IGP-1091 Industrial 2.5G PoE++ Switch 480W
LevelOne IGP-1091 10-Port Industrial L3 2.5G PoE++ Switch 8x 90W 480W 2x 10G SFP+ DIN-Rail
€623.74 inc. VAT
Buy
IGP-1091
€524.15 €582.39
€623.74 inc. VAT
Ships from EU stock: 27 item(s)
+ −
Add to wish list Ask a question
Product Code
04:591305
EAN Code
4015867245132
Manufacturer
LevelOne
Quick Specs
Ports
8× 2.5G PoE++ + 2× SFP+
Speed
2.5G access · 10G uplink
PoE budget
480 W · 90 W/port
Management
L3 managed · industrial
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne IGP-1091 — Industrial L3 2.5G PoE++ Switch with 10G Uplinks

8× 2.5G PoE++480 W budget2× 10G SFP+-40°C to 75°C

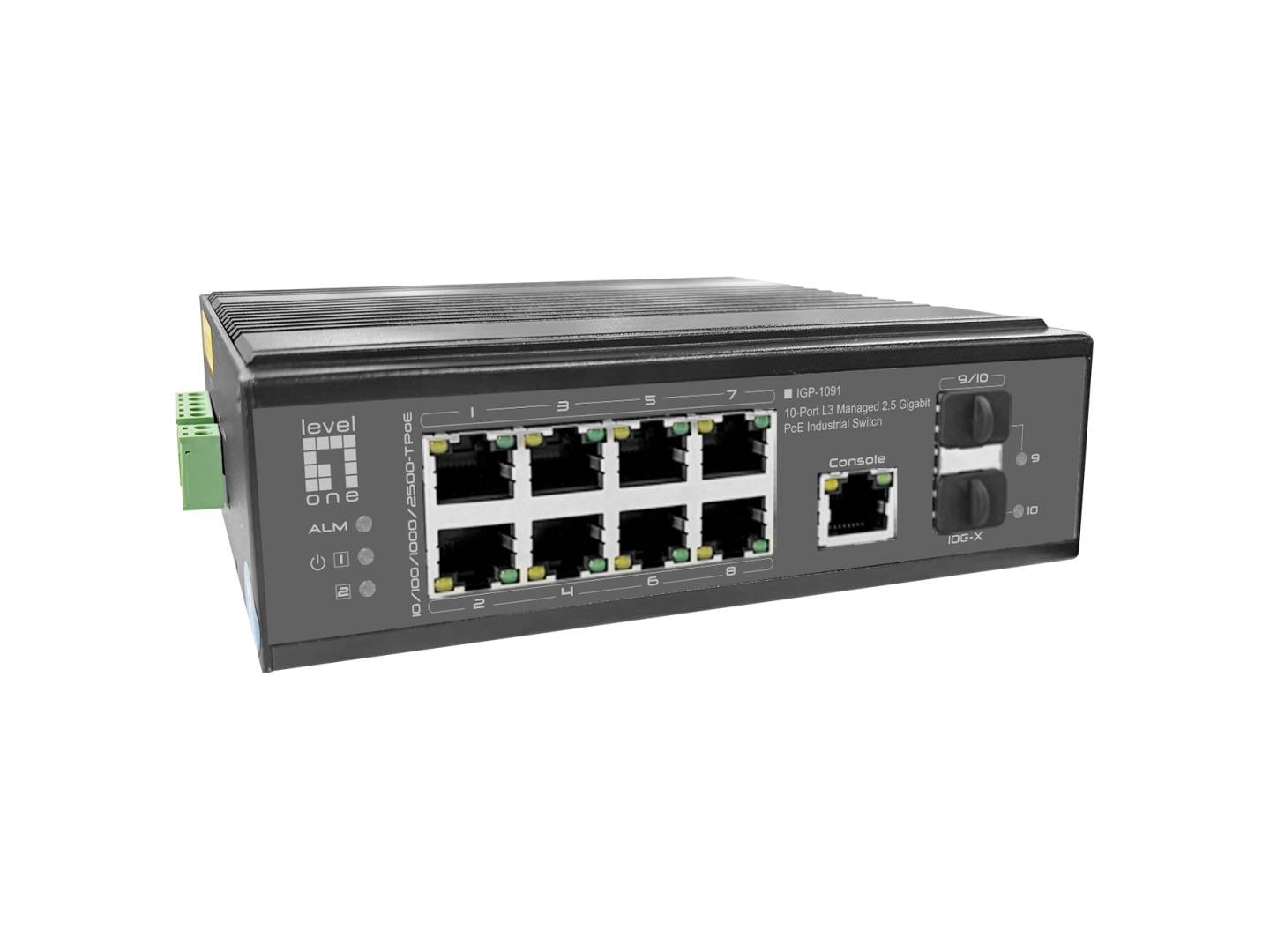

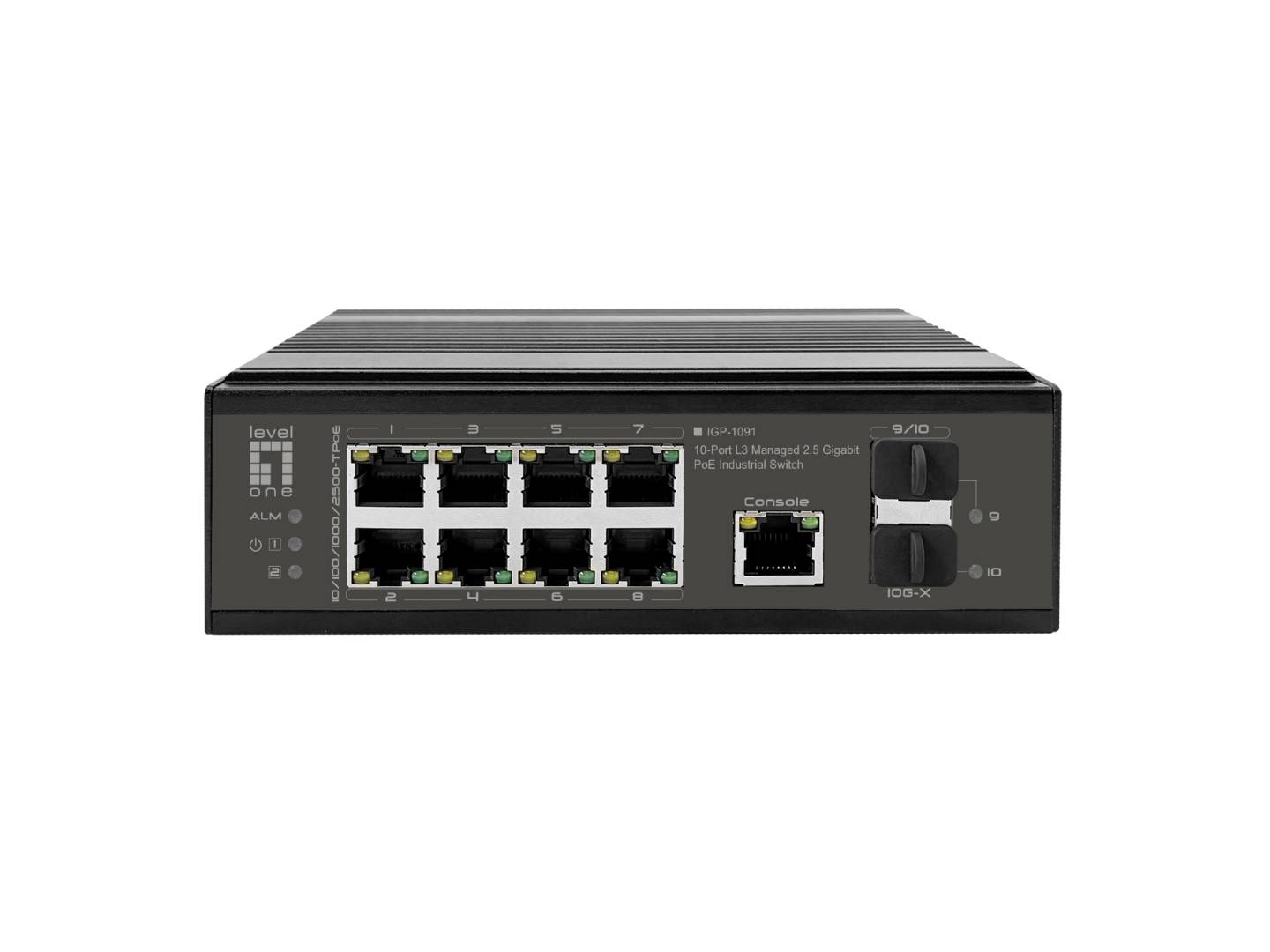

The LevelOne IGP-1091 is a 10-port industrial Layer 3 managed PoE switch with 8× 100M/1G/2.5G RJ-45 ports delivering IEEE 802.3af/at/bt PoE (up to 90 W per port) and 2× 1G/10G SFP+ uplinks, with a 480 W total PoE budget. Part number IGP-1091 is the fanless DIN-rail model for cabinets, transport and outdoor surveillance.

2.5G PoE++ ports suit Wi-Fi 6/7 access points, PTZ cameras with heaters and other high-power devices, while PoE watchdog automatically power-cycles a device that stops responding. RIP, OSPF and VRRP routing add Layer 3 resilience at the edge.

Compatibility note: The switch needs an external 48–57 VDC power supply (dual redundant inputs) sized for your PoE load — no PSU is included. To deliver 802.3at/bt PoE, the input should be at the upper part of the range (typically 54–57 V). SFP+ modules are sold separately.

Best For

✓ Wi-Fi 6/7 access points in industrial sites
✓ PTZ and heated outdoor cameras
✓ Transport, tunnels and smart-city cabinets
✓ Factories needing PoE plus 10G uplinks

Key Features


PoE++ up to 90 W
802.3bt on all eight 2.5G ports and a 480 W total budget power demanding devices, with PoE watchdog auto-recovery for hung cameras or APs.

2.5G access, 10G uplinks
Multi-Gig 2.5G copper matches the uplink needs of Wi-Fi 7 access points, and two 10G SFP+ ports carry traffic to the core without bottlenecks.

Hardened L3 edge
RIP, OSPF and VRRP routing, 6 kV surge protection, fanless metal housing and -40 to +75°C operation for harsh locations.

Technical Specifications

Identification
Part Number IGP-1091
EAN / GTIN 4015867245132
MPN IGP-1091
Brand LevelOne
Ports, PoE & Performance
PoE ports 8× 10M/100M/1G/2.5G RJ-45, IEEE 802.3af/at/bt
Uplinks 2× 1G/10G SFP+
PoE budget 480 W total · up to 90 W per port
Switching / forwarding 120 Gbps · 89.28 Mpps
MAC table / buffer 16K · 12 Mb
Layer 3 RIP, OSPF, VRRP
PoE management PoE watchdog — automatically reboots unresponsive powered devices
Power & Environment

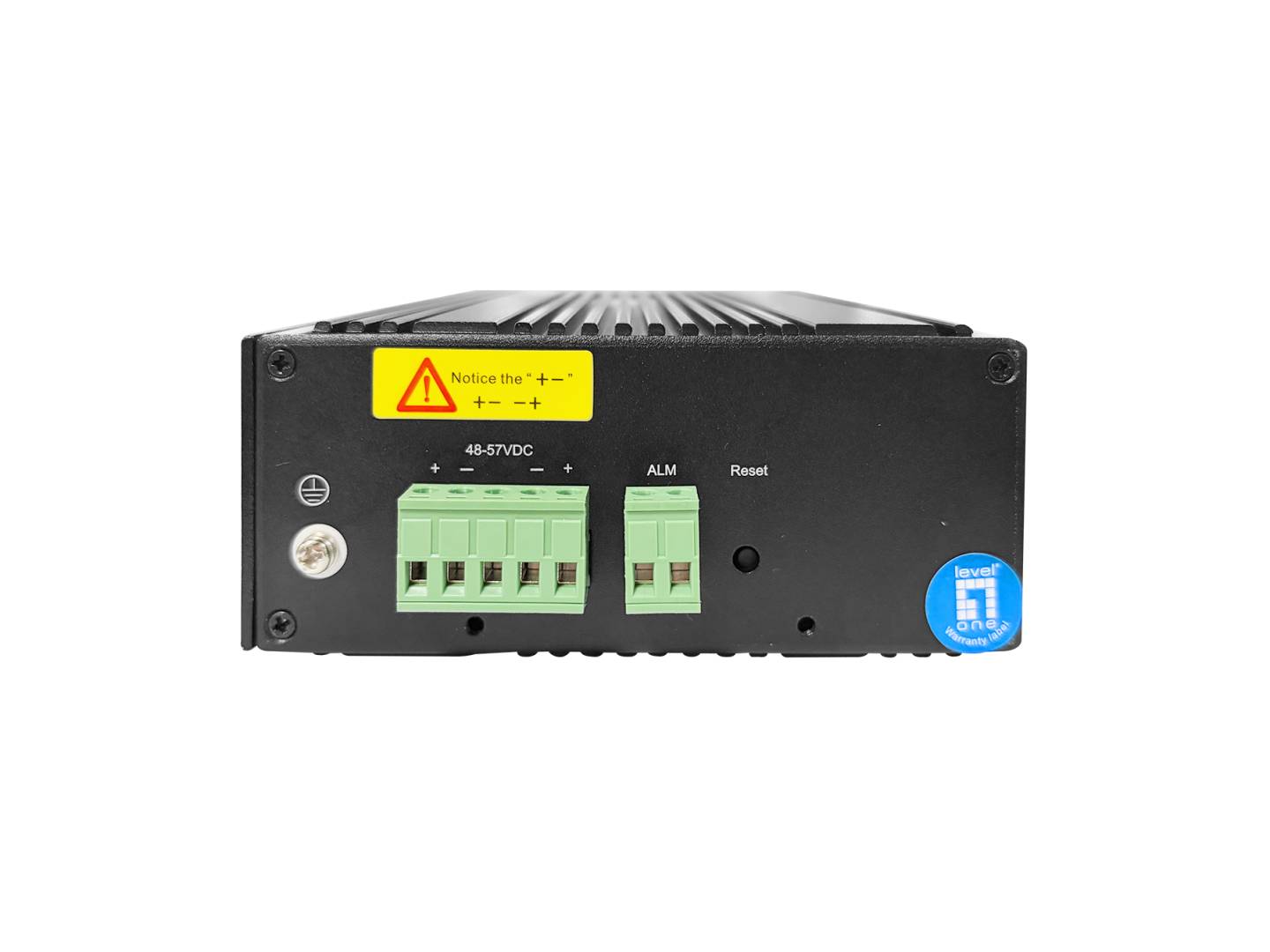

Power input 48–57 VDC, dual redundant (PSU sold separately)
Consumption (excl. PoE) < 30 W
Housing IP40 metal, fanless (0 dB)

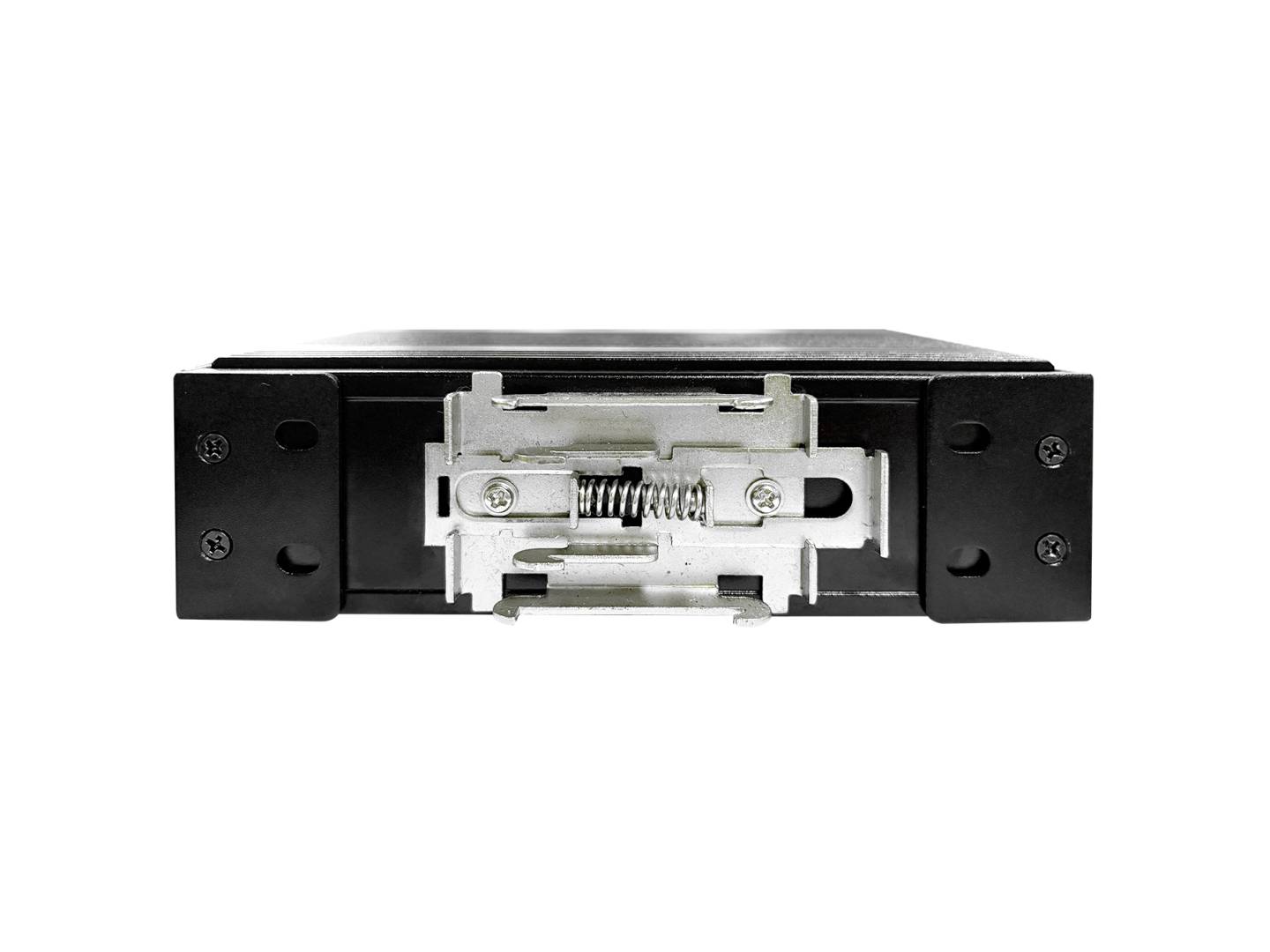

Mounting DIN rail or desktop
Size / weight 165 × 115 × 50 mm · 1 kg
Operating temperature -40°C to 75°C
MTBF 400,000 hours

Frequently Asked Questions

What power supply do I need for the IGP-1091?
A 48–57 VDC DIN-rail PSU rated for your total PoE load plus about 30 W for the switch itself — for example a 480 W 54 V PSU to use the full budget. Two supplies can be connected for redundancy.
Is the IGP-1091 suitable for Wi-Fi 7 access points?
Yes. Its 2.5G PoE++ ports provide both the multi-gigabit bandwidth and the power (802.3at/bt) that Wi-Fi 7 access points typically require.
What is the difference between the IGP-1091 and the IGU-1071?
The IGP-1091 adds 2.5G PoE++ (480 W), 10G SFP+ uplinks and L3 routing; the IGU-1071 is a non-PoE Gigabit L2+ switch with 2.5G SFP uplinks and a lower price.

Singular Expert Insight

Industrial switches with 2.5G PoE++ and 10G uplinks are still rare; the IGP-1091 is future-proof for Wi-Fi 7 and high-power cameras in harsh environments. Budget for a properly sized 54 V PSU, and pair it with outdoor access points or IP cameras.
✓ Buy it if you need high-power PoE for APs or PTZ cameras in a cabinet with wide temperature range and 10G fiber uplinks.
✕ Skip it if your devices need only 15 W PoE at 1G — a Gigabit PoE+ switch is cheaper, or the site is a normal office.
→ Also consider LevelOne OEP-1071 (IP65 outdoor PoE+ 150 W) or IGU-1071 (non-PoE industrial).
