LevelOne IGU-1071 10-Port Industrial L2+ Managed Gigabit Switch 8x GbE 2x 2.5G SFP DIN-Rail

Brand:
LevelOne
LevelOne IGU-1071 10-Port Industrial Managed DIN Switch
LevelOne IGU-1071 10-Port Industrial L2+ Managed Gigabit Switch 8x GbE 2x 2.5G SFP DIN-Rail
€553.59 inc. VAT
Buy
IGU-1071
€465.20 €516.89
€553.59 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:492312
EAN Code
4015867238585
Manufacturer
LevelOne
Quick Specs
Ports
8× RJ-45 + 2× SFP
Speed
1G · 2.5G SFP uplinks
PoE budget
No PoE
Management
L2+ managed · ERPS
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne IGU-1071 — 10-Port Industrial L2+ Managed Gigabit Switch

8× GbE RJ-452× 2.5G SFP-40°C to 75°CRedundant 12–58 VDC

The LevelOne IGU-1071 is a 10-port industrial L2+ managed Gigabit switch with 8× 10/100/1000 RJ-45 ports and 2× 1000/2500BASE-X SFP uplinks in a slim, fanless IP40 DIN-rail housing, made for PLC networks, SCADA, machine cabinets and traffic or surveillance systems. Part number IGU-1071 is the compact 54 mm-wide model.

It operates from -40°C to +75°C on redundant 12–58 VDC inputs, and G.8032 ERPS ring redundancy recovers in under 20 ms. VLAN, QinQ, STP/RSTP/MSTP, LACP, QoS, IGMP snooping, IPv4/IPv6 static routing, DHCP server, ACL and 802.1X are all built in.

Compatibility note: No power supply is included — connect a 12–58 VDC DIN-rail PSU to the terminal block (dual inputs for redundancy). SFP modules are sold separately; use industrial-temperature SFPs for extreme environments.

Best For

✓ PLC and machine networks
✓ SCADA and process control rings
✓ Traffic cabinets and roadside systems
✓ Industrial CCTV (non-PoE cameras)

Key Features


Slim DIN-rail design
Only 54 mm wide and fanless, so it fits crowded control cabinets next to PLCs, relays and power supplies without extra cooling.

Ring redundancy < 20 ms
G.8032 ERPS plus STP/RSTP/MSTP and LACP keep automation traffic flowing when a cable is cut or a node fails.

Industrial protection
6 kV surge protection and ESD protection (air 15 kV, contact 8 kV), dual redundant DC inputs and -40 to +75°C operation.

Technical Specifications

Identification
Part Number IGU-1071
EAN / GTIN 4015867238585
MPN IGU-1071
Brand LevelOne
Ports & Performance
Copper ports 8× 10/100/1000BASE-T RJ-45
Fiber ports 2× 1000/2500BASE-X SFP
Switching / forwarding 26 Gbps · 38.6 Mpps
MAC table / buffer 16K · 12 Mbit
Redundancy G.8032 ERPS (< 20 ms), STP/RSTP/MSTP, LACP
Layer 3 edge IPv4/IPv6 static routing, DHCP server
Security 802.1X, ACL, port isolation
Power & Environment

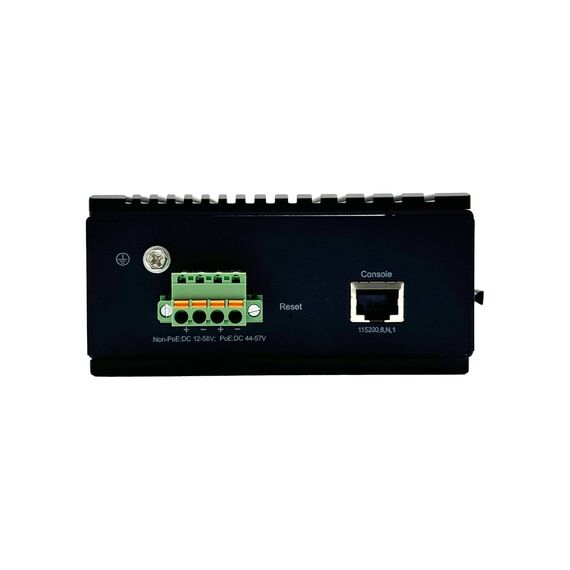

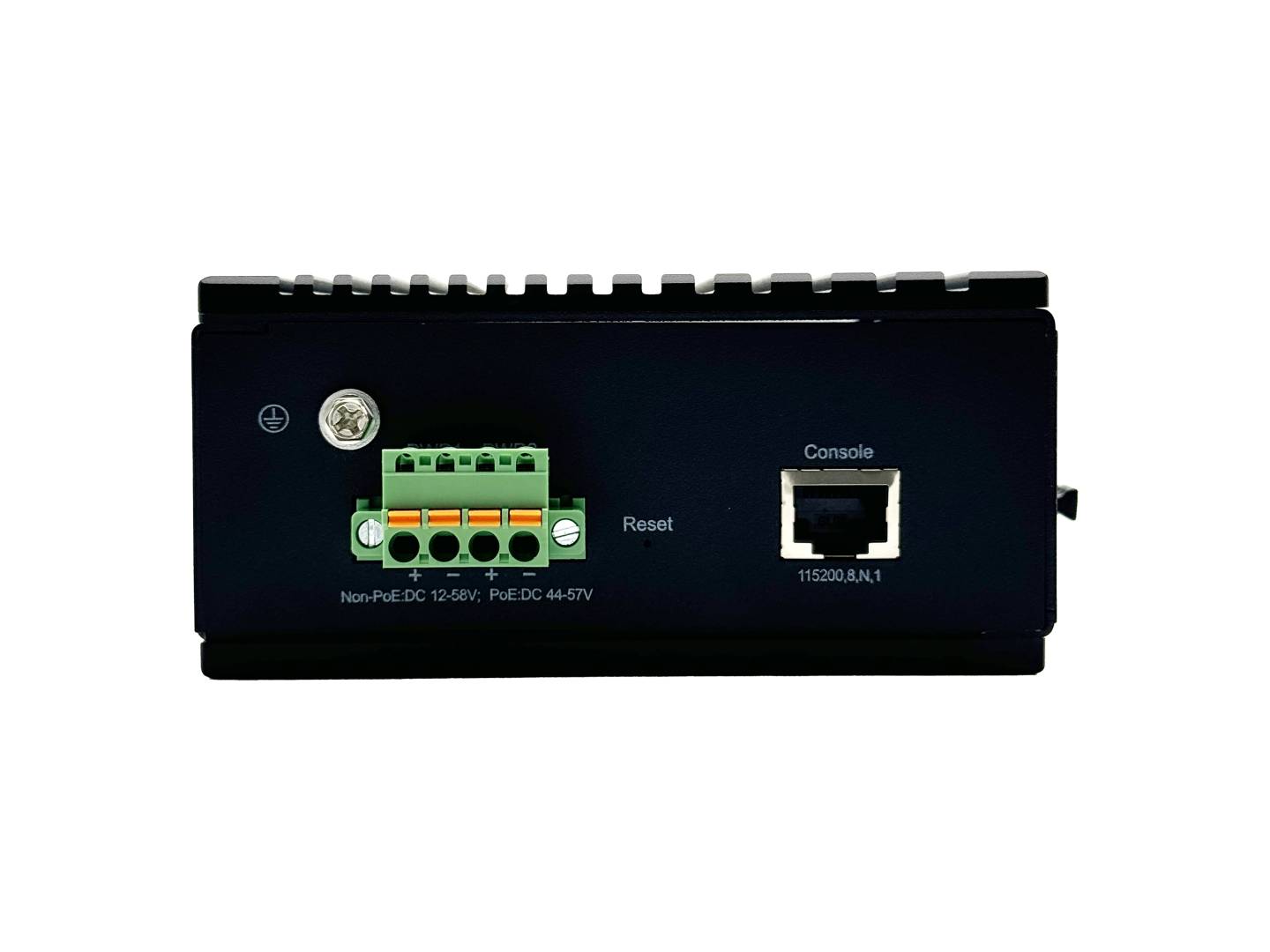

Power input 12–58 VDC, dual redundant (terminal block)
Power consumption ≤ 10 W full load
Housing IP40 metal, fanless (0 dB)

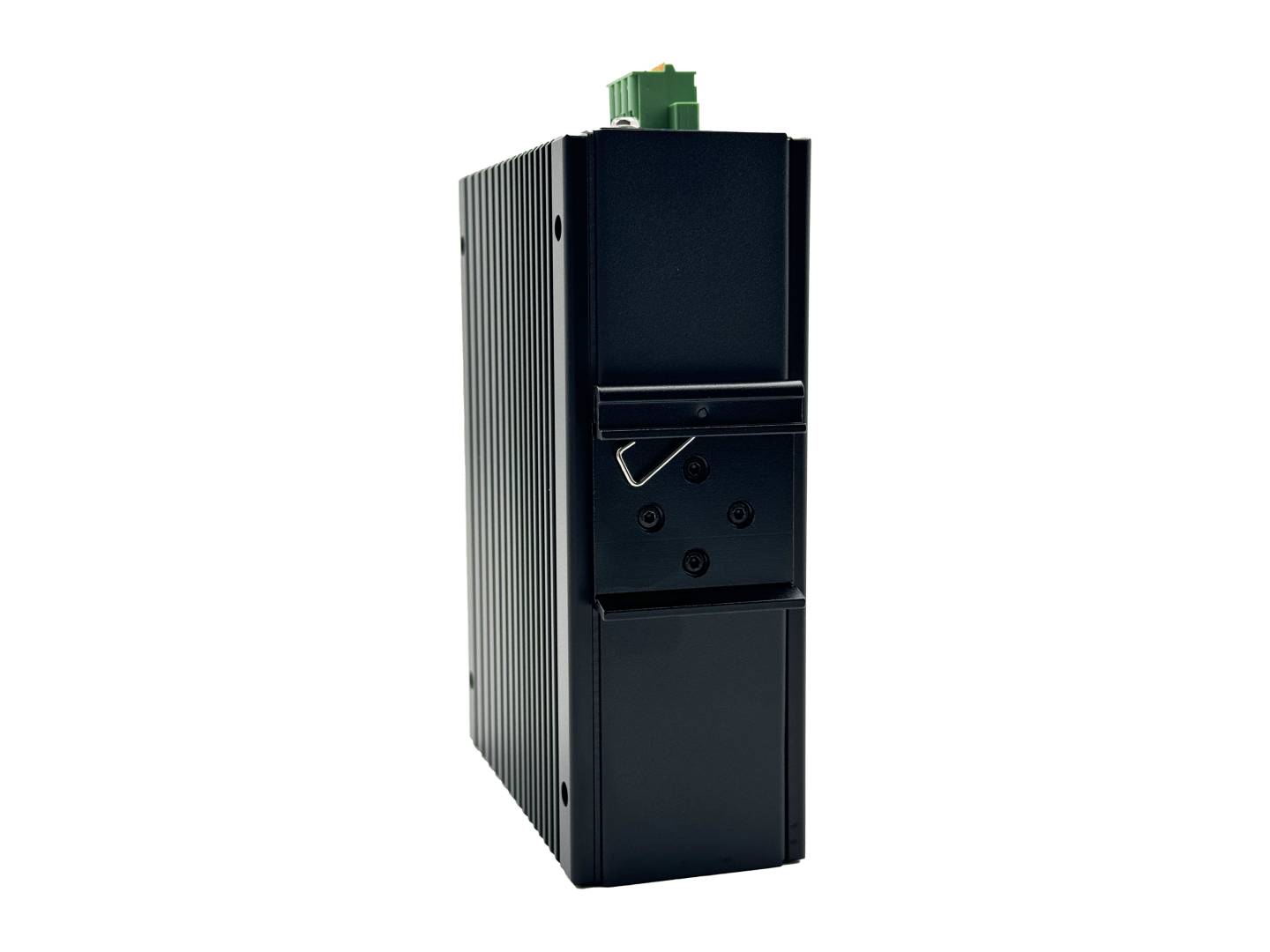

Mounting DIN rail
Size / weight 54 × 115 × 158 mm · 1.12 kg
Operating temperature -40°C to 75°C

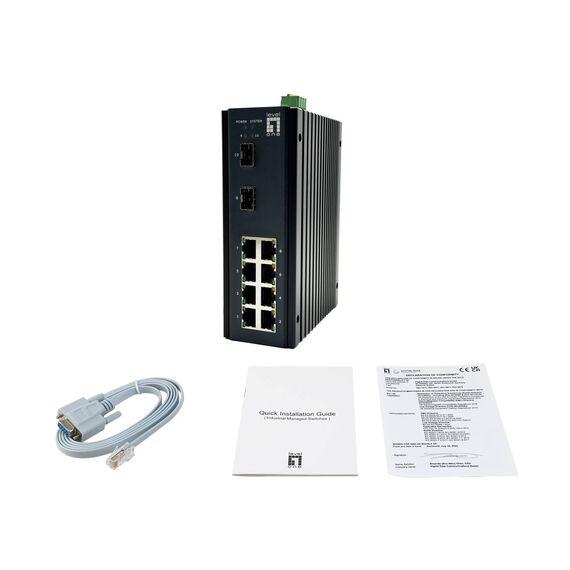

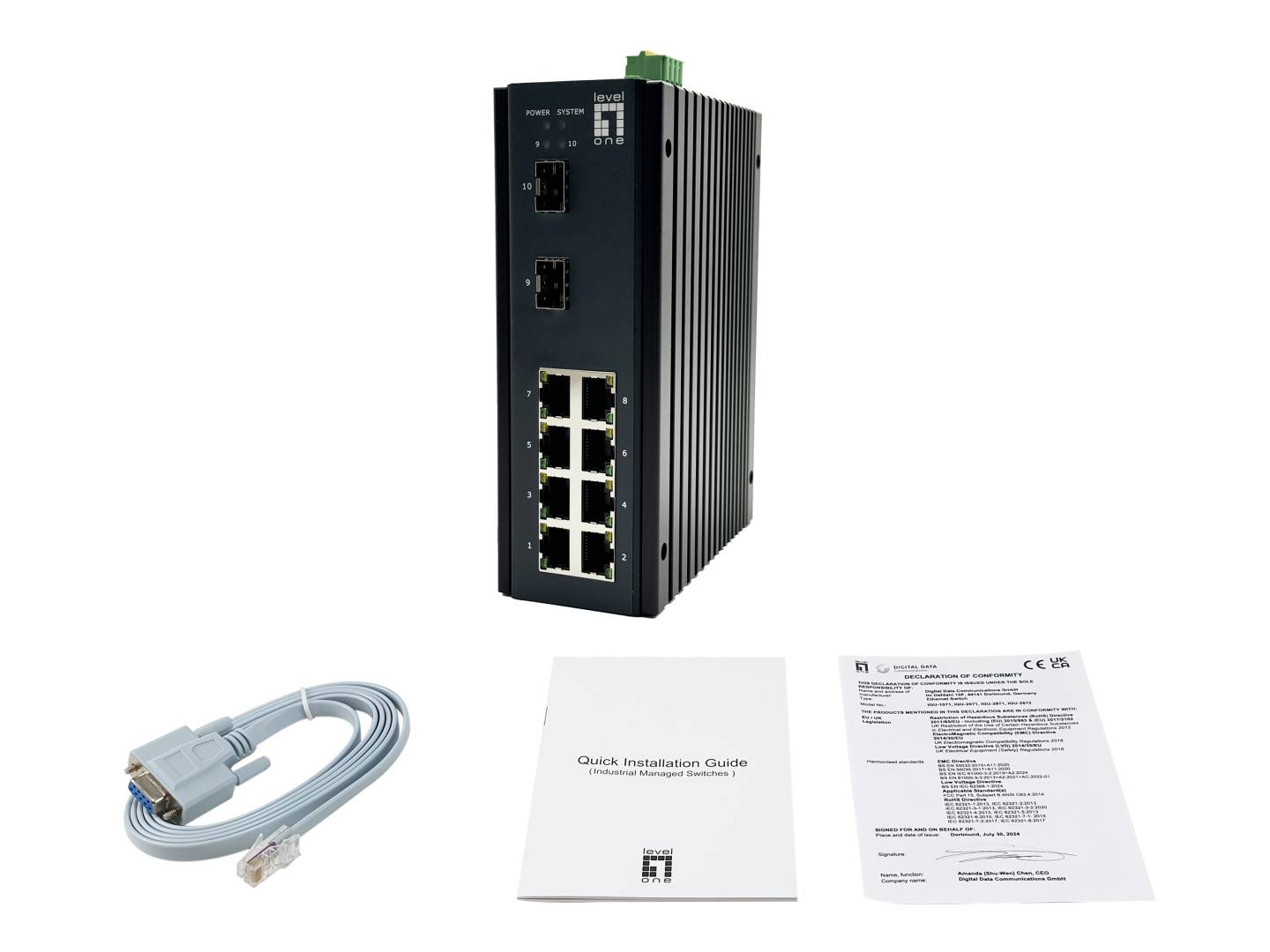

In the box Switch, console cable, terminal block, DIN-rail kit, guide

Frequently Asked Questions

Does the IGU-1071 support PoE?
No. It is a data-only industrial switch. For PoE cameras or APs in a cabinet, use the LevelOne IGP-1091 with up to 90 W per port.
What power supply do I need for the IGU-1071?
Any 12–58 VDC supply, typically a 24 V DIN-rail PSU. It draws at most 10 W, and a second PSU can be connected for redundancy.
What is the difference between the IGU-1071 and the IGU-2072?
The IGU-1071 has 8 RJ-45 + 2 SFP ports in a 54 mm housing; the IGU-2072 adds 10 more SFP slots (20 ports in total) and a wider 12–75 VDC input with up to 80°C operation.

Singular Expert Insight

For most machine cabinets eight copper ports and two fiber uplinks are exactly right, and the IGU-1071 delivers them with managed L2+ features and fast ring recovery at a very compact width. Browse our switches for PoE or larger fiber options.
✓ Buy it if you need a compact managed DIN-rail switch for PLCs or control systems with a fiber ring uplink.
✕ Skip it if you need to power devices over PoE or require more than two fiber ports.
→ Also consider LevelOne IGU-2072 (20 ports, 12 SFP) or IGP-1091 (2.5G PoE++ industrial).
