LevelOne IGU-2072 20-Port Industrial L2+ Managed Switch 8x GbE 8x SFP 4x 2.5G SFP DIN-Rail

Brand:
LevelOne

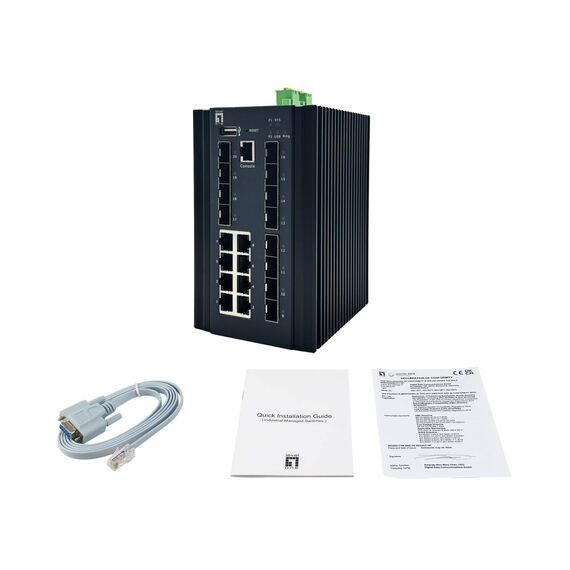

LevelOne IGU-2072 20-Port Industrial Managed DIN Switch
LevelOne IGU-2072 20-Port Industrial L2+ Managed Switch 8x GbE 8x SFP 4x 2.5G SFP DIN-Rail
€1103.65 inc. VAT
Buy
IGU-2072
€927.44 €1,030.49
€1,103.65 inc. VAT
Ships from EU stock: 14 item(s)
+ −
Add to wish list Ask a question
Product Code
04:514897
EAN Code
4015867239278
Manufacturer
LevelOne
Quick Specs
Ports
8× RJ-45 + 12× SFP
Speed
1G · 2.5G SFP uplinks
PoE budget
No PoE
Management
L2+ managed · ERPS
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne IGU-2072 — 20-Port Industrial L2+ Managed DIN-Rail Switch

8× GbE + 12× SFPERPS < 20 ms-40°C to 80°CRedundant 12–75 VDC

The LevelOne IGU-2072 is a 20-port industrial L2+ managed Gigabit switch with 8× 10/100/1000 RJ-45 ports, 8× 100/1000 SFP slots and 4× 1G/2.5G SFP uplinks in a fanless IP40 DIN-rail housing, built for factory automation, utilities, transport and outdoor surveillance cabinets. Part number IGU-2072 is the fiber-rich model of the IGU range.

It runs from -40°C to +80°C on redundant 12–75 VDC inputs, and G.8032 ERPS ring protection restores the network in under 20 ms if a link is cut. L2+ features include VLAN, QinQ, STP/RSTP/MSTP, LACP, QoS, IGMP snooping plus IPv4/IPv6 static routing and a DHCP server.

Compatibility note: Needs a DC power supply (12–75 VDC, e.g. a DIN-rail PSU) — no PSU is included, only the terminal block. SFP modules are not included; use industrial-temperature SFPs if the cabinet runs outside 0–70°C.

Best For

✓ Factory automation and SCADA rings
✓ Utility and substation cabinets
✓ Traffic and transport systems
✓ Fiber-heavy CCTV backbones

Key Features


12 fiber ports
8 SFP slots for 100M/1G fiber plus 4 SFP slots at 1G/2.5G give the switch far more fiber capacity than typical 8+2 industrial models — ideal for ring and star fiber topologies.

Hardened for harsh sites
Fanless IP40 metal housing, -40 to +80°C operation, 6 kV surge protection and ESD immunity (air 15 kV, contact 8 kV) with dual redundant DC inputs.

Fast ring recovery
G.8032 ERPS recovers in less than 20 ms, while web, CLI, SNMP, Telnet and SSH management plus 802.1X and ACLs keep the network controlled and secure.

Technical Specifications

Identification
Part Number IGU-2072
EAN / GTIN 4015867239278
MPN IGU-2072
Brand LevelOne
Ports & Performance
Copper ports 8× 10/100/1000BASE-T RJ-45
Fiber ports 8× 100/1000BASE-X SFP + 4× 1G/2.5G SFP
Switching capacity 52 Gbps
MAC table / buffer 16K · 12 Mbit
Redundancy G.8032 ERPS (< 20 ms), STP/RSTP/MSTP, LACP
Layer 3 edge IPv4/IPv6 static routing, DHCP server
Management Web, CLI, SNMP, Telnet, SSH
Power & Environment

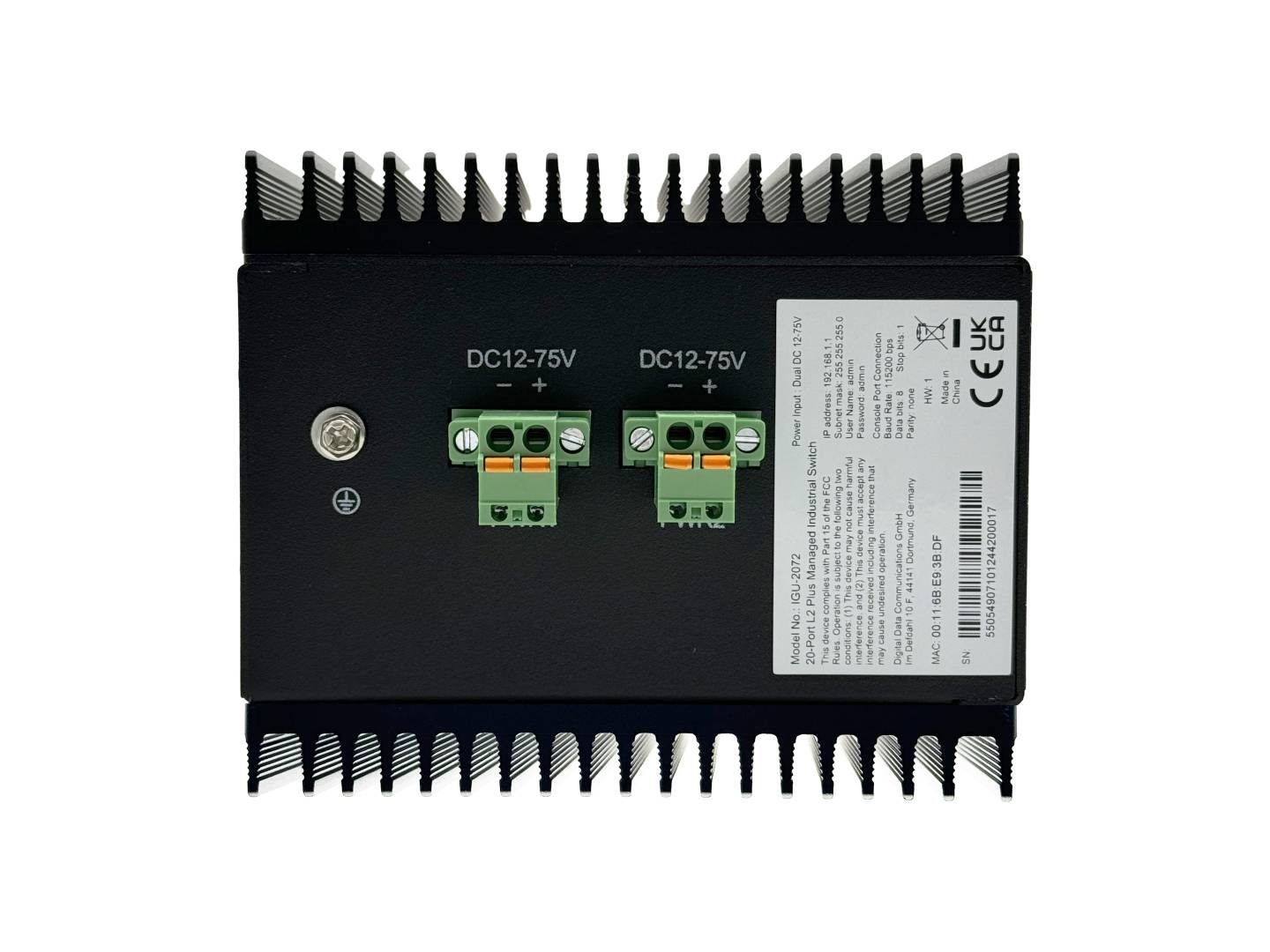

Power input 12–75 VDC, dual redundant (terminal block)
Power consumption 25 W full load
Housing IP40 metal, fanless (0 dB)
Mounting DIN rail
Size / weight 96 × 115 × 158 mm · 1.79 kg
Operating temperature -40°C to 80°C
MTBF 200,000 hours

Frequently Asked Questions

Does the IGU-2072 include a power supply?
No. It takes 12–75 VDC through a terminal block (two inputs for redundancy). Use a DIN-rail DC power supply of suitable wattage.
Is the IGU-2072 suitable for outdoor cabinets?
Yes, inside a cabinet: it runs from -40°C to +80°C and is fanless. The housing is IP40, so it must be protected from rain and dust by the enclosure.
What is the difference between the IGU-2072 and the IGU-1071?
The IGU-2072 has 20 ports (8 RJ-45 + 12 SFP) and runs up to 80°C on 12–75 VDC; the IGU-1071 is a smaller 10-port model (8 RJ-45 + 2 SFP) for up to 75°C on 12–58 VDC.

Singular Expert Insight

The IGU-2072 is the right choice when fiber is the backbone: twelve SFP slots let one DIN-rail unit close a fiber ring and feed several remote cabinets. If you mostly need copper for PLCs or cameras, the 10-port IGU-1071 or PoE-capable IGP-1091 are simpler; see our industrial and managed switches.
✓ Buy it if you build fiber rings or multi-cabinet industrial networks that need fast ERPS failover and wide temperature range.
✕ Skip it if you need PoE for cameras — this model has no PoE.
→ Also consider LevelOne IGU-1071 (8× GbE + 2× SFP) or IGP-1091 (8× 2.5G PoE++ + 2× 10G SFP+).
