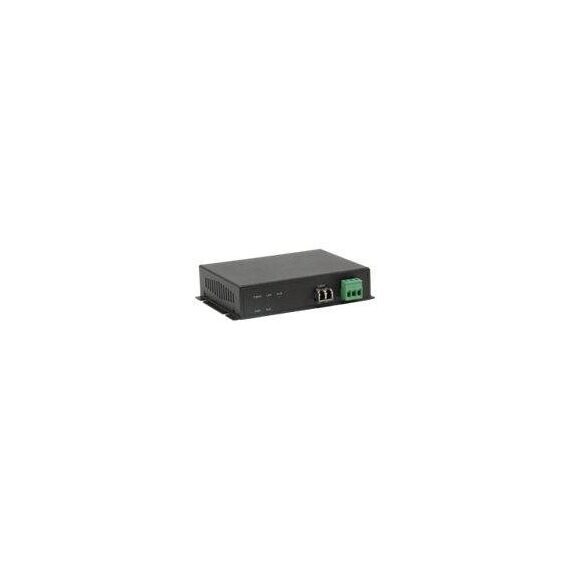

LevelOne PFE-1101T PoE Extender over Hybrid Fiber, Transmitter, 120W / Network extender / 100Mb LAN / 10Base-T, 100Base-FX, 100Base-TX / up to 2 km | PFE-1101T
Please sign in so that we can notify you about a reply
Special Features
- Extend data and power up to 2 km via a single hybrid fiber cable
- Enable PoE devices to distant remote location
- Supporting high power consumption devices
Product Specification
| Device Type | Network extender |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 100Base-FX, 100Base-TX |
| Data Link Protocol | 10Mb LAN, 100Mb LAN |
| Data Transfer Rate | 100 Mbps |
| MAC Address Table Size | 1K entries |
| Max Transfer Distance | 2 km |
| Status Indicators | Power, alarm, PoE, LAN |
| Features | Auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, wall mountable, 128KB packet buffer, Power Sourcing Equipment (PSE) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX (input) - RJ-45 female ¦ 1 x Ethernet 100Base-FX (output) - LC multi-mode female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC |
| Power | Power |
| Power Over Ethernet (PoE) | PoE |
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 13.3 cm |
| Depth | 9 cm |
| Height | 2.8 cm |
| Weight | 250 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - LevelOne - PFE-1101T
More Details
Product Code
04:158068
EAN Code
4015867187265
Manufacturer
LevelOne
