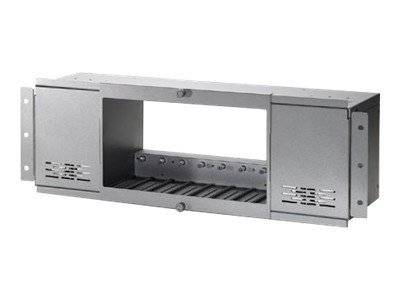

LevelOne POC-4001 8-Bay 19-inch 4U Media Converter Chassis for VDS-0200/0201/0202

Brand:
LevelOne
LevelOne POC4001 Modular expansion base POC-4001
LevelOne POC-4001 8-Bay 19-inch 4U Media Converter Chassis for VDS-0200/0201/0202
€918.54 inc. VAT
Buy
POC-4001
€771.88
€918.54 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
04:156960
EAN Code
4015867161524
Manufacturer
LevelOne

Quick Specs

Module Capacity
Up to 8 modules
Rack Format
19-inch / 4U
AC Input
100–240 V AC
Cooling
2 x DC fans
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne POC-4001 — 8-Bay 19-inch Media Converter Chassis

8 module bays19-inch / 4UDual DC fans100–240 V AC

The LevelOne POC-4001 is an 8-bay, 19-inch 4U chassis designed to house LevelOne VDS-0200, VDS-0201 and VDS-0202 Ethernet-over-VDSL2 converter modules. It allows compatible modules to be mixed within the same enclosure, giving installers a centralised and expandable platform for multi-line VDSL2 deployments.

Compatibility — check before buying:
The POC-4001 is a powered chassis for LevelOne VDS-0200, VDS-0201 and VDS-0202 modules. It is not a standalone Ethernet switch or media converter and does not provide network ports by itself. Confirm that the required converter modules are available separately for your installation.

Best For

✓ Centralised VDSL2 converter installations
✓ 19-inch rack deployments
✓ Multi-line VDS-0200/0201/0202 installations
✓ Systems that need modular expansion over time

Key Features


Eight converter bays
The chassis accepts up to eight compatible VDS-0200, VDS-0201 or VDS-0202 modules and supports mixed-module configurations within the same enclosure.

19-inch 4U rack design
A standard 19-inch rack-mountable format consolidates multiple VDSL2 converter modules into a single 4U chassis for cleaner central-site installation.

Integrated dual-fan cooling
Two internal 24 V DC fans provide forced ventilation for the installed converter modules, supporting reliable operation inside a populated rack chassis.

Integrated power and fuse protection
The chassis accepts 100–240 V AC mains input and incorporates a 250 V, 2 A fuse. Its internal supply provides two 5 V DC, 5 A outputs for the installed modules.

Technical Specifications

Identification
Brand LevelOne
Model POC-4001
Hardware Version 1
EAN / GTIN 4015867161524
Product Type 8-bay media converter chassis
Capacity & Compatibility
Module Bays 8
Compatible Modules LevelOne VDS-0200, VDS-0201 and VDS-0202
Mixed Modules Supported
Power & Cooling
AC Input 100–240 V AC
Input Frequency 50–60 Hz
Internal DC Output 2 x 5 V DC, 5 A
Cooling Fans 2 x 24 V DC fans
Fuse 250 V, 2 A
Physical Specifications
Rack Size 19-inch
Rack Height 4U
Dimensions 483 x 153 x 120 mm
Weight, Empty 3.0 kg
Weight, Fully Populated 6.5 kg with 8 compatible modules
Colour Aluminium
Environmental
Operating Temperature 0 to 50 °C
Storage Temperature -10 to 70 °C
Operating Humidity 5–90% RH

Frequently Asked Questions

How many modules can the POC-4001 hold?
Up to eight compatible LevelOne VDS-0200, VDS-0201 or VDS-0202 converter modules can be installed in the chassis.
Can different VDS module types be mixed?
Yes. LevelOne specifies that VDS-0200, VDS-0201 and VDS-0202 modules can be mixed within the POC-4001 chassis.
Does the chassis include the converter modules?
No. The POC-4001 is the powered chassis itself. Compatible VDS converter modules are separate products.
Does it fit a standard network rack?
Yes. It is designed for a standard 19-inch rack and occupies 4U of rack height.
Singular Expert Insight
The POC-4001 makes most sense when several LevelOne VDSL2 links terminate at the same central location. Instead of using multiple separate powered converters, the chassis groups up to eight compatible VDS modules in a single 19-inch 4U enclosure with shared power, cooling and fuse protection. Its modular design also lets an installation begin with only the number of converter modules needed and expand later as additional lines are added.

Buyer’s Guide

Buy it if

You need a central rack chassis for up to eight compatible LevelOne VDS-0200, VDS-0201 or VDS-0202 converter modules.

Check first

Confirm that your installation uses the supported VDS module family and that 4U of 19-inch rack space is available.

Remember

The chassis supplies mounting, power and cooling only. The VDSL2 converter modules required for network connectivity are purchased separately.
