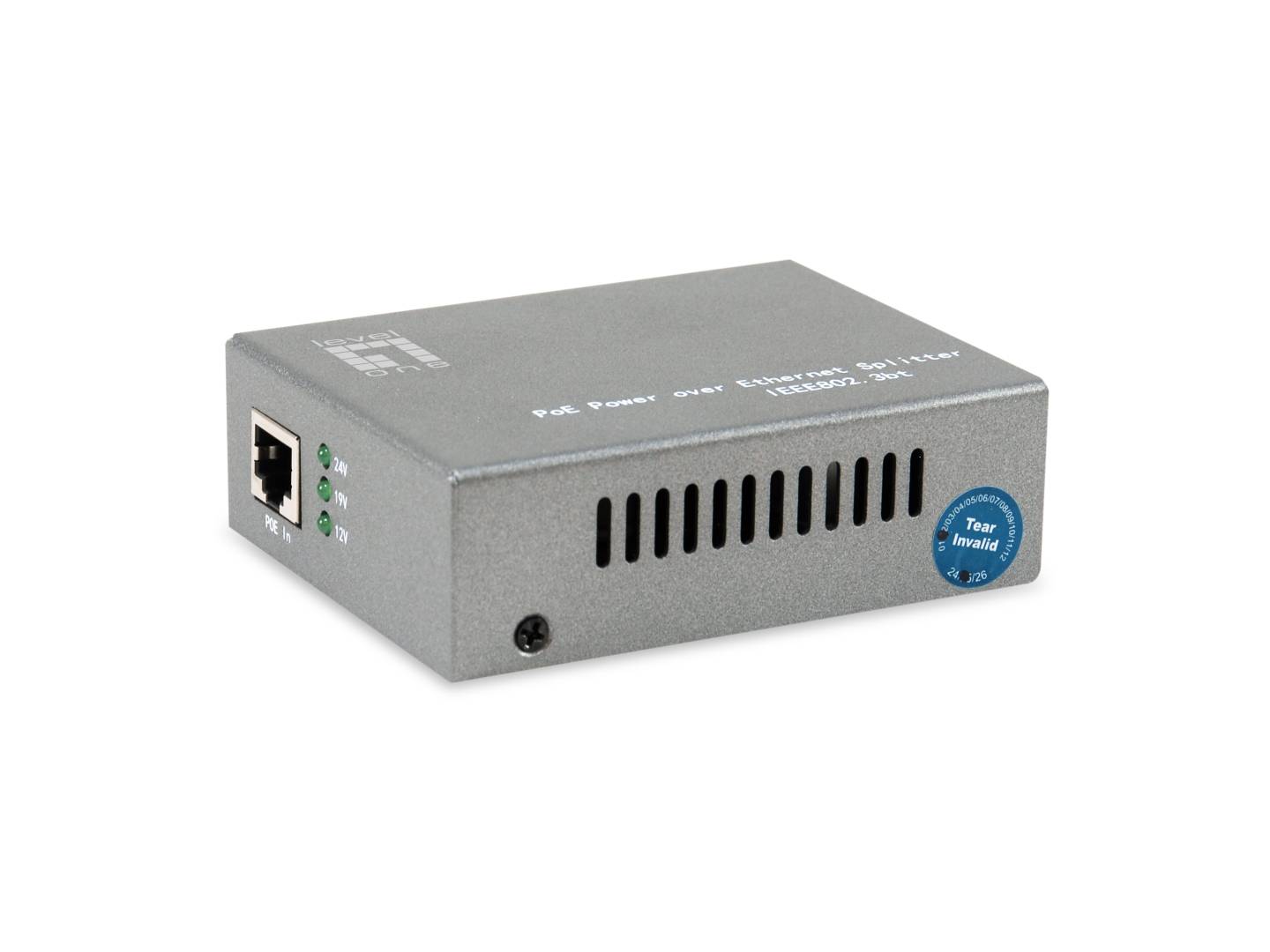

LevelOne POS-5002 2.5 Gigabit PoE Splitter 60W to DC 12V 19V 24V Selectable DIP Switch Interchangeable DC Tips Silver

Brand:
LevelOne

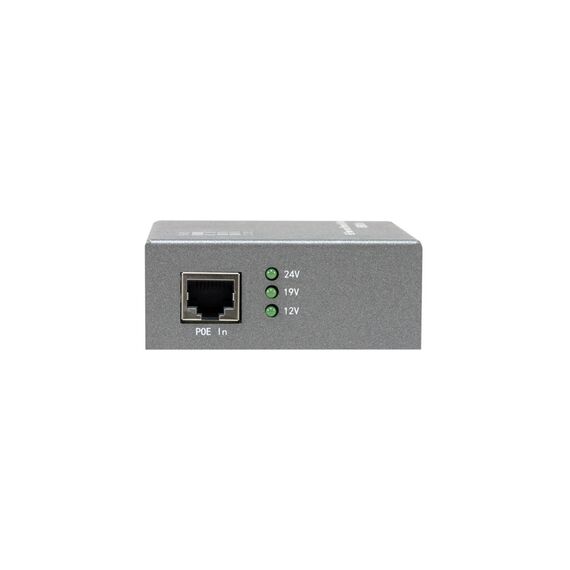

LevelOne POS-5002 2.5G PoE Splitter 60W 12/19/24V
LevelOne POS-5002 2.5 Gigabit PoE Splitter 60W to DC 12V 19V 24V Selectable DIP Switch Interchangeable DC Tips Silver
€126.94 inc. VAT
Buy
POS-5002
€106.67
€126.94 inc. VAT
Ships from EU stock: 74 item(s)
+ −
Add to wish list Ask a question
Product Code
04:549741
EAN Code
4015867241615
Manufacturer
LevelOne

Quick Specs

Data
2.5 Gigabit
DC output
12 V / 19 V / 24 V selectable
Power
Up to 60 W
DC tips
4 interchangeable
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

POS-5002 2.5G PoE Splitter — 60 W

2.5 Gigabit12 / 19 / 24 VUp to 60 WDC tips included

The LevelOne POS-5002 is a 2.5 Gigabit PoE splitter. It sits at the far end of a PoE cable and separates it into a network connection and a DC power output for a device that has no PoE input of its own. The output voltage is selected by DIP switch — 12 V at 5 A, 19 V at 3.15 A or 24 V at 2.5 A — for up to 60 W, and four interchangeable DC tips are supplied. Data passes at up to 2.5 Gb/s. It has short-circuit protection and auto-detection. In practice it lets you power a non-PoE access point, camera or mini PC from a PoE switch.

Compatibility — check before buying:
The 60 W output needs a PoE++ (802.3bt) source. LevelOne’s headline states 60 W PoE++, while its standards list names 802.3af/at; on an 802.3at (30 W) switch port, expect no more than about 30 W. Set the voltage before connecting — a wrong setting can damage the device. DC tips: 5.5×2.5, 5.5×2.1, 4.8×1.7 and 3.5×1.3 mm. Not sure? Tell us your model and we check it for you.

Best For

✓ Non-PoE access points
✓ IP cameras without PoE
✓ Mini PCs and thin clients
✓ 19 V devices
✓ 2.5G network devices
✓ Remote installs without mains

Key Features


Selectable 12/19/24 V
DIP switch, up to 60 W.

2.5 Gigabit data
10/100/1000/2500 Mb/s pass-through.

Four DC tips
Fits common barrel sizes.

Protection
Short circuit protection and auto-detection.

Technical Specifications

Identification
Brand LevelOne
Product POS-5002 2.5 Gigabit PoE BT 60W to DC 12V/19V/24V Splitter
Part Number POS-5002
EAN / GTIN 4015867241615
Product Type PoE splitter, 2.5 Gigabit
Power
Output 12 V / 5 A, 19 V / 3.15 A, 24 V / 2.5 A (DIP switch)
Max. power Up to 60 W (PoE++ source)
Power consumption 3 W
Pin assignment 1/2 (+), 3/6 (−), 4/5 (+), 7/8 (−)
Data
Speed 10/100/1000/2500 Mb/s
Standards IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3af, 802.3at
Ports PoE in, Ethernet out, DC out
DC Tips
Sizes 5.5×2.5, 5.5×2.1, 4.8×1.7, 3.5×1.3 mm (12 mm long)
Physical & Environment
Dimensions 74.4 × 94.2 × 30 mm
Weight 0.27 kg
Colour Silver
Operating temperature 0 to 40 °C
Humidity 0–90% RH
Compliance CE, FCC
In the Box
Included POS-5002, power cable, RJ-45 cable, power connectors (DC tips), quick installation guide
Not Included PoE switch or injector
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LevelOne does not publish a warranty term for this item on its product page or datasheet. Singular’s direct warranty is 1 year, and we support you locally for anything beyond it.

Frequently Asked Questions

Which voltages can it supply?
12 V, 19 V or 24 V, selected by DIP switch.
Will I get 60 W from a PoE+ switch?
No. 60 W needs a PoE++ (802.3bt) source; an 802.3at port supplies about 30 W.
What data speed does it support?
Up to 2.5 Gb/s.
Which DC plugs are included?
5.5×2.5, 5.5×2.1, 4.8×1.7 and 3.5×1.3 mm.
Singular Expert Insight
A splitter is the easy way to run a non-PoE device on a PoE switch; check the device’s voltage, current and plug before setting the DIP switch. For PoE switches, see our network switches.

Buyer’s Guide

Buy it if

You need to power a 12, 19 or 24 V device from a PoE++ port.

Skip it if

Your device already has a PoE input.

Also consider

A PoE++ switch or injector to feed it.
