LevelOne Fast Ethernet PoE Repeater, 1 PoE In / 1 PoE Out, Extends Ethernet and PoE by 100 m, Powered by PoE, Metal
Brand:
LevelOne
LevelOne Fast Ethernet PoE Repeater, 1 PoE In / 1 PoE Out, Extends Ethernet and PoE by 100 m, Powered by PoE, Metal
€245.32 inc. VAT
POR-0100
Delivery
Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
Trusted Tech Choice
Buying Benefits
Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Please sign in so that we can notify you about a reply
LevelOne POR-0100 PoE Repeater — Fast Ethernet, +100 m
10/100 MbpsPoE poweredUp to 200 m totalNo power adapter
The LevelOne POR-0100 is a Fast Ethernet PoE repeater that doubles the reach of a PoE link: it sits 100 m from the PoE switch, takes its own power from the cable, and sends data and power another 100 m to the device. It needs no mains socket at the midpoint.
It is meant for low-power PoE devices — simple IP cameras, sensors, VoIP phones or small access points — that are slightly beyond the 100 m Ethernet limit. LevelOne’s datasheet shows a standard 15.4 W PoE input and up to about 4.3 W available to the device at the output.
Before you order: Power at the output is limited (LevelOne shows about 4.3 W max for the PoE device). It is not suitable for PTZ cameras, modern Wi-Fi 6 access points or anything that needs 802.3at power — use the Gigabit LevelOne POR-0222 or a fiber solution instead. Data is 10/100 Mbps only.
What's in the Box
- 1 × LevelOne POR-0100 PoE repeater
- 1 × quick installation guide
- No power adapter (powered by PoE), no network cables
What It Means in Practice
- Typical job: a fixed camera or sensor 150–200 m from the switch, in a building with no power socket near the midpoint.
- Install: switch PoE port → up to 100 m → LAN IN of the POR-0100 → up to 100 m → device. The distances assume good 24 AWG Cat5 cable.
- Auto MDI/MDI-X on both ports and IEEE 802.3x flow control.

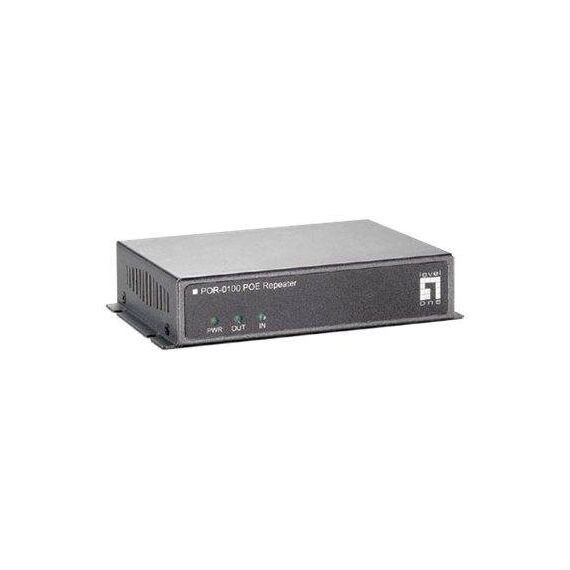

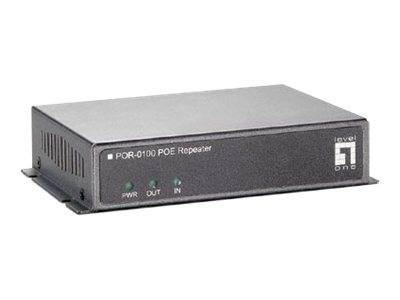

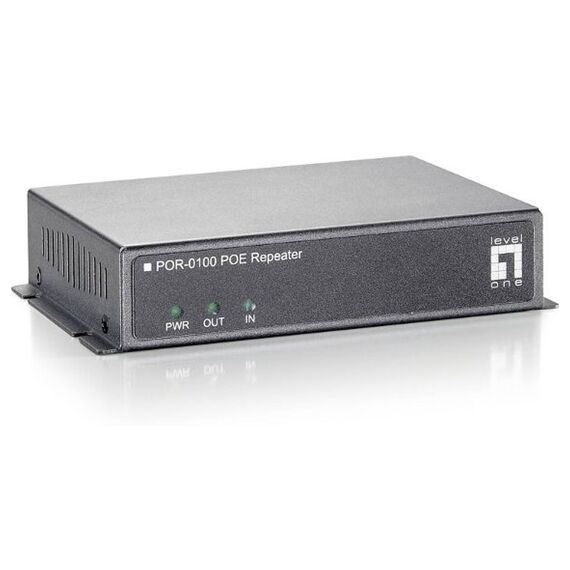

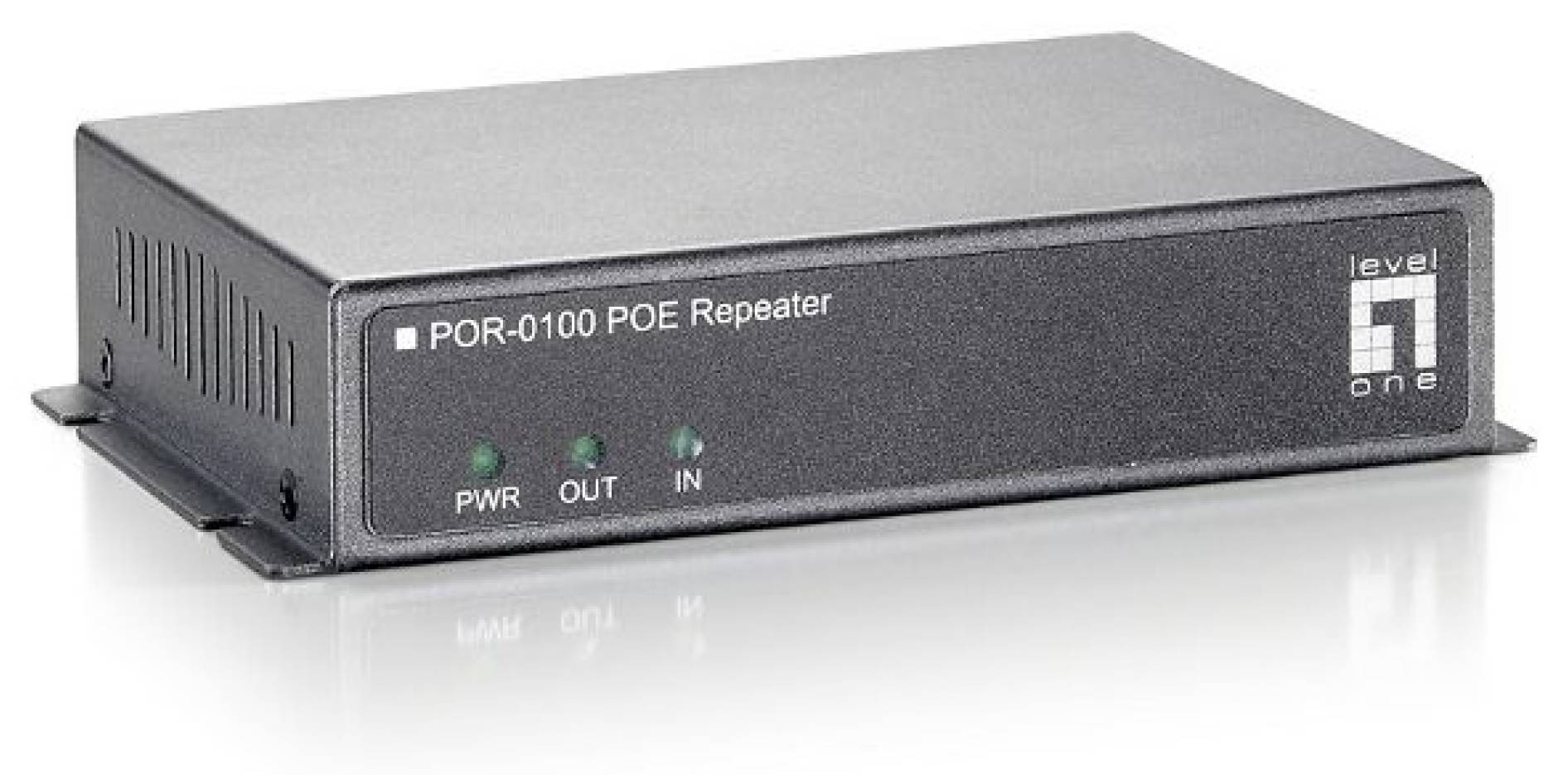

- Metal housing 120 × 90 × 28 mm with LEDs for POWER, LAN IN and LAN OUT.
- Rated for 0 to 50 °C indoor operation.
What Will Not Work
- Gigabit devices — data runs at 10/100 Mbps.
- PoE devices that need more than about 4.3 W.
- Two devices — there is one output.
- Non-PoE switches — it needs a PoE source to power itself.
- Outdoor installation — no IP rating published.
Key Features
Doubles PoE reach
100 m + 100 m for data and power.
No local power
Powered by the upstream PoE switch or injector.
Simple install
Auto MDI/MDI-X, no configuration.
Metal housing
Compact 120 × 90 × 28 mm, three status LEDs.
Technical Specifications
Frequently Asked Questions
Singular Expert Insight · Buyer's Guide
This is a budget fix for small, low-power PoE devices just past 100 m. Check the device’s power draw first — most current cameras and access points need more than this repeater can deliver, and the Gigabit POR-0222 or one of our network cables runs to a closer PoE switch will be the better choice.
✓ Buy it if you need to reach one low-power PoE device up to about 200 m from the switch.
✕ Skip it if the device needs more than about 4.3 W, needs Gigabit, or is outdoors.
→ Also consider LevelOne POR-0222 (Gigabit, two PoE outputs) or a PoE media converter with fiber.
Tell us the device model and the cable distances, and we will check whether the power budget works before you order.
Features - LevelOne - POR-0100
Length
>50m
More Details
Product Code
04:168956
EAN Code
4015867148488
Manufacturer
LevelOne
