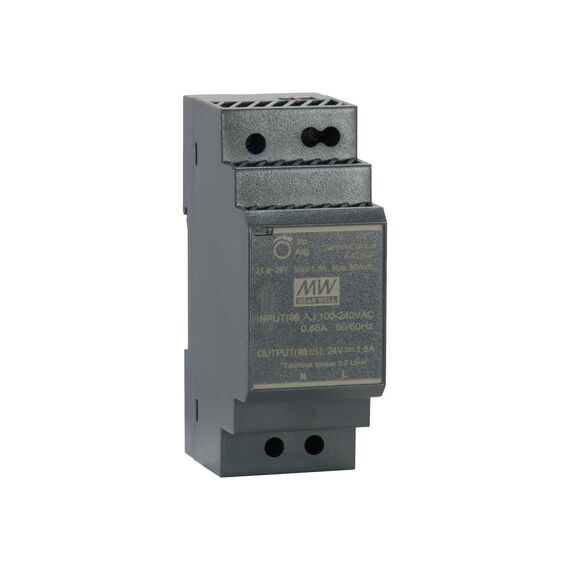

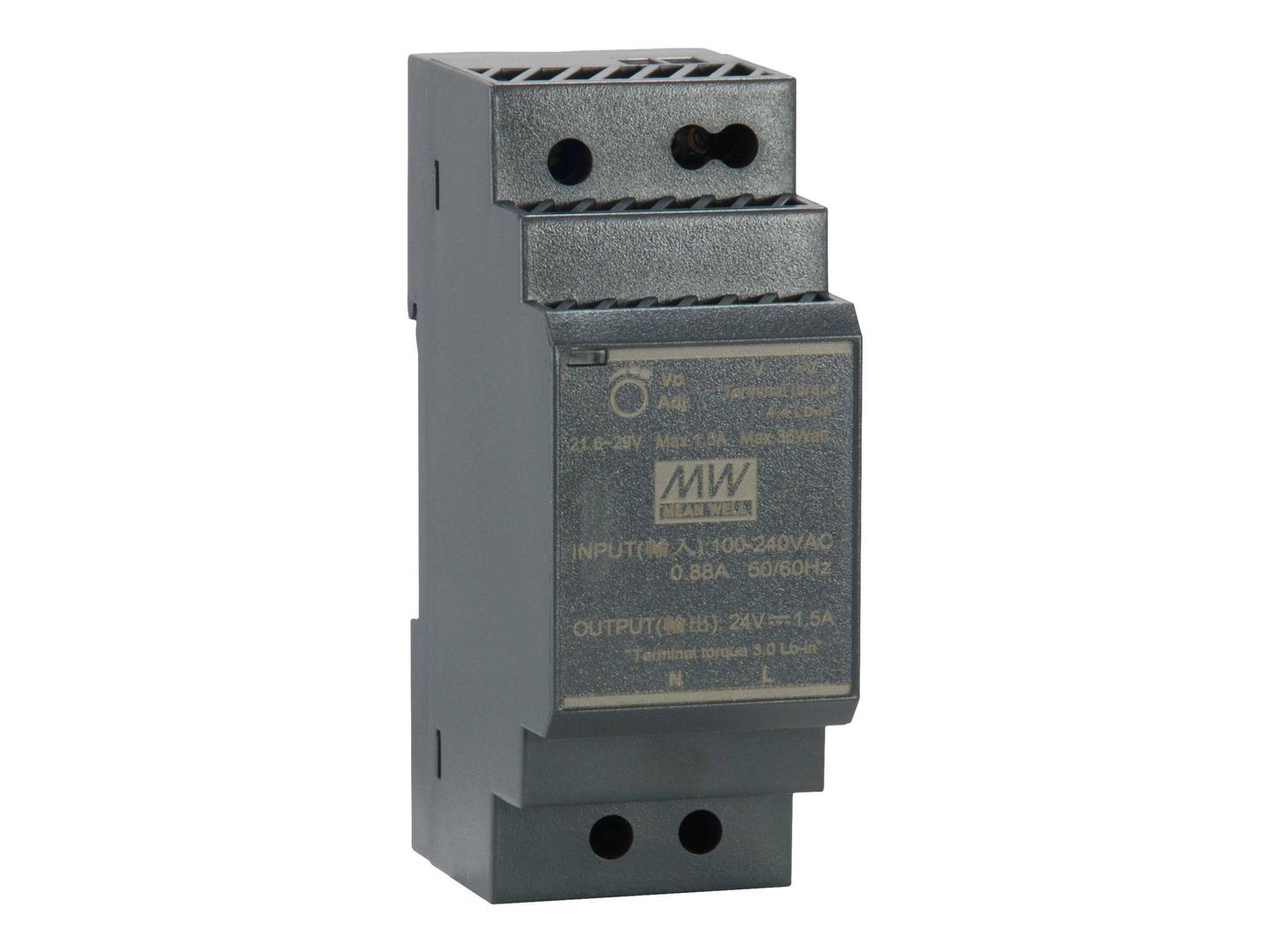

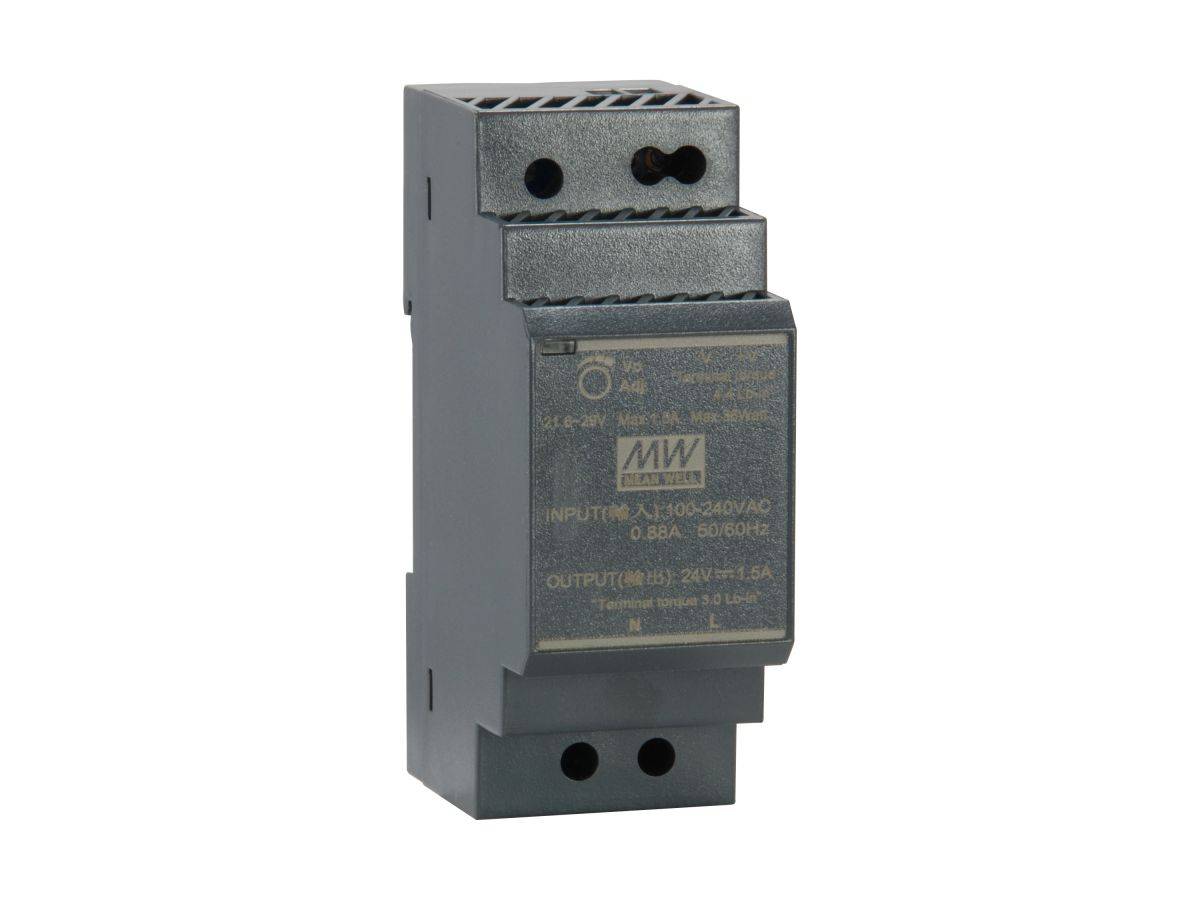

LevelOne POW-2411 / Power supply (DIN rail mountable) / AC 85-264/ DC 120-370 V / 30 Watt | POW-2411
Please sign in so that we can notify you about a reply
Special Features
- Universal AC input at full range
- Short circuit, overload / over voltage protection
- Fanless design

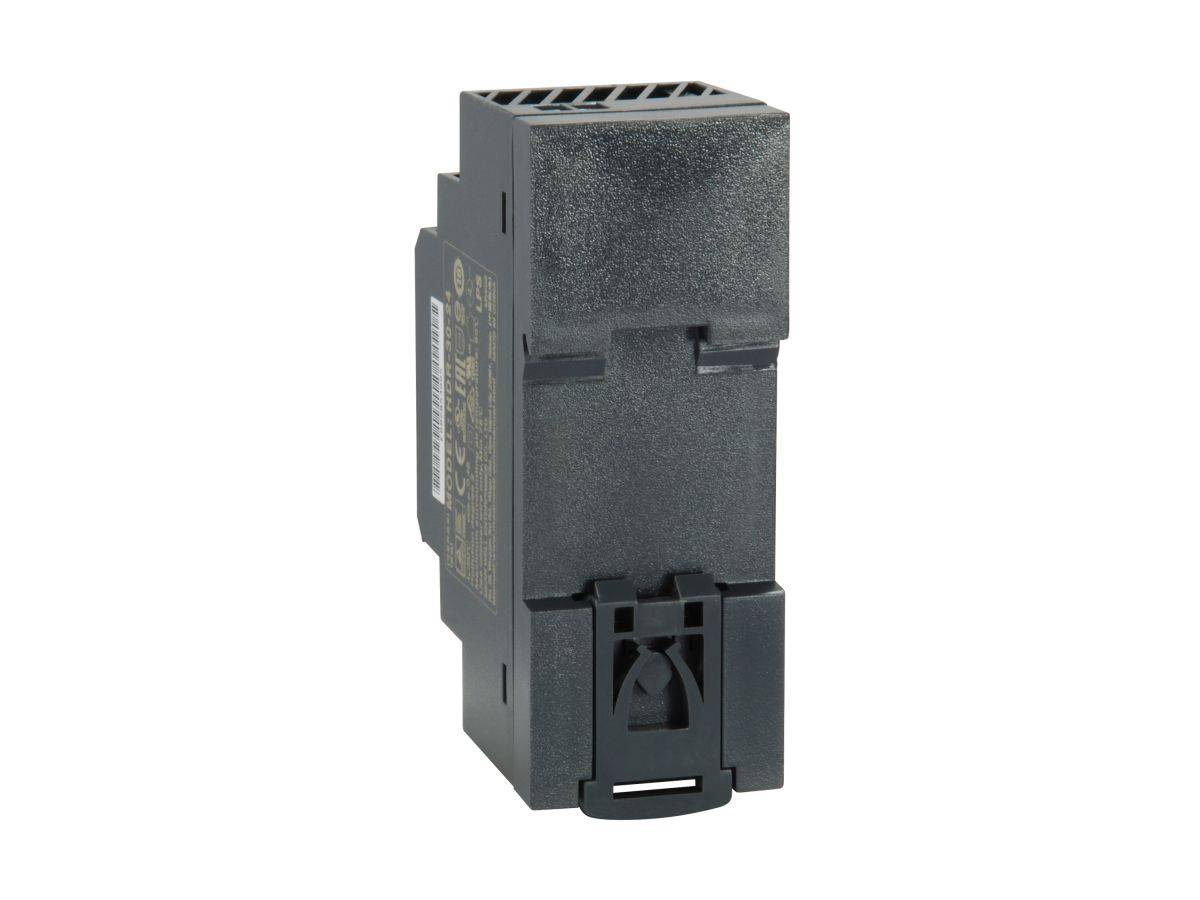

- Supports DIN-rail installation
- Isolation Class II
- 100% full load burn-in test
Product Specification
| Device Type | Power supply - DIN rail mountable |
| Power Device | Power Device |
| Input Voltage | AC 85-264/ DC 120-370 V |
| Output Voltage | 24 V |
| Max Electric Current | 1.5 A |
| Power Capacity | 30 Watt |
| Miscellaneous | Miscellaneous |
| MTBF | 968,100 hours |
| Features | Over voltage protection, overload protection, fanless, short-circuit protection |
| Compliant Standards | TUV, EN55024, EN 61000-6-2, UL 60950-1, IEC 60950-1, EN 60950-1, UL 508, EN 61204-3, EAC, MIL-HDBK-217F, BSMI CNS 14336-1, TP TC 004/2011, EN 61558-2-16 |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -30 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 20 - 90% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 3.5 cm |
| Depth | 5.45 cm |
| Height | 9 cm |
| Weight | 120 g |
Features - LevelOne - POW-2411
More Details
Product Code
04:285696
EAN Code
4015867206447
Manufacturer
LevelOne
