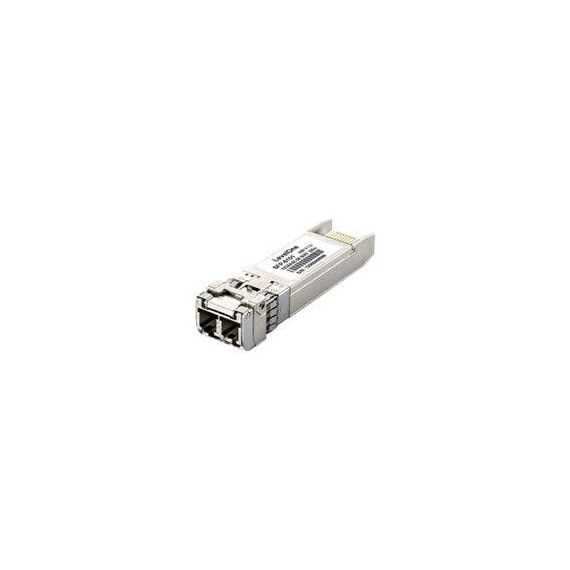

LevelOne SFP-6121 10GBASE-LR SFP+ Transceiver, Duplex LC, Single-Mode, 1310 nm, up to 10 km

Brand:
LevelOne
LevelOne SFP-6121 10G Single-Mode Duplex LC SFP+ Transceiver
LevelOne SFP-6121 10GBASE-LR SFP+ Transceiver, Duplex LC, Single-Mode, 1310 nm, up to 10 km
€73.78 inc. VAT
Buy
SFP-6121
€62.00
€73.78 inc. VAT
Ships from EU stock: 83 item(s)
+ −
Add to wish list Ask a question
Product Code
04:522740
EAN Code
4015867180600
Manufacturer
LevelOne

Quick Specs

Ethernet
10GBASE-LR
Optical interface
Duplex LC / single-mode
Wavelength / reach
1310 nm / up to 10 km
Monitoring
DDM / DOM
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

10G Single-Mode SFP+ for Duplex LC Links

10GBASE-LRDuplex LC1310 nmDDM / DOM

Add a 10GBASE-LR single-mode optical interface to a compatible SFP+ host port. SFP-6121 uses duplex LC and a 1310 nm transmitter for routes up to 10 km, subject to the installed link budget. DDM/DOM gives a supported host visibility into optical status, while hot-plug support simplifies module replacement.

Compatibility — check before buying:
Confirm the switch/NIC supports this module and 10GBASE-LR. Match duplex LC single-mode cabling and the remote optics; a physical SFP+ slot alone does not prove compatibility. The 10 km reach depends on fibre and connector loss.

Key Features


Single-mode LR optical link
The 1310 nm duplex LC interface serves a compatible single-mode link. Check the 6.2 dB manufacturer budget against route losses.

Diagnostic visibility
DDM/DOM monitoring is available through a host that supports these diagnostics.

Hot-pluggable module
The MSA-compliant SFP+ module supports hot-plug installation. Follow the host instructions and protect exposed optical connectors.

Technical Specifications

Identity and optical link
Model SFP-6121
EAN / GTIN 4015867180600
Form factor SFP+
Ethernet standard IEEE 802.3ae 10GBASE-LR
Serial data rate 10.3125 Gbps
Fibre Single-mode
Connector Duplex LC
Distance Up to 10 km with suitable single-mode link budget
Wavelength / transmitter 1310 nm DML
Average optical output -8.2 to 0.5 dBm
Receiver sensitivity (OMA) -14.4 to 0.5 dBm, datasheet range
Power budget 6.2 dB
Direction Single direction, duplex fibre link
Monitoring and installation
Monitoring DDM / DOM
Hot-plug Supported
MSA Compliant
Electrical and environment
Supply voltage 3.3 V
Maximum voltage / current 3.6 V / 330 mA
Dimensions (L × W × H) 56.5 × 14.3 × 8.5 mm, V1 datasheet
Operating temperature 0°C–70°C
Humidity 5%–95%, non-condensing
Compliance CE, FCC, RoHS

What's in the Box

SFP-6121 transceiver

Frequently Asked Questions

Can I use multimode fibre?
This LR module is specified for single-mode fibre. Use the correct fibre and optical module at both ends.
Does it use one or two fibres?
It has a duplex LC interface for separate transmit and receive paths; it is not a single-fibre BiDi module.
Why check the host compatibility list?
Port form factor, supported optics and firmware policy all affect module acceptance and diagnostics.
Singular Expert Insight
Start with host support, then confirm LR optics at both ends and calculate fibre loss. Reach alone is not enough to select a transceiver. Ask Singular to check your host and optical link

Buyer’s Guide

Buy it if

Your supported 10G host needs a duplex LC single-mode LR link.

Skip it if

You need multimode SR, single-fibre BiDi or a different wavelength.

Also consider

A matching module for the remote end and an LC single-mode patch lead.
