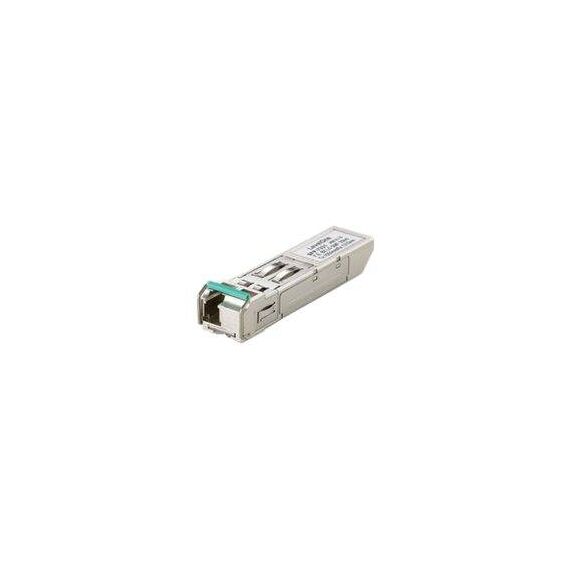

LevelOne SFP-7331 / SFP (mini-GBIC) transceiver module / FDDI, ATM, 100Mb LAN / 100Base-BX10-U / LC single-mode / up to 20 km / 1550 (TX) / 1310 (RX) nm | SFP-7331
Please sign in so that we can notify you about a reply
Special Features
- Lead-free
- AC/AC differential electrical interface
- Single LC connector
Product Specification
| Device Type | SFP (mini-GBIC) transceiver module |
| Form Factor | Plug-in module |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 100Base-BX10-U |
| Data Link Protocol | FDDI, ATM, 100Mb LAN |
| Data Transfer Rate | 155 Mbps |
| Optical Wave Length | 1550 (TX) / 1310 (RX) nm |
| Line Coding Format | NRZ |
| Max Transfer Distance | 20 km |
| Compliant Standards | IEEE 802.3ah |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 100Base-BX10-U - LC single-mode female |
| Miscellaneous | Miscellaneous |
| Compliant Standards | FCC, RoHS, Lead-Free, EN 60825-1, MSA, EMI, MSA SFF-8472 |
| Dimensions & Weight | Dimensions & Weight |
| Width | 1.37 cm |
| Depth | 5.65 cm |
| Height | 0.895 cm |
| Weight | 20 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
Features - LevelOne - SFP-7331
More Details
Product Code
04:156955
EAN Code
4015867154748
Manufacturer
LevelOne
