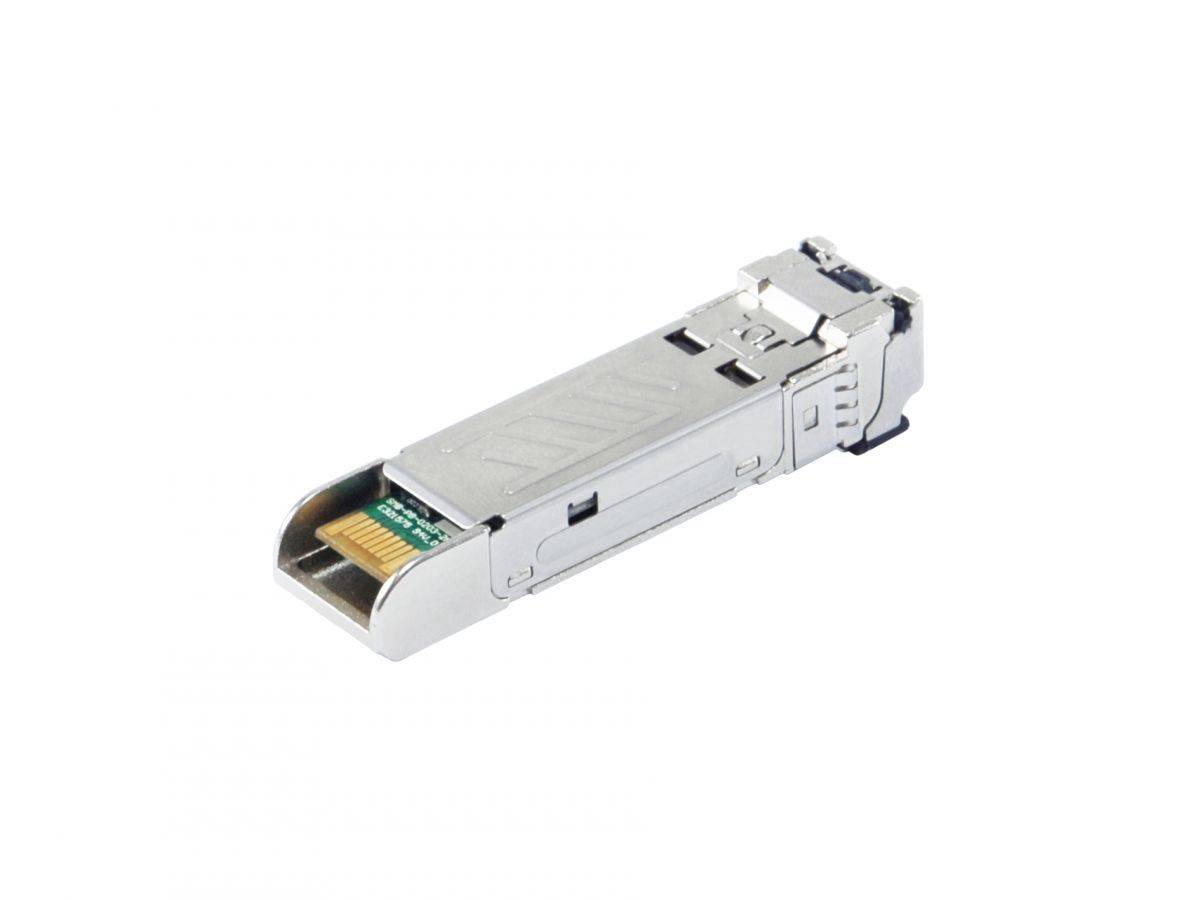

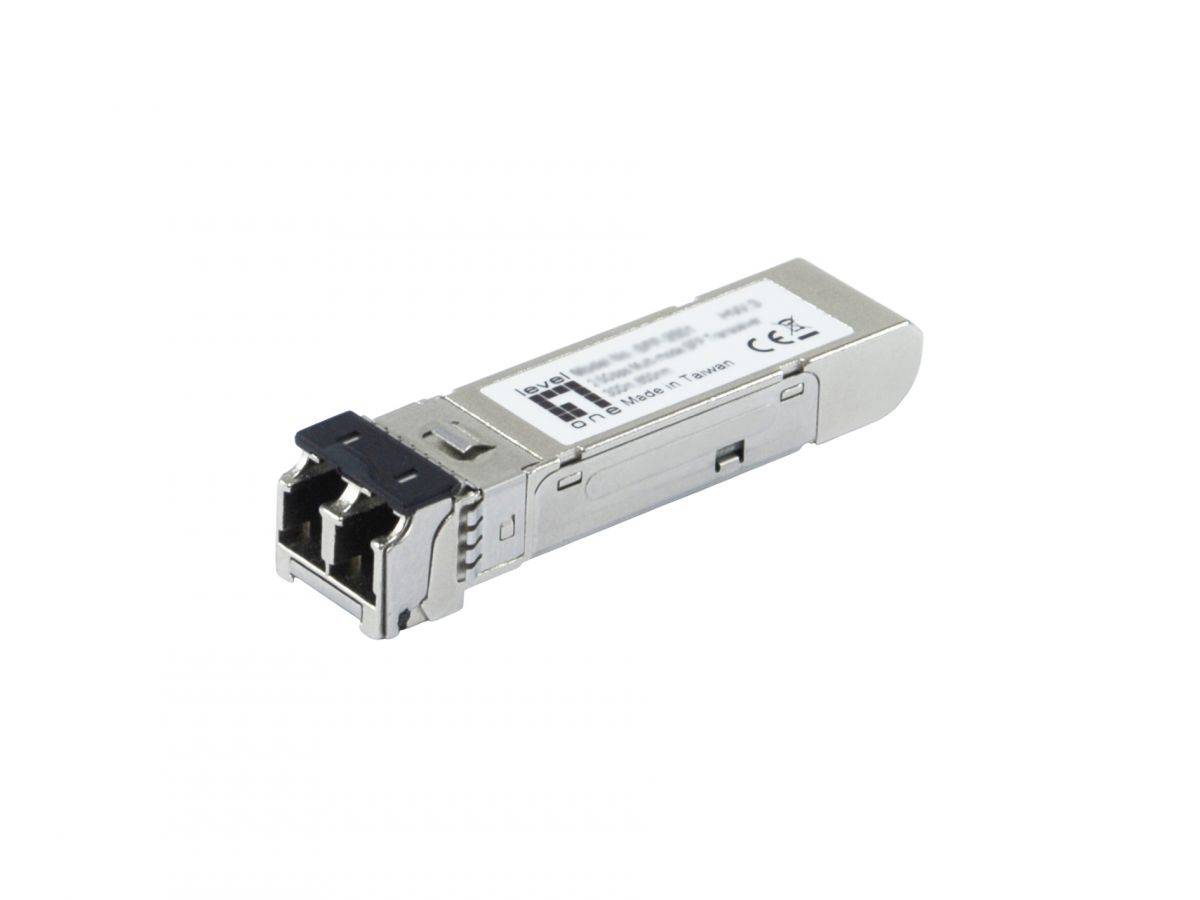

LevelOne SFP-2601 Industrial 2.5G SFP Transceiver 850 nm LC Multimode OM3 OM4 up to 300 m -40 to 85 C with DDM

Brand:
LevelOne
LevelOne SFP-2601 2.5Gbps Multi-mode Industrial SFP Transceiver, 300m,
LevelOne SFP-2601 Industrial 2.5G SFP Transceiver 850 nm LC Multimode OM3 OM4 up to 300 m -40 to 85 C with DDM
€45.78 inc. VAT
Buy
SFP-2601
€38.47
€45.78 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:520241
EAN Code
4015867240052
Manufacturer
LevelOne

Quick Specs

Speed
2.5 Gbps
Fibre & Reach
OM3/OM4 · up to 300 m
Connector
LC duplex · 850 nm
Temperature
−40 to 85 °C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne SFP-2601 — Industrial 2.5G Multimode SFP

2.5 GbpsIndustrialOM3/OM4 300 m−40 to 85 °C

The LevelOne SFP-2601 is an industrial 2.5 Gbit SFP transceiver for multimode fibre, reaching up to 300 m on OM3 or OM4 at 850 nm over a duplex LC connection, with digital diagnostics. It is rated for −40 to 85 °C, so it keeps 2.5G links running in unheated cabinets, on plant floors and in outdoor enclosures. In practice, multimode optics are the cheaper choice for links inside one building: most server rooms and floor risers already carry OM3 or OM4 fibre, and the module plus a short patch cord is all a port needs. Before you order, check the fibre grade printed on the cable jacket and the real length of the run, including patch panels.

Compatibility — check before buying:
It runs at 2.5 Gbps, so both the switch port and the far-end module must support 2.5G — many SFP ports are fixed at 1G or 1G/10G. LevelOne specifies OM3 or OM4 multimode for the 300 m reach; it will not work over single-mode fibre. The commercial multimode sibling is the SFP-2501. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ Industrial 2.5G access uplinks
✓ Factory automation networks
✓ Unheated cabinets and enclosures
✓ Transport and outdoor telecom sites
✓ OM3 / OM4 runs up to 300 m
✓ Industrial multi-gig switches

Key Features


Built for harsh sites
Industrial rating from −40 to 85 °C for switches in cabinets, on plant floors and outdoors.

Multimode fibre, short reach
Built for the short runs inside a building or data room over OM-grade multimode fibre. Reach depends on the fibre grade — check what is actually in your walls before you plan a link.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand LevelOne
Model SFP-2601 2.5Gbps Multi-Mode Industrial SFP Transceiver, 300 m, 850 nm
Part Number SFP-2601
EAN / GTIN 4015867240052
Pack Size Single unit
Interface
Form Factor Industrial SFP
Standard 2.5 Gigabit Ethernet, SFP MSA
Data Rate 2.5 Gbps
Connector LC duplex
Optics & Reach
Wavelength 850 nm
Fibre Multimode OM3 / OM4
Reach Up to 300 m
Tx Power −9 to −3 dBm
Rx Sensitivity −16 dBm
Environment & Power
Operating Temperature −40 to 85 °C (industrial)
Power Consumption 1 W
Dimensions / Weight 55.9 × 13.4 × 13 mm · 15.5 g
Hot-Swap Yes
Compatibility
Designed For SFP and SFP+ ports that support 2.5G optics
Link Partner Another 2.5G multimode 850 nm module
In the Box
Included 1 module, a quick installation guide and the declaration of conformity
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LevelOne does not publish a warranty term on the product page for this module. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

Will it work in a Gigabit-only SFP port?
No. It needs a port that supports 2.5G optics. Send us the switch model and we check it.
Which fibre do I need?
OM3 or OM4 multimode, up to 300 m. For single-mode fibre, LevelOne’s industrial SFP-2602 is the matching module.
Are fibre patch cords included?
No. You get 1 module, a quick installation guide and the declaration of conformity. The patch cord for the LC duplex connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
LevelOne builds the module to the SFP MSA and states it interoperates with compliant SFP/SFP+ ports that support 2.5G optics. Many switch SFP ports run only 1G or 10G, and switches that lock out third-party optics may refuse it — send us the model and we check it.
Singular Expert Insight
We suggest the SFP-2601 for industrial multi-gig switches linked over multimode fibre where temperatures are not controlled. Confirm 2.5G support on both ports first; if the switch sits in a normal room, the commercial SFP-2501 costs less. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 2.5G over OM3/OM4 multimode up to 300 m in a harsh location, on 2.5G-capable ports.

Skip it if

Your ports run only 1G or 10G, your fibre is single-mode, or the switch sits indoors in a controlled room.

Also consider

LevelOne SFP-2602 industrial single-mode.
