LevelOne SFP-2602 2.5 Gbps Industrial SFP Transceiver Single-Mode 1310 nm up to 2 km Duplex LC DDM -40 to 85 C

Brand:
LevelOne

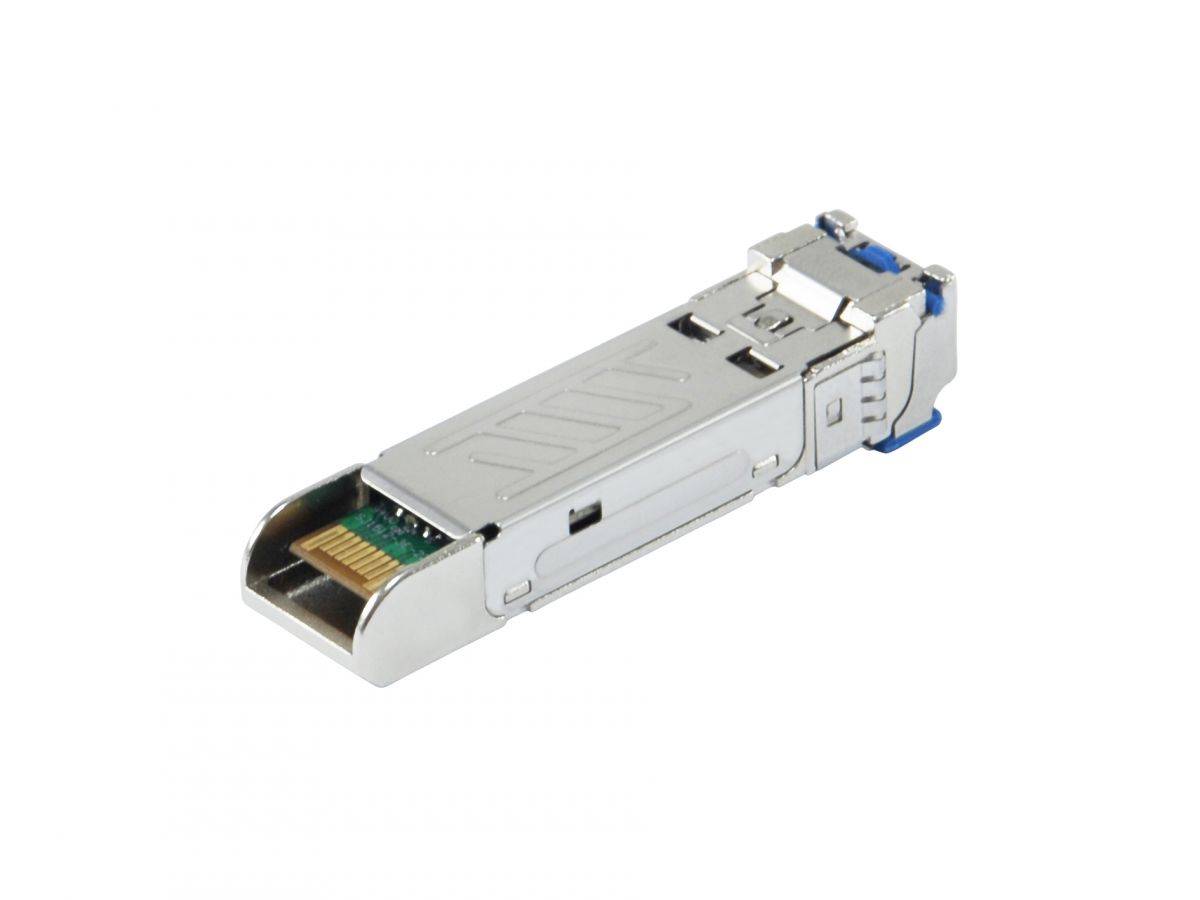

LevelOne SFP-2602 2.5Gbps Single-mode Industrial SFP Transceiver, 2km
LevelOne SFP-2602 2.5 Gbps Industrial SFP Transceiver Single-Mode 1310 nm up to 2 km Duplex LC DDM -40 to 85 C
€54.89 inc. VAT
Buy
SFP-2602
€46.13
€54.89 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:520242
EAN Code
4015867240069
Manufacturer
LevelOne

Quick Specs

Speed
2.5 Gbps · SFP
Fibre & Reach
Single-mode · up to 2 km
Temperature
−40 to +85 °C
Connector
Duplex LC · 1310 nm
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne SFP-2602 — 2.5G Single-Mode Industrial SFP, 2 km

2.5 Gbps2 km single-mode−40 to +85 °CDDM

The LevelOne SFP-2602 is a 2.5 Gbps industrial SFP transceiver for single-mode fibre, reaching up to 2 km at 1310 nm over a duplex LC connection, with digital diagnostics. LevelOne positions it as a short-reach single-mode 2.5G optic for industrial environments. It is built to the SFP MSA, so it is not tied to one switch brand. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.

Compatibility — check before buying:
It needs a switch port that supports 2.5G optics. LevelOne does not publish a 1 Gbps mode, so do not plan it for a 1G-only SFP port or expect it to link to a 1G module. It reaches only 2 km; for longer industrial links the SFP-2603 reaches 20 km. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ Short industrial fibre links
✓ Links inside a plant or site
✓ Outdoor and unheated cabinets
✓ 2.5G single-mode up to 2 km
✓ Industrial switches with 2.5G SFP ports
✓ Replacing a failed short-reach module

Key Features


Built for harsh sites
Rated −40 to +85 °C for industrial switches in cabinets and plant rooms, over single-mode runs up to 2 km.

Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand LevelOne
Model 2.5Gbps Single-Mode Industrial SFP Transceiver, 2km, 1310nm
Part Number SFP-2602
EAN / GTIN 4015867240069
Pack Size Single unit
Interface
Form Factor SFP
Standard 2.5 Gbps optical (2.5 Gigabit Ethernet)
Data Rate 2.5 Gbps
Connector Duplex LC
Optics & Reach
Wavelength 1310 nm
Fibre Single-mode 9/125 µm
Reach Up to 2 km
Tx Power −9 to −3 dBm
Rx Sensitivity −18 dBm
Environment & Power
Operating Temperature −40 to +85 °C (industrial)
Power Consumption 1000 mW
Dimensions / Weight 55.9 × 13.4 × 13 mm · 15.5 g
1 Gbps Mode Not published by LevelOne
Compatibility
Designed For SFP ports that accept MSA-compliant modules of the same speed
Link Partner Another 2.5G single-mode 1310 nm module with enough reach for the link
In the Box
Included the SFP-2602 module, a Quick Installation Guide and a Declaration of Conformity
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LevelOne does not publish a warranty term on the product page for this module. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

Will it work in a 1G SFP port?
LevelOne publishes it as a 2.5 Gbps module and lists no 1 Gbps mode. Both ends of the link and the switch ports must support 2.5G optics. Send us the switch model and we check it.
Is 2 km enough for my link?
Measure the full run, including patch panels. Up to 2 km, the SFP-2602 is the right module; beyond that, the SFP-2603 reaches 20 km with the same industrial rating.
Are fibre patch cords included?
No. You get the SFP-2602 module, a Quick Installation Guide and a Declaration of Conformity. The patch cord for the Duplex LC connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
LevelOne builds its modules to the SFP MSA and does not code them for one switch brand. Switches that lock out third-party optics may refuse them — send us the model and we check it.
Singular Expert Insight
The SFP-2602 suits short single-mode links on an industrial site. Check the run length first: if it is over 2 km, choose the SFP-2603. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need 2.5G over single-mode fibre up to 2 km in an industrial location.

Skip it if

Your port is 1G-only, or the run is longer than 2 km.

Also consider

LevelOne SFP-2603 for industrial runs up to 20 km.
