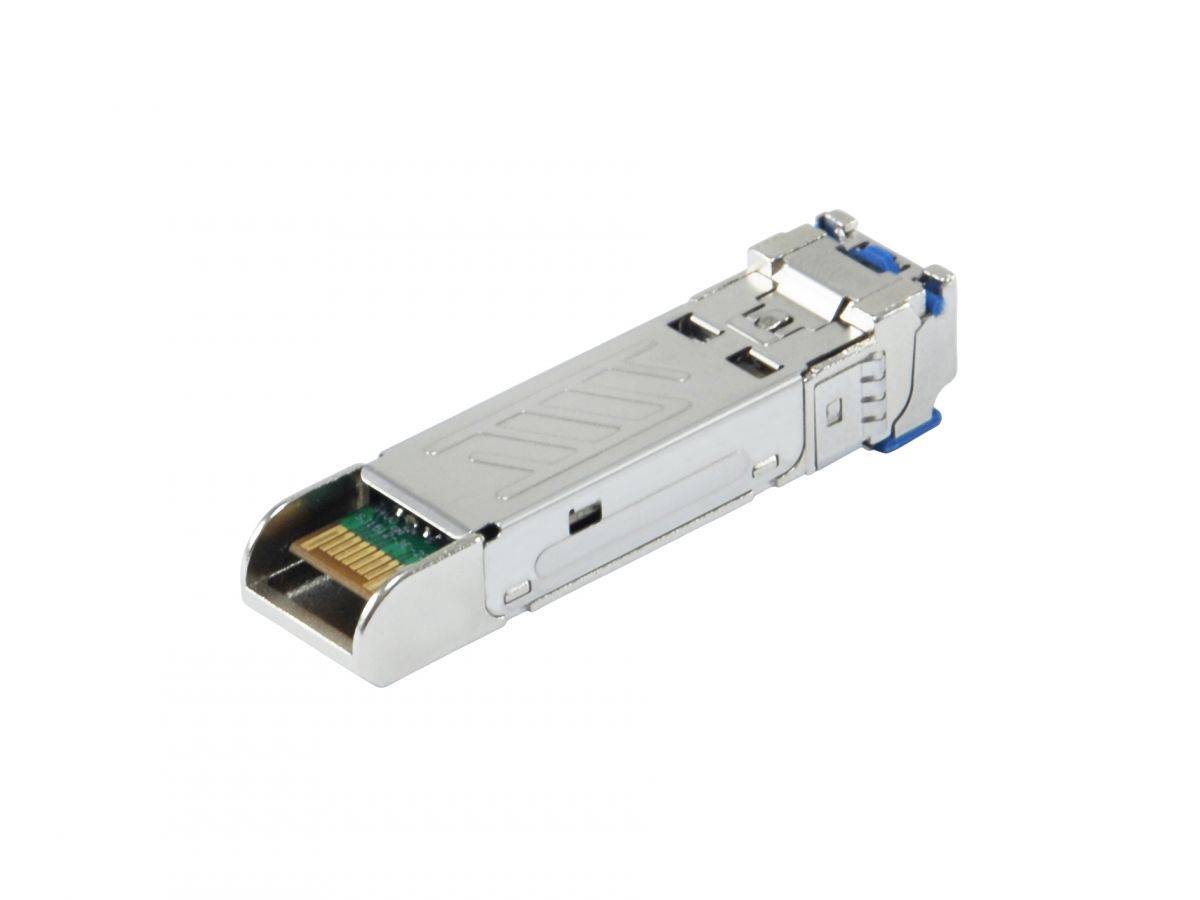

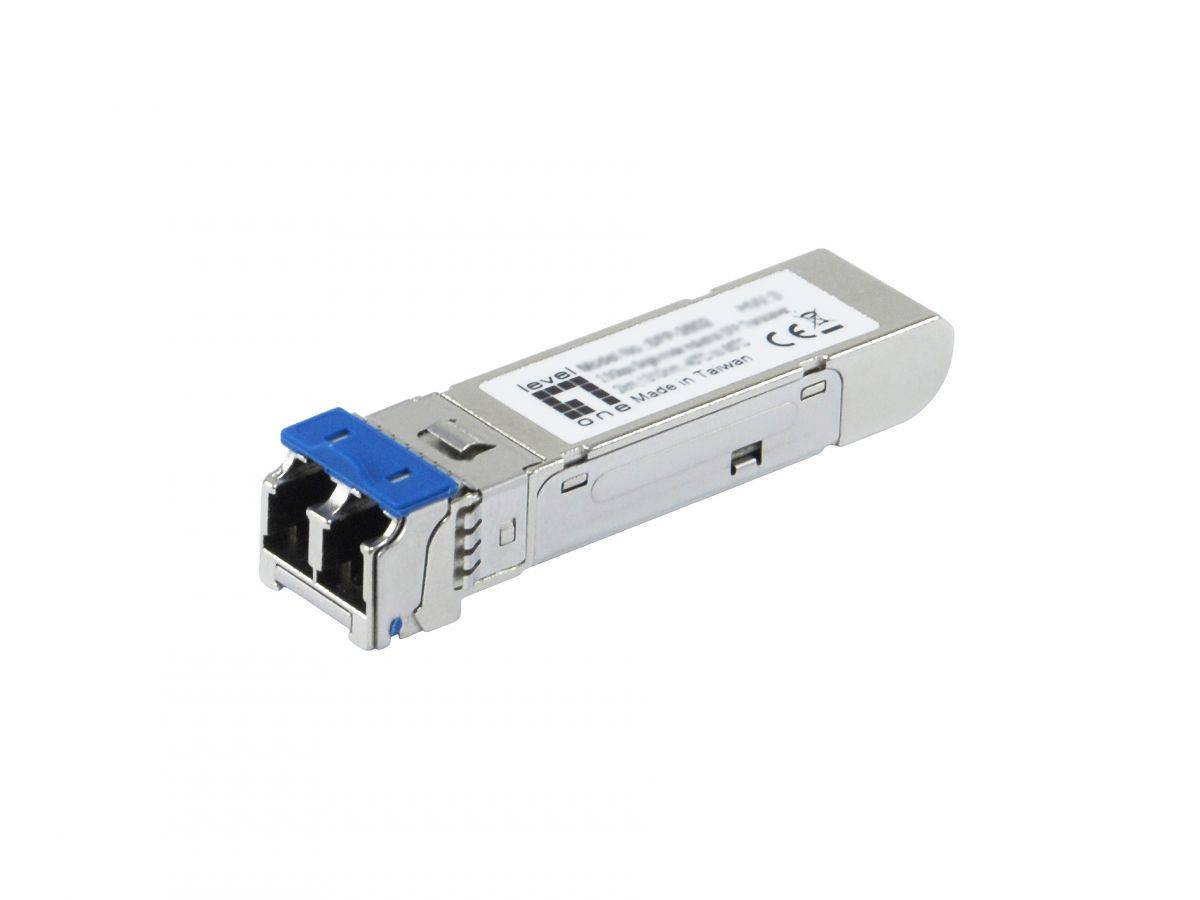

LevelOne SFP-2505 SFP Transceiver 2.5 Gbps 1550 nm Duplex LC Single-Mode up to 40 km DDM Commercial Temperature

Brand:
LevelOne
LevelOne SFP-2505 2.5Gbps Single-mode SFP Transceiver, 40km, 1550nm
LevelOne SFP-2505 SFP Transceiver 2.5 Gbps 1550 nm Duplex LC Single-Mode up to 40 km DDM Commercial Temperature
€91.3 inc. VAT
Buy
SFP-2505
€76.72
€91.30 inc. VAT
Ships from EU stock: 10 item(s)
+ −
Add to wish list Ask a question
Product Code
04:520235
EAN Code
4015867240038
Manufacturer
LevelOne

Quick Specs

Speed
2.5 Gbps
Fibre & Reach
Single-mode · up to 40 km
Wavelength
1550 nm · duplex LC
Temperature
0 to 70 °C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne SFP-2505 — 2.5G Single-Mode SFP, 1550 nm, 40 km

2.5 Gbps1550 nmUp to 40 kmDDM

The LevelOne SFP-2505 is a 2.5 Gbps SFP transceiver for single-mode fibre, reaching up to 40 km at 1550 nm over a duplex LC connection, with digital diagnostics. LevelOne notes that the 1550 nm wavelength can share fibre infrastructure with CWDM/DWDM systems, which suits metro links, telco aggregation and long campus runs. It is rated for normal indoor temperatures, 0 to 70 °C. In practice, single-mode optics are the choice when a link leaves the building or runs several hundred metres: the OS2 fibre used by carriers and campus backbones carries the signal for kilometres with little loss. Before you order, confirm the fibre is single-mode at both ends and note the length and the number of patch panels on the way.

Compatibility — check before buying:
It is a 2.5 Gbps optic: both ends must run 2.5G, so it will not link to a 1G (1000BASE) module, and the switch port must support 2.5G SFP optics — many SFP ports run 1G only and many SFP+ ports run 1G or 10G only. It needs single-mode fibre. For cabinets outdoors or in unheated plant rooms, the industrial SFP-2605 has the same optics rated −40 to 85 °C. Keep the dust cap on until you connect the fibre, and clean both connector ends before every mating — dirt is the most common cause of a link that will not come up. Not sure? Send us your device model and the cable run and we check it before you order.

Best For

✓ 2.5G links up to 40 km
✓ Metro and telco aggregation
✓ Fibre shared with WDM systems
✓ Campus distribution
✓ 2.5G-capable SFP ports
✓ Indoor equipment rooms

Key Features


2.5G over 40 km
Carries 2.5 Gigabit Ethernet up to 40 km on single-mode fibre, beyond the reach of 10 km modules.

Single-mode fibre, long reach
Built for single-mode (OS1/OS2) fibre, the type used between buildings, floors and sites. It will not run over the orange or aqua multimode fibre found in many racks — the fibre type has to match at both ends.

Monitoring you can read
Digital diagnostics (DDM) let the host report temperature, laser power and received light, so a dirty connector or a failing link shows up before users call.

Hot-swappable
Modules plug into a live port without shutting the switch down, so a link can be added or replaced during working hours. Seat it until it clicks and use the latch to remove it.

Technical Specifications

Identification
Brand LevelOne (Digital Data Communications)
Model SFP-2505 2.5Gbps Single-Mode SFP Transceiver, 40km, 1550nm
Part Number SFP-2505
EAN / GTIN 4015867240038
Pack Size Single unit
Interface
Form Factor SFP
Standard 2.5 Gigabit Ethernet, SFP MSA
Data Rate 2.5 Gbps
Connector LC duplex
Optics & Reach
Wavelength 1550 nm
Fibre Single-mode 9/125 µm
Reach Up to 40 km
Tx Power −2 to +3 dBm
Rx Sensitivity −28 dBm
Environment & Power
Operating Temperature 0 to 70 °C (commercial)
Power Consumption 1 W
Diagnostics (DDM) Yes
Dimensions / Weight 55.9 × 13.4 × 13 mm · 15.5 g
Compatibility
Designed For switches, media converters and routers with a matching SFP port that accept standard MSA optics
Link Partner Another 2.5G single-mode module of the same wavelength plan at the far end
In the Box
Included the SFP-2505 module, a Quick Installation Guide and a Declaration of Conformity
Not Included Fibre patch cords and cleaning tools
Warranty
Warranty 1-Year Warranty (Singular)
Manufacturer Term LevelOne does not publish a warranty term for this module on its product page or datasheet. Singular’s direct warranty is 1 year; beyond that we assist you with the manufacturer’s warranty process.

Frequently Asked Questions

Will it link to a 1G SFP module?
No. It is a 2.5 Gbps optic, and both ends must run the same speed. For Gigabit links over long single-mode runs, LevelOne’s SFP-3611 is the 1.25G option.
What is the difference to SFP-2605?
Same speed, wavelength and reach. The SFP-2605 is the industrial version, rated −40 to 85 °C; the SFP-2505 is rated 0 to 70 °C.
Are fibre patch cords included?
No. You get the SFP-2505 module, a Quick Installation Guide and a Declaration of Conformity. The patch cord for the LC duplex connector, a matching module for the far end of the link and a fibre cleaning tool are bought separately. Tell us the distance and the fibre type and we quote the right cord.
Will it work in a switch from another brand?
LevelOne builds the module to the SFP MSA standard and states it interoperates with any compliant port that supports the same speed. Switches that lock out third-party optics may refuse it — send us the model and we check it.
Singular Expert Insight
We suggest the SFP-2505 for 2.5G links between sites where the equipment sits in a normal indoor room. Check first that both switch ports accept 2.5G optics, and order the far-end module with it. For outdoor cabinets, choose the SFP-2605. Every order is backed by Singular’s local support in Cyprus — if a link will not come up, send us the port status and we help you find out whether it is the module, the cable or the configuration. Browse all transceivers and DAC cables or the switches they plug into.

Buyer’s Guide

Buy it if

You need a 2.5G single-mode link up to 40 km between ports that support 2.5G SFP optics, indoors.

Skip it if

Your ports run only 1G or 10G, the equipment sits in an unheated cabinet, or the fibre is multimode.

Also consider

LevelOne SFP-2605 (industrial) or SFP-2604 (1310 nm).
