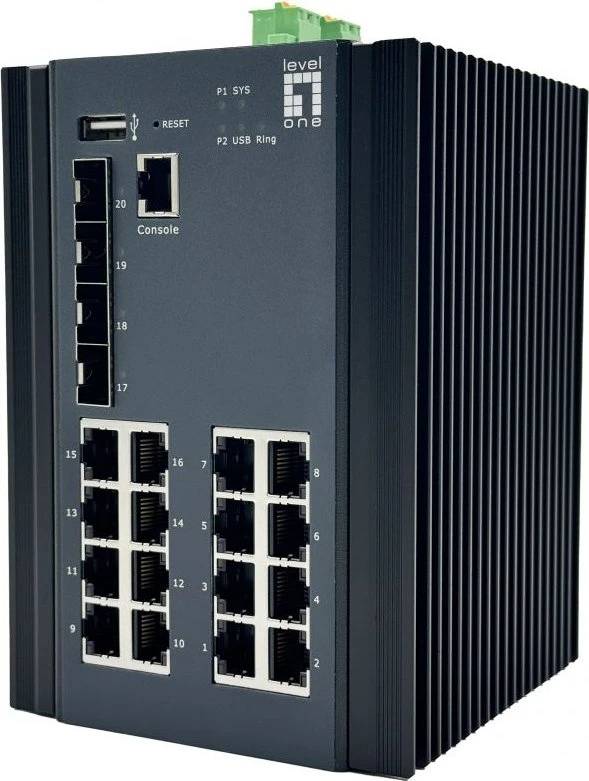

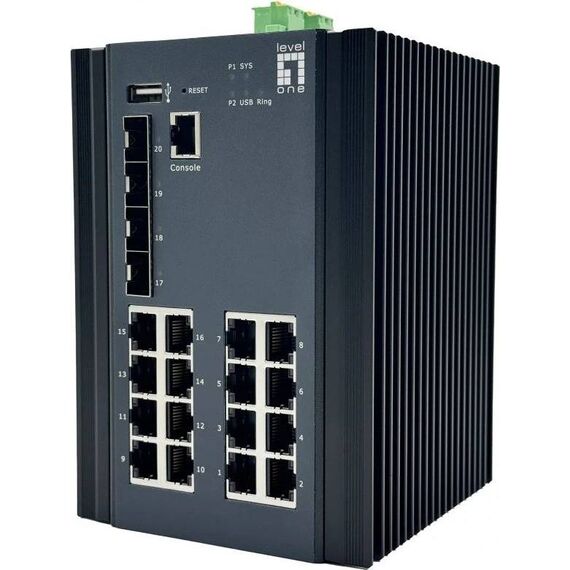

LevelOne IGU-2071 20-Port L2+ Managed Industrial Gigabit Switch 4-Port 2.5G SFP

Brand:
LevelOne
LevelOne IGU-2071 20-Port L2+ Managed Industrial Gigabit Switch 4-Port 2.5G SFP
LevelOne IGU-2071 20-Port L2+ Managed Industrial Gigabit Switch 4-Port 2.5G SFP
€1026.2 inc. VAT
Buy
IGU-2071
€862.35 €958.17
€1,026.20 inc. VAT
Ships from EU stock: 50 item(s)
+ −
Add to wish list Ask a question
Product Code
04:492314
EAN Code
4015867238592
Manufacturer
LevelOne

Quick Specs

Copper Ports
16 x 10/100/1000BASE-T RJ45
Fibre Uplinks
4 x 1000/2500BASE-X SFP
Switching Capacity
52Gbps
Industrial Rating
IP40, -40°C to 80°C
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

LevelOne IGU-2071 Industrial L2+ Managed Switch — Resilient High-Density Networking

16 Gigabit RJ45 Ports4 x 2.5G SFP SlotsERPS Ring RedundancyIP40 Industrial Design

The LevelOne IGU-2071 is a 20-port L2+ managed industrial Ethernet switch designed for automation, transport, surveillance and other demanding network installations. It combines 16 Gigabit RJ45 ports with four 1G/2.5G SFP uplinks, advanced management and IPv4/IPv6 static routing in a fanless IP40 DIN-rail enclosure built to operate across a wide temperature range.

Compatibility & What's in the Box

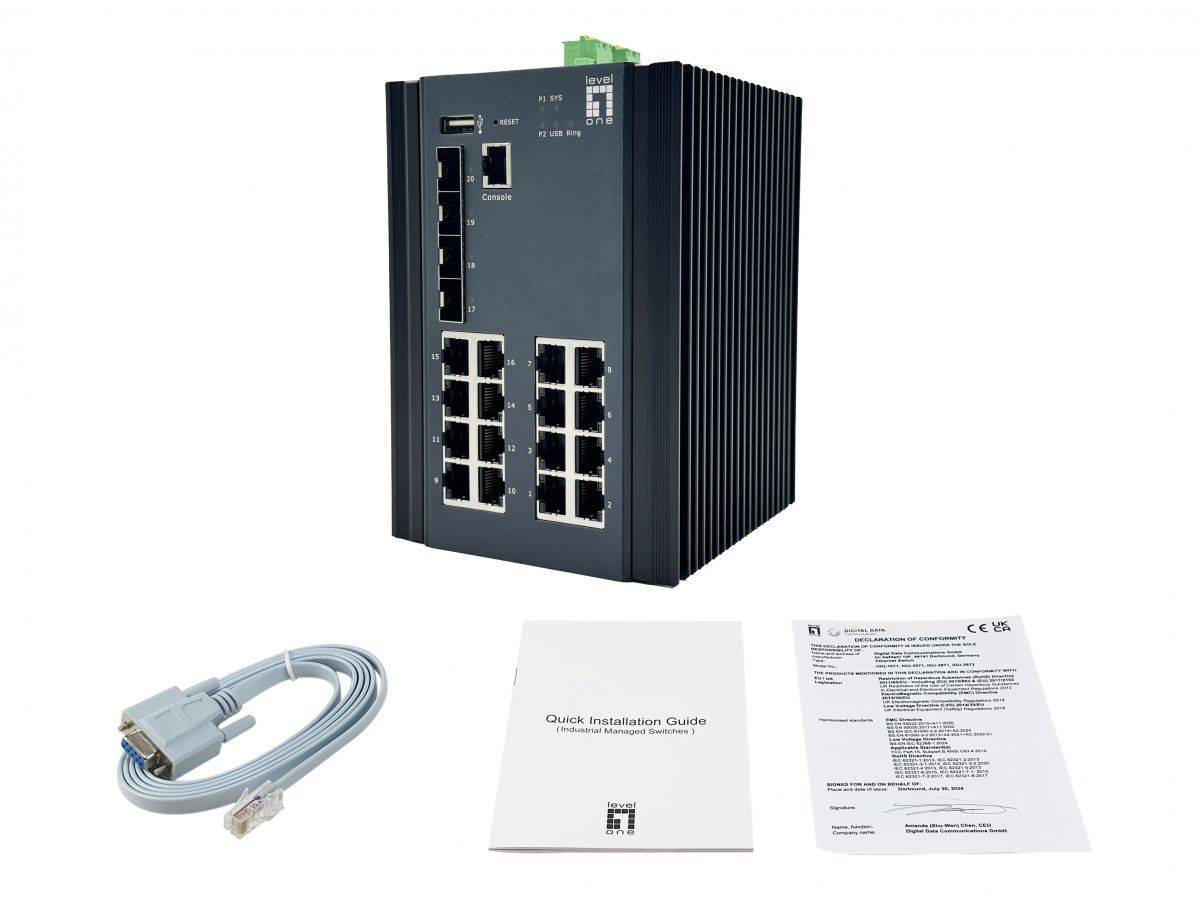

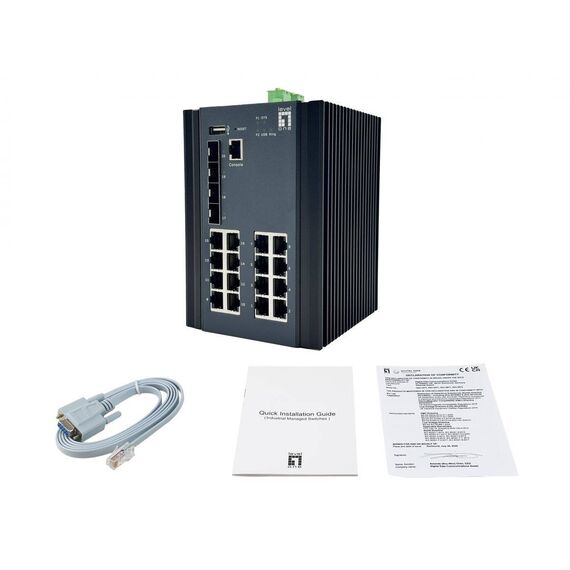

The four SFP slots require compatible 1000BASE-X or 2500BASE-X transceivers selected for the required fibre type and distance. The package includes the IGU-2071, console cable, power terminal block, DIN-rail mount kit, quick installation guide and declaration of conformity. The redundant 12–75V DC power supply is not included.

Best For

✓Industrial automation and factory control networks
✓Transport and roadside communication cabinets
✓IP surveillance and security infrastructure
✓Redundant Ethernet rings requiring rapid recovery
✓High-density DIN-rail network installations
✓Managed IPv4 and IPv6 network segments

Key Features


High-Density Copper and Fibre Connectivity
Sixteen Gigabit RJ45 ports connect industrial devices and controllers, while four SFP slots support 1Gbps and 2.5Gbps fibre uplinks for aggregation and longer-distance links.

Managed Resilience and Routing
G.8032 ERPS provides sub-20ms ring recovery, while VLAN, STP/RSTP/MSTP, LACP, QoS, IGMP snooping and IPv4/IPv6 static routing support controlled and resilient network designs.

Rugged Fanless Industrial Construction

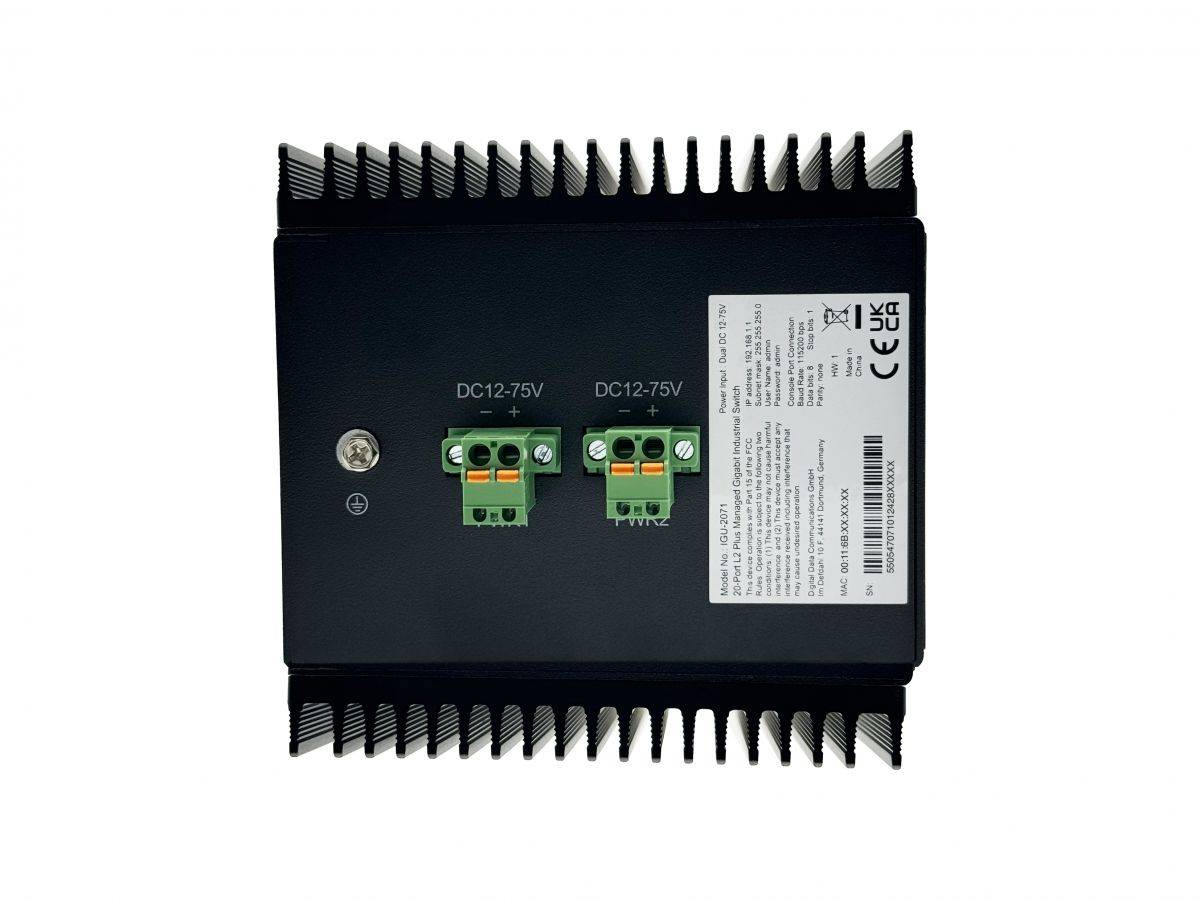

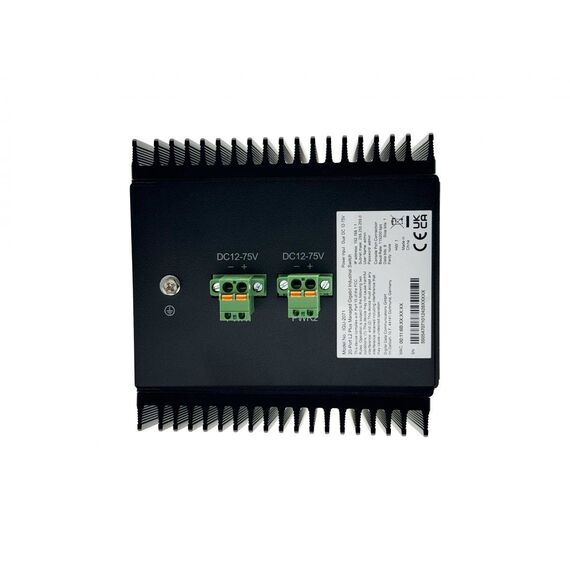

The IP40 DIN-rail enclosure operates from -40°C to 80°C and supports redundant 12–75V DC inputs, 6kV surge protection and enhanced ESD protection for harsh environments.

Technical Specifications

Identification
Part Number IGU-2071
EAN / GTIN 4015867238592
MPN IGU-2071
Brand LevelOne
Ports and Interfaces
Copper Ports 16 x 10/100/1000BASE-T RJ45
SFP Slots 4 x 1000/2500BASE-X SFP
Console Interface Console cable included
PoE Support No
Switching Performance
Switching Capacity 52Gbps
Packet Forwarding Rate 77.3Mpps
MAC Address Table 16K entries
Packet Buffer 12Mbit
Jumbo Frames Up to 10KB
Network Features
Switching Layer Managed Layer 2+
Routing IPv4 and IPv6 static routing
Redundant Ring ITU-T G.8032 ERPS with recovery below 20ms
Spanning Tree STP, RSTP and MSTP
VLAN IEEE 802.1Q VLAN
Link Aggregation IEEE 802.3ad LACP
Traffic Management QoS and IGMP snooping
DHCP DHCP server
Management and Security
Management Interfaces Web, SNMP v1/v2c/v3, CLI, Telnet and SSH
Monitoring RMON, Syslog, NTP, temperature monitoring, Ping and TRACERT
Fibre Diagnostics Optical transceiver DDM
Authentication 802.1X port authentication, MAC authentication and RADIUS
Security Features ACL, port isolation, port security, IP Source Guard and ARP filtering
Firmware and Configuration TFTP, web upgrade and USB one-key functionality
Power and Physical
Power Input Dual redundant 12–75V DC
Power Supply Included No
Power Consumption 22W at full load
Enclosure Fanless IP40 industrial case

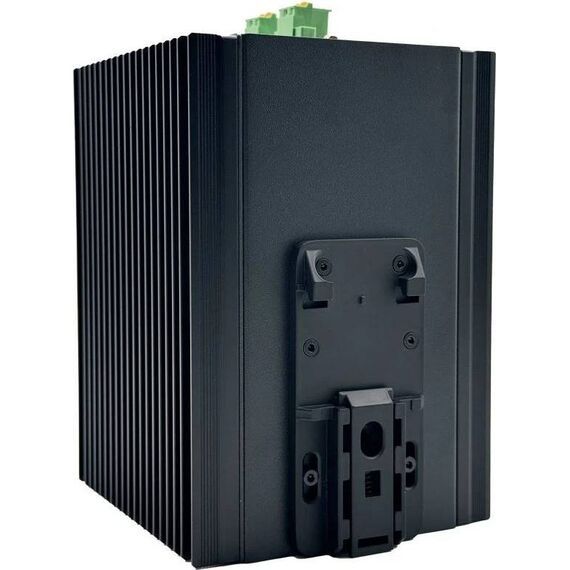

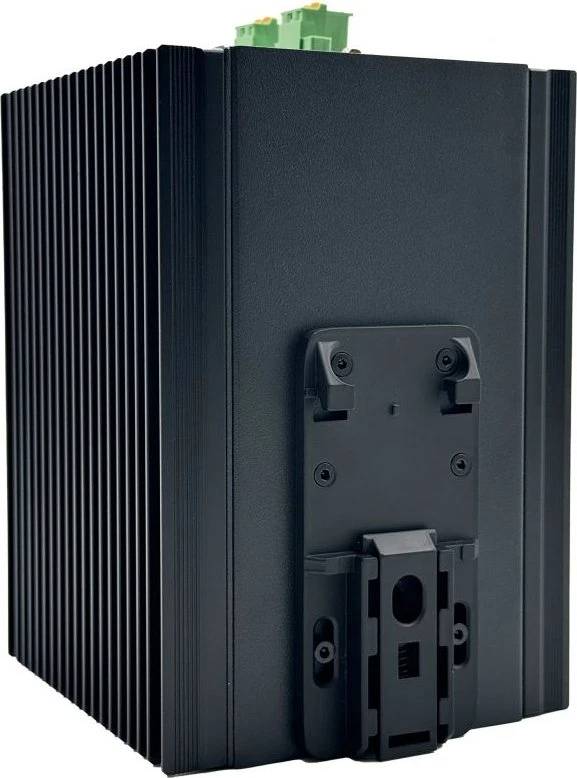

Mounting DIN-rail
Dimensions 110 x 115 x 158 mm
Weight 2.08kg
Operating Temperature -40°C to 80°C
Operating Humidity 10% to 90% RH
Protection 6kV surge protection, 15kV air and 8kV contact ESD protection
Compliance
Approvals CE, UKCA, FCC Class B and RoHS

Frequently Asked Questions

Does the LevelOne IGU-2071 provide PoE?
No. Its 16 RJ45 ports provide Ethernet data connectivity without Power over Ethernet.
Which speeds do the SFP slots support?
The four SFP slots support compatible 1Gbps and 2.5Gbps fibre transceivers.
Is a power supply included with the IGU-2071?
No. A suitable 12–75V DC power source must be supplied separately; the switch supports dual redundant power inputs.
Singular Expert Insight
Choose the IGU-2071 when a control cabinet needs many Gigabit copper connections, four 2.5G-capable fibre uplinks and fast ERPS recovery in a rugged managed platform. Select an industrial PoE model instead when connected cameras, access points or other endpoints must receive power through Ethernet.

Buyer's Guide

Buy it if

  • You need 16 Gigabit RJ45 ports in an industrial enclosure
  • You require four 1G/2.5G SFP fibre uplinks
  • You need L2+ management and fast ERPS ring recovery

Skip it if

  • Your connected devices require PoE or PoE+ power
  • You need 10G SFP+ uplinks
  • A basic unmanaged desktop switch is sufficient

Also consider

  • A LevelOne industrial PoE switch for powered endpoints
  • A managed model with 10G SFP+ for higher uplink capacity
  • A smaller DIN-rail switch when fewer ports are required
