LevelOne IGS-2106P Hilbert 6-Port Industrial Gigabit PoE Smart Lite Switch

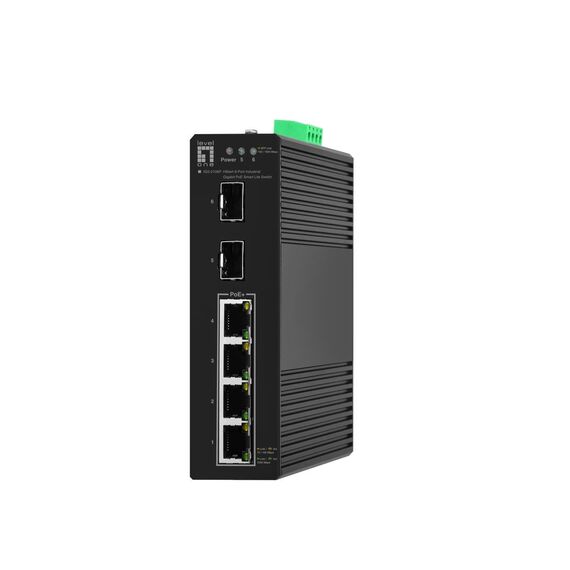

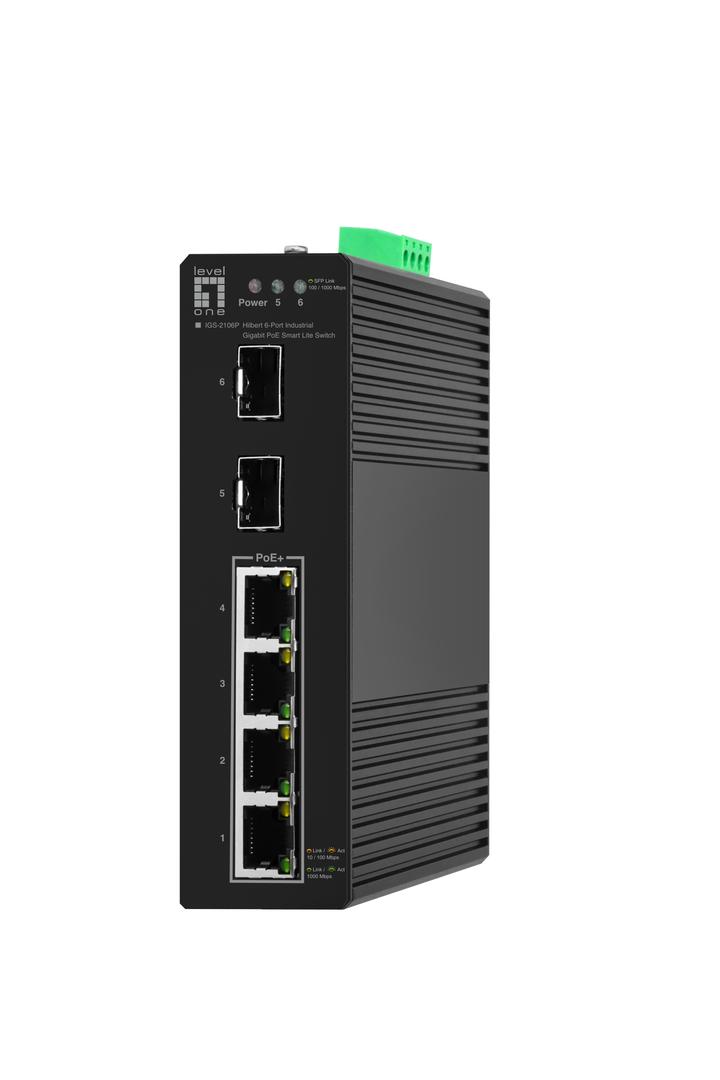

The LevelOne IGS-2106P is a managed Layer 2 industrial Gigabit switch for network builds that need PoE, fibre uplinks and DIN-rail mounting. It combines 4 Gigabit RJ45 PoE+ ports with 2 SFP slots, plus monitoring LEDs, surge protection and a fanless IP30 design.
Technical Specifications
| Specification | Detail |
|---|---|
| Product Type | Switch |
| Switch Type | Managed |
| Switch Layer | L2 |
| RJ-45 Ethernet Ports | 4 x Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet Copper Ports | 4 |
| SFP Module Slots | 2 |
| Fiber Uplink Ports | 2 |
| PoE+ Ports | 4 |
| PoE Support | Yes |
| Total PoE Budget | 68 W |
| Switching Capacity | 12 Gbit/s |
| Forwarding Rate | 8.928 Mpps |
| MAC Address Table | 2000 entries |
| Jumbo Frames | 9000 |
| VLAN Support | Yes |
| VLAN Features | Port-based VLAN, Tagged VLAN |
| Number of VLANs | 32 |
| Link Aggregation | Yes |
| Port Mirroring | Yes |
| IGMP Snooping | Yes |
| Broadcast Storm Control | Yes |
| Rate Limiting | Yes |
| Spanning Tree Protocol | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Flow Control | Yes |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Multicast Support | Yes |
| Queue Scheduling | Priority queuing (PQ) |
| Power Source | DC/PoE |
| DC Input Voltage | 44 - 57 V |
| Power Supply Included | No |
| Redundant Power Supply Support | Yes |
| Surge Protection | Yes |
| Surge Protection Voltage | 4 kV |
| Power Consumption | 68 W |
| Product Colour | Black |
| LED Indicators | Activity, Link, Power |
| IP Rating | IP30 |

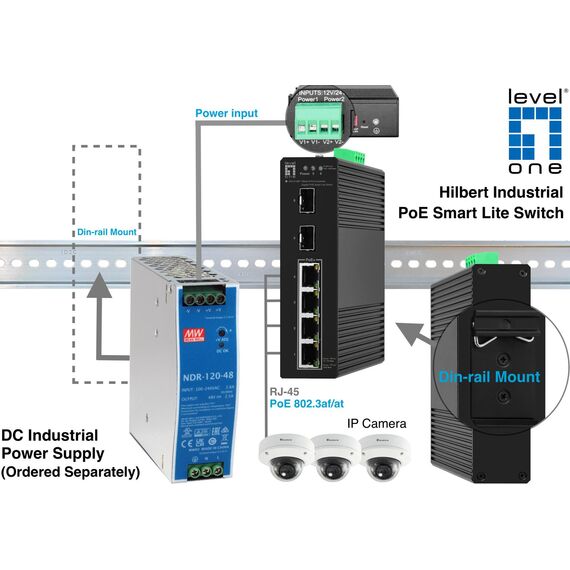

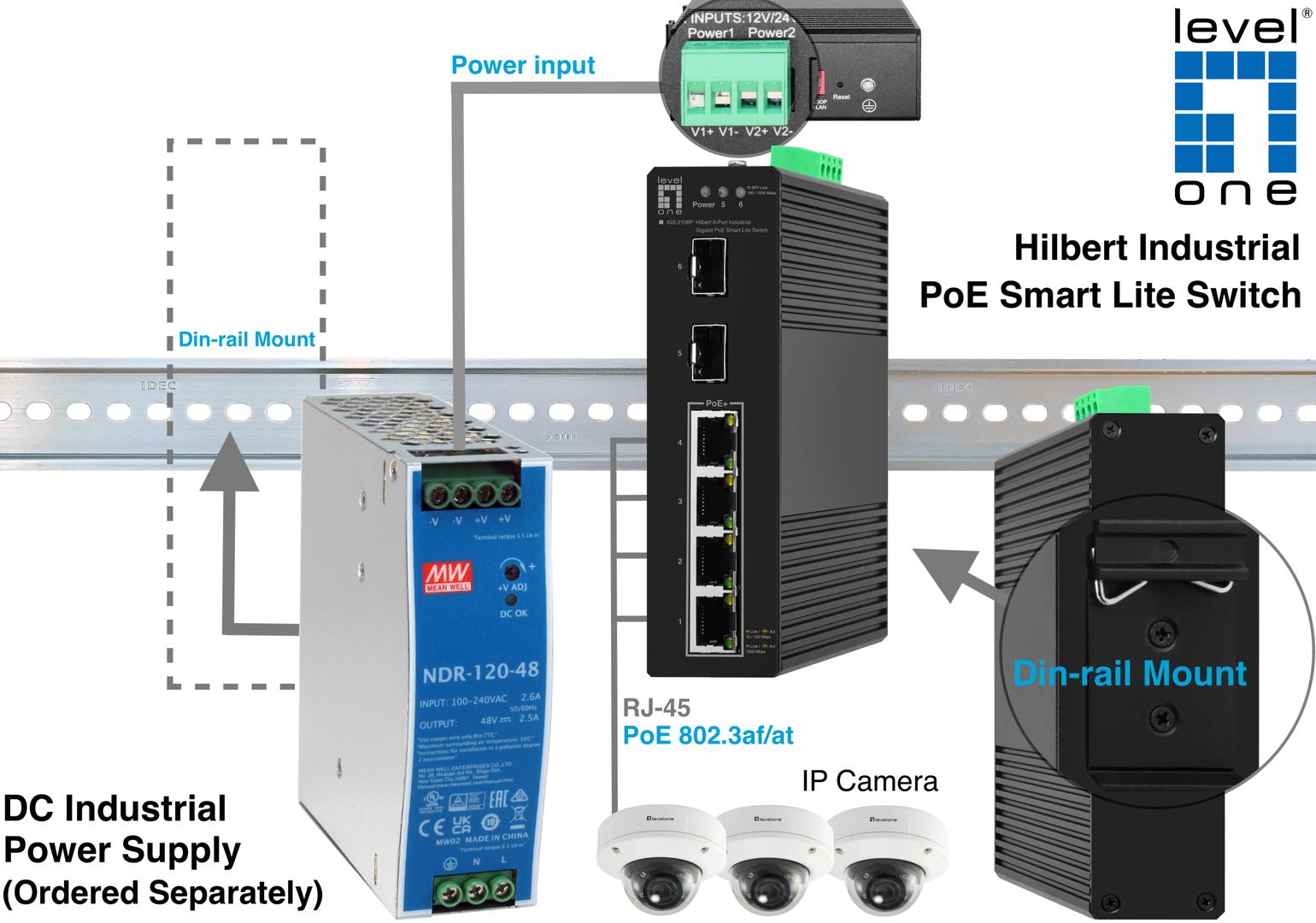

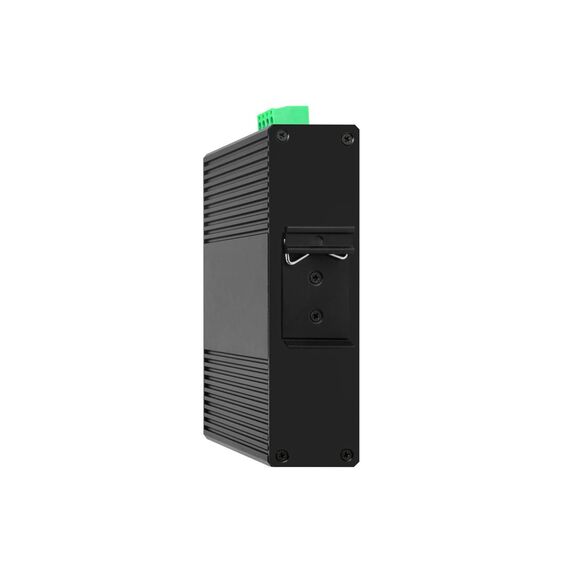

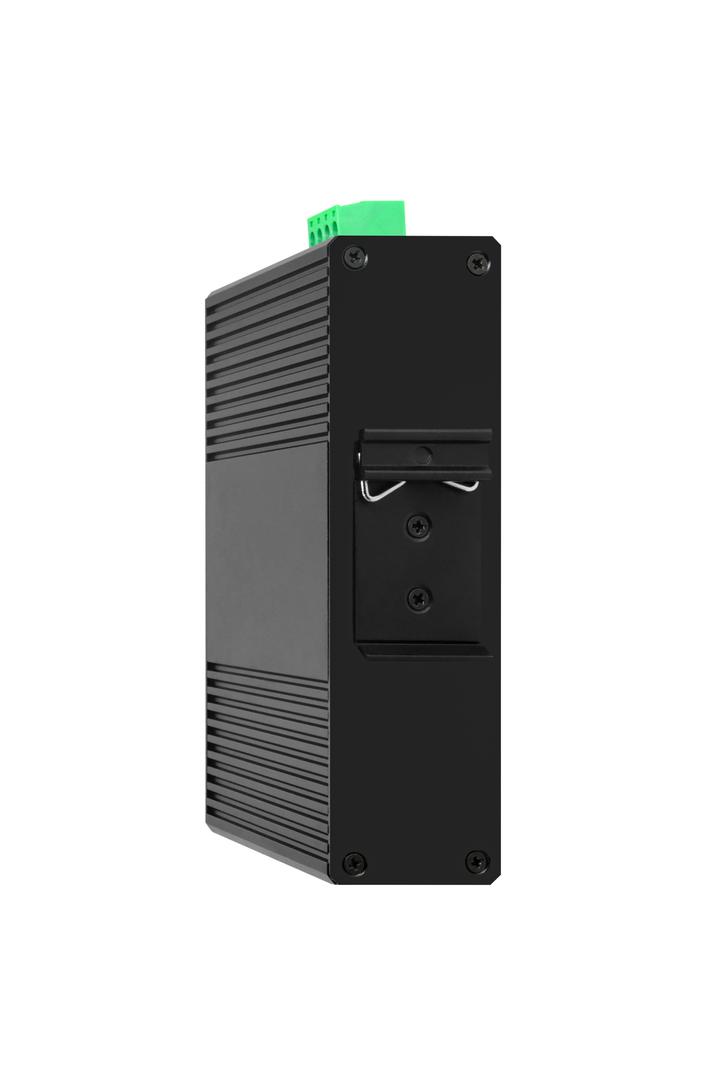

| DIN Rail Mounting | Yes |
| Fanless | Yes |
| Redundant Fans Support | Yes |
| Flash Memory | 2 MB |
| Package Contents | Quick start guide | Terminal block included | DIN rail included |
| Width | 136 mm |
| Depth | 108 mm |
| Height | 38.5 mm |
| Weight | 450 g |
| Operating Temperature | -40 - 75 °C |
| Operating Relative Humidity | 10 - 90 % |
| Compliance Certificates | CE, FCC, RoHS, UKCA |
| SKU / EAN | IGS-2106P | 4015867236178 |
SINGULAR RECOMMENDS
For who
For installers and small business networks that need a managed industrial Gigabit switch with PoE+ access ports and fibre uplinks.
Real reason to buy it
It offers 4 PoE+ ports, 2 SFP uplinks and a 68W PoE budget in a fanless DIN-rail industrial design.
Know before
This model is supplied without a power supply. It uses DC/PoE input and is rated IP30, so it is for controlled industrial or enclosure-based installation.
