LevelOne XEL-1291 12-Port L3 Managed 10G Switch 8x 10GbE RJ45 4x SFP+ 19-inch Rackmount

Brand:
LevelOne
LevelOne XEL-1291 12-Port L3 10G Switch 8x RJ45 4x SFP+
LevelOne XEL-1291 12-Port L3 Managed 10G Switch 8x 10GbE RJ45 4x SFP+ 19-inch Rackmount
€1034.75 inc. VAT
Buy
XEL-1291
€869.54 €966.16
€1,034.75 inc. VAT
Ships from EU stock: 49 item(s)
+ −
Add to wish list Ask a question
Product Code
04:569821
EAN Code
4015867242988
Manufacturer
LevelOne
Quick Specs
Ports
8× RJ-45 + 4× SFP+
Speed
100M–10G Multi-Gig
PoE budget
No PoE
Management
L3 managed · OSPF/BGP
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

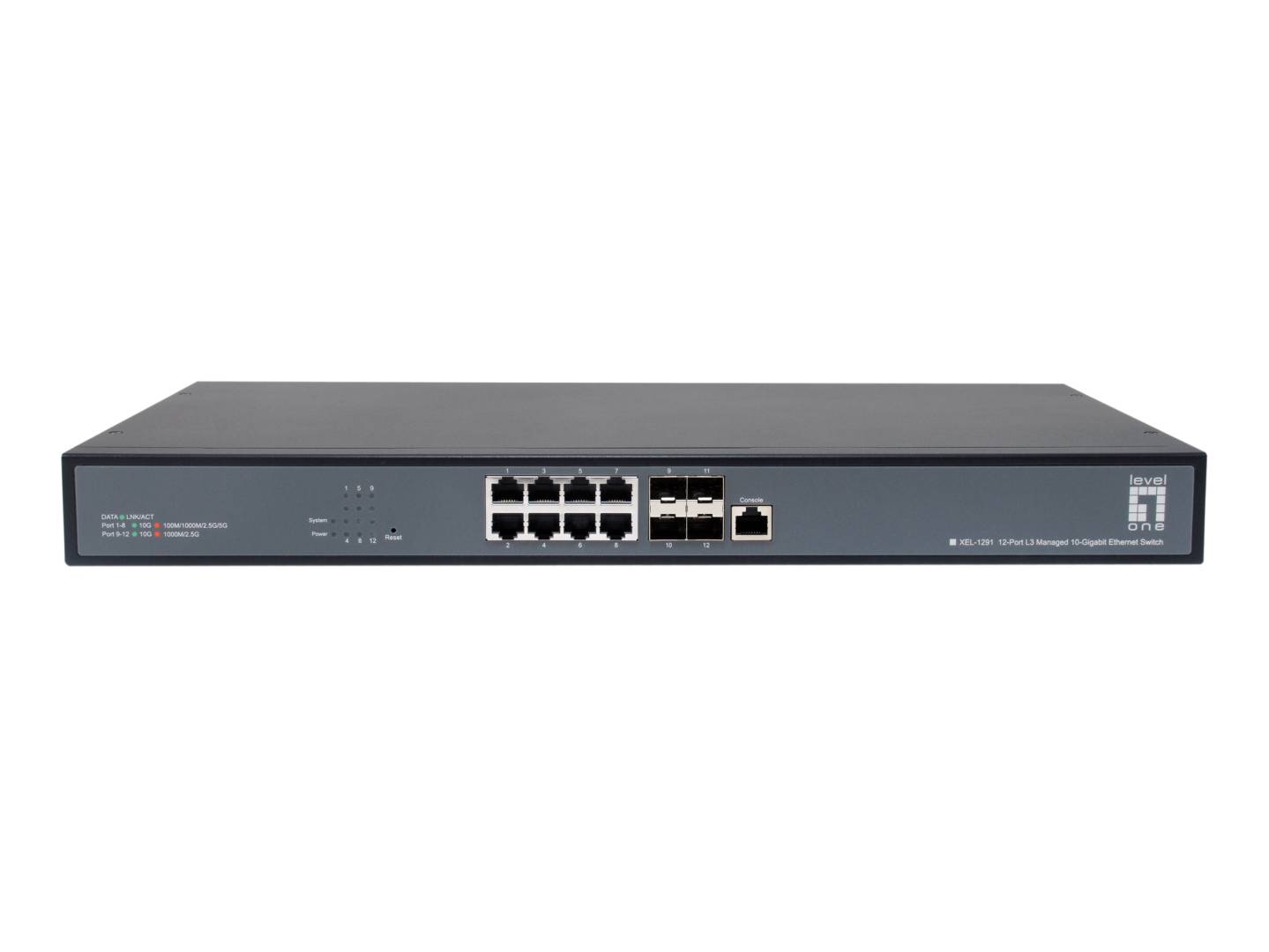

LevelOne XEL-1291 — 12-Port L3 Managed Multi-Gig 10G Switch

8× 10GbE RJ-454× 10G SFP+240 GbpsOSPF · BGP-4

The LevelOne XEL-1291 is a 12-port Layer 3 managed 10 Gigabit switch with 8× 100M/1G/2.5G/5G/10G RJ-45 ports and 4× 1G/2.5G/10G SFP+ uplinks, designed for small server rooms, NAS/storage networks and 10G office backbones. The part number XEL-1291 refers to the 19-inch 1U rackmount version.

Its copper ports auto-negotiate from 100 Mbps up to 10 Gbps over existing Cat6/Cat6A cabling, so 10G servers, NAS units and Wi-Fi 7 access points can share one switch. A 240 Gbps non-blocking fabric keeps every port at wire speed, and dynamic routing (RIP, OSPF v2, BGP-4) lets it act as the core of a small multi-VLAN network.

Compatibility note: For full 10 Gbps over the RJ-45 ports use Cat6A (up to 100 m) or Cat6 (shorter runs). SFP+ modules and DAC cables are not included. The unit is not PoE — access points and cameras need their own power or a separate PoE switch.

Best For

✓ Small server rooms and 10G NAS storage
✓ Office backbone / core switching
✓ Virtualisation hosts with 10GbE NICs
✓ Multi-VLAN networks with inter-VLAN routing

Key Features


Multi-Gig on every copper port
8 RJ-45 ports run at 100M, 1G, 2.5G, 5G or 10G, so older Gigabit devices and new 10G servers work side by side without media converters.

Real Layer 3 routing
Static IPv4/IPv6 routes plus RIP v1/v2, OSPF v2 and BGP-4 — enough for inter-VLAN routing and WAN edge designs normally reserved for larger switches.

Resilient and secure
LACP link aggregation, MSTP (64 instances) and ERPS rings for fast failover; 802.1X, ACLs and DoS protection; 8 QoS queues per port for voice and video.

Technical Specifications

Identification
Part Number XEL-1291
EAN / GTIN 4015867242988
MPN XEL-1291
Brand LevelOne
Ports & Performance
Copper ports 8× 100M/1G/2.5G/5G/10G RJ-45 (Multi-Gig)
Fiber ports 4× 1G/2.5G/10G SFP+
Switching / forwarding 240 Gbps non-blocking · 178.56 Mpps
Packet buffer 16 Mbit
Jumbo frames 12 KB
Layer 3 Static IPv4/IPv6, RIP v1/v2, OSPF v2, BGP-4
VLAN 4K 802.1Q VLANs, QinQ, private, voice, guest VLAN
Power & Physical

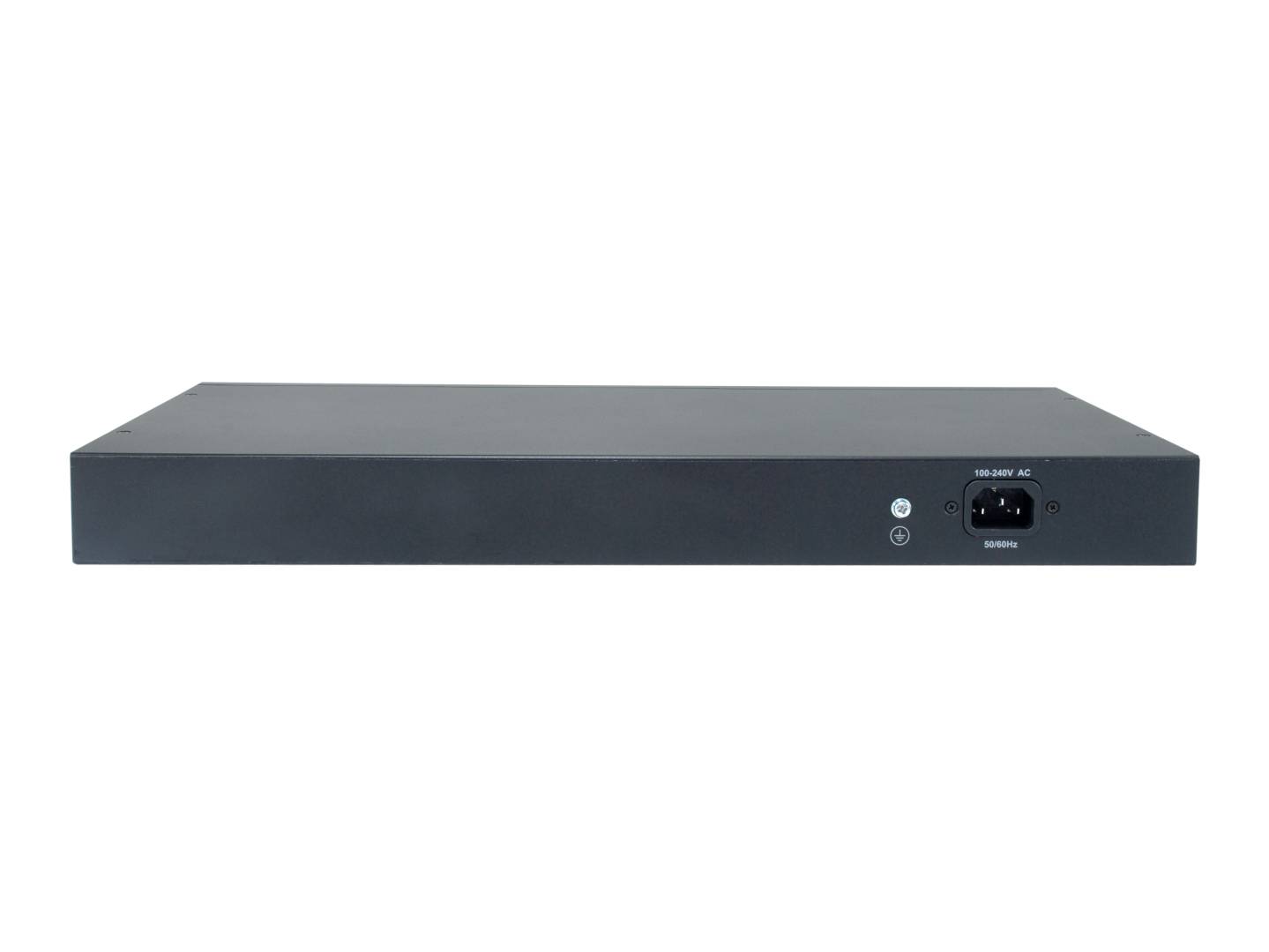

Power supply Internal, 100–240 VAC 50/60 Hz
Power consumption 48.2 W max (AC)
Size / weight 440 × 207 × 44 mm (19", 1U) · 2.5 kg

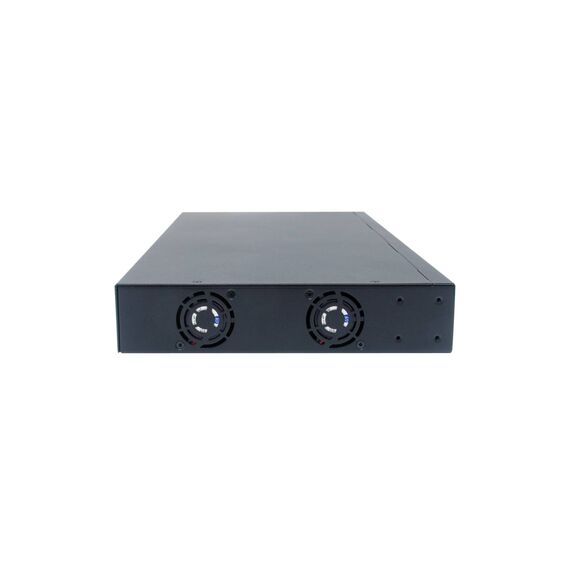

Cooling Fan-cooled
Operating temperature 0°C to 50°C
MTBF 100,000 hours

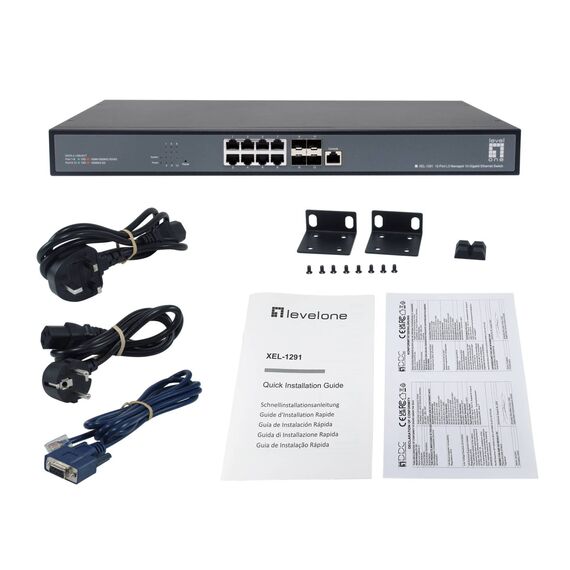

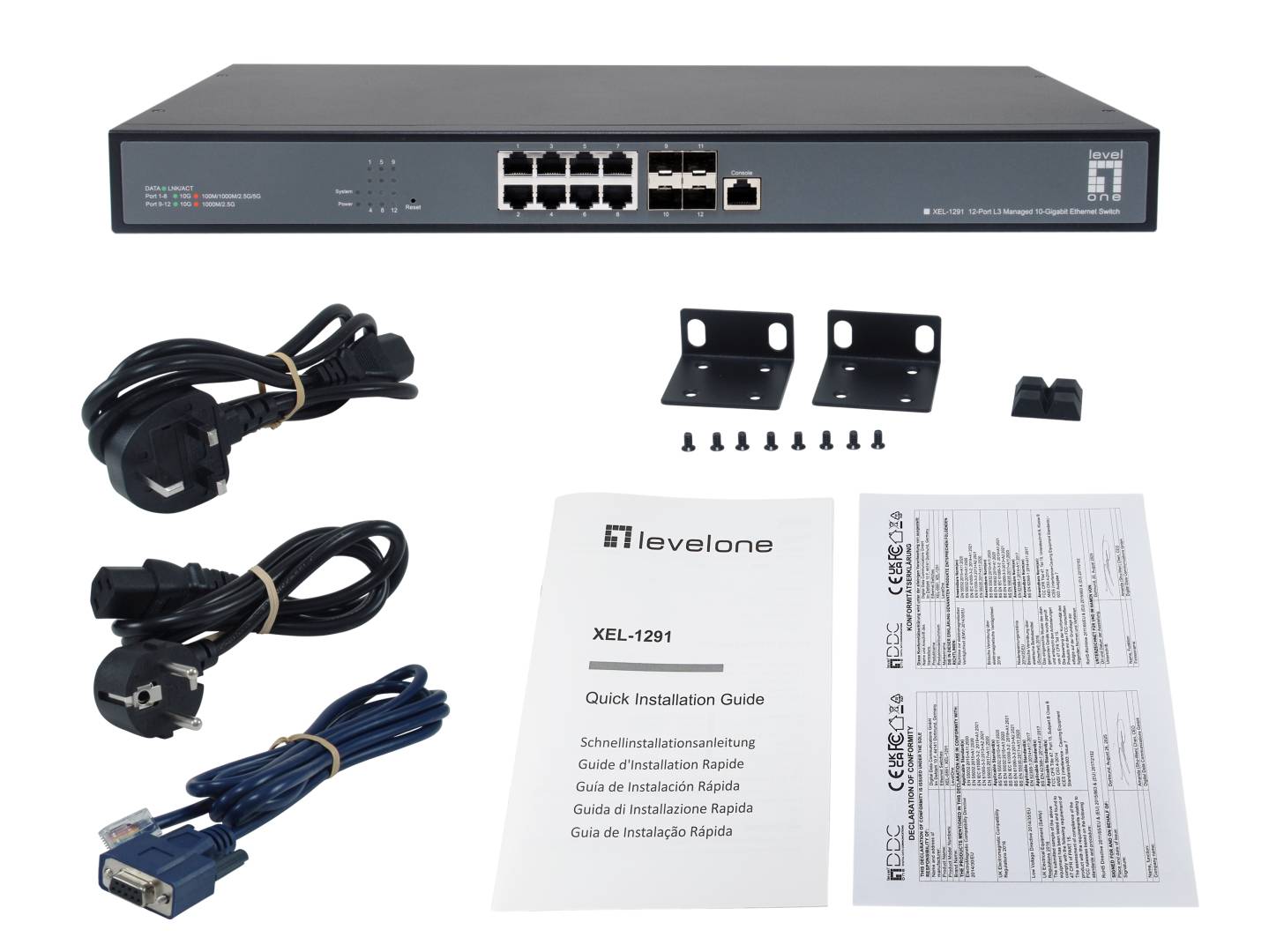

In the box Switch, power cord, DB9-RJ45 console cable, rack kit, rubber feet

Frequently Asked Questions

Does the XEL-1291 work with my existing Cat6 cabling?
Yes. Each RJ-45 port auto-negotiates 100M to 10G. Cat6A is recommended for 10 Gbps at 100 m; Cat6 or even Cat5e will run 2.5G/5G and 10G over shorter distances.
What is the difference between the XEL-1291 and the XEL-0891?
Both are L3 Multi-Gig 10G switches with the same software. The XEL-1291 has 8 copper + 4 SFP+ ports in a 19" rack chassis with internal PSU; the XEL-0891 has 4 copper + 4 SFP+ in a fanless desktop case with external adapter.
Does the XEL-1291 support PoE?
No. It is a data-only switch. Use a separate PoE switch or injectors for access points, IP phones and cameras.

Singular Expert Insight

Genuine 10G copper plus OSPF/BGP at this port count is uncommon — most 12-port 10G switches in this class are L2+ only. It is an excellent core for a small office with a 10G NAS and a few servers; access devices can then hang off cheaper Gigabit or PoE switches.
✓ Buy it if you need eight 10G copper ports for servers/NAS plus fiber uplinks and real routing in one 1U box.
✕ Skip it if you only need Gigabit speeds or you need PoE — a GTL-2885 or GEP-1011 is far more cost-effective.
→ Also consider LevelOne XEL-0891 (4× 10G RJ-45 + 4× SFP+, fanless desktop) or XQS-3126 for an all-fiber 24-port 10G rack.

Features - LevelOne - XEL-1291

Colour
black
Port Speed
  • 1 Gbps,
  • 2.5 Gbps,
  • 5 Gbps,
  • 10 Gbps
More Details
Product Code
04:569821
EAN Code
4015867242988
Manufacturer
LevelOne
