Zebra LI3608-ER Corded Extended Range 1D Barcode Scanner, Industrial Green, Scanner Only

Brand:
Zebra
Zebra LI3608 ER Industrial Green Corded Extended Range 1D Barcode Scanner
Zebra LI3608-ER Corded Extended Range 1D Barcode Scanner, Industrial Green, Scanner Only
€657.97 inc. VAT
Buy
LI3608-ER20003VZWW
€552.92
€657.97 inc. VAT
Ships from EU stock: 12 item(s)
+ −
Add to wish list Ask a question
Product Code
V369731
EAN Code
5704174198284
Manufacturer
Zebra

Quick Specs

Capture
Extended Range 1D; no QR
Connection
Corded; cable separate
Sensor
2,496-pixel linear imager
Sealing
IP65 / IP68
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Corded 1D scanning for near and distant labels

Extended Range 1DCordedIP65 / IP68Scanner only

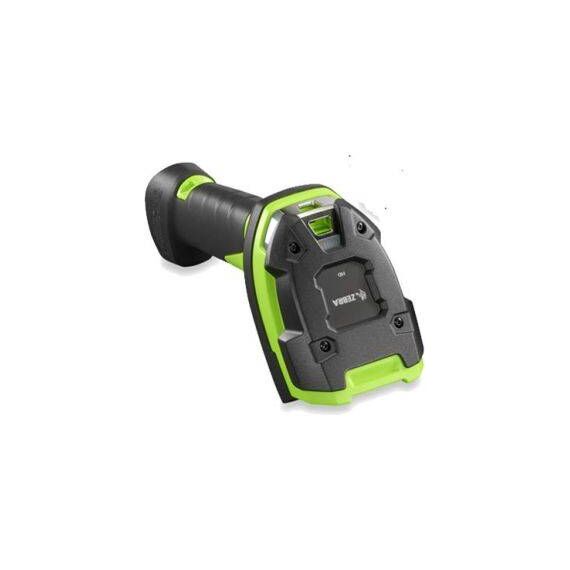

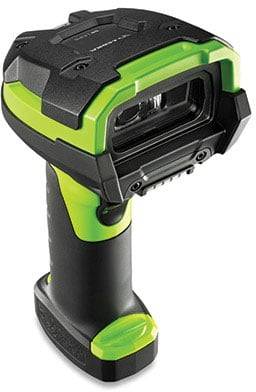

The industrial-green LI3608-ER is a corded linear imager for supported 1D barcodes on labels and screens, including suitably large warehouse labels at long distances. LI3608-ER20003VZWW supplies one scanner; select the appropriate interface cable separately. Connect it to a compatible computer or terminal and let the receiving application handle inventory or production records. It does not read QR or other 2D codes.

Before you order:
Extended Range describes optical reading distance, not wireless coverage. This LI3608 is corded, without the LI3678 Bluetooth radio or battery. Long-distance limits require the specified code size and conditions; small labels have shorter ranges.

What's in the Box

  • 1 × LI3608-ER corded scanner with vibration, Industrial Green.
  • Interface cable, optional power/network accessories, host and application are separate.

What It Means in Practice

  • Choose the correct host cable and power arrangement, connect the scanner and configure its interface using the supported tools.
  • For example, scan a carton nearby and a suitably large rack label farther away; the inventory application associates the decoded code with the relevant record.
  • Test your actual code density, contrast and ambient light at the required distance. Cable reach still limits where the operator can stand.

What Will Not Work

  • No QR/2D decoding, Bluetooth mobility or independent inventory software.
  • Industrial Ethernet requires appropriate Network Connect equipment; the scanner has no direct Ethernet socket.

Key Features


Extended Range linear capture
A 2,496-pixel imager reads supported 1D codes, with seven symbol-specific ranges listed below.

Corded host integration
USB, RS-232 and keyboard wedge are available through the corresponding cable.

Industrial protection
Current Zebra specifications provide IP65/IP68 sealing, 3 m room-temperature drops and 7,500 tumbles.

Operator feedback and management
Vibration, beeper, LEDs and Direct Decode Indicator support confirmation; Zebra tools configure and manage the scanner.

Technical Specifications

CONFIGURATION
MPN LI3608-ER20003VZWW
EAN 5704174198284
Package 1 × corded LI3608-ER scanner; interface cable and accessories separate
Colour Industrial Green / Black
Host interfaces USB; RS-232; keyboard wedge, using the appropriate cable
Industrial network option Network Connect accessories support EtherNet/IP, PROFINET, Modbus TCP and standard TCP/IP; no built-in Ethernet socket
OPTICS AND DECODING
Image sensor 2,496-pixel linear imager; 1D only
Illumination 660 nm LED
Aimer 655 nm laser
Field of view 30.7° horizontal
Minimum contrast 25% reflective difference
Skew / pitch / roll ±65° / ±65° / ±45°
1D symbologies Code 39 / 128 / 93; Codabar/NW7; Code 11; MSI Plessey; UPC/EAN; Interleaved 2 of 5; Korean 3 of 5; GS1 DataBar; Base 32 (Italian Pharma)
TYPICAL DECODE RANGES
Code 39, 7.5 mil 7.6–71.2 cm
Code 39, 10 mil 5.1–177.8 cm
Code 128, 15 mil 12.7–215.9 cm
Code 39, 20 mil 7.62–355.6 cm
Code 39, 55 mil 15.24–889 cm
Code 39, 100 mil 50.8–1727.2 cm
Code 39, 100 mil reflective 76.2–1981.2 cm
Range conditions Typical; depends on printing resolution, contrast and ambient light. Large/reflective-code limits do not apply to small labels
POWER AND PHYSICAL
Host-powered voltage 4.5–12.6 VDC
External supply voltage 11.4–12.6 VDC
Operating current 250 mA RMS typical
Standby current 110 mA RMS typical
Dimensions 18.5 × 7.6 × 13.2 cm (H × W × D)
Weight 327 g
Feedback Direct Decode Indicator; LEDs; beeper; vibration
ENVIRONMENT AND SUPPORT
Operating temperature −30–50 °C
Storage temperature −40–70 °C
Humidity 5–95% RH, non-condensing
Sealing IP65 / IP68
Drop resistance Multiple 3 m drops onto concrete at room temperature; 2.4 m across −30–50 °C
Tumble test 7,500 tumbles from 1 m
ESD ±25 kV air; ±10 kV direct / indirect
Ambient light 0–107,639 lux
Freezer transitions Heated holder accessory recommended to reduce condensation on scan window
Management 123Scan; Scanner SDK; Scanner Management Service; ScanSpeed Analytics; Zebra DNA
Manufacturer warranty 3 years from shipment, subject to Zebra terms

Frequently Asked Questions

Is the interface cable included?
No. LI3608-ER20003VZWW is scanner only. Select a cable appropriate to the host and power requirements.
Does it read QR codes?
No. It reads supported linear 1D codes only.
Does Extended Range mean Bluetooth?
No. It describes optical reading distance. LI3608-ER is corded; LI3678 is the cordless family member.
Singular Expert Insight
Choose ER when verified large or distant 1D labels justify it. Check real label ranges and the required cable before ordering. Compare scanners: Barcode scanners at Singular

Buyer’s Guide

✓

Buy it if

 you need rugged corded near/far 1D capture and can select the host cable.
✕

Skip it if

 you need QR/2D, cordless operation or a complete cable kit.
→

Also consider

 the separate USB kit or a suitable 2D/cordless reader for different requirements.
Confirm host interface, power, label distances and accessories with Singular.
