Lindy 38348 70m Cat.6 HDMI 4K60 HDBaseT Wall Plate Transmitter, DC, Weiweiß

Brand:
Lindy
Lindy 38348 / AV transmitter / 3840 x 2160 pixels / Cat6 / DC / 2
Lindy 38348 70m Cat.6 HDMI 4K60 HDBaseT Wall Plate Transmitter, DC, Weiweiß
€220.6 inc. VAT
Buy
38348
€185.38
€220.60 inc. VAT
Ships from EU stock: 4 item(s)
+ −
Add to wish list Ask a question
Product Code
04:443496
EAN Code
4002888383486
Manufacturer
Lindy

Quick Specs

Power
DC
Product Type
AV transmitter
Colour
Weiweiß
Bidirectional Ports
RS-232 3-Pin Terminal Block
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support
Singular Selected

Lindy 38348 70m Cat.6 HDMI 4K60 HDBaseT Wall Plate Transmitter, DC, Weiweiß

The Lindy 38348 is an HDMI AV transmitter designed to extend a source over Cat.6 using HDBaseT. It supports HDMI 2.0, 18G bandwidth and up to 4K@60Hz 4:4:4, with HDR support, IR pass-through and RS-232 pass-through for installed AV setups.
DC AV transmitter Weiweiß RS-232 3-Pin Terminal Block

The Lindy 38348 is an HDMI AV transmitter designed to extend a source over Cat.6 using HDBaseT. It supports HDMI 2.0, 18G bandwidth and up to 4K@60Hz 4:4:4, with HDR support, IR pass-through and RS-232 pass-through for installed AV setups.

Best For
✓ Ideal for installers
✓ RS-232 control available

Key Features


Commercial Fit
It combines 4K@60Hz 4:4:4 support with HDBaseT transmission, HDCP 2.2, and pass-through control features in a compact wall plate transmitter for installed AV work.

Bidirectional Ports
Bidirectional Ports: RS-232 3-Pin Terminal Block

Power
Power: DC

Power Source Type
Power Source Type: DC

Technical Specifications

Product Type AV transmitter
Transmission Protocol HDBaseT
AV Interface HDMI
Interface Standard HDMI 2.0
Maximum Resolution 3840x2160@60Hz 4:4:4 8Bit
Supported Bandwidth 18Gbit/s
Transmission Medium Cat.6
Maximum Range 40m - 4K@60Hz | 70m - 1080p@60Hz
HDCP Support 2.2
EDID Pass Through Pass-Through
Audio Pass-through
IR Support 20-60kHz
Serial Interface RS-232 Pass Through

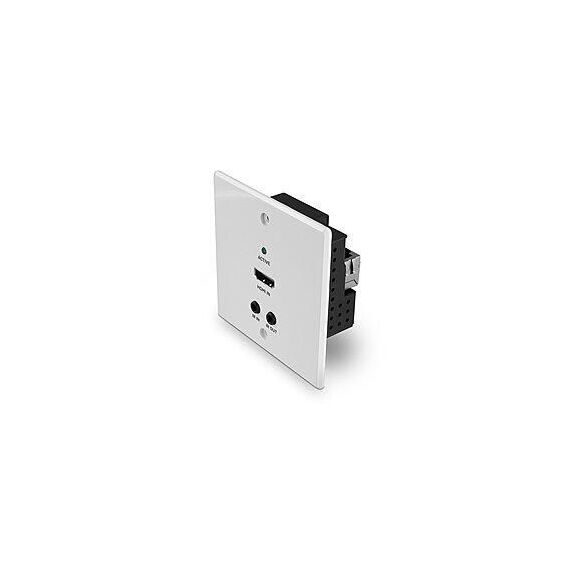

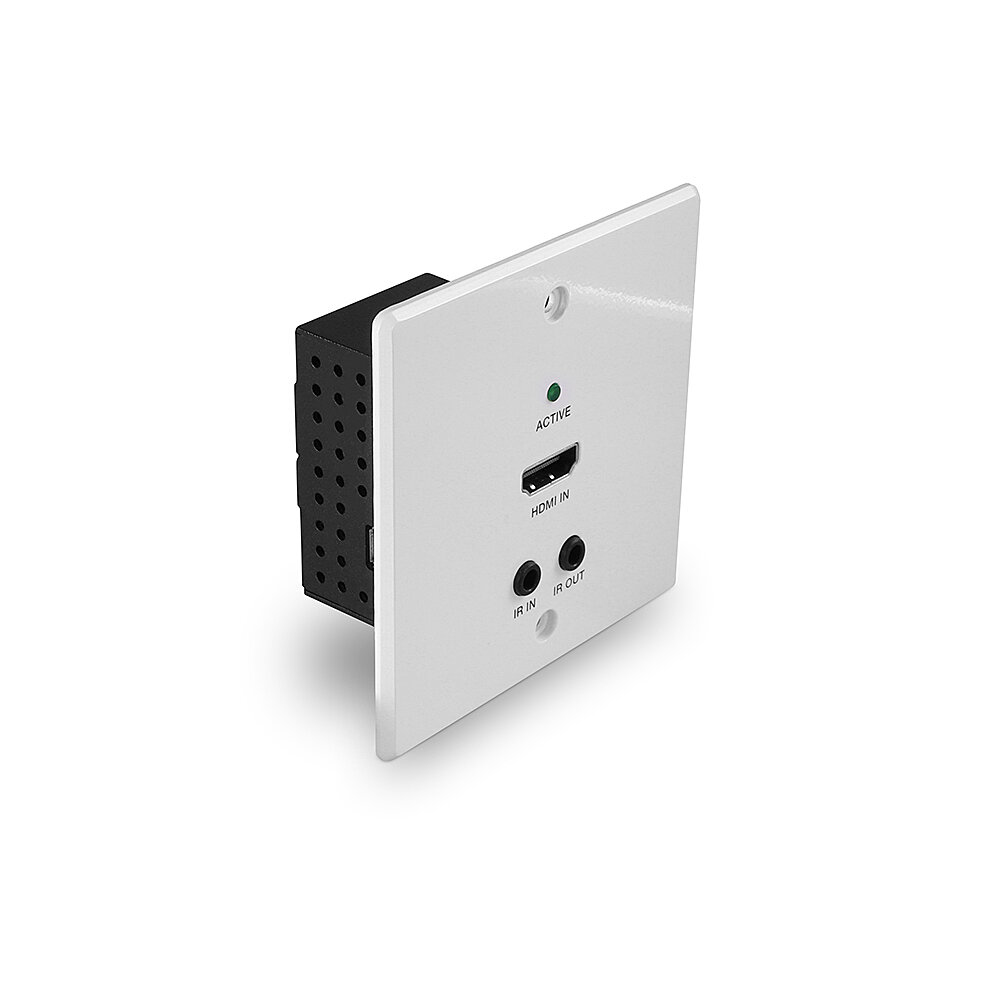

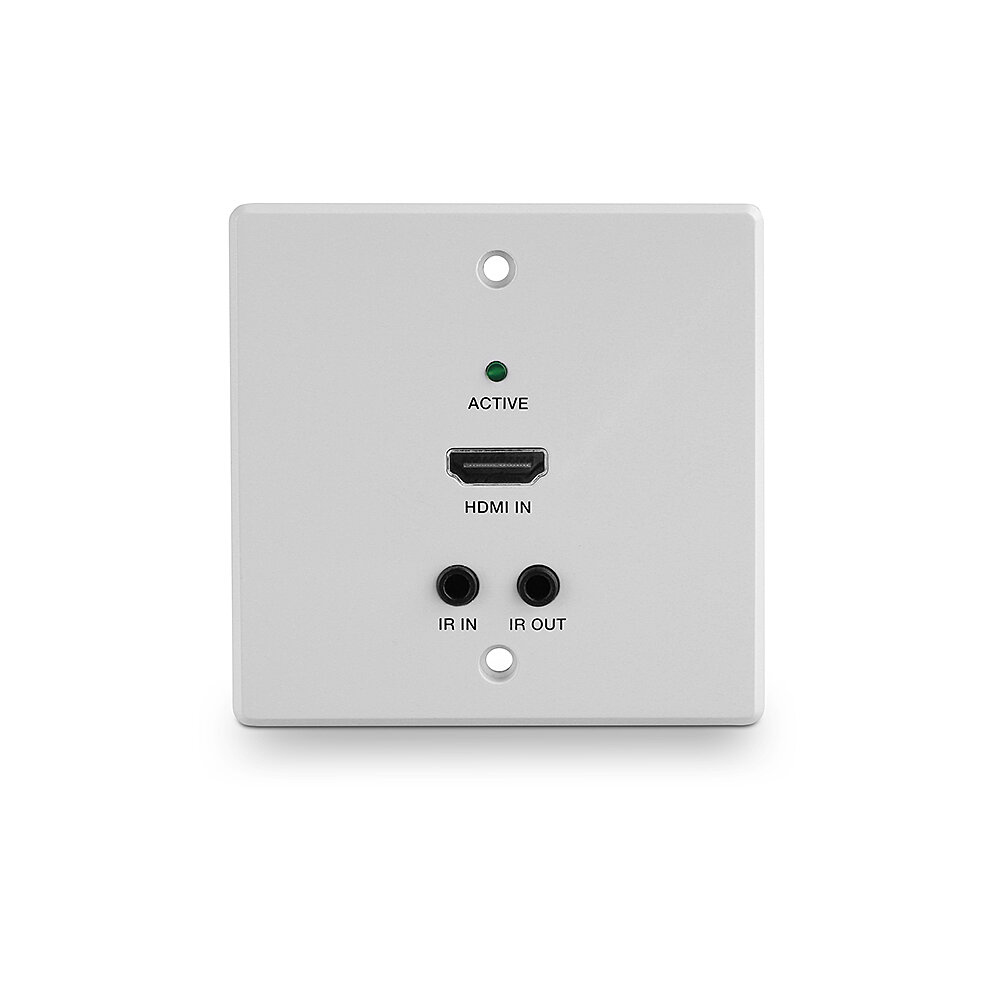

Transmitter Inputs HDMI Type A socket | 3.5mm IR socket

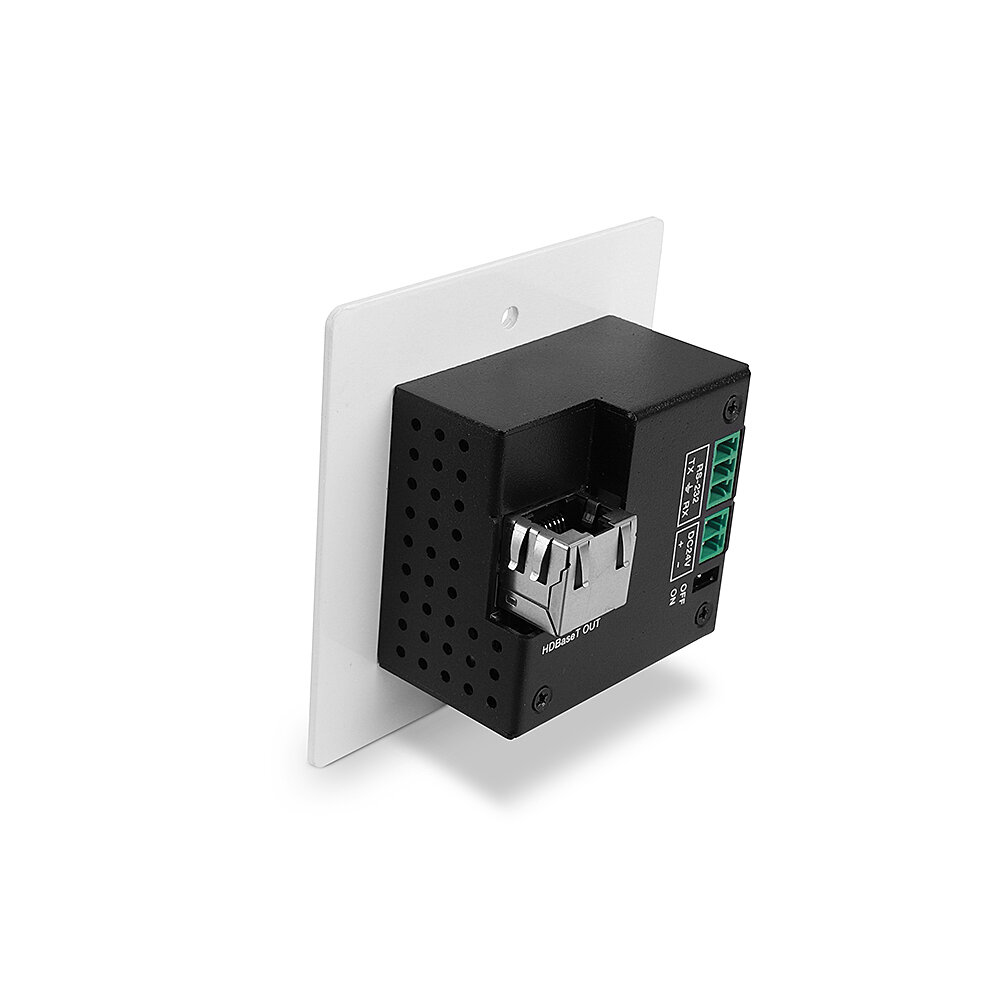

Transmitter Outputs RJ45 socket | 3.5mm IR socket

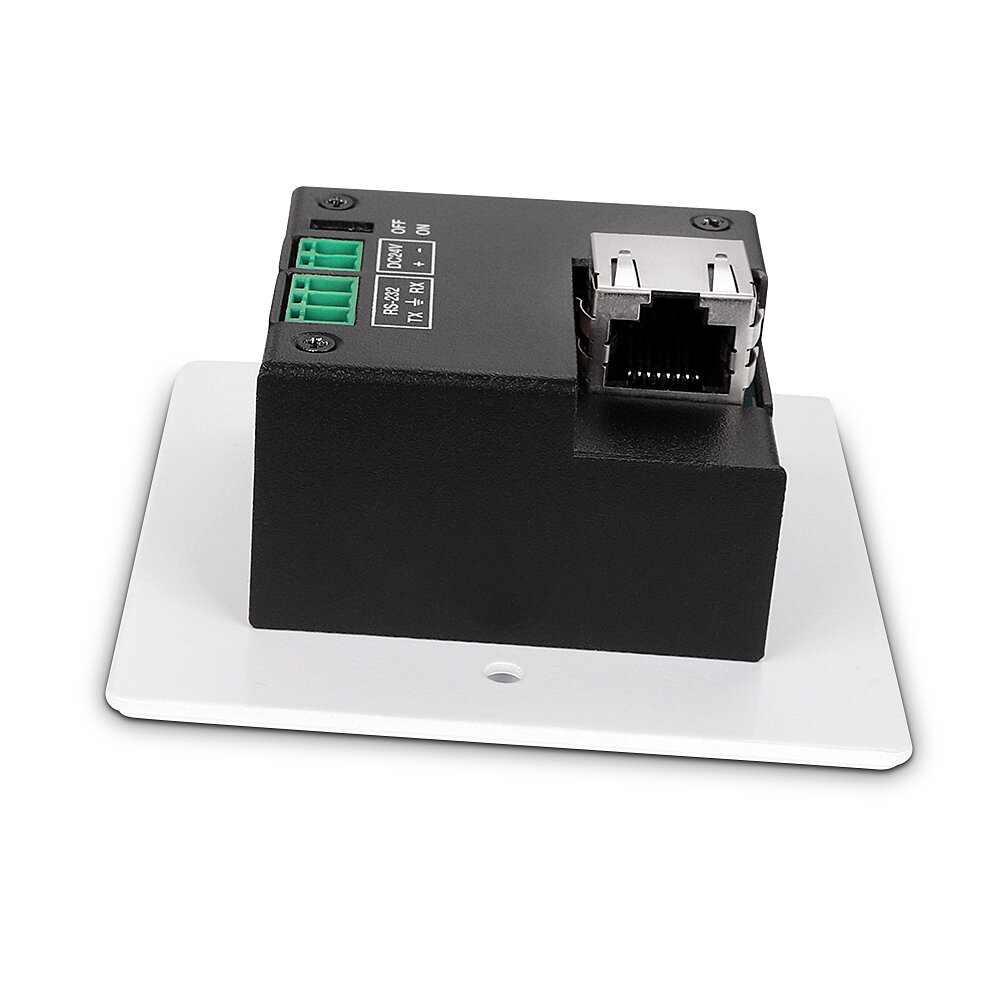

Bidirectional Ports RS-232 3-Pin Terminal Block
Power Source Type DC
Operating Voltage 24V
Output Current 1A
Power Supply / Mains Adapter 2-Pin Terminal Block DC connection
Case Material Metal
Colour White | Weiweiß
Width 80 mm
Depth 80 mm
Height 38 mm
Net Weight 0.39 kg
Package Contents HDMI transmitter | Multi-country power supply (EU, UK, US & AUS) | IR sender cable, 1.5m | IR receiver cable, 1.5m | 3-pin terminal block | 2-pin terminal block | Lindy manual | Multi-Country Netzteil (EU, UK, US & AUS) | IR Senderkabel, 1.5m | IR Empfängerkabel, 1.5m | Lindy Handbuch
Warranty 2 years
Compliance CE | UKCA | FCC | RoHS | REACH | California Proposition 65
Power DC
SKU / EAN 38348 | 4002888383486

Frequently Asked Questions

What should I know before buying?
This is a transmitter only, so a compatible receiver is required. It uses Cat.6 and DC power, and the included package contents should be checked before installation.
What connectivity does it offer?
HDMI
What is included in the box?
HDMI transmitter | Multi-country power supply (EU, UK, US & AUS) | IR sender cable, 1.5m | IR receiver cable, 1.5m | 3-pin terminal block | 2-pin terminal block | Lindy manual | Multi-Country Netzteil (EU, UK, US & AUS) | IR Senderkabel, 1.5m | IR Empfängerkabel, 1.5m | Lindy Handbuch
Singular Expert Insight
It combines 4K@60Hz 4:4:4 support with HDBaseT transmission, HDCP 2.2, and pass-through control features in a compact wall plate transmitter for installed AV work.

Buyer’s Guide

Buy it if
Ideal for installers and users who need to send an HDMI source to a remote display over Cat.6 with HDBaseT, while keeping IR and RS-232 control available.
Skip it if
This is a transmitter only, so a compatible receiver is required. It uses Cat.6 and DC power, and the included package contents should be checked before installation.
Also consider
Also consider a simpler HDMI extender if you do not need 4K@60Hz, IR, or RS-232 pass-through, or a matching receiver-based HDBaseT kit if you need a complete end-to-end system.
