Lindy 39347 USB-C Video and USB 2.0 HDBaseT 3.0 Extender Kit, 4K60 up to 70m, 4K30 up to 100m

Brand:
Lindy

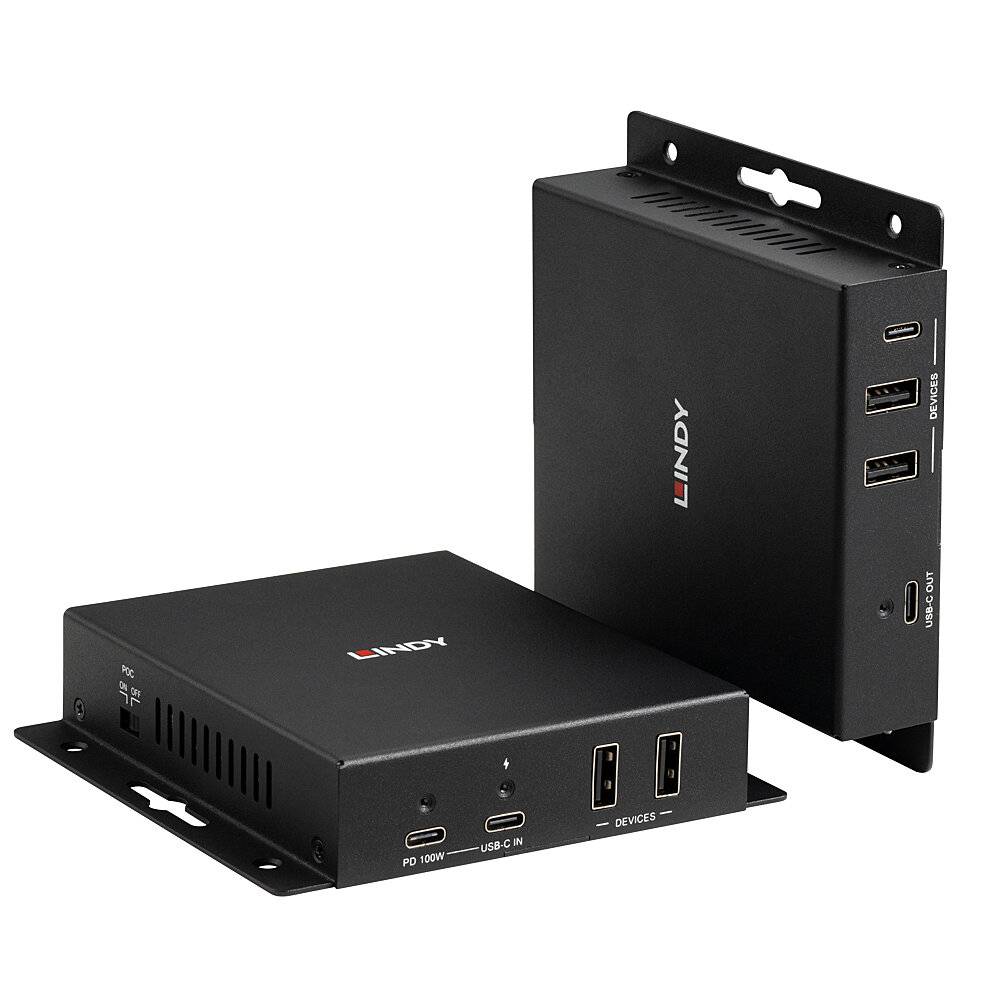

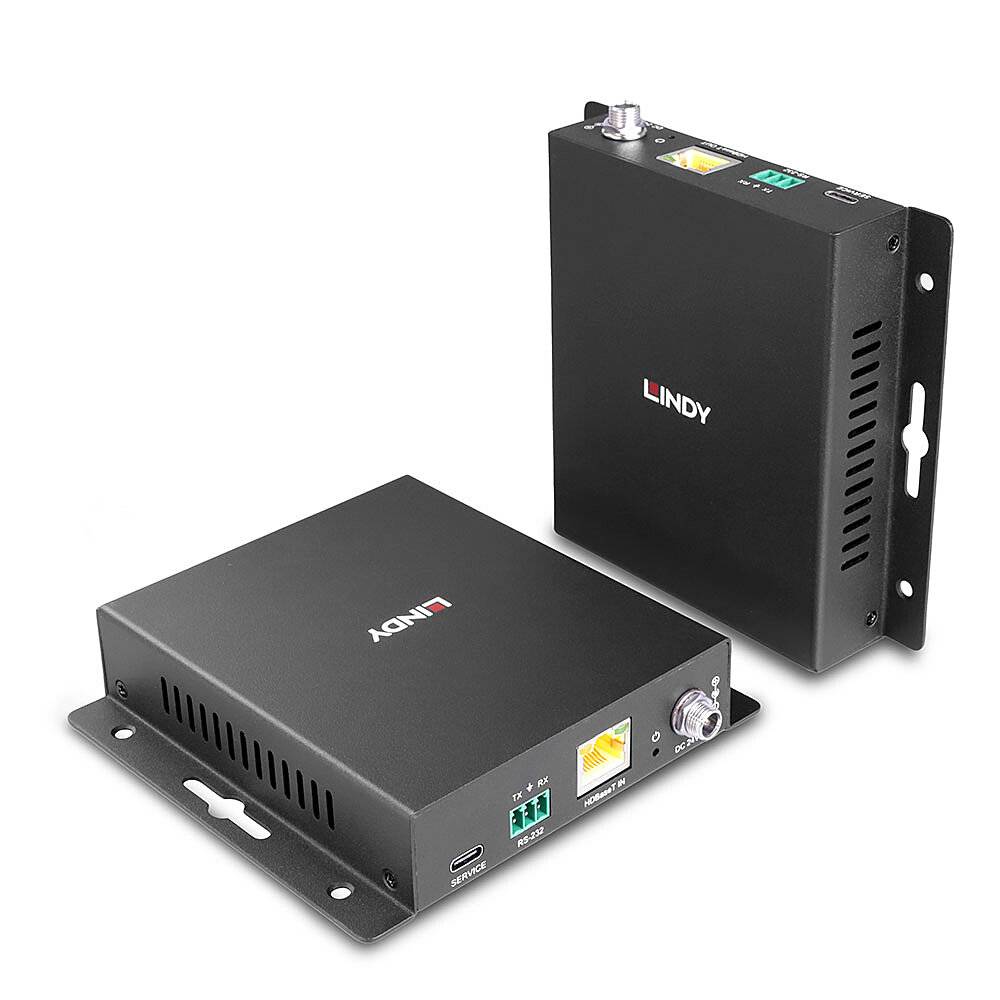

Lindy 39347 Black USB-C HDBaseT 3.0 Transmitter and Receiver Kit
Lindy 39347 USB-C Video and USB 2.0 HDBaseT 3.0 Extender Kit, 4K60 up to 70m, 4K30 up to 100m
€901.07 inc. VAT
Buy
39347
€757.20
€901.07 inc. VAT
Ships from EU stock: 2 item(s)
+ −
Add to wish list Ask a question
Product Code
03:281180
EAN Code
4002888393478
Manufacturer
Lindy

Quick Specs

4K60 reach
Up to 70 m / 4:4:4 8-bit
4K30 reach
Up to 100 m / direct Cat.6A
Video and peripherals
USB-C DP Alt Mode / USB 2.0
Power arrangement
PoC / external PD up to 100 W
Delivery

Order Today...
Ships...
Delivery...
ℹ️ Large or fragile items (e.g. monitors) may require extra handling time. We'll keep you informed.
Payment options
✓ Bank Deposit
Secure checkout with flexible payment methods
Trusted Tech Choice
Buying Benefits Verified
Competitive EU pricing
Delivered to Cyprus from EU stock
Local warranty support

Lindy 39347 USB-C Video and USB 2.0 HDBaseT 3.0 Extender Kit, 4K60 up to 70m, 4K30 up to 100m

Up to 70 m / 4:4:4 8-bitUp to 100 m / direct Cat.6AUSB-C DP Alt Mode / USB 2.0

Keep a USB-C computer away from the display while carrying video, USB peripherals and RS-232 control through one direct Cat.6A link. The Lindy 39347 includes both transmitter and receiver, with 4K60 operation rated up to 70 m and 4K30 up to 100 m. It suits a remote touchscreen or presentation point when the source and display support the required USB-C video mode.

Compatibility — check before buying:
Use a source with USB-C DP Alt Mode and suitable USB-C video cables. For the specified distances, use a direct solid-core Cat.6A or higher U/UTP or F/UTP link. Laptop PD charging requires a separate USB-C supply; Ethernet switches are not supported.

Key Features


Distance matched to video mode
The 70 m 4K60 reference uses 4:4:4 8-bit or 4:2:2 12-bit video. For a 100 m installation, plan for 4K30 and high-quality solid-core Cat.6A or higher U/UTP or F/UTP cabling.

USB peripherals at either end
Two USB-A device ports are provided on the transmitter; the receiver adds two USB-A and one USB-C device port. USB 2.0 bandwidth is up to 350 Mbps.

Power and charging are separate
The included supply and bidirectional PoC can power the extender pair from one end. Up to 100 W charging of the source requires a separate USB-C supply connected to the transmitter’s CHARGE input.

Control the installation
RS-232 pass-through and API commands support room-system integration. EDID presets, copy and user-defined modes help configure the source/display handshake.

Technical Specifications

Identification
Brand / model Lindy 39347
SKU / MPN 39347
EAN / GTIN 4002888393478
Video and data performance
Transmission / chipset HDBaseT 3.0 / VS3000
USB-C video interface DisplayPort Alternate Mode 1.2a
AV bandwidth 18 Gbps
4K60 distance Up to 70 m: 3840 × 2160 at 60 Hz, 4:4:4 8-bit or 4:2:2 12-bit
4K30 distance Up to 100 m: 3840 × 2160 at 30 Hz, 4:4:4 8-bit
Cable requirement Direct solid-core Cat.6A or higher U/UTP or F/UTP; couplers, wall plates and patch panels can reduce reach
HDR formats HDR, HDR10, HDR10+, Dolby Vision, HLG
HDCP 2.2 pass-through
Audio pass-through LPCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
USB extension USB 2.0, available bandwidth up to 350 Mbps

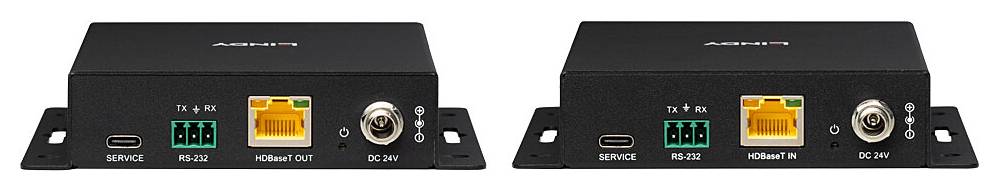

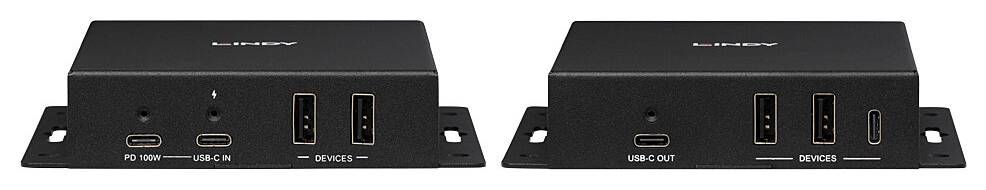

Connections and control
Transmitter input 1 × USB-C DP Alt Mode/USB 2.0 source; 1 × USB-C PD charging input
Transmitter devices / link 2 × USB-A device ports; 1 × RJ45 HDBaseT output
Receiver input / display output 1 × RJ45 HDBaseT input; 1 × USB-C DP Alt Mode/USB 2.0 output
Receiver device ports 2 × USB-A; 1 × USB-C
Peripheral port power Up to 5 V, 1 A per device port
Control ports on each unit USB-C service; RS-232 3-pin terminal block
RS-232 functions Pass-through and API control; 115200 baud, 8 data bits, 1 stop bit, no parity
EDID management Presets, copy and user-defined modes
Service functions Firmware update; transmitter API control and internal test-pattern generator
Indicators Power red; link green; signal yellow (HDCP status)
Dedicated IR / CEC / audio ports No dedicated IR, CEC support or separate audio output listed in exact technical specification
Power
Included power supply 24 V DC, 3.75 A; 100–240 V AC, 50/60 Hz input
DC connector Screw-type 5.5/2.1 mm
Extender consumption 46.32 W maximum, manufacturer specification
PoC Bidirectional Power over Cable; on/off switch; power supply needed at one end
Source-device charging Up to 100 W via transmitter USB-C IN only when a separate USB-C PSU is connected to CHARGE
Physical and environmental
Dimensions, W × D × H Approximately 120 × 117 × 25.5 mm
Housing / colour Metal / black
Manufacturer net / gross weight 1.8 kg / 2.06 kg
Packaging size 320 × 180 × 80 mm; carton box
Operating / storage temperature 0–40°C / -20–60°C
Humidity 20–80% RH, non-condensing
ESD protection ±8 kV air discharge; ±4 kV contact (Human Body Model)
Use Indoor only
Compliance CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Package contents
Included items Transmitter and receiver; 24 V DC 3.75 A IEC power supply with screw-type 5.5/2.1 mm connector; UK, EU, US and AUS mains leads; Two 3-pin terminal blocks and Lindy manual
Display connection options USB-C DP Alt Mode display; HDMI or DisplayPort via a suitable separately purchased USB-C DP Alt Mode video converter

What's in the Box

Transmitter and receiver
24 V DC 3.75 A IEC power supply with screw-type 5.5/2.1 mm connector
UK, EU, US and AUS mains leads
Two 3-pin terminal blocks and Lindy manual

What Will Not Work

Not for routing through Ethernet network switches.
Not a USB 3.x extender; USB 2.0 bandwidth is up to 350 Mbps.
A USB-C connector without DP Alt Mode cannot supply the required video signal.

Frequently Asked Questions

Can the RJ45 ports connect through an Ethernet switch?
No. They are the point-to-point HDBaseT connection between transmitter and receiver. The manual specifically says not to connect them to a network port.
Does the included power supply provide 100 W laptop charging?
No. Source charging is supplied through a separate USB-C power supply at CHARGE. The included 24 V supply powers the extender system.
Can it connect to an HDMI or DisplayPort screen?
Lindy supports using a suitable USB-C DP Alt Mode video converter at the receiver output. Choose the converter for the display input and required resolution; it is not part of the verified package.
Singular Expert Insight
Confirm the source’s DP Alt Mode support and the actual cable route before choosing this kit. A 100 m headline does not mean 4K60 at 100 m, and a standard Ethernet network cannot replace the direct HDBaseT link. Compare network cable options Tell us your equipment model and we can check the compatibility requirements.

Buyer’s Guide

Buy it if

You need USB-C video, USB peripherals and serial control at a remote display point.

Skip it if

You require 4K60 at 100 m or USB 3.x peripheral speeds.

Also consider

A different verified extender for longer 4K60 reach or faster USB data.

Features - Lindy - 39347

Colour
black
Interface
  • USB Type-C,
  • USB2.0
More Details
Product Code
03:281180
EAN Code
4002888393478
Manufacturer
Lindy
Technical specifications
Resolution
4K (UHD)
Resolution (raw)
3840×2160
