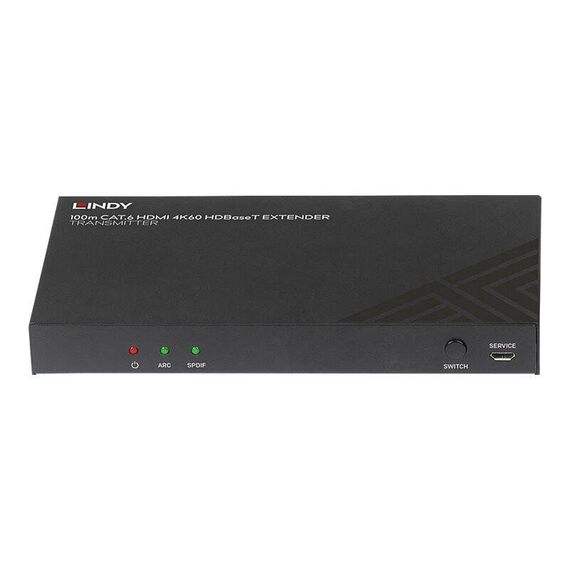

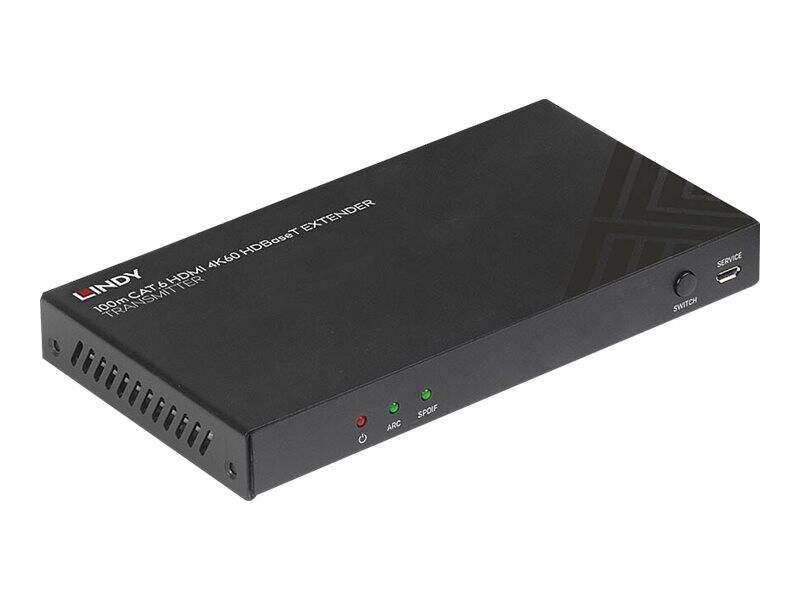

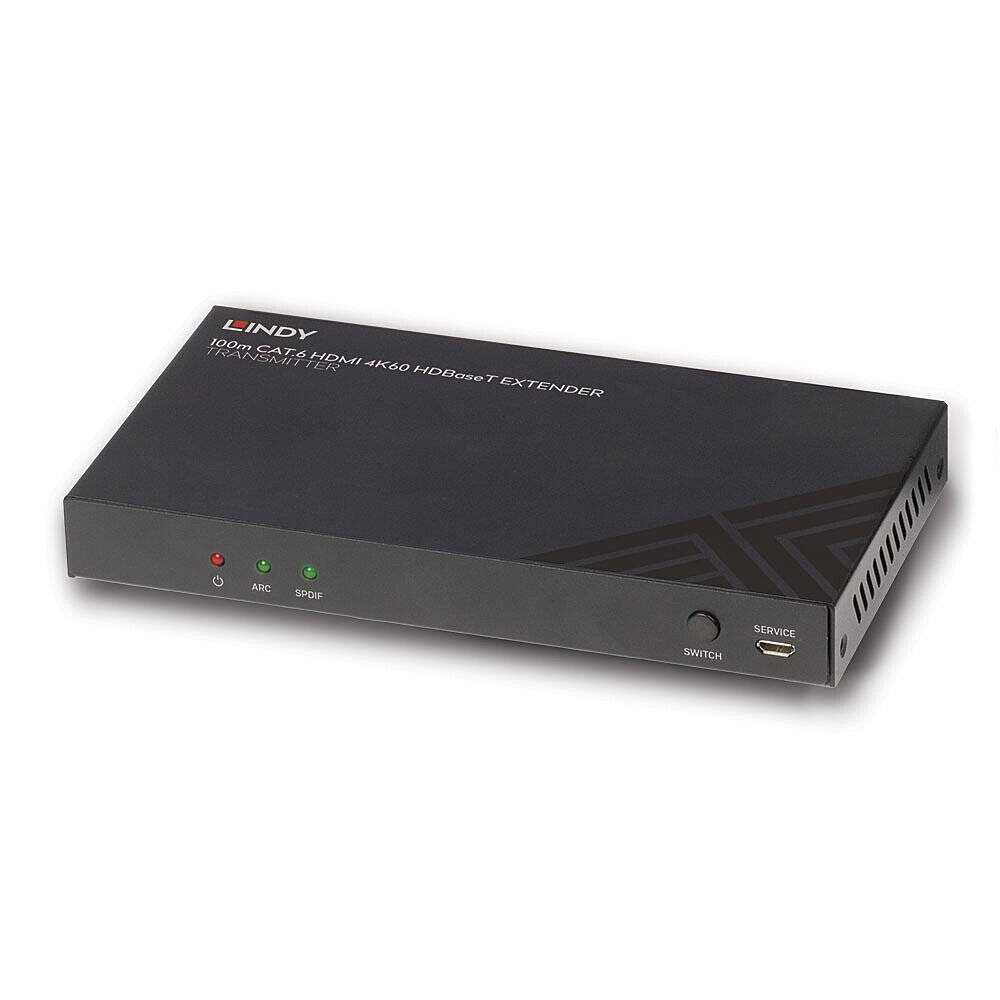

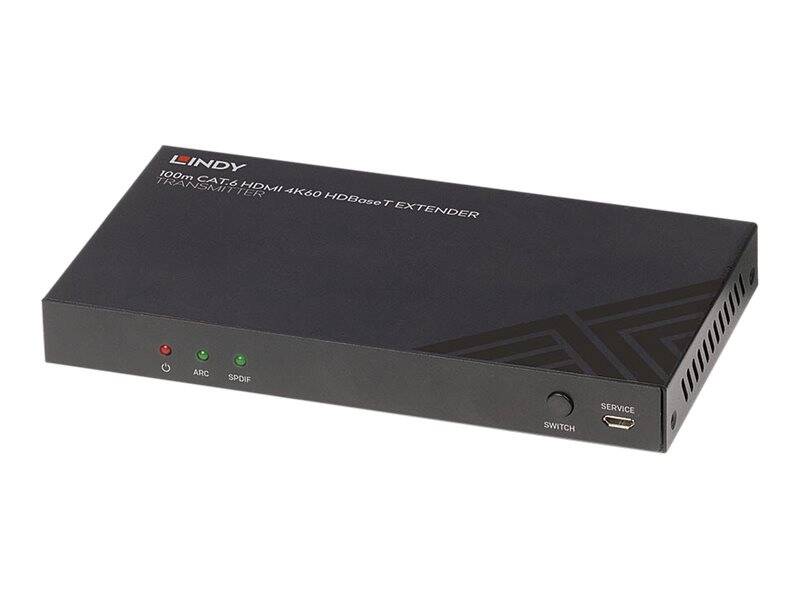

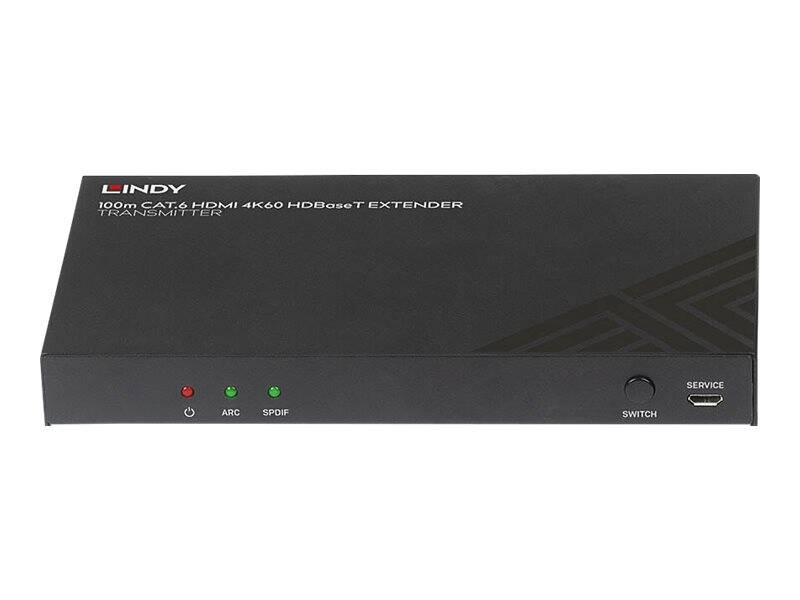

LINDY / Video/audio/infrared/serial extender / transmitter / HDMI, HDBaseT / over CAT 6 / up to 100 m | 38341
Please sign in so that we can notify you about a reply
Special Features
- Distributes HDMI resolutions up to 100m over Cat.6 network cable via HDBaseT technology
- Supports HDMI 18G resolutions up to 4K@60Hz 4:4:4, with additional support for HDR
- ARC Support as well as RS-232, CEC & Ethernet pass-through & bi-directional IR for simple control
- Supports PoC (Power over cable), requiring a power supply connection from only one side of the installation
Product Specification
| Device Type | Video/audio/infrared/serial extender (transmitter) |
| Form Factor | External |
| Colour | Black |
| Networking | Networking |
| Connectivity Technology | Wired |
| Data Link Protocol | HDMI, HDBaseT |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Max Transfer Distance | 100 m |
| Features | HDCP compliant, EDID Pass-Through, metal housing |
| Expansion / Connectivity | Expansion / Connectivity |

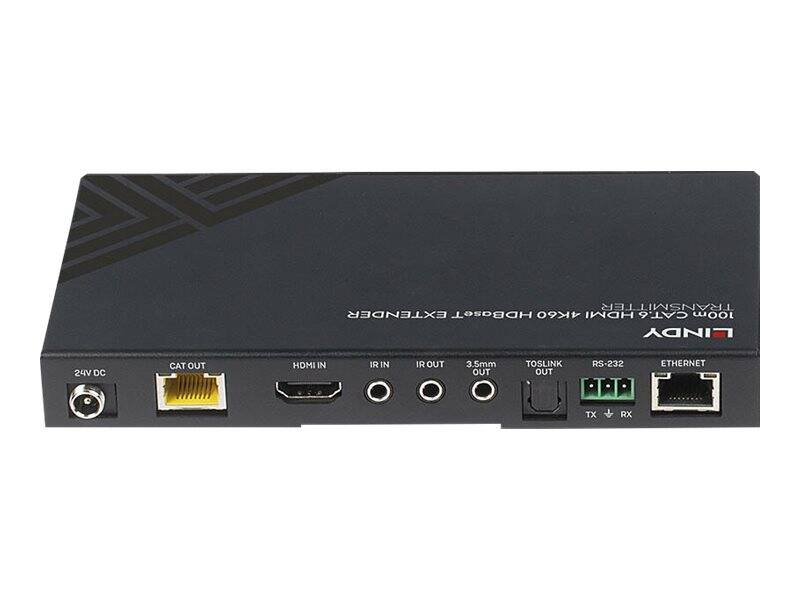

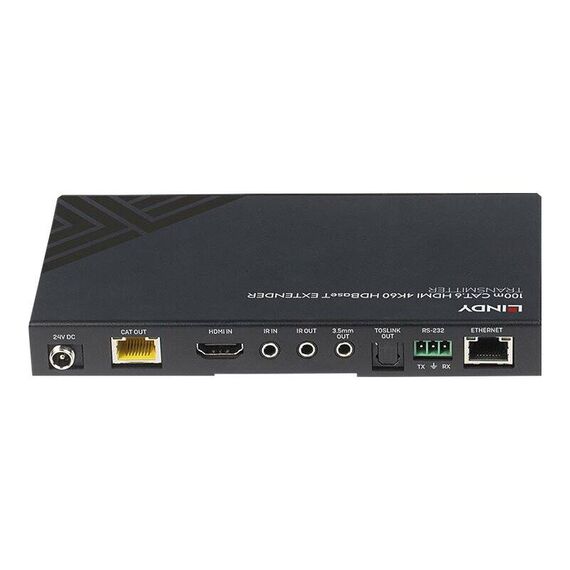

| Interfaces | 1 x IR (transmitter input) - mini jack ¦ 1 x HDMI input (transmitter) - 19 pin HDMI Type A ¦ 1 x HDBaseT (transmitter output) - RJ-45 ¦ 1 x IR (transmitter output) - mini jack ¦ 1 x RS-232 - 3 pin terminal block ¦ 1 x TOSLINK (transmitter output) ¦ 1 x audio (transmitter output) - mini jack |
| Miscellaneous | Miscellaneous |
| Included Accessories | 4 x screws, 3-pin terminal block, 2 mounting ears |
| Cables Included | 1 x IR emitter cable - 1.5 m ¦ 1 x IR transmitter cable - 1.5 m |
| Compliant Standards | FCC, RoHS, REACH, UKCA |
| Power | Power |
| Power Over Ethernet (PoE) | PoC |
| Voltage Required | DC 24 V |
| Dimensions & Weight | Dimensions & Weight |
| Width | 16.3 cm |
| Depth | 9 cm |
| Height | 1.6 cm |
| Weight | 380 g |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 22 cm |
| Shipping Depth | 13 cm |
| Shipping Height | 7 cm |
| Shipping Weight | 800 g |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 20 - 90% RH (non-condensing) |
